I/O |
SKU:
JU-P20612-S1

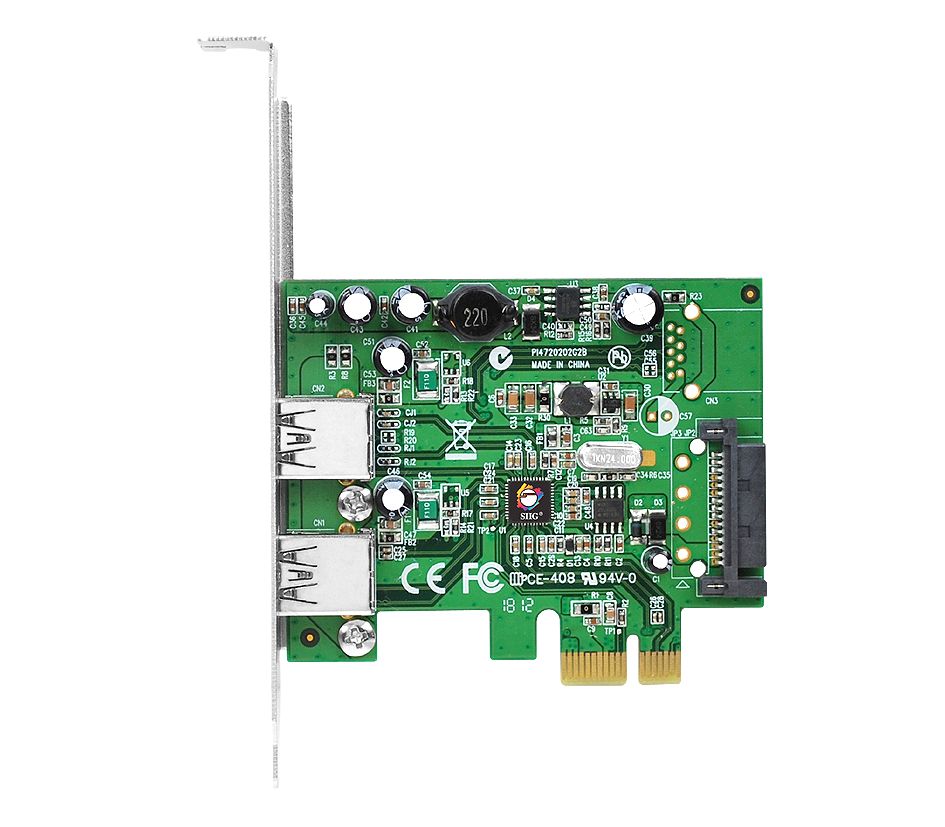

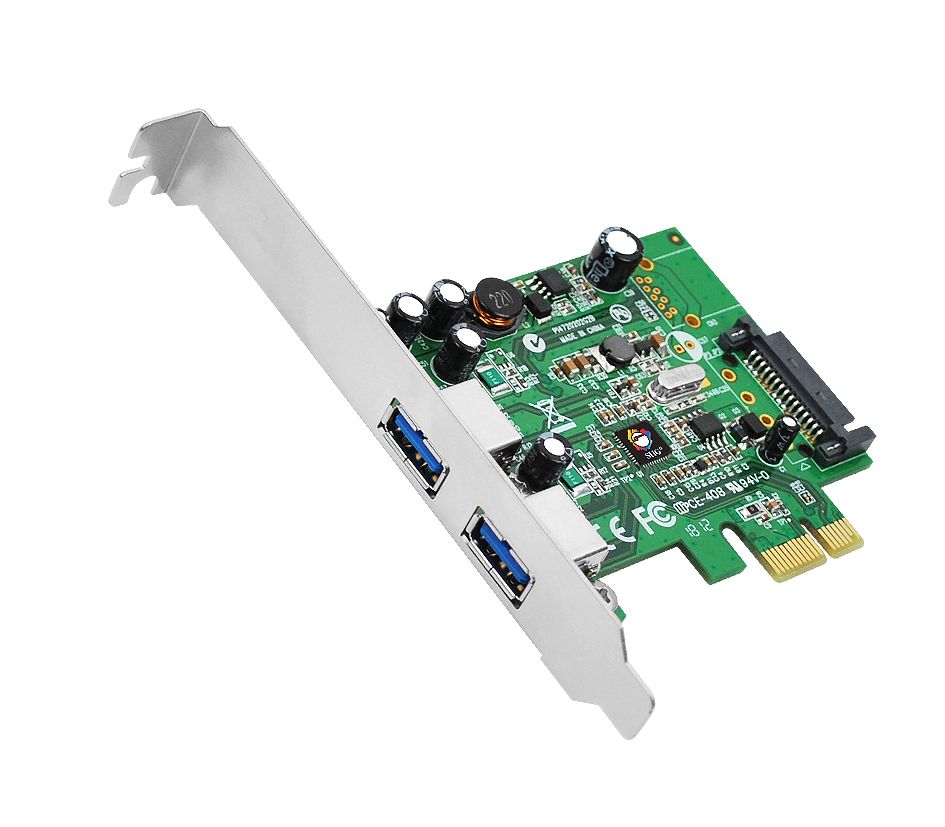

DP 2-Port USB 3.0 PCIe
USB PCIe Card
2-Port USB-A
USB 5Gbps
UASP
SATA Power
Regular price
$39.99
Unit price
/
Unavailable
Shipping calculated at checkout.
DP 2-Port USB 3.0 PCIe is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Add Two USB 3.0 Ports via PCIe
Add Two USB 3.0 Ports via PCIe
High-Bandwidth Device Support
High-Bandwidth Device Support
SuperSpeed USB Performance
SuperSpeed USB Performance
UASP Support
UASP Support
Flexible System Installation
Flexible System Installation
Features
- Adds two USB 3.0 ports to your PCIe-enabled desktop PC -- enhancing existing systems with the latest USB 3.0 technology.
- Works with high-bandwidth USB 3.0 devices, such as external hard disks, high resolution webcams, video surveillance cameras, digital video cameras, multi-channel audio and more.

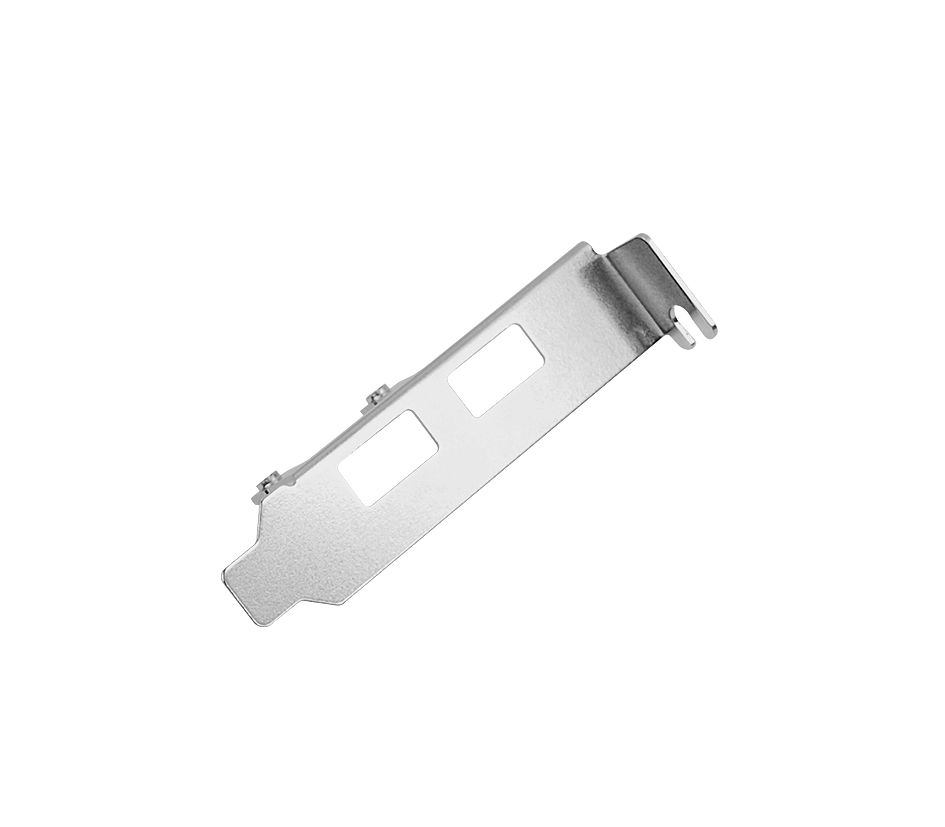

- Dual profile design to work with full height and low profile chassis with included bracket.
- Supports UASP function (with Windows 11,10, and 8 native USB 3.0 Host driver only).
| Chipset | Renesas uPD720202 |
| Features | - Supports UASP function (with Windows 10 and 8 native USB 3.0 Host driver only) - Supports data rate up to 5Gb/s and backward compatible with USB 2.0/1.1 devices - Supports per port over-current protection Adds two external USB 3.0 ports to your PCIe-enabled desktop PC |
| Compliance | Universal Serial Bus 3.0 Specification PCI Express Base Specification, Revision 2.0 |
| Connectors | 2x 9-pin, Type A, USB 3.0, Female, External 1x 15-pin, Serial ATA, for Power |
| Certifications/Standards | FCC, CE, RoHS |
| UPC Code | 662774015446 |
| Warranty | Lifetime limited |
| Country of Origin | China |
| System Requirements | - Desktop PC with an available PCI Express (PCIe) slot - Windows® 11 (64-bit) / 10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit) - Windows® Server 2008 R2 / Server 2003 & 2008 (32-/64-bit) |
| Product | |
| Dimensions(L) x (H) x (W) | 3.15" x 2.44" x 0.71" 8.00 cm x 6.20 cm x 1.80 cm |
| Weight | 0.11 lb (0.05 kg) |
| Unit Package | |
| Dimensions(L) x (H) x (W) | 8.70" x 1.50" x 6.30" 22.10 cm x 3.81 cm x 16.00 cm |
| Weight | 0.33 lb (0.15 kg) |
| Master Carton | |
| Dimensions(L) x (H) x (W) | 17.72" x 12.99" x 16.93" 45.01 cm x 32.99 cm x 43.00 cm |
| Weight | 14.33 lbs (6.50 kg) |
| Quantity | 40pcs/ctn |
| Package Contents | 1x DP 2-Port USB 3.0 PCIe 1x Low profile bracket 1x Driver CD 1x Installation guide |
Q1: Does this card work with windows 11?
Q1: Does this card work with windows 11?
A1: Yes, Windows 11 is supported. No driver is required because Windows 11 comes with a compatible driver and installs it automatically.
