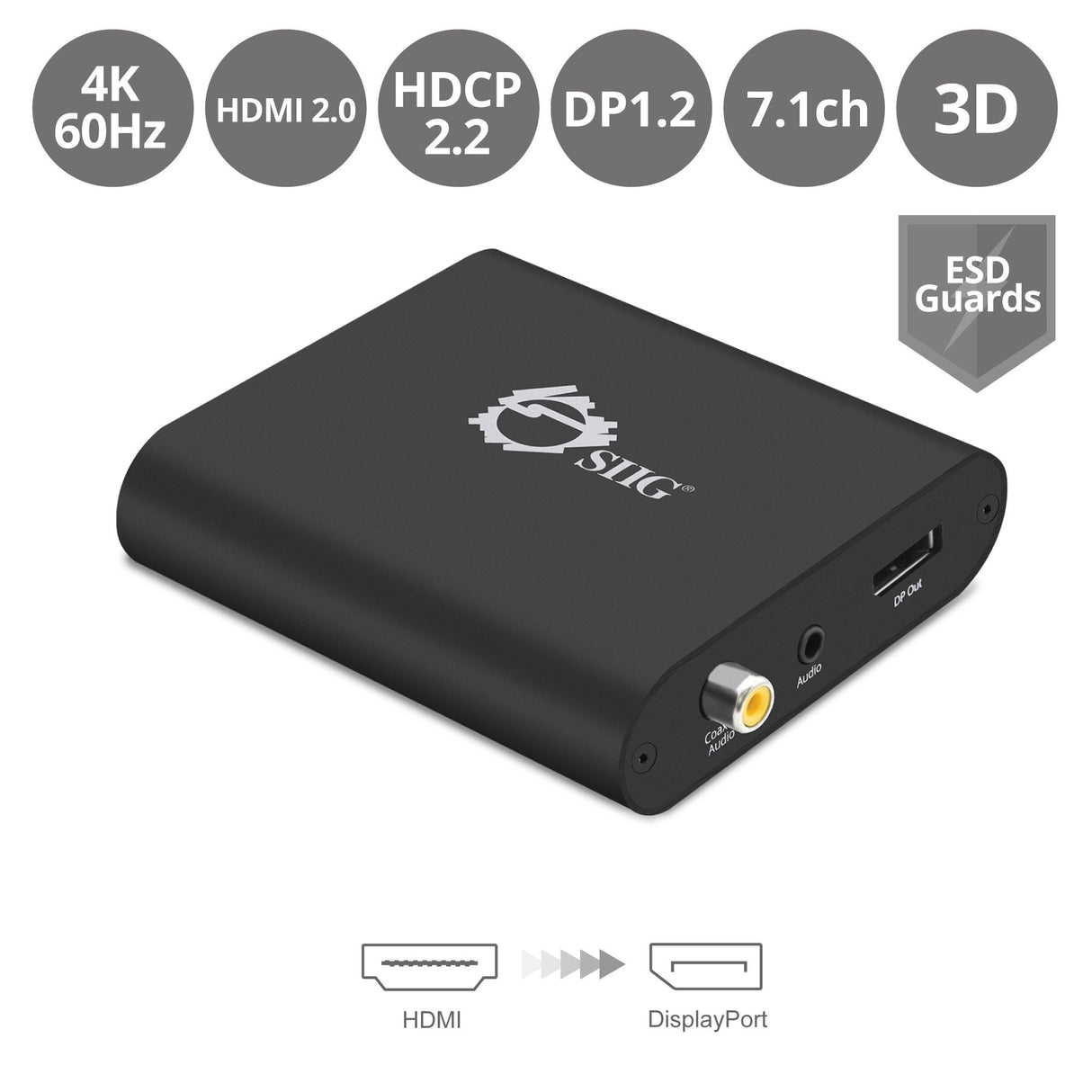

HDMI 2.0 to DisplayPort 1.2 Converter - 4Kx2K 60Hz

CE-H22Z11-S1

Transforms an HDMI 2.0 port into a DisplayPort 1.2 port connect your 4K UHD TV

features

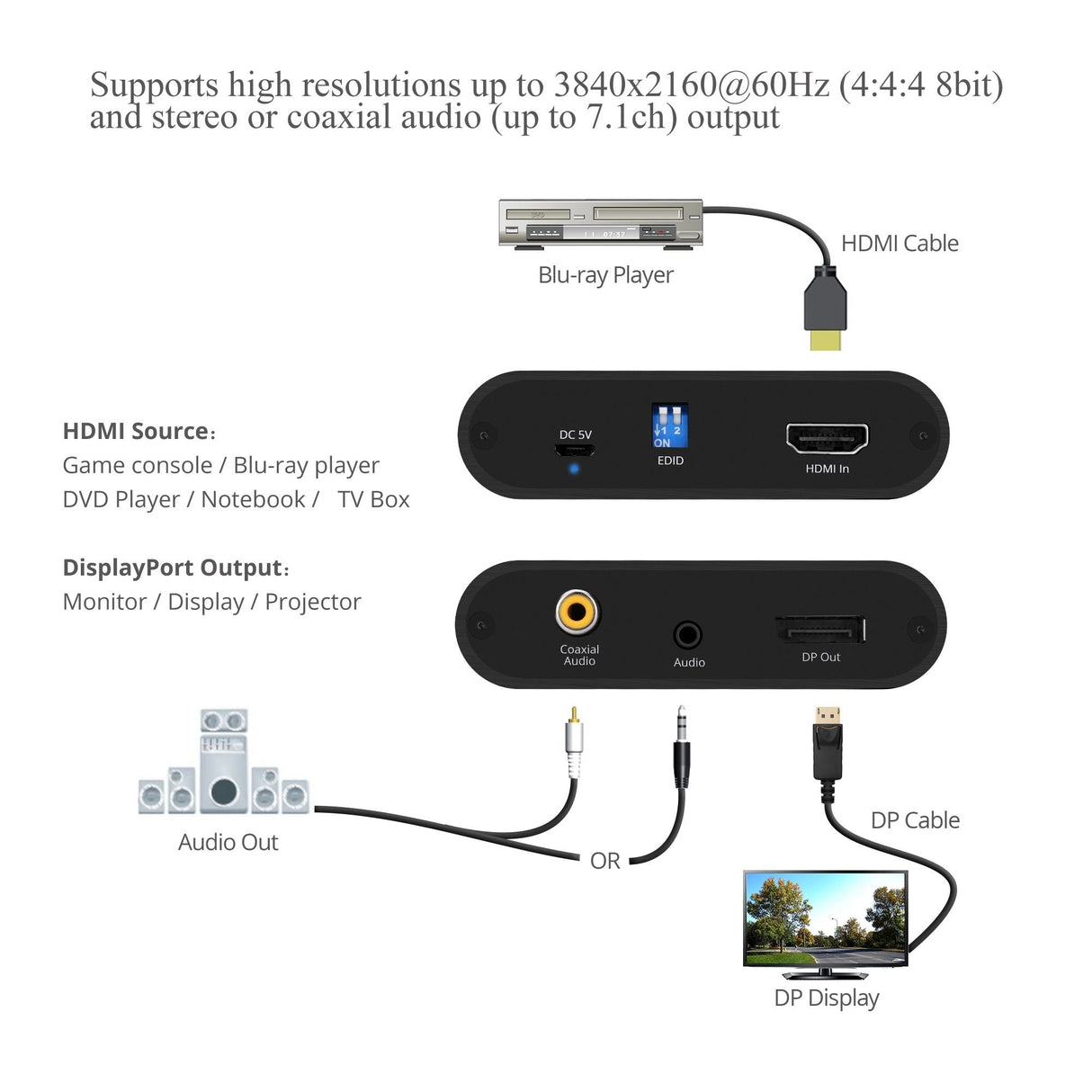

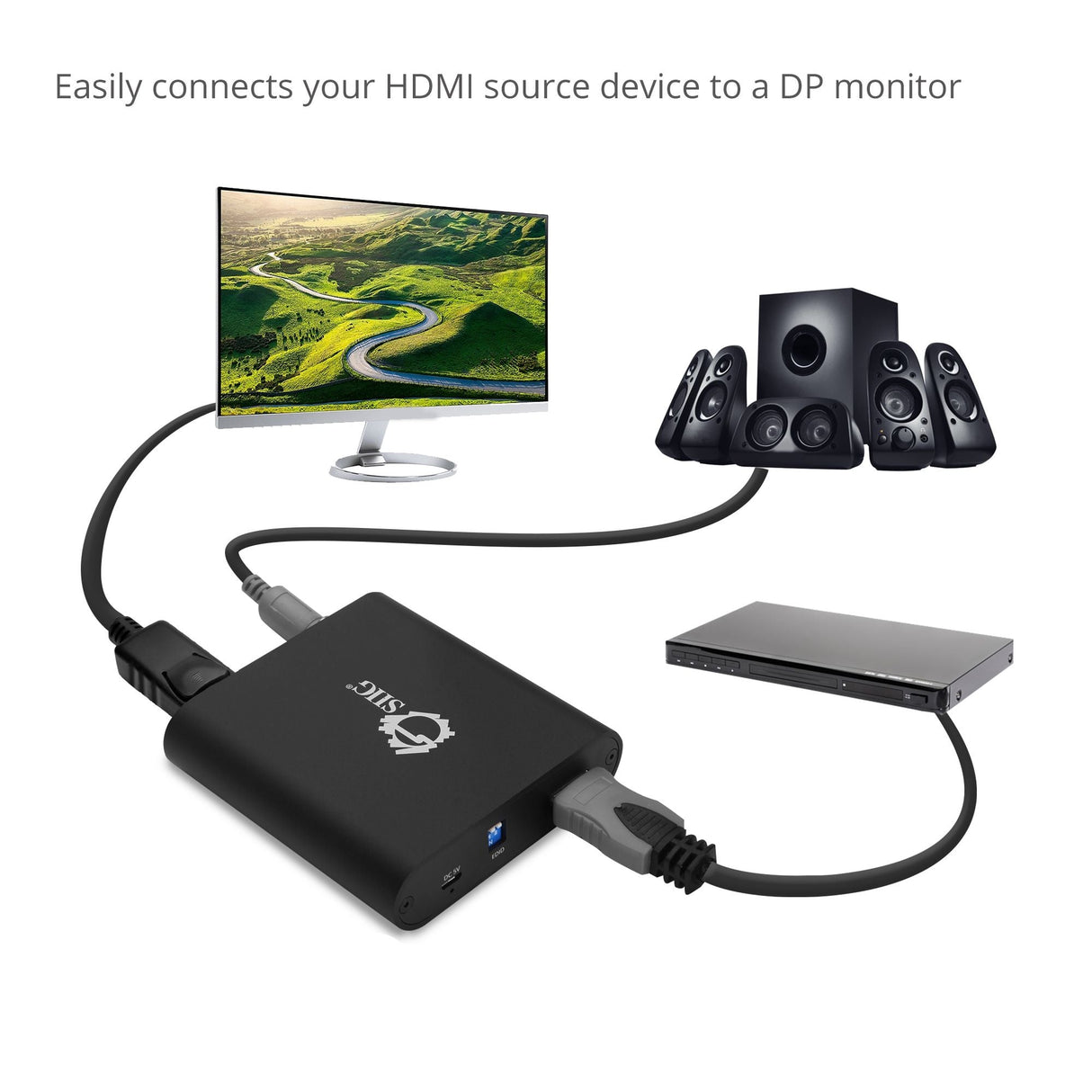

  • High performance HDMI to DisplayPort adapter allows you to connect an HDMI enabled Ultrabook, laptop, desktop, Blu-ray/DVD player, or game console to a DisplayPort monitor/display.  Note: This is not a bi-directional adapter. Does not work for Displayport to HDMI conversion
  • Supports UHD 3840x2160@60Hz (4:4:4 8bit), 3840x2160@30Hz, 1080p@60Hz resolution via EDID management DIP switches, allowing for expanded compatibility with different monitors.  Note: The source device's color space of 4:2:0 or 4:2:2 will be converted to 4:4:4
  • Compliant with HDMI 2.0a, DisplayPort 1.2a and HDCP 2.2
  • Allows mirror, extended or primary display modes working in conjunction with your system's graphics adapter, allowing flexible support for presentation, gaming, and multimedia applications

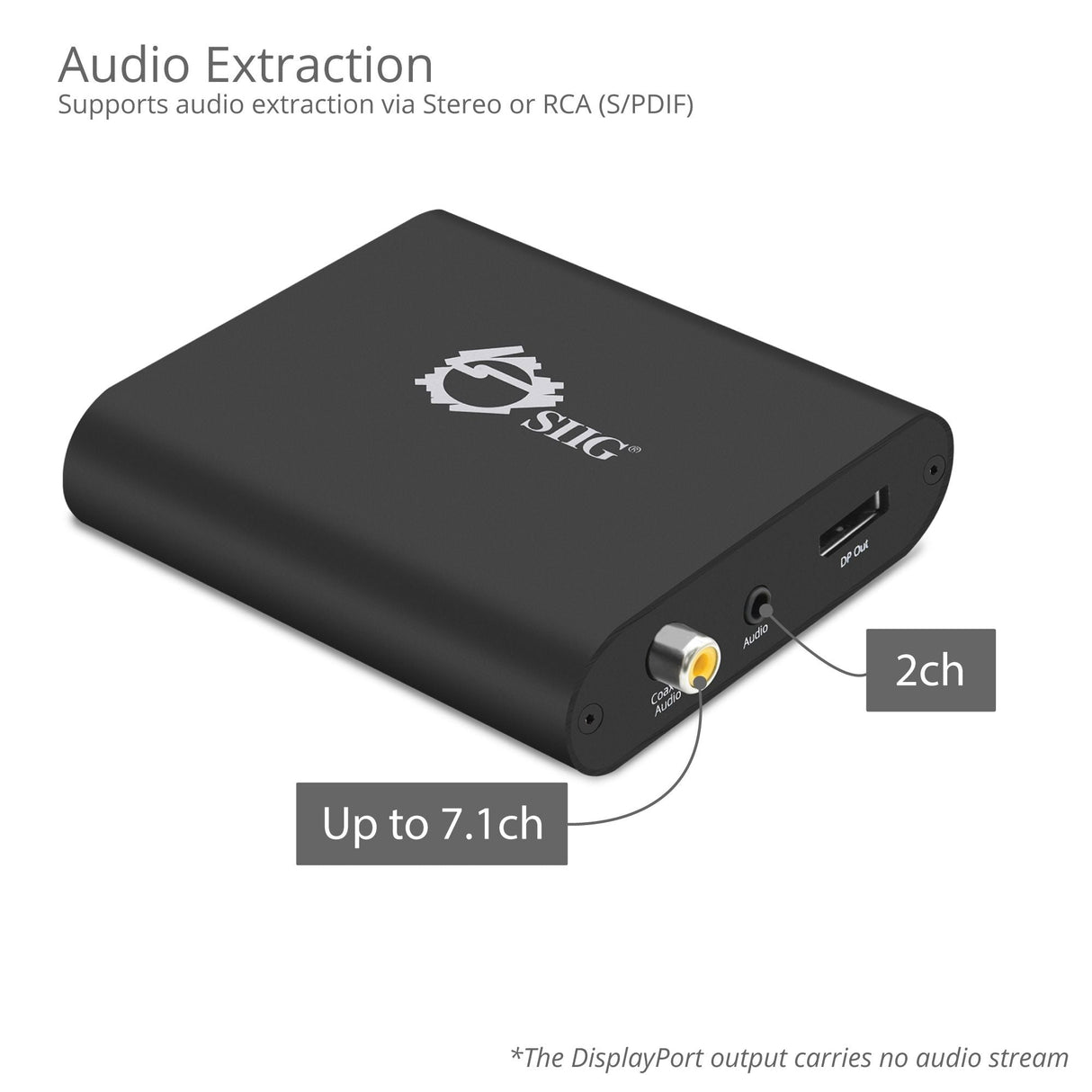

  • Separate Coaxial audio jack and 3.5mm Stereo audio jack, extracts 7.1Ch digital surround sound and Stereo audio output respectively from the HDMI signal to connect your audio playback device.  Note: The DisplayPort output does not contain audio stream, only one audio output can be connected at a time
  • Sturdy metal housing adds durability and improves heat dissipation and cooling for stable operation during extended hours of use
  • Dual mode Micro USB port to power the adapter using the included power adapter, plus firmware update capability to ensure performance and compatibility
  • Plug & Play Installation - No driver or software installation required
View all features

Availability: Out of stock

$199.99
  • High performance HDMI to DisplayPort adapter allows you to connect an HDMI enabled Ultrabook, laptop, desktop, Blu-ray/DVD player, or game console to a DisplayPort monitor/display.  Note: This is not a bi-directional adapter. Does not work for Displayport to HDMI conversion
  • Supports UHD 3840x2160@60Hz (4:4:4 8bit), 3840x2160@30Hz, 1080p@60Hz resolution via EDID management DIP switches, allowing for expanded compatibility with different monitors.  Note: The source device's color space of 4:2:0 or 4:2:2 will be converted to 4:4:4
  • Compliant with HDMI 2.0a, DisplayPort 1.2a and HDCP 2.2
  • Allows mirror, extended or primary display modes working in conjunction with your system's graphics adapter, allowing flexible support for presentation, gaming, and multimedia applications
  • Separate Coaxial audio jack and 3.5mm Stereo audio jack, extracts 7.1Ch digital surround sound and Stereo audio output respectively from the HDMI signal to connect your audio playback device.  Note: The DisplayPort output does not contain audio stream, only one audio output can be connected at a time
  • Sturdy metal housing adds durability and improves heat dissipation and cooling for stable operation during extended hours of use
  • Dual mode Micro USB port to power the adapter using the included power adapter, plus firmware update capability to ensure performance and compatibility
  • Plug & Play Installation - No driver or software installation required
  • Compliant with HDMI 2.0a and DisplayPort 1.2a
  • Compliant with HDCP 1.4 and 2.2
  • Supports xvYCC, x.v.Color and Deep Color
  • Supports up to 3840x2160@60Hz 4:4:4 8bit
    Note: The source device's color space of 4:2:0 or 4:2:2 will be converted to 4:4:4
  • Supports 8-bit, 10-bit, and 12-bit Deep Color
  • Supports audio extraction via 3.5mm Stereo jack and RCA Coaxial jack
  • Video bandwidth: 18Gbps (single-link 600MHz)
  • Resolution support 480p/720p/1080i/1080p/2160p
  • Maximum Resolution: 3840x2160@60Hz (4:4:4 8bit)
  • Supported HDMI Audio Formats: PCM 2 / 5.1 / 7.1, Dolby 5.1 / 7.1, DTS 5.1 / 7.1
  • Power indicator LED
  • ESD protection: ±15kV Air / ±8kV Contact
  • Aluminum housing with wall mount design
  • Product:

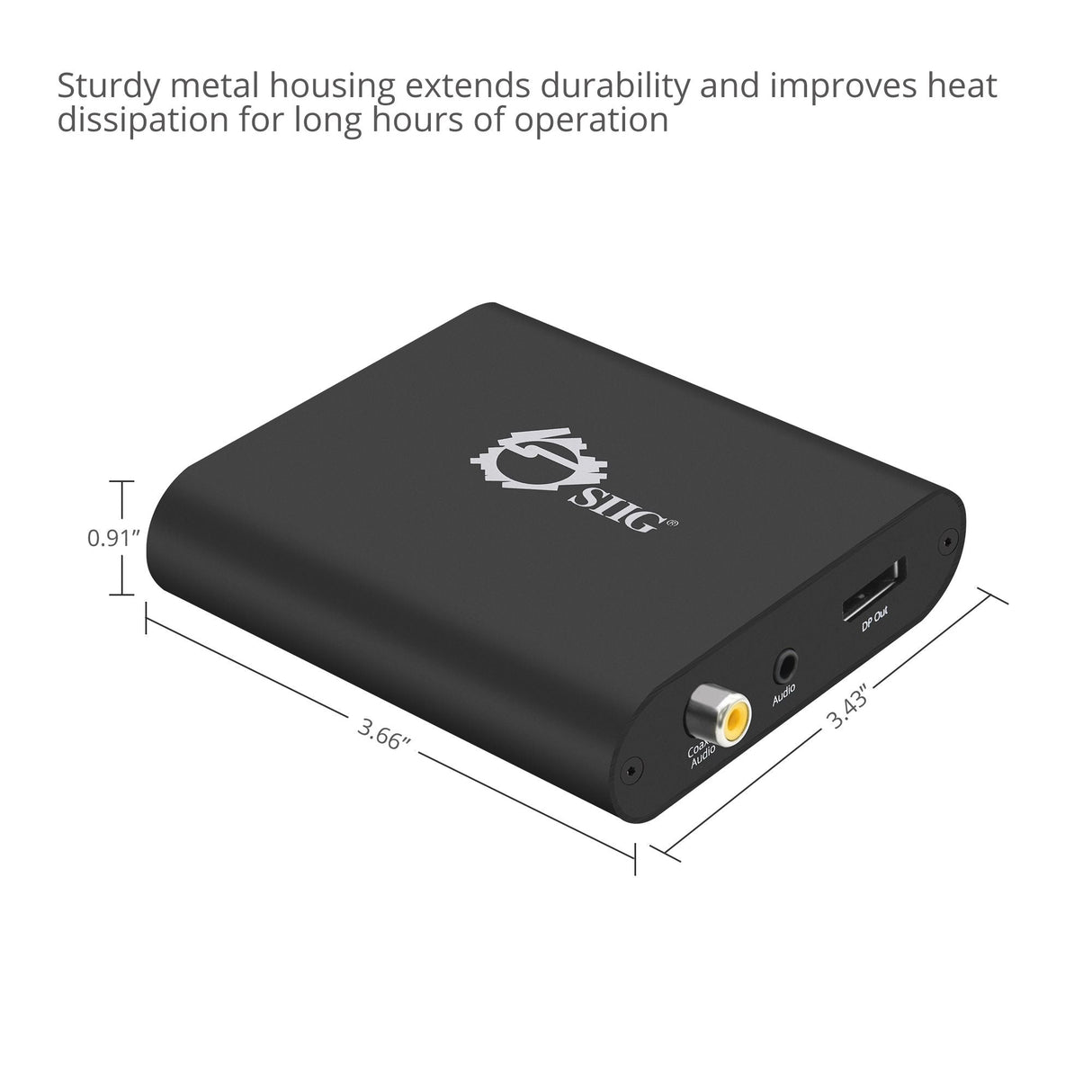

    • Dimensions: 3.66" (L) x 3.43" (H) x 0.91" (W)
    • Weight: 0.41 lbs
    • Color: Black
    • Housing material: Aluminum
    • HDMI cable length:
      • 4K@60Hz: Up to 10m (5m/In; 5m/Out)
      • 1080p@60Hz & 4K@30Hz: Up to 15m (5m/In; 10m/Out)
    • Connector:
      • 1x 19-Pin, HDMI, Type A, Female, Input
      • 1x 20-Pin, DisplayPort, Female, Output
      • 1x Coaxial audio, Female, Digital audio, Output
      • 1x 3.5mm audio jack, Female, Analog audio,Output
      • 1x 5-Pin, Micro USB, Female, Power Input/Firmware update

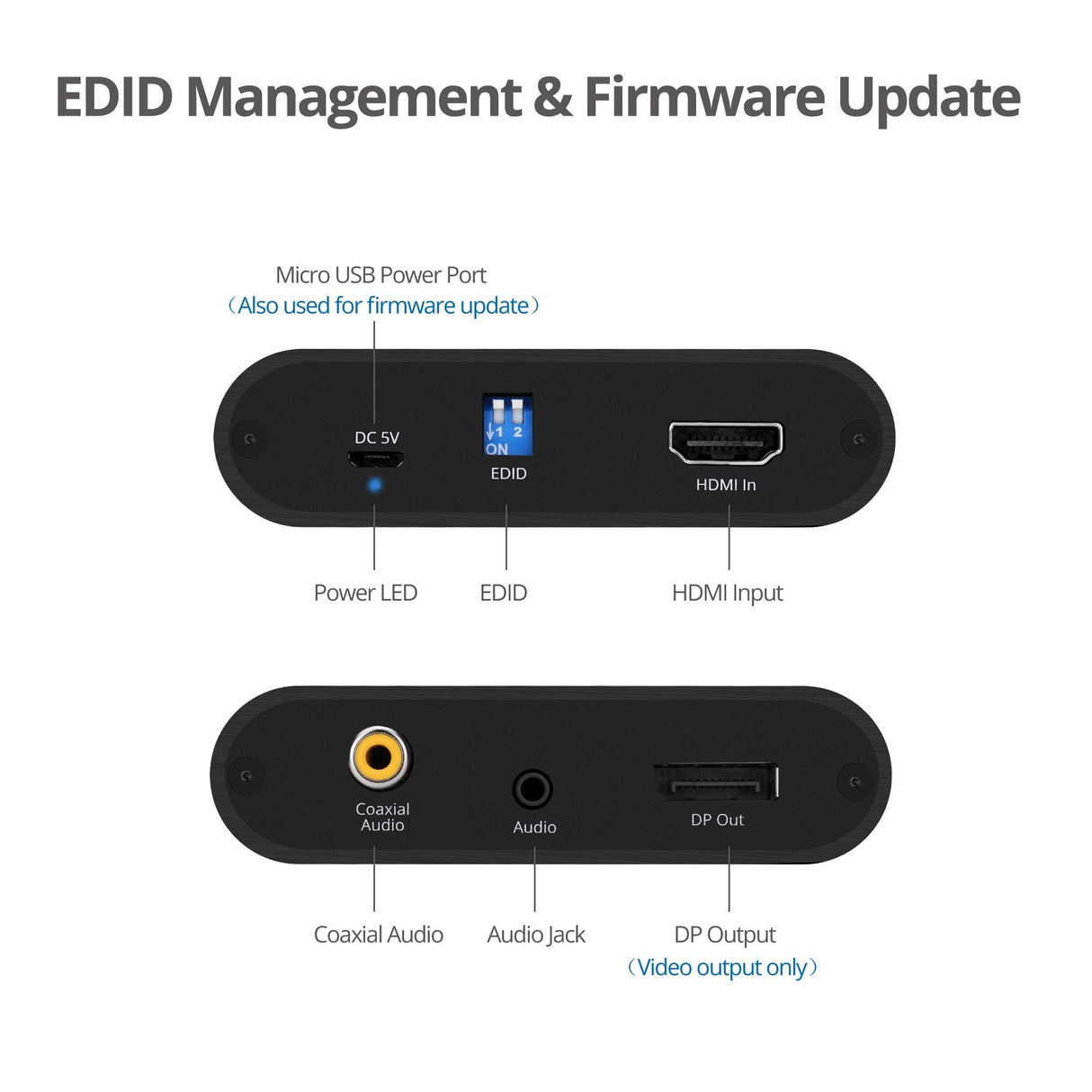

  • EDID management:
    • 1x 2-Pin, DIP Switch
    • 1080p@60Hz
    • 3840x2160@60Hz
    • 3840x2160@30Hz
    • 4096x2160@60Hz
  • Power Adapter:
    • Input: 100-240VAC, 50/60 Hz
    • Output: 5VDC/2A
    • UL Listed: E135856/Level:VI
  • Environmental Conditions:
    • Operating temperature: 32 to 104 degrees F
    • Storage temperature: -4 to 140 degrees F
    • Relative humidity: 20 to 90% RH (non-condensing)
  • Certifications/Standards: FCC, CE, RoHS
  • Warranty: 3 years limited
  • Country of Origin: Taiwan

Requirements

  • HDMI source device such as computers, game consoles, Blu-ray/DVDplayers, and media players
  • DisplayPort displays, monitors, and HD TVs

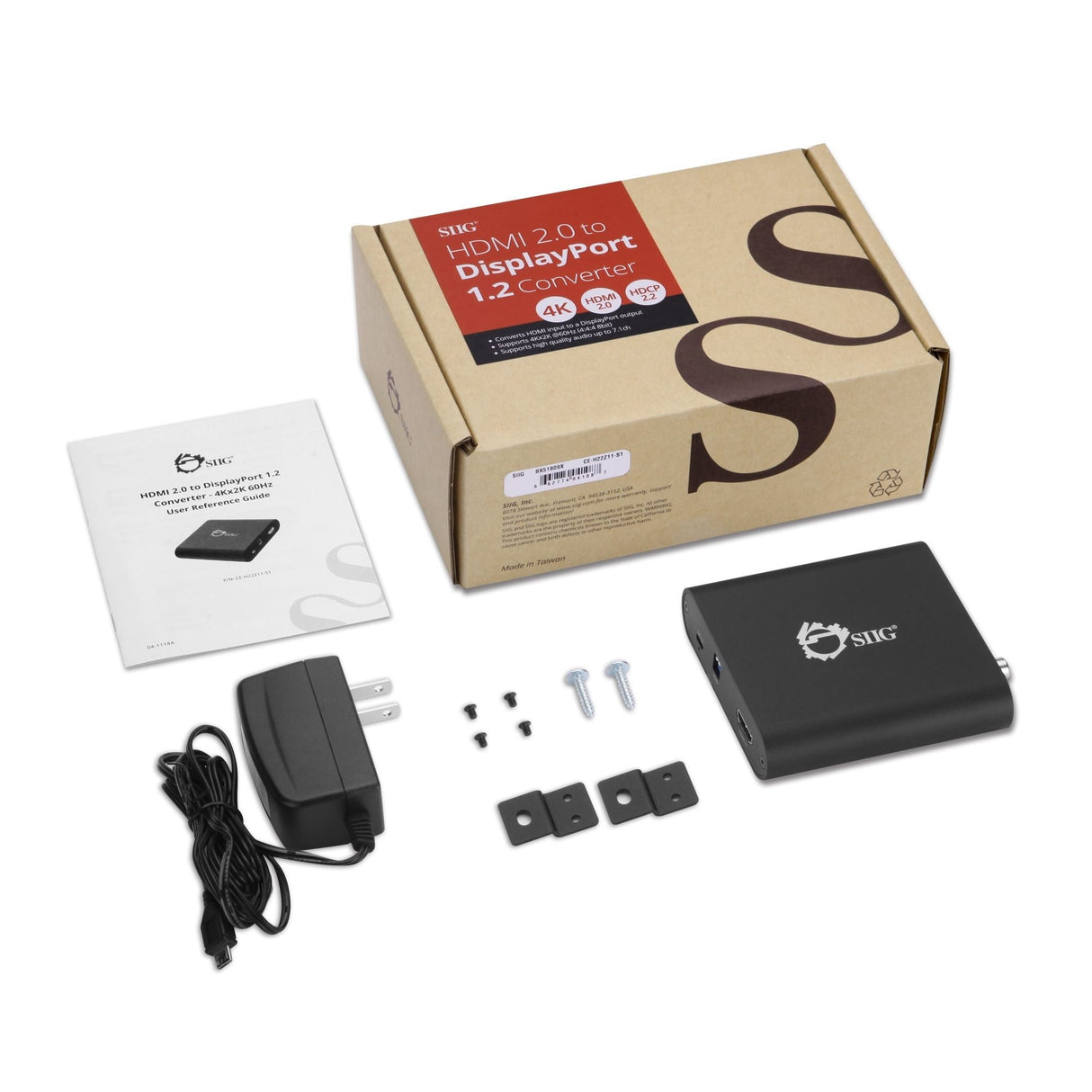

Package Contents

  • HDMI 2.0 to DisplayPort 1.2 Converter - 4Kx2K 60Hz
  • Power Adapter
  • Mounting Kit
  • User Reference Guide
