USB |
SKU:
JU-H20111-S1

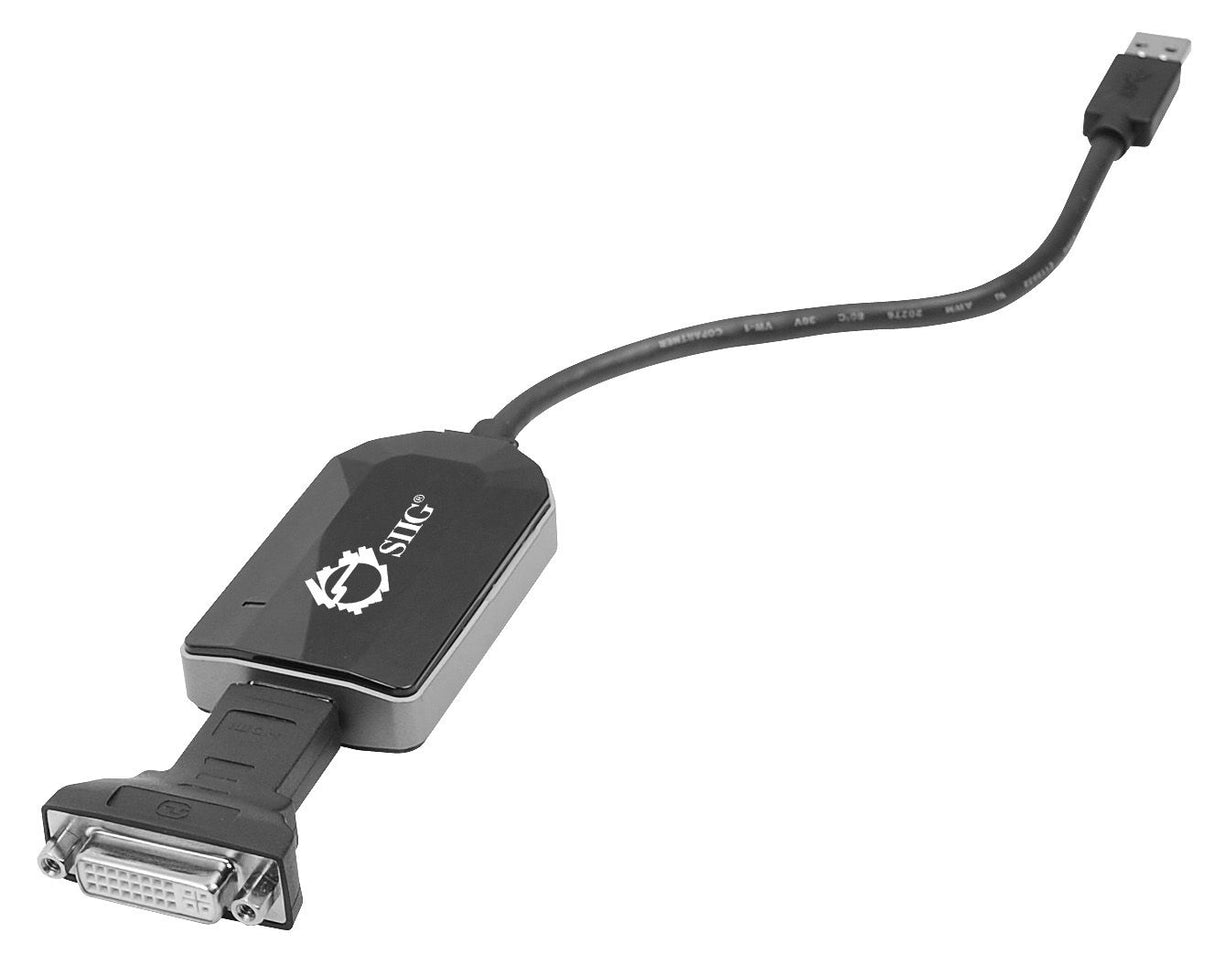

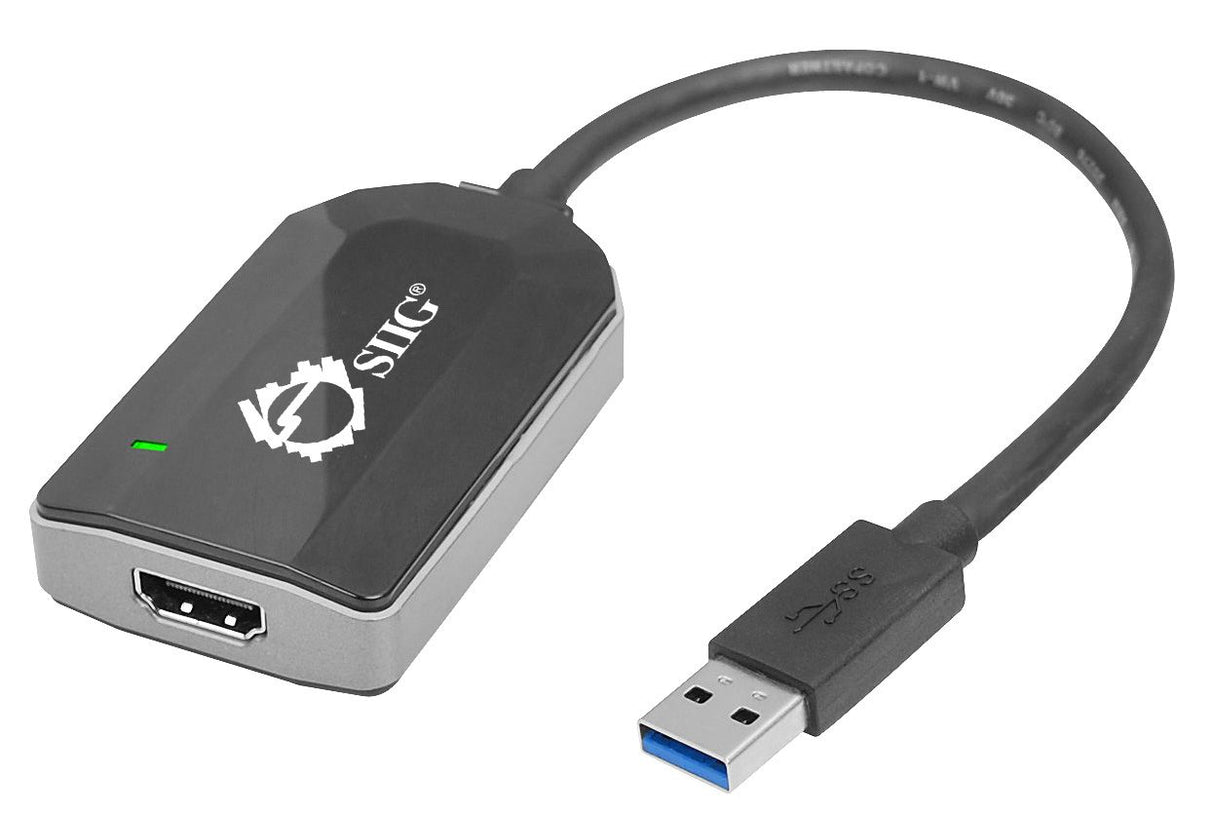

USB 3.0 to HDMI/DVI Multi Monitor Video Adapter
USB Video Adapter
USB 5Gbps
HDMI / DVI
1600x1200
TAA Compliant
Regular price
$89.99
Unit price
/
Unavailable
Shipping calculated at checkout.
USB 3.0 to HDMI/DVI Multi Monitor Video Adapter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
High-Performance Chipset
High-Performance Chipset
Crystal Clear HD Resolutions
Crystal Clear HD Resolutions
Versatile Display Modes
Versatile Display Modes
Multi-Monitor Expansion
Multi-Monitor Expansion
Bus Powered & Hot-Pluggable
Bus Powered & Hot-Pluggable
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support
No content found
| Chipset | MCT Trigger 5 T5-302 |
| Standard | Compliant with SuperSpeed USB 3.0 and backwards compatible with USB 2.0 specification Compliant with HDMI 1.2 Specification |
| Video Performance | Supports standard and widescreen (16:9 and 16:10) aspect ratio Supports 32-bit color depth at 1920 x 1200 (16:10), 2048 x 1152 (16:9), and 1600 x 1200 (4:3) resolutions |
| Scalability | Connects up to 6 adapters per system |
| Display Features | Display rotation: 0°, 90°, 180°, and 270° Display modes: Primary, Extended and Mirror |
| Power | USB bus powered and hot-pluggable |
| System Requirements | Desktop or notebook computer with an available USB 2.0/3.0 port (USB 3.0 recommended) Windows® 10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit) / XP (32-/64-bit) / Server 2003 & 2008 (32-/64-bit) / 2008 R2 Mac OS X® 10.12 / 10.11 / 10.10 / 10.9 / 10.8 / 10.7 / 10.6 |
| Connectors | |
| Interfaces/Ports | 1x 19-pin, HDMI, Output, Female 1x 9-pin, Type A, USB 3.0, Input, Male |
| HDMI to DVI adapter | 1x DVI, Female 1x 19-pin, HDMI, Male |
| Product | |
| Dimensions | 2.98″(W) x1.67″ (H) x 0.61″(D) |
| Weight | 0.11 lbs |
| Color | Black |
| Unit Package | |
| Dimensions | 8.86″ (W) x 5.83″ (H) x 2.17″ (D) |
| Weight | 0.37lbs |
| Master Carton | |
| Dimensions | 18.31″(W) x 17.72″(H) x 12.99″(D); 40pcs/ctn |
| Weight | 18.74lbs |
| Package contents | USB 3.0 to HDMI/DVI Multi Monitor Video Adapter HDMI-to-DVI adapter Driver CD Installation guide |
| Certifications/Standards | FCC, CE, RoHS |
| Warranty | 5 years |
| Country of origin | China |
No content found
Manuals
Drivers (Hardware Version: 1)
- Windows 10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit)Driver version: v20.01.0117.0179
- MAC OS X 10.11 / 10.10 / 10.9 / 10.8Driver version: v2.1.0321
- Windows XP (32-/64-bit) / Server 2003 & 2008 (32-/64-bit) / Server 2008 R2Driver version: v15.01.0211.0179
- MAC OS X 10.6 / 10.7Driver version: v1.8.29
- MAC OS X 10.12 / 10.11 / 10.10Driver version: v2.16.0902
- MAC OS X 10.13.3* / 10.12 / 10.11*Note: Our adapter DOES NOT work with the latest Mac OS 10.13.4 to 10.13.6 update. It's recommended to stay with 10.13.3 or earlier
- Windows 10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit)Driver version: v20.01.0117.0179
