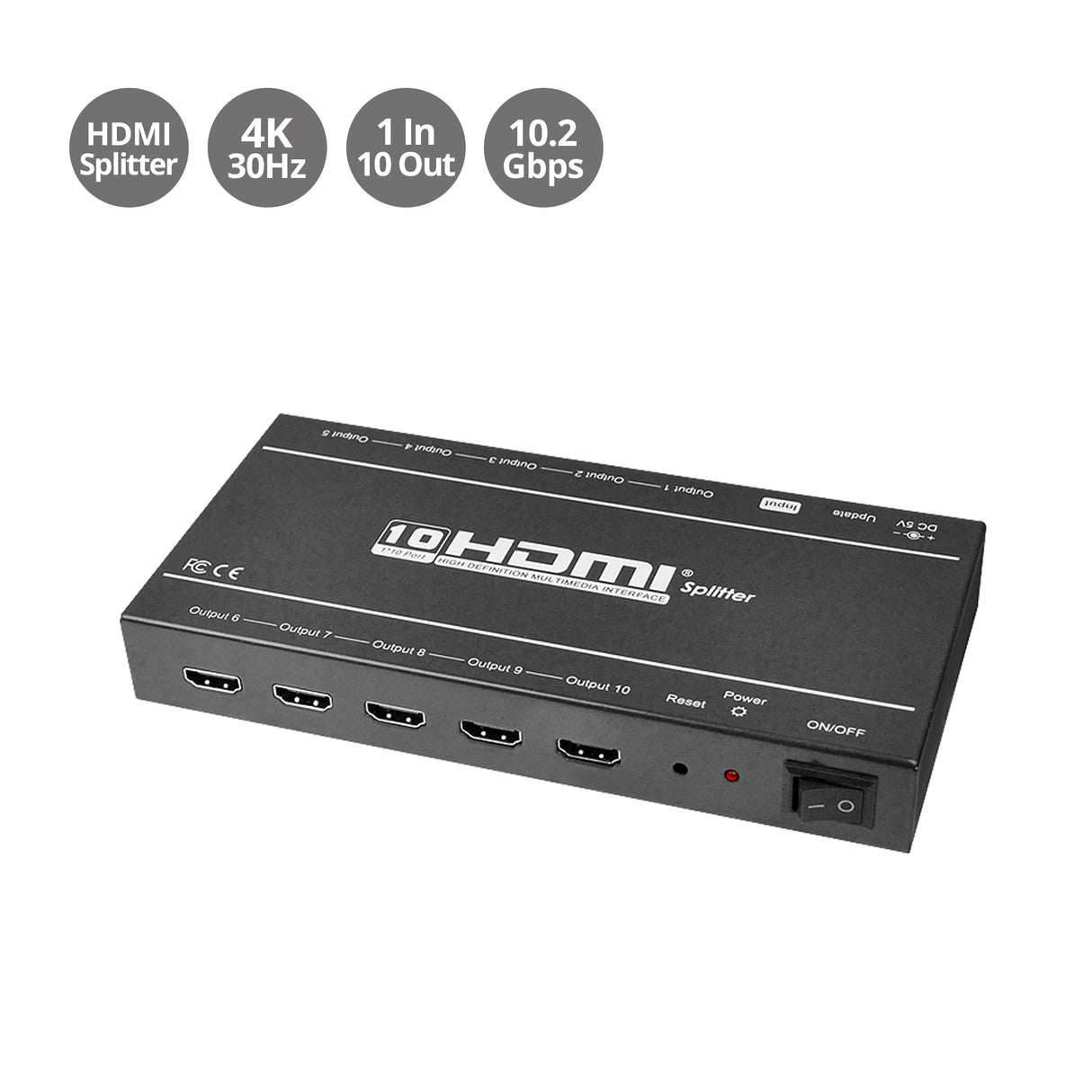

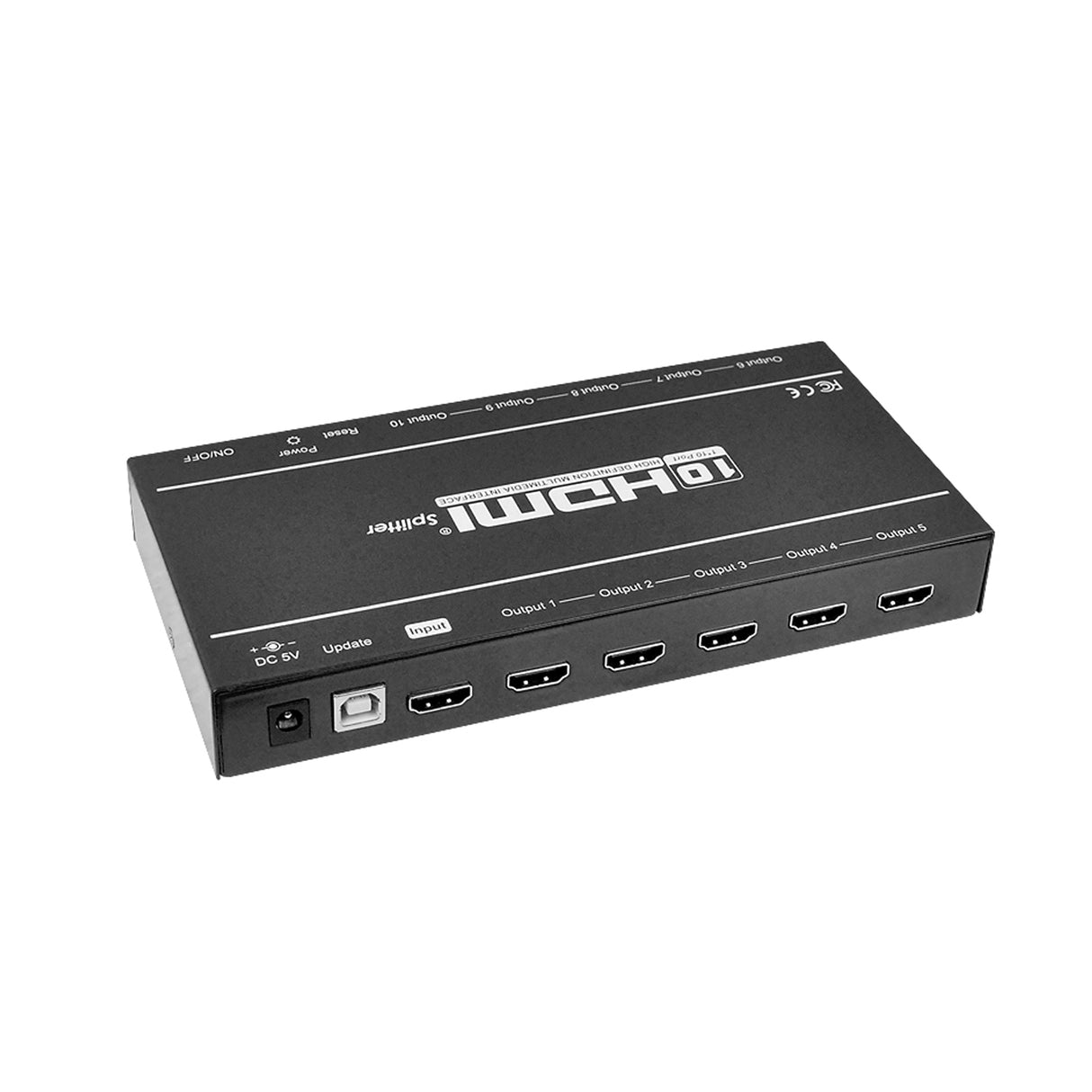

1x10 HDMI Splitter with 3D and 4Kx2K

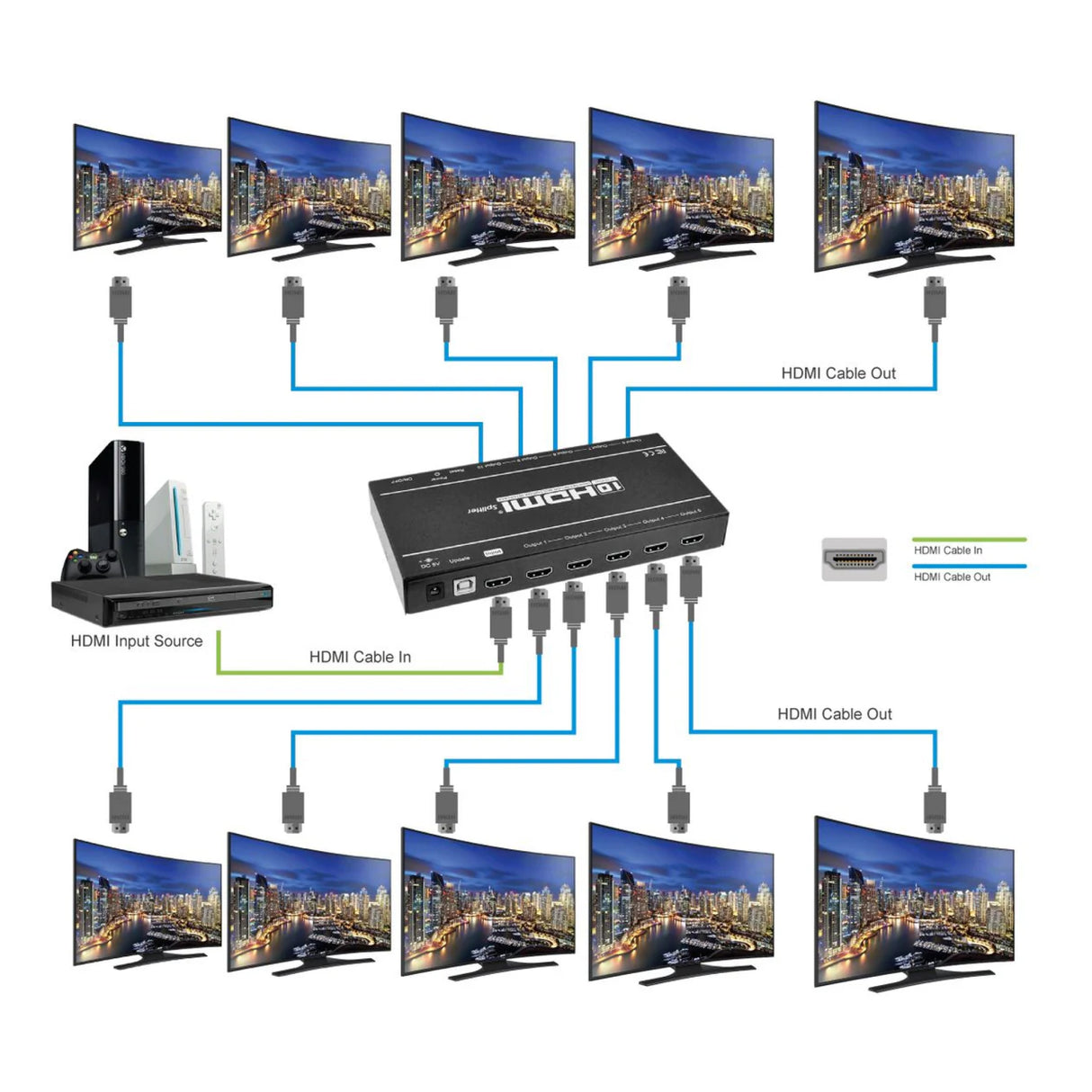

Broadcast HDMI signals up to 4Kx2K resolution to 10 displays simultaneously



We ship all orders within 1 business day

Lifetime technical support on all of our products

45-day return window and money-back guarantee


    • Supports 1080p and up to 4Kx2K PC resolution
    • Supports HDMI Deep Color & full 3D
    • Supports Auto EDID
    • USB firmware update for expanded compatibility
    • Metal housing for better RF shielding
    • Easy installation


    • Chipset: Lontium LT86104EX
    • Compliant with HDCP 1.4  standards
    • Supports resolution 480i, 480P, 576i, 720p, 1080i, 1080p, 4Kx2K
    • Wide frequency range: 25MHz to 340MHz
    • Video bandwidth: 10.2Gbps
    • Display mode: Mirror
    • Audio support: Standard, DSD and HD (HBR)
    • Input TMDS signal: 1.2V (peak-to-peak)
    • Input DDC signal: 5V (peak-to-peak, TTL)
    • Transmission distance: up to 20 meters (5m input, 15m output)
    • Power LED indicator
    • Product:
      • Dimensions: 7.68"(W) x 3.78"(H) x 1.08"(D)
      • Weight: 0.95 lbs
      • Color: Black
      • Housing: Metal

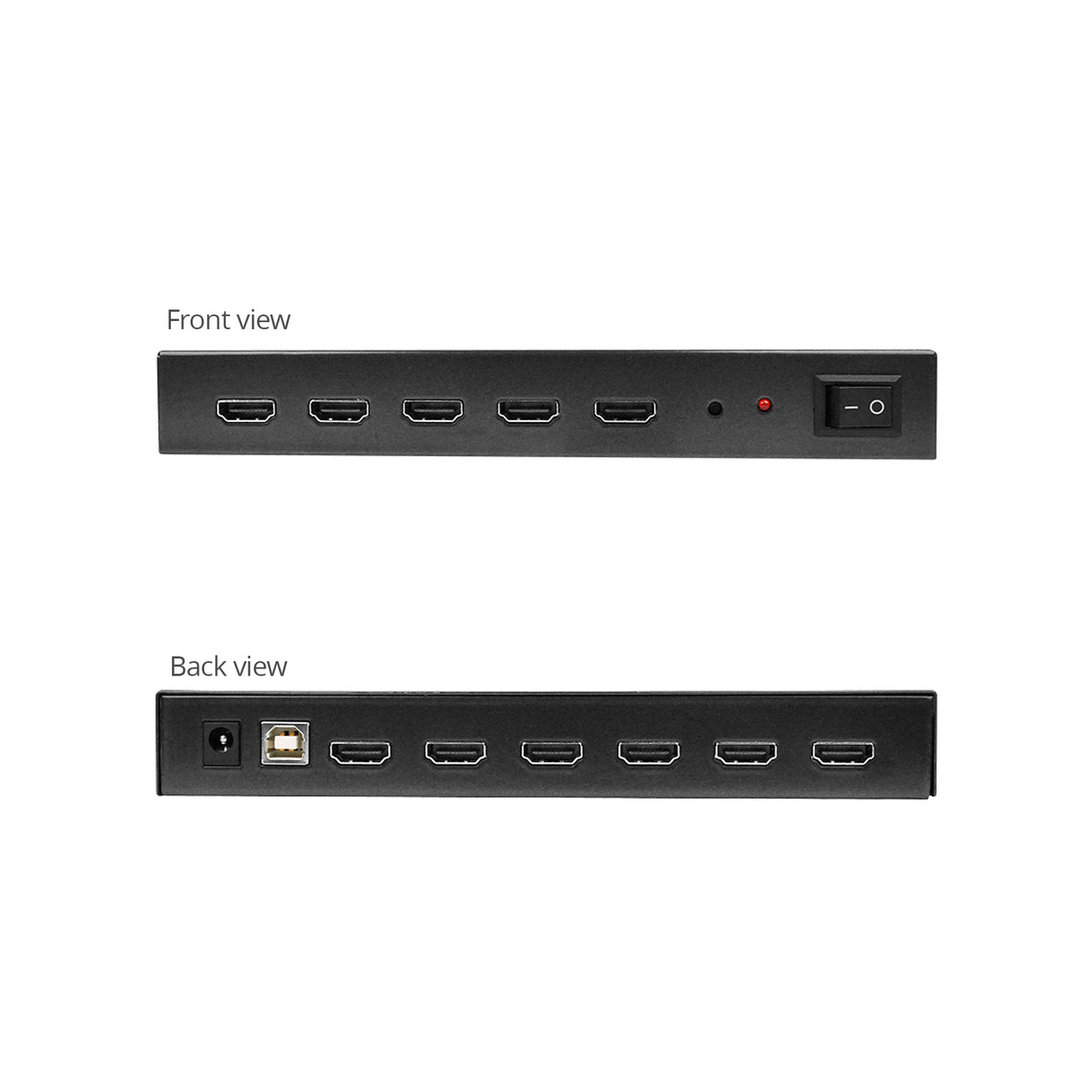

    • Connector:
      • 1x 19-pin, HDMI, Type A, Female, Input
      • 10x 19-pin, HDMI, Type A, Female, Output
      • 1x 4-pin, USB, Type B, Female, Firmware update
    •  Power Adapter:
      • Input: 100-240VAC, 50/60 Hz
      • Output: 5V/3A
    • Environmental conditions:
      • Operating temperature: 32 to 158 degrees F
      • Storage temperature: 14 to 176 degrees F
      • Relative humidity: 0 to 90% RH (non-condensing)
    • Certifications/Standards: FCC, CE, RoHS
    • Warranty: 3 years limited
    • Country of origin: China

    Package contents

    • 1x10 HDMI Splitter with 3D and 4Kx2K
    • Power adapter
    • Housing rubber pads (4)
    • Installation guide
Channel Codes
  • Ingram Micro: TF3997
  • Tech Data: 11250853
  • D&H: CEH21Q11S1
  • ASI: 143718
  • Synnex: 3684082


04-0876a.pdf Download manual

Frequently Asked Questions (Q&A)

Q: Can this extend to 10 different screens?

No, it can not extend to 10 different screens. All splitter outputs will always have the same screens
