4K 1x2 Mini DisplayPort 1.2 to HDMI MST Splitter

  • Mini DisplayPort 1.2
  • 21.6G
  • Dual Monitors
  • 4Kx2K
  • Mini DP to HDMI
  • MST
  • Splitter
  • Micro USB Power
  • 7.1ch
  • TAA Compliant
In stock
Quantity in stock: 639
SKU
CE-DP0L11-S1
Special Price $65.88 Regular Price $79.99

We ship all orders within 1 business day

Lifetime technical support on all of our products

45-day return window and money-back guarantee



    Overview

    Allows you to connect 2 HDMI monitors to a single Mini DisplayPort 1.2 port with MST technology. TAA compliant



    Features

    Boost your productivity by connecting two HDMI displays to single Mini DisplayPort 1.2 output with Multi-Stream Transport (MST) technology - Mirror mode, Extended mode, and Panoramic Video Wall display mode

    Feature

    What is Multi Stream Transport (MST)?

    Enables the source system to send multiple independent Video Signals over a single DisplayPort 1.2 or Mini DisplayPort 1.2 output. An MST Splitter allows the use of three different modes for multi-monitor displays, such as Mirror mode same content on each display, Extended mode with individual content on each display, and Panoramic Video Wall mode which combines multiple monitors to use as one large display

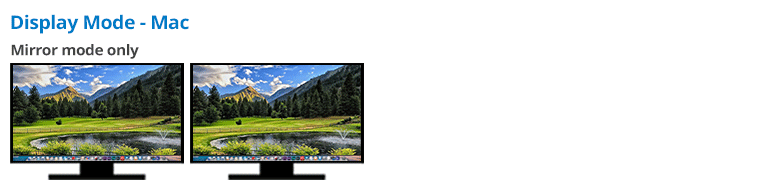

    Mode

    * Note:
    1. Mirror mode using Windows Display Utility and NVIDIA Utility is limited to 2 displays
    2. Panoramic Video Wall mode requires an AMD Eyefinity, NVIDIA Surround, or Intel Collage technology graphics adapter
    3. AMD and NVIDIA video cards support up to 4 displays, while Intel supports up to 3 displays (AMD RX560 / RX570 / Radeon 7200 Series video cards only support up to 2 displays)
    4. Surface products only support up to 3 displays total, including the Surface screen


    High Resolution

    Supports UHD video resolutions up to single 3840x2160 (4Kx2K) @60Hz display or Dual 3840x2160 (4Kx2K) @30Hz displays
    * Mini DisplayPort (mDP) resolution can display the same maximum resolution as the original size DisplayPort (DP)

    Resolution

    Monitor solutions:
    Resolution2

    High Performance

    Offers a true 21.6Gbps video bandwidth and supports 7.1ch surround sound up to 192KHz sampling rate

    Bandwidth

    Bandwidth Limitation

    Total Available Bandwidth 21.6Gbps for 3840x2160 @60Hz (100%) *. 3840x2160 @30Hz (40%), 2560x1600 @60Hz (38%), 2560x1440 @60Hz (35%), 1920x1200 @60Hz (30%), 1920x1080 @60Hz (22%)

    *Note: Make sure the total combined resolution bandwidth among all displays do NOT exceed 100%

    bandwidth2

    *Note:
    - When the resolution of Display A and Display B is set to 3840 x 2160 @60Hz, one of them will be disabled
    - If you use a 4K monitor to display in 1080p, there is a possibility that the link still gets 4K bandwidth and reduces the overall bandwidth for the other displays


    Connectivity Port

    Comes with one 20-pin Mini DisplayPort 1.2 input port, two 19-pin HDMI video output ports, one Micro USB for power input port (at least 5V/300mA)

    Ports

    Connection

    Connection


    Maximum Compatibility

    Compatible with Mini DisplayPort 1.2 graphics cards with AMD Eyefinity, NVIDIA Surround, or Intel Collage technology

    *Note: Requires GPU graphics cards to support at least 2 external displays to use both video ports at the same time with extended mode

    Supports Plug-n-Play, hassle-free set up without complicated hardware or driver installation


    ESD Protection

    An ESD protection device protects a circuit from an Electrostatic discharge (ESD), in order to prevent a malfunction or breakdown of an electronic device

    ESD


    TAA Compliant

    Completely manufactured in a TAA designated country


    Aluminum Housing Design

    Premium aluminum housing provides efficient heat dissipation for reliable performance and long life


Applications

    • Media editor
    • Small seminar
    • Workstation
    • Medical office
    • Conference room
    • Coffee store
    • Testing lab
    • Restaurant

    Need to Know Before Buying

    1. Make sure your device has a Mini DisplayPort video output specification 1.2, and supports Multi Stream Transport (MST), if you are unsure, please check with the video card or system manufacture.

    Computer

    The graphics driver controller of your system will take care of the rest, such as setting up the monitor position, resolution, etc.

    * Note:
    - Surface Pro 2, Surface Pro 3, Surface Pro 4 and Surface Book are compatible with our Mini DisplayPort 2-Port MST hub
    - Surface products only support up to 3 displays total, including the Surface screen
    - The Microsoft Surface "Dock" is not compatible with Mini DisplayPort MST Hub and should not be used when the Surface Dock is connected. Our Mini DisplayPort MST Hub will work when directly connected to the Surface tablet/book

    Gcard

    2. Install the latest drivers for your video card. Go directly to the system/video card manufacturer or chipset owners, such as AMD, Nvidia, or Intel, to find the latest driver. Driver update through Device Manager may not retrieve the latest driver available

    3. If you use a 4K monitor to display in 1080p, there is a possibility that the link still gets 4K bandwidth and reduces the overall bandwidth for the other displays

    4. Adding additional displays to your system is simple with MST hub; however, they are mostly dependent on and tied to your Graphics Card's capability to operate properly and make sure your system requirements are met

    5. MST hub cannot increase the number of displays a video card supports. Regardless of the number of display connectors built into your video card, each video card has a limited number of displays it can support. From our experience at the current time, AMD and NVIDIA video cards support up to 4 displays, while Intel supports up to 3 displays. If you are unsure, check with the video card or system manufacturer.
    *Note: AMD RX560/RX570/Radeon 7200 Series video cards only support up to 2 displays




    Notes

    CE-DP0L11-S1

    CE-DP0L11-S1


    Specifications

    Hardware
    Chipset STDP4320
    Software
    OS Compatibility Windows® 11
    Video
    Resolution one screen up to 3840x2160@60Hz; two screens up to 3840x2160@30Hz
    Bandwidth Total available bandwidth 21.6Gbps for 3840x2160 @60Hz (100%). 3840x2160 @30Hz (40%), 2560x1600 @60Hz (38%), 2560x1440 @60Hz (35%), 1920x1200 @60Hz (30%), 1920x1080 @60Hz (22%)
    * Note: Make sure the total combined resolution bandwidth among all displays do NOT exceed 100%
    Display Modes
    3 different display modes: Mirror mode, Extended mode, and Panoramic Video Wall mode
    * Note: AMD Eyefinity, NVIDIA Surround, or Intel Collage technology graphics adapter is required to support Panoramic Video Wall mode
    Audio
    7.1 channel surround sound, up to 192KHz sampling rate
    Environmental conditions
    Operating temperature 32 to 122 degrees F
    Storage temperature 14 to 158 degrees F
    Relative humidity: 5% to 90% RH (non-condensing)
    Product Info
    Dimensions 3.5” (L) x 0.6” (H) x 2.4” (W)
    DisplayPort cable (embedded) 9.45 inches
    Weight 0.19 lbs
    Color Black
    Housing material Aluminum
    Unit Package Dimensions: 6.30" (W) x 0.60" (H) x 9.37" (D)
    Weight: 0.24 lbs
    Certifications/Standards
    FCC, CE, RoHS, TAA compliant
    Warranty: 3 years limited
    Country of origin: Taiwan

    Interface

    Interface

    Input:

    • 1x 20-pin, Mini DisplayPort 1.2, Male
    • 1x 5-pin, Micro USB, Power Input only (at least 5V/300mA), Female

    Output:

    • 2x 19-pin, HDMI, Female

    System Requirements

    • Desktop or Laptop with available Mini DisplayPort 1.2 port
    • Windows® 11 /10
    • *Note: Supports Surface Pro 2, Surface Pro 3, Surface Pro 4 and Surface Book


    Package contents

    • 1x 1x2 mDP 1.2 to HDMI MST Splitter
    • 1x Micro-USB Power Cable (19 inches)
    • 1x User Reference Guide

Manuals

Frequently Asked Questions (Q&A)

Q: Can I use this to connect a 3rd monitor to my AIO (All-in-One PC)?

Yes, it can connect to an All-in-one PC, but, please refer to our notes before buying, there are some limits need to know.

Q: Does the MST Hub Splitter support 21:9 or 32:9 ultrawide resolution?

All MST Hubs can support ultrawide resolutions like 21:9 or 32:9. However, our current examples use 16:9 resolution. It's important to note that 21:9 and 32:9 resolutions require a higher bandwidth compared to 16:9. Since the total bandwidth of an ...
