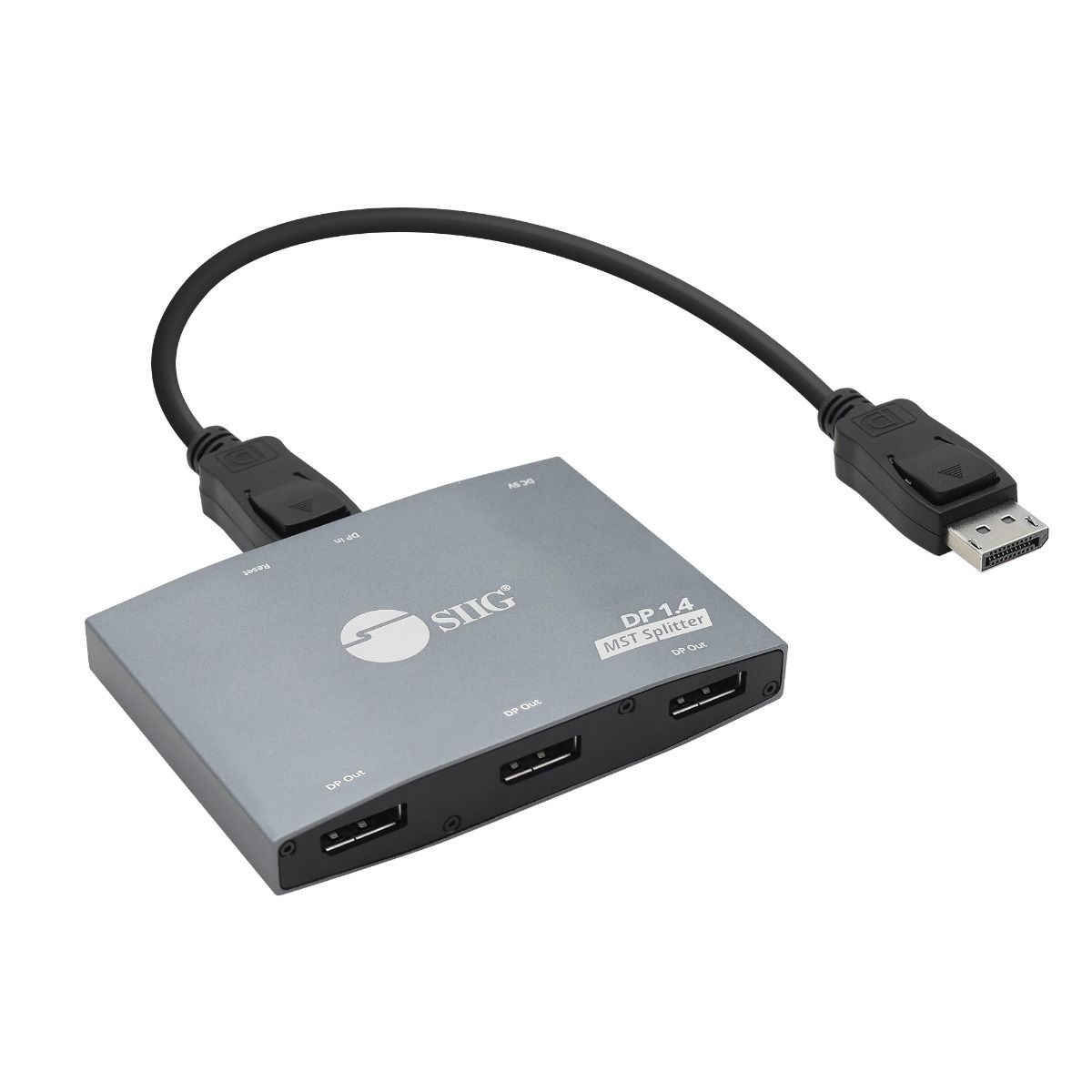

1x3 DisplayPort 1.4 to DisplayPort MST Splitter

• Features
• Applications
• Need to Know Before Buying

---

Overview

DP 1.4 MST Video Splitter Hub, Triple DP outputs, Connect up to three DisplayPort displays to single DisplayPort 1.4 output with Multi-Stream Transport (MST), 32.4Gbps, no driver required, Dual 4K@60Hz or Triple 4K (4K@30Hz or 1x 4K@60Hz + 2x 4K@30Hz), supports DP 1.2 with limited performance, Full Windows compatibility, Mac OS supports mirror only, TAA compliant

---

Features

Splits a single DisplayPort 1.4 output source to three DisplayPort monitors with Mirror, Extended and Panoramic video wall display modes



---

High Performance
Offers a true 32.4Gbps (Max.) video bandwidth and supports 7.1-ch surround sound up to 192KHz sampling rate (can be used to transmit audio and video simultaneously)



Bandwidth Limitation



* Note: If you use a 4K monitor to display in 1080p, there is a possibility that the link still gets 4K bandwidth and reduces the overall bandwidth for the other displays

---

Video Resolution

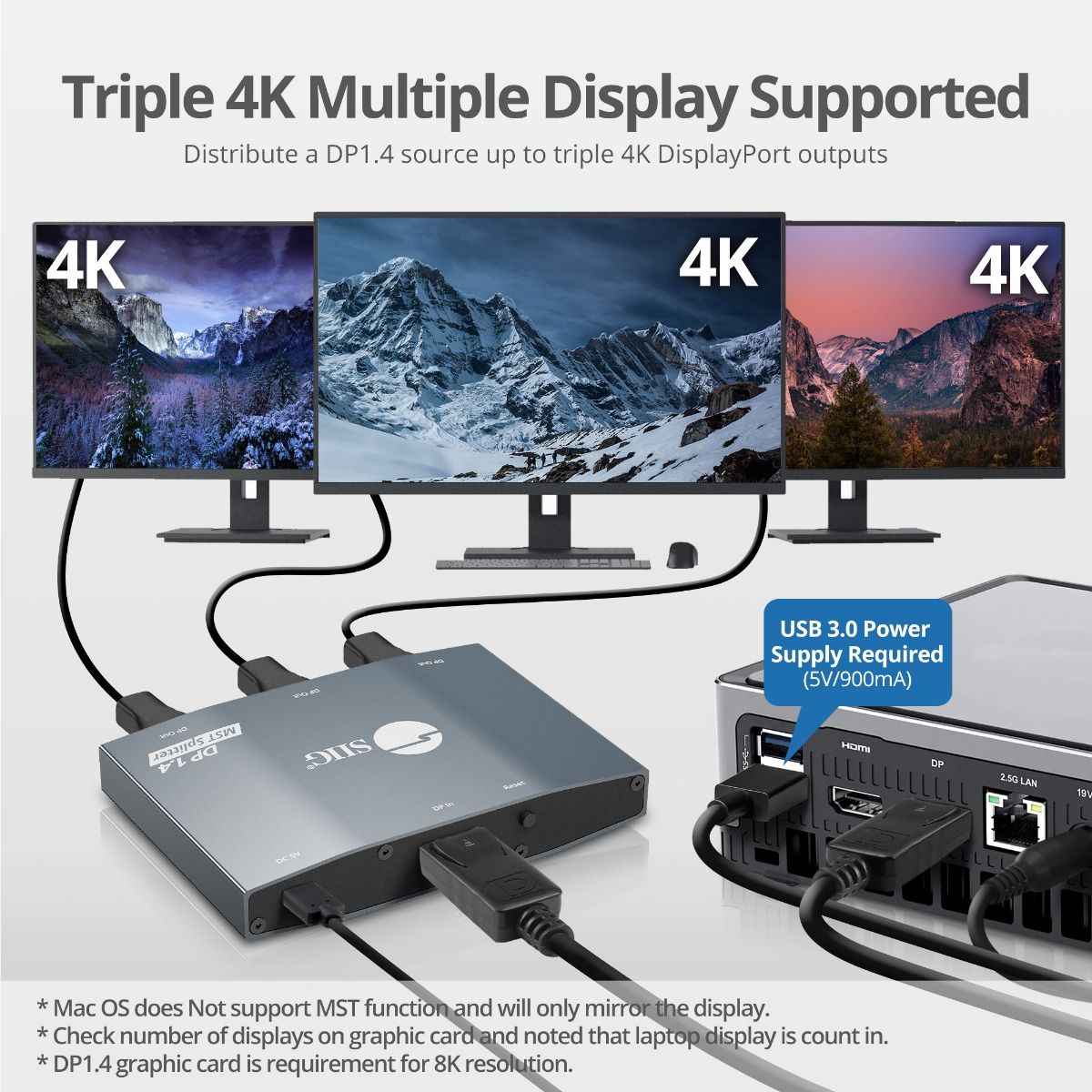

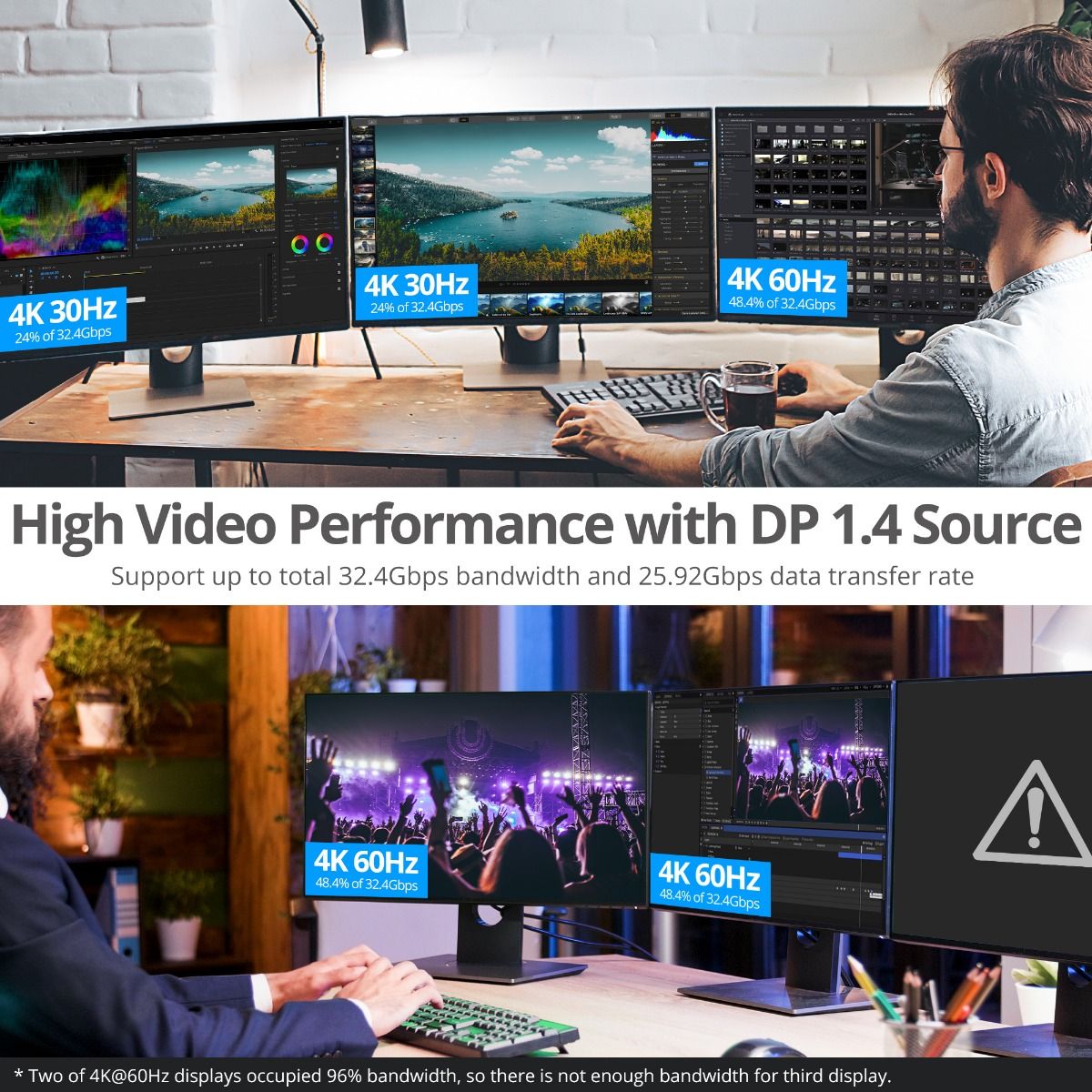

Supports HDCP 2.2 and Ultra HD video resolution up to a single 8K (7680x4320) @30Hz with HDR display or dual 4K (3840x2160) @60Hz with HDR displays or Triple 4K (3840x2160) @30Hz



* Note: Two of 4K@60Hz displays occupied 96% bandwidth, so there is not enough bandwidth for third display

---

Display Modes
Supports various supplication such as Mirror, Extended, and Panoramic Video Wall modes. Mirror mode same content on each display, Extended mode with individual content on each display, and Panoramic Video Wall mode which combines multiple monitors to use as one large display



* Note:
1. Mirror mode using Windows Display Utility and NVIDIA Utility is limited to 2 displays
2. Panoramic Video Wall mode requires an AMD Eyefinity, or NVIDIA Surround or Intel Collage technology graphics adapter
3. AMD and NVIDIA graphics cards support up to 4 displays, while Intel supports up to 3 displays (AMD RX560 / RX570 / Radeon 7200 Series graphics cards only support up to 2 displays)
4. NVIDIA graphics cards are recommended as AMD DP graphics cards may cause bandwidth limitations
5. MacOS operating system does not support MST function and will only mirror the displays (SST)

---

Multiple Connectivity Port

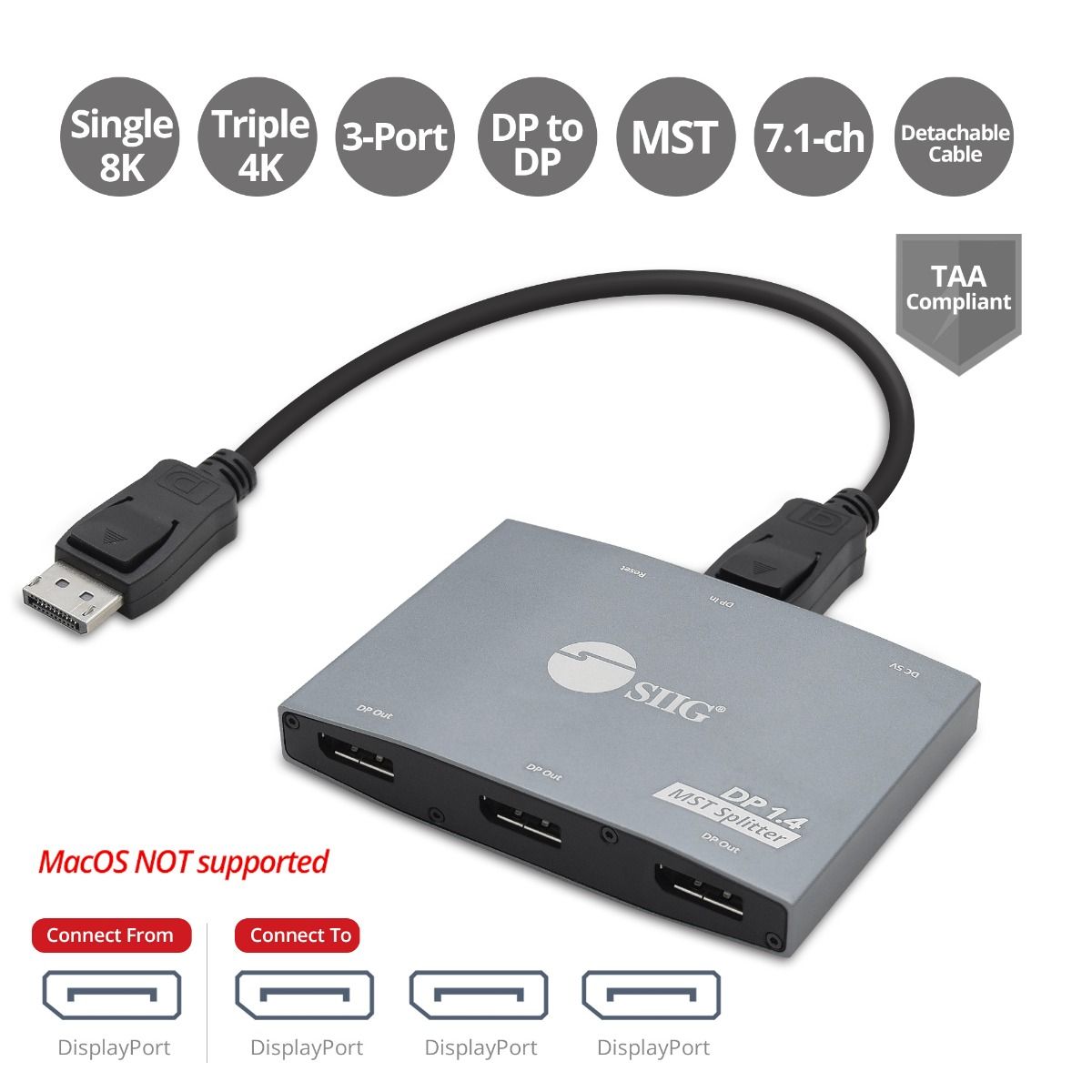

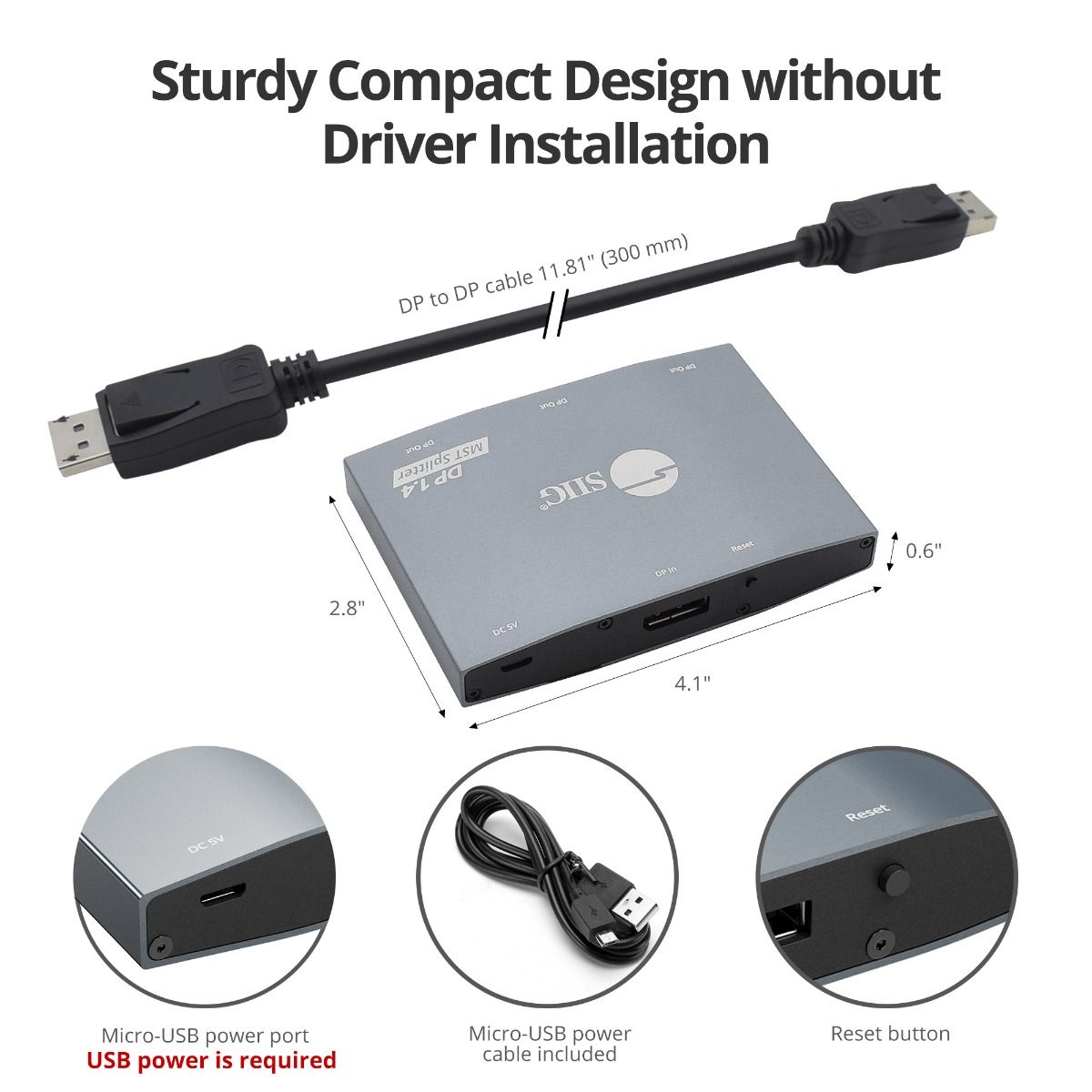

Comes with one 20-pin DisplayPort 1.4 input port (Host), three 20-pin DisplayPort 1.4 video output ports, one 5-pin Micro USB for power input (at least 5V/500mA), one reset button, and one DisplayPort 1.4 detachable cable



Connection



---

Maximum Compatibility
Compatible with DisplayPort 1.4 graphics card with AMD Eyefinity, Intel Collage or NVIDIA Surround technology
* Note:
- Requires GPU / graphics card to support at least 2 external displays to use both video ports at the same time with extended mode
- Supports Plug-n-play, hassle-free set up without complicated hardware or driver installation

---

Aluminum Housing Design

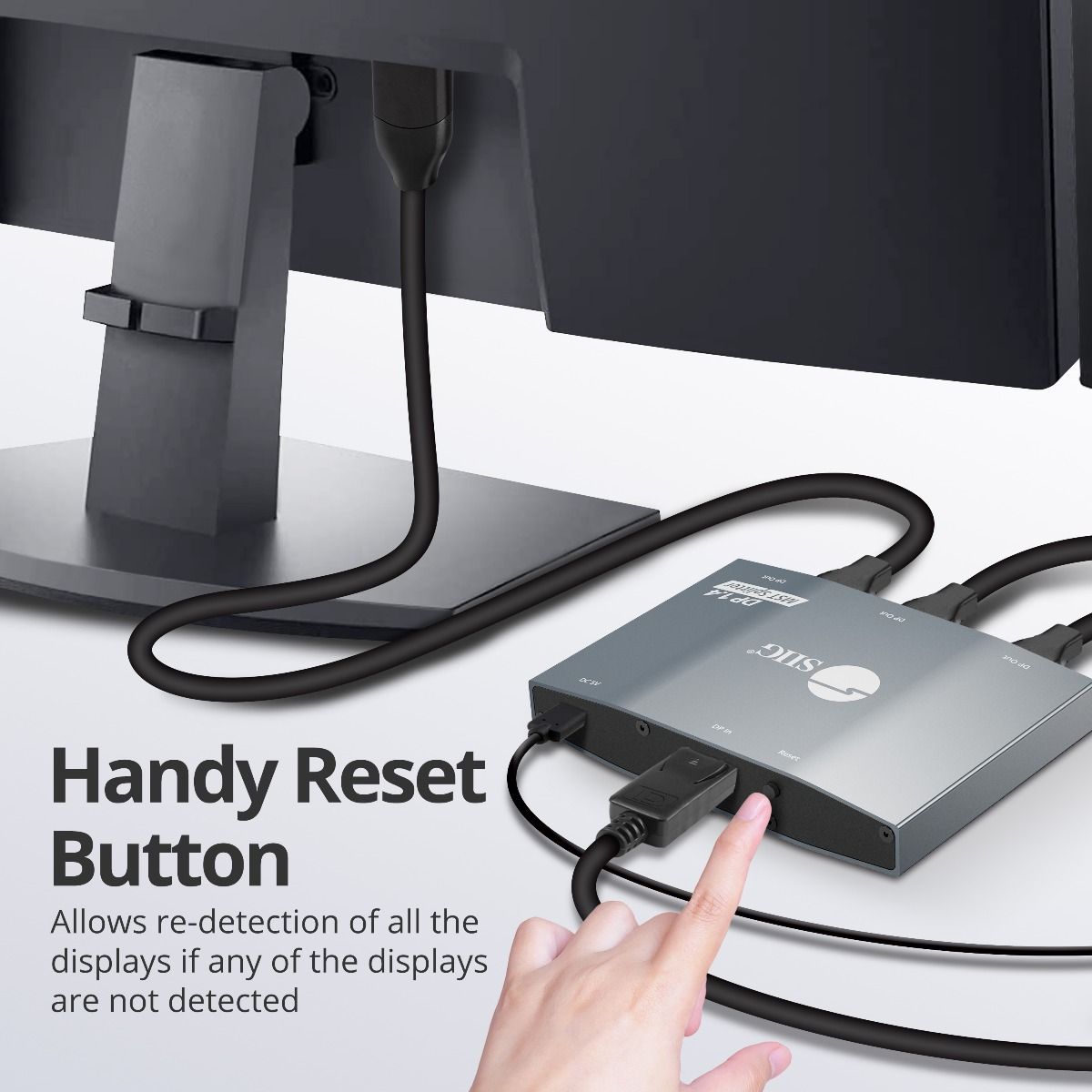

Premium aluminum housing decreases outer interference and provides optimal video quality. The reset button allows re-detection of all the displays if any of the displays are not detected

---

Applications

• Video editing
• Workstation
• Office
• Home office
• Small seminar
• Conference room
• Educational facilities
• Gaming
• Medical office
• Hotel
• Testing lab
• Banking
• Service counter
• Restaurant
• Sport bar

---

Need to Know Before Buying

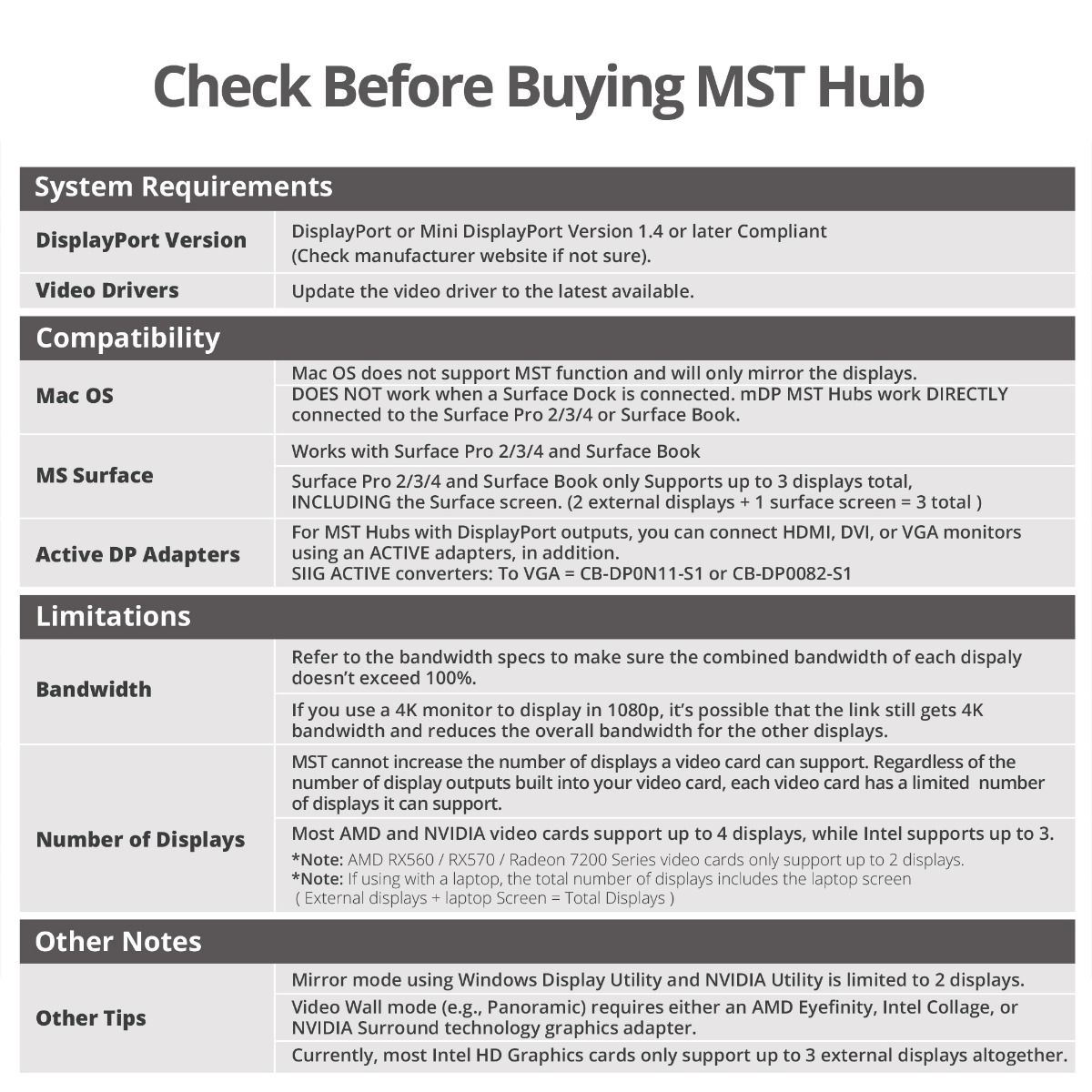

1. Make sure your system requirement has a DisplayPort video output specification 1.4 and supports Multi Stream Transport (MST). If you are not sure, please check with the video card or system manufacture



2. Install the latest drivers for your video card. Go directly to the system/video card manufacturer or chipset owner, such as AMD, Nvidia, or Intel, to find the latest driver. Driver update through Device Manager may not retrieve the latest driver available

3. Please check your monitors resolution meet your need. If you use a 4K monitor to display in 1080p, there is a possibility that the link still gets 4K bandwidth and reduces the overall bandwidth for the other displays

4. Adding additional displays to your system is simple with MST hub; however, they are mostly dependent on and tied to your Graphics Card's capability to operate properly and make sure your system requirements are met. Check number of displays on graphics card and notes that laptop display is count in

5. MST hub cannot increase the number of displays a graphics card supports. Regardless of the number of display connectors built into your graphics card, each graphics card has a limited number of displays it can support. From our experience at the current time, AMD and NVIDIA video cards support up to 4 displays, while Intel supports up to 3 displays. If you are unsure, check with the video card or system manufacturer
*Note: NVIDIA graphics cards are recommended as AMD DP graphics cards may cause bandwidth limitations

6. To connect HDMI, DVI or VGA monitor to our 1x3 DisplayPort 1.4 to DisplayPort MST Splitter, please use ACTIVE converter



---

---

• Interface
• System Requirements
• Package Contents

---

Specifications

Hardware
Chipset	VMM5320
Software
OS Compatibility	Windows® 11 or new
Video
DisplayPort	x3
Resolution	one screen: up to 8K (7680x4320) @30Hz with DSC (Display Stream Compression) two screens: up to 4K (3840x2160) @60Hz with DSC three screens: up to 4K (3840x2160) @30Hz with DSC
Bandwidth	32.4Gbps
Display modes
3 different display modes: Mirror mode, Extended mode, and Panoramic Video Wall mode *Note: AMD Eyefinity or NVIDIA Surround technology graphics adapter is required to support Panoramic Video Wall mode
Audio
7.1 channel surround sound, up to 192KHz sampling rate
Environmental conditions
Operating temperature	32 to 104 degrees F
Storage temperature	-4 to 140 degrees F
Relative humidity:	20% to 90% RH (non-condensing)
Product Info
Dimensions	4.13” (L) x 0.69” (H) x 2.87” (W)
DisplayPort cable (embedded)	11.81 inches (0.98ft)
Weight	0.26 lbs
Color	Silver grey/black
Housing material	Aluminum
Unit Package
Dimensions	9.06” (L) x 1.61” (H) x 3.74” (W)
Weight	0.58 lbs
Certifications/Standards
FCC, CE, RoHS 2.0, REACH, TAA compliant
Warranty: 3 years limited
Country of origin: Taiwan

---

Interface



Input

• 1x 20-pin, DisplayPort 1.4. Female (Host)
• 1x 5-pin, Micro USB, Power only (at least 5V/500mA), Female
• 1x Reset button

Output

• 3x 20-pin, DisplayPort 1.4, Female

---

System Requirements

• Desktop or laptop with an available DisplayPort 1.4 port
• Windows^® 11 / 10 / 8.x / 7
  * Note: macOS^® doesn't support MST function and only Mirror display (SST)

---

Package contents

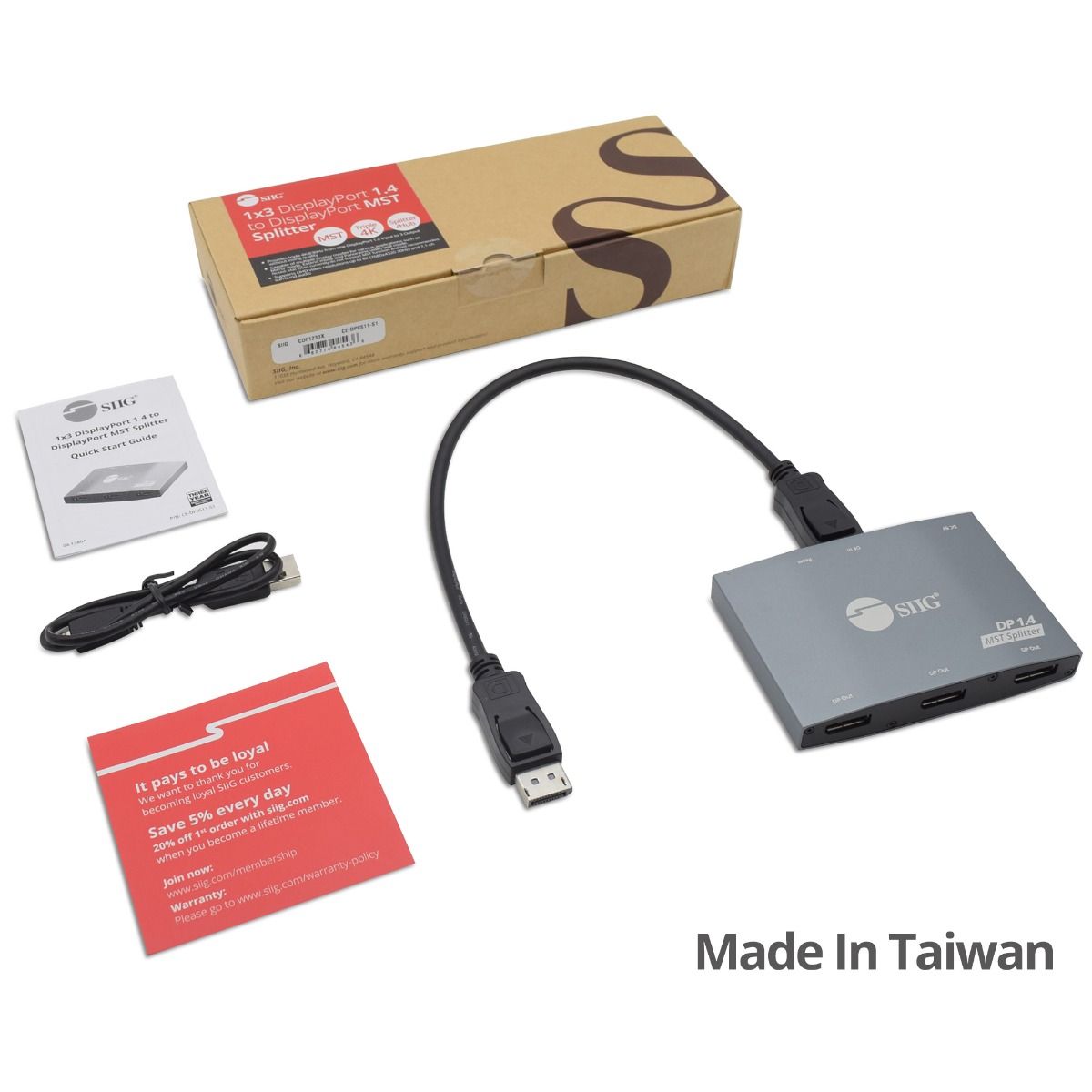

• 1x 1x3 DisplayPort 1.4 to DisplayPort MST Splitter
• 1x DisplayPort to DisplayPort cable, 11.81" (30cm)
• 1x Micro-USB power cable, 1.64ft (50cm)
• 1x User reference guide
