1x4 HDMI Splitter Over Cat6 Extender with Loopout, IR, ARC & RS-232

  • 1 to 4
  • HDMI Splitter
  • Cat6/7
  • 230ft/70m
  • 18Gbps
  • [email protected]
  • HDCP 2.2
  • HDR
  • HDMI Loop-out
  • Bi-direction IR Extension
  • ARC
  • S/PDIF Audio
  • Audio Extraction
  • Audio Slide Switch
  • EDID Management
  • DIP Switch
  • RS-232 Control
  • Reset Button
  • ESD Protection
In stock
Quantity in stock: 23
SKU
CE-H27A11-S1
$699.99

We will send this product within 1 business day

Lifetime technical support on all of our product

45 day return and money back guarantee



    Overview

    HDMI 1x4 Extender/Splitter, Extends [email protected] HDMI signal to 4 displays up to 230ft (70m) over Cat6/7 cable, HDMI Loopout, IR Control, ARC, RS-232, Metal Housing, Wall mount design

    overview


    Features

    Simultaneously splits HDMI audio and video signals to four displays up to 230ft (70m) via Cat6/7 cable with zero latency, local display, audio extraction, ARC and IR remote control of HDMI devices

    fea


    res4K UHD Resolution
    Supports Ultra high-definition video resolution up to 4K (3840x2160) @60Hz, HDR, HDCP 2.2, YUV 4:4:4 to deliver a crystal-clear picture quality
    Allows EDID management via DIP switch to control remote/local displays resolution and RS-232 command control the device


    Extend Distance
    This 1x4 HDMI Splitter Over Cat6 Extender with Loopout designed to extends/splits HDMI signals up to 230ft (70m) through RJ45 network to four remote HDMI displays for reliability transmission
    HDMI loop-out on the transmitter to connecting a local display for monitoring of the extended displays

    dis


    IR Extension
    Bi-directional IR remote control through Cat6/7 cable allows you to control the HDMI source device at the remote display location (IR blaster/receiver cables are included)
    *Note: Please make sure the remote control is within the effective range

    ir


    Audio Extraction
    Easily extract audio via audio slid switch to select S/PDIF (Toslink) or ARC (Audio Return Channel) to return audio used to TV to the audio system/speaker
    S/PDIF audio formats: PCM 2.0, Dolby 5.1, and DTS 5.1; HDMI audio formats: PCM 2.0/5.1/7.1, Dolby 5.1, and DTS 5.1

    ext


    Multiple Connectivity Ports
    Comes with one HDMI video input port, one HDMI video loop-out port, four HDMI video output ports, eight RJ45 network ports, five 3.5mm IR emitter ports, five 3.5mm IR receiver ports, four S/PDIF ports, one RS-232 terminal block, one DIP switch, five reset buttons, four audio slide switches, one DC power jack (12V/2A) for TX, four DC power jacks (5V/2A) for RXs

    port

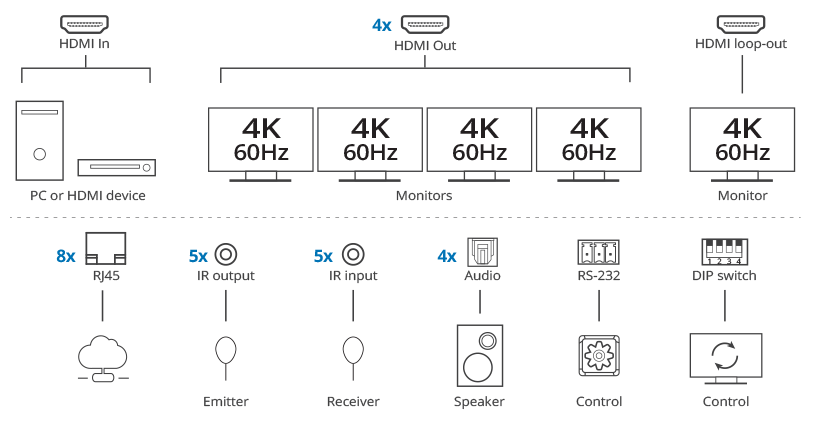

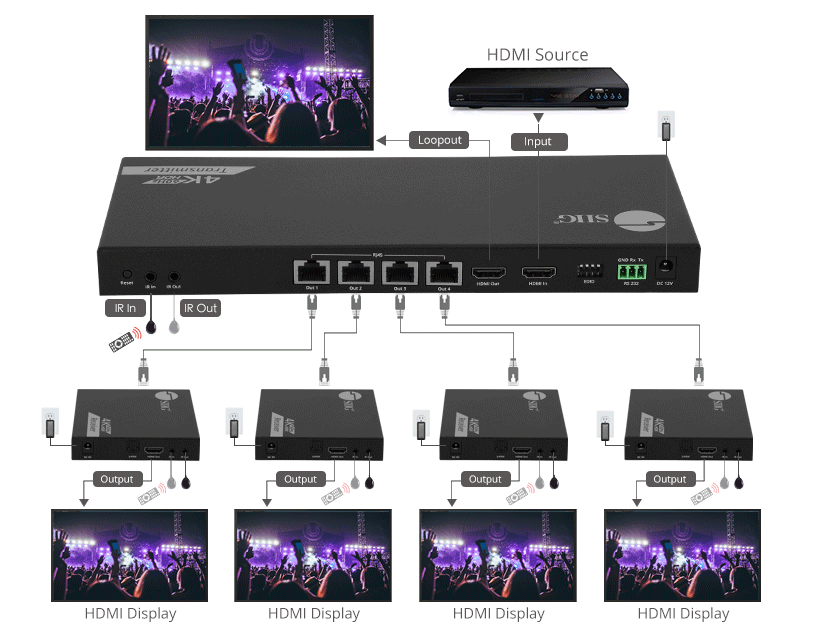

    Connection

    conn


    Maximum Compatibility
    Supports Plug-n-play. No driver installation required
    The reset button allows displays to be re-detected if no displays are detected


    Protection Components
    Supports ESD protection, lightning protection, and surge protection to safe your electronic equipment


    Metal Housing Design
    Protects the inside PCBA, also enhance the heat dissipation for better performance. Military-grade component for long service life


Applications

    • Lecture hall
    • Exhibition
    • Retail store
    • Shopping center
    • Restaurant
    • Transportation
    • Church
    • Broadcast
    • Educational facilities
    • Library
    • Show room

    Need to Know Before Buying

    1. Please confirm your computer or device with HDMI port

    computer

    2. Check the extended and local displays/monitors with HDMI port and supports [email protected] resolution

    monitor


    Specifications

    Video
    HDMI 1x input, 4x output
    Resolution HDCP 2.2, 4K (3840x2160)/1080p/1080i/720p/480i/480p @60Hz
    Audio
    7.1 channel surround sound from HDMI port, audio format PCM 2.0/5.1/7.1, Dolby 5.1, and DTS 5.1
    5.1 channel surround sound from S/PDIF (Toslink) port, audio format: PCM 2.0, Dolby 5.1, and DTS 5.1
    IR pass-through
    Built-in Bi-directional IR remote control, allows you to control the HDMI source device at the remote display
    Full frequency 20KHz to 60KHz
    RS-232 Control
    Supports up to 115200 baud rates. 3-pin: GND-RxD-TxD, follow RS-232 levels
    Power
    Power adapter Input: 100-240V/50-60Hz, TX output: DC 12V/2A, RX output: DC 5V/2A
    UL listed E335801/Level: VI
    Environmental conditions
    Operating temperature 14 to 140 degrees F
    Storage temperature -4 to 158 degrees F
    Relative humidity 0% to 90% RH (non-condensing)
    Product Info
    Transmitter unit (TX) Dimensions: 10.43” (L) x 0.91” (H) x 4.09" (W)
    Weight: 1.46lbs
    Color: black
    Housing material: Metal
    Receiver unit (RX) Dimensions: 4.15” (L) x 0.79” (H) x 4.04" (W)
    Weight: 0.54lbs
    Color: black
    Housing material: Metal
    Unit package
    Dimensions 12.32” (L) x 3.35” (H) x10.83" (W)
    Weight 6.22 lbs
    Certifications/Standards
    FCC, CE, RoHS, REACH
    Warranty: 2 years limited
    Country of origin: China

    Interface

    interface

      1x Transmitter (TX)
    • 1x 19-pin, HDMI, Female (input)
    • 1x 19-pin, HDMI, loop-out, Female (output)
    • 1x 3.5mm infrared jack, IR emitter (output)
    • 1x 3.5mm infrared jack, IR receiver (input)
    • 4x 8-pin, RJ45 (output)
    • 1x 3-pin, RS-232 terminal block (for control)
    • 1x 4-pin, DIP switch (for EDID management)
    • 1x Reset button
    • 1x DC power jack, 12V/2A

    interface

      4x Receivers (RX)
    • 4x 19-pin, HDMI, Female (output)
    • 4x 3.5mm infrared jack, IR emitter (output)
    • 4x 3.5mm infrared jack, IR receiver (input)
    • 4x 8-pin, RJ45 (input)
    • 4x S/PDIF, Toslink digital audio (output)
    • 4x Audio slide switch (S/PDIF and ARC)
    • 4x Reset button
    • 4x DC power jack, 5V/2A


    Package contents

    • 1x 1x4 HDMI Splitter Over Cat6 Extender with Loopout, IR, ARC & RS-232
    • 1x 3.5mm IR emitter extension cable
    • 4x IR Receiver receiver extension cable
    • 1x RS-232 Terminal block
    • 1x Mounting kits
    • 1x DC power adapter, 12V/2A
    • 4x DC power adapter, 5V/2A
    • 1x User reference guide

Manuals

04-1375a.pdf Download manual
No Questions
Please note that you must be logged in to submit questions.
