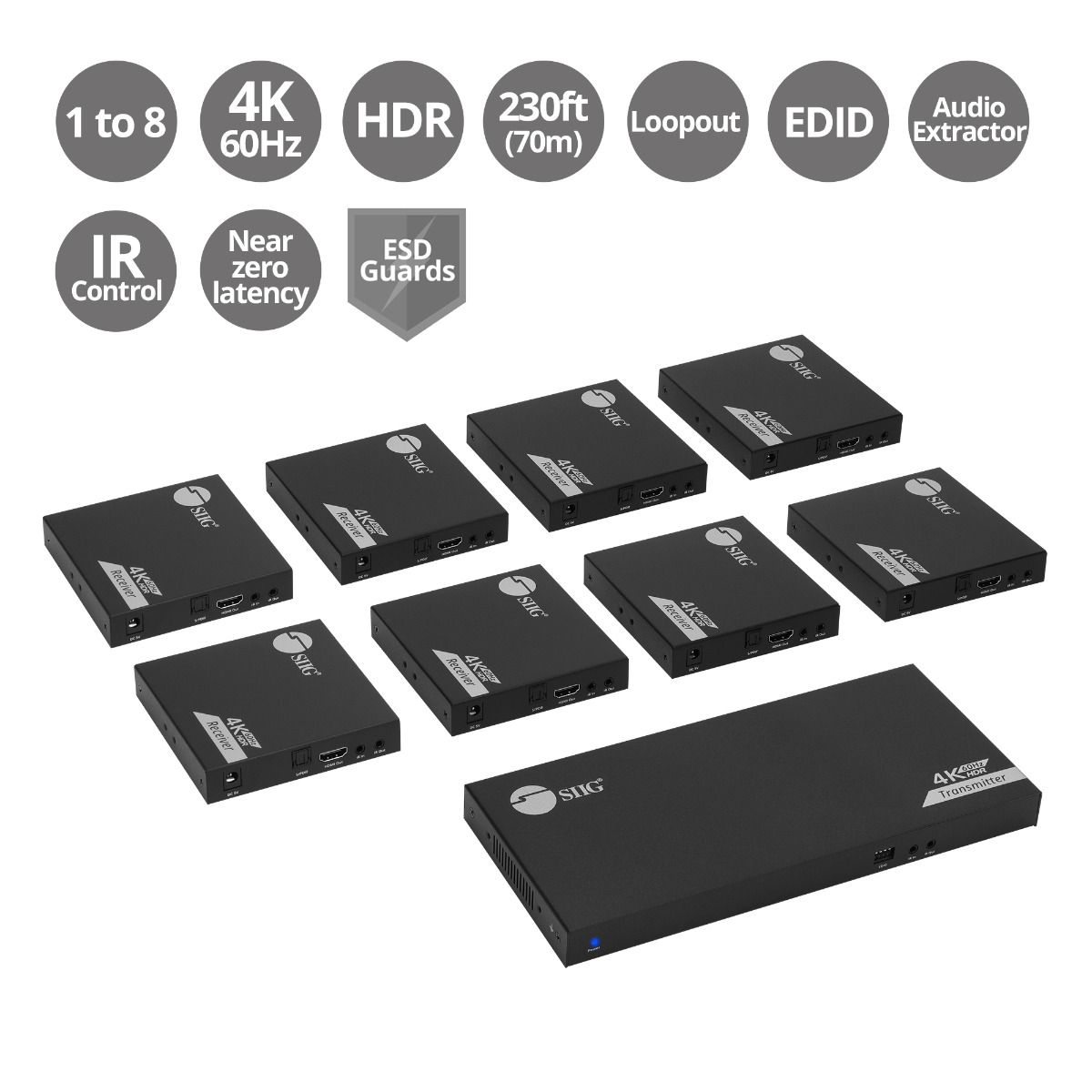

1x8 HDMI 2.0 Splitter Over Cat6 Extender with Loopput, IR, ARC & RS-232

Overview

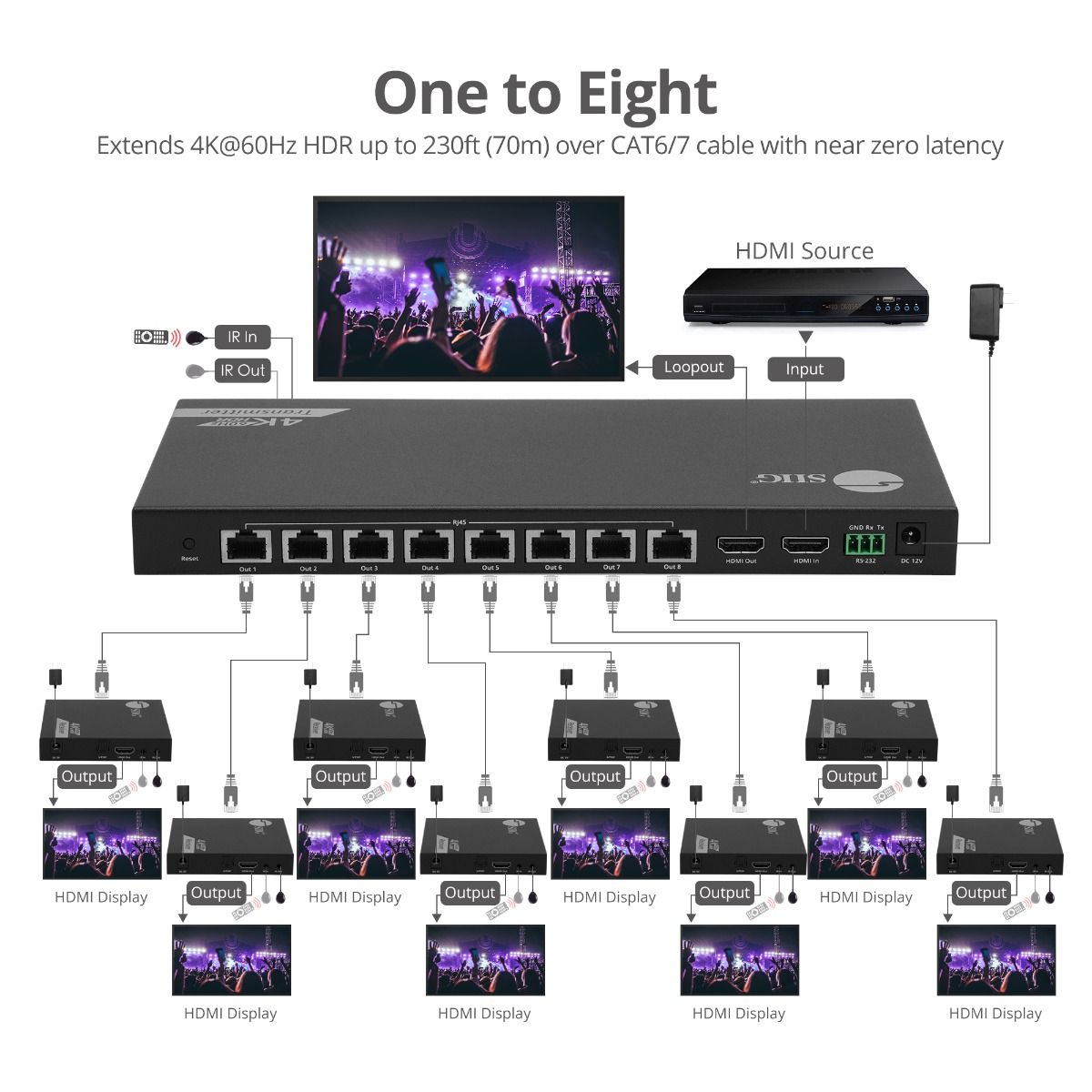

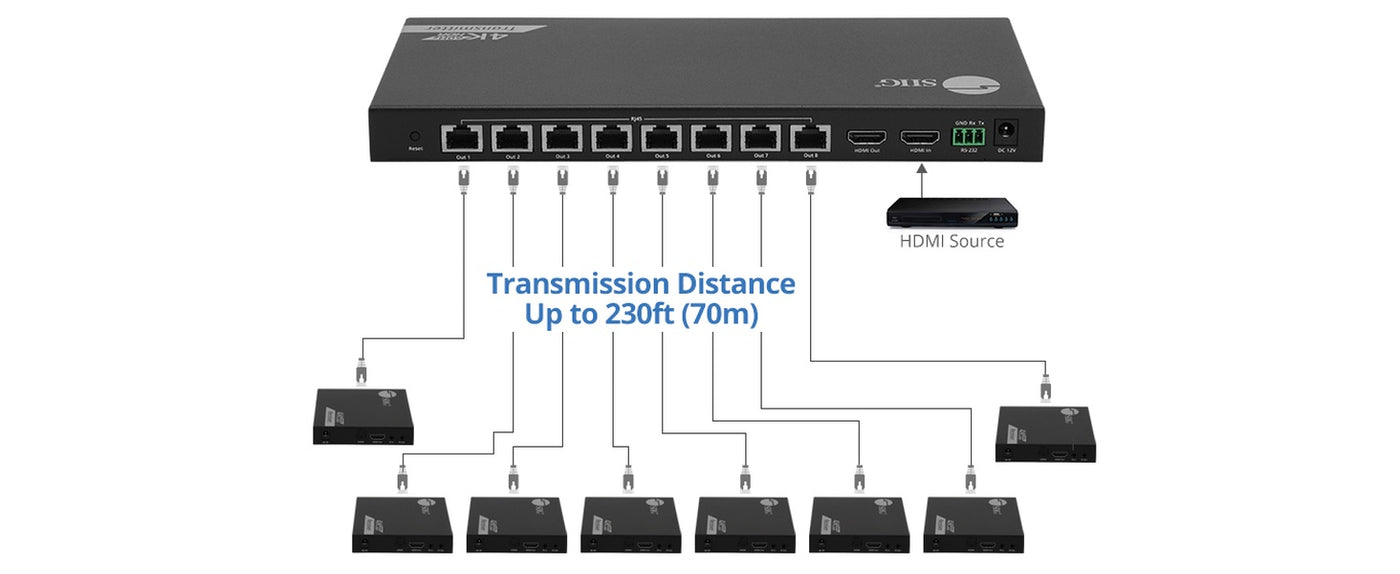

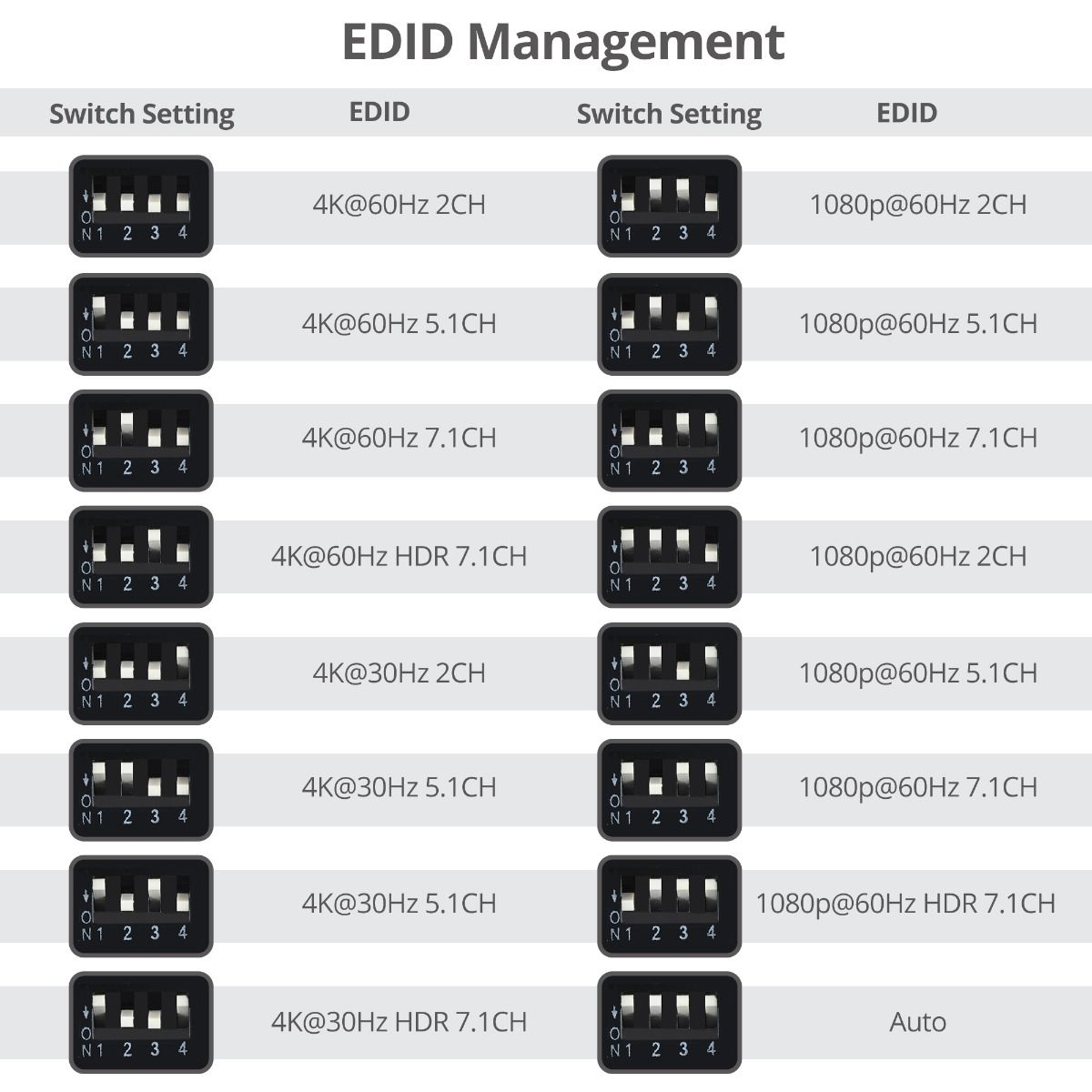

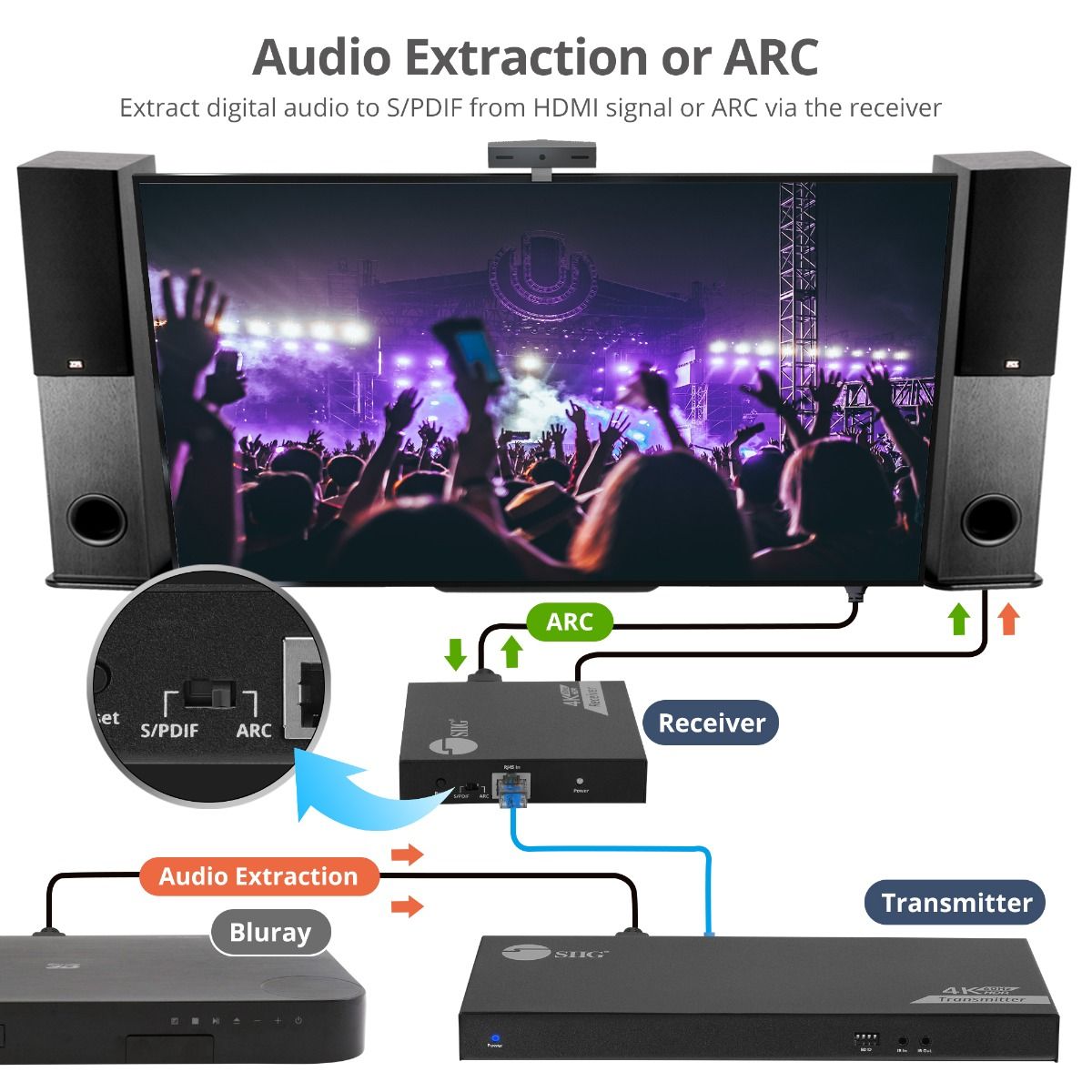

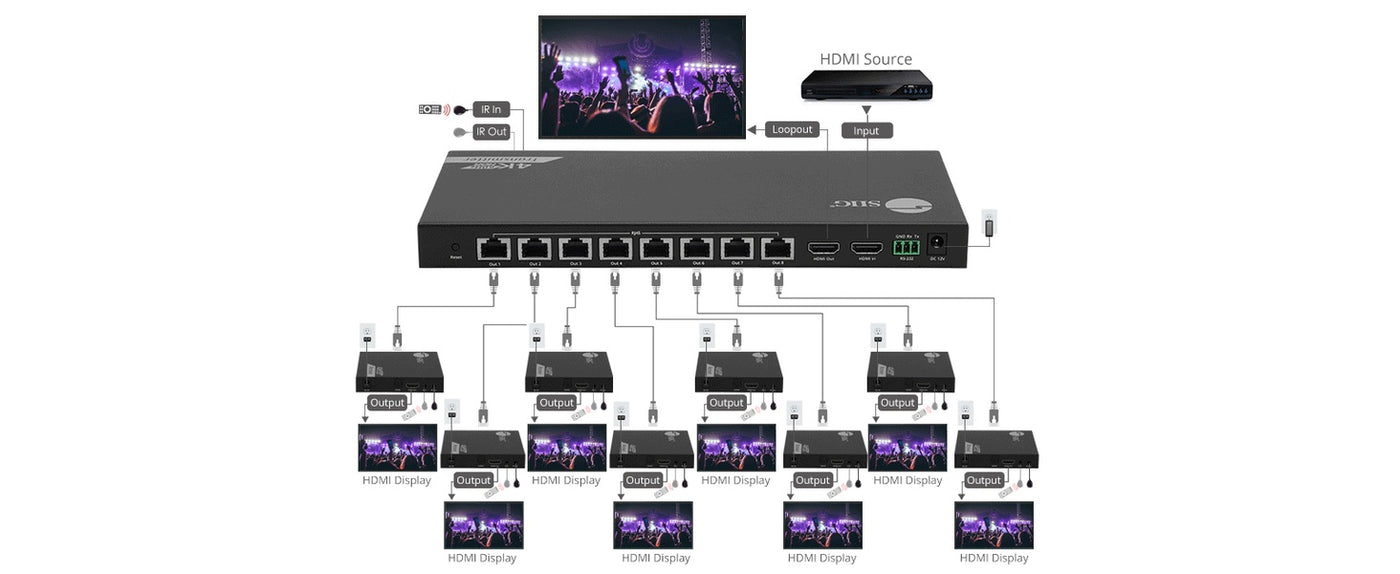

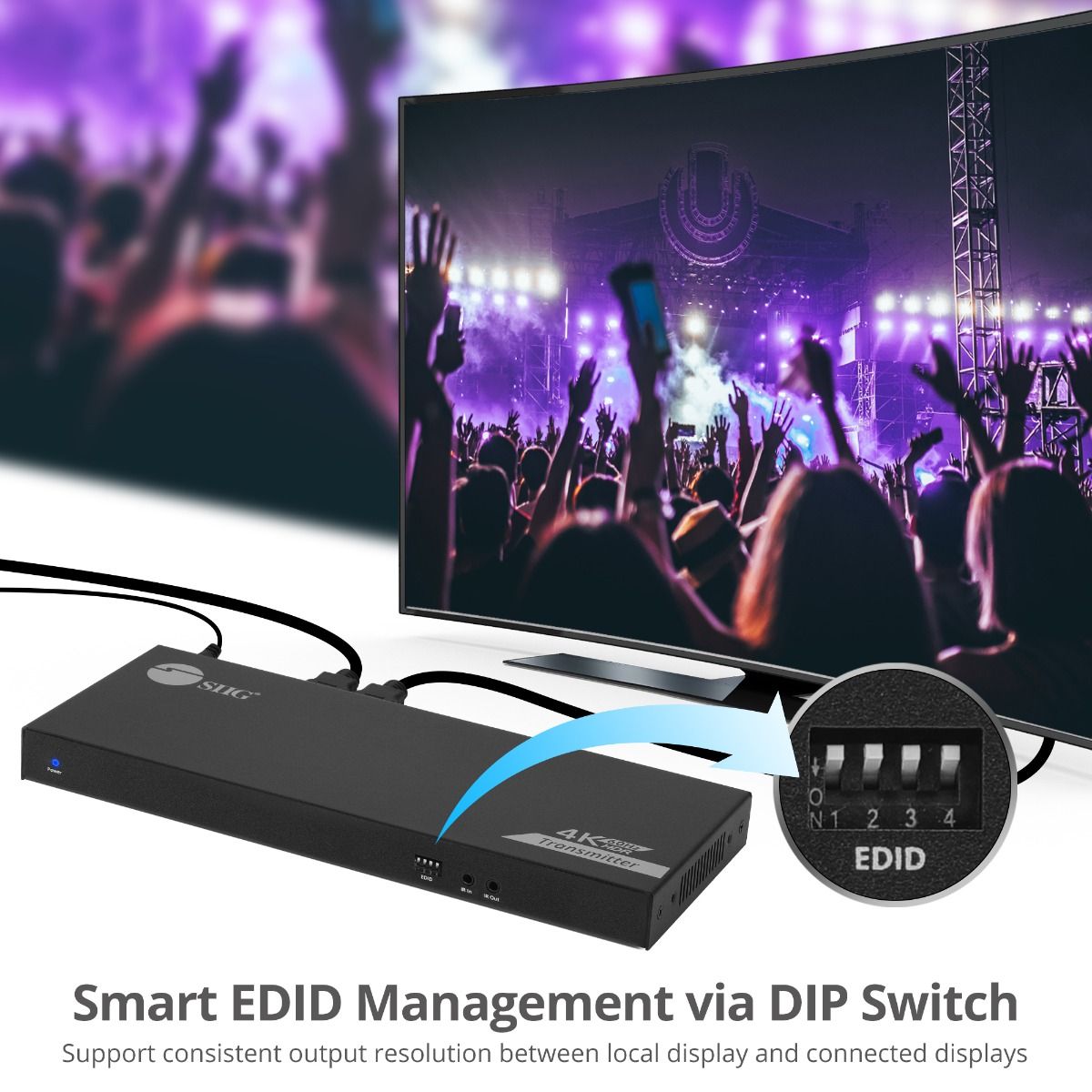

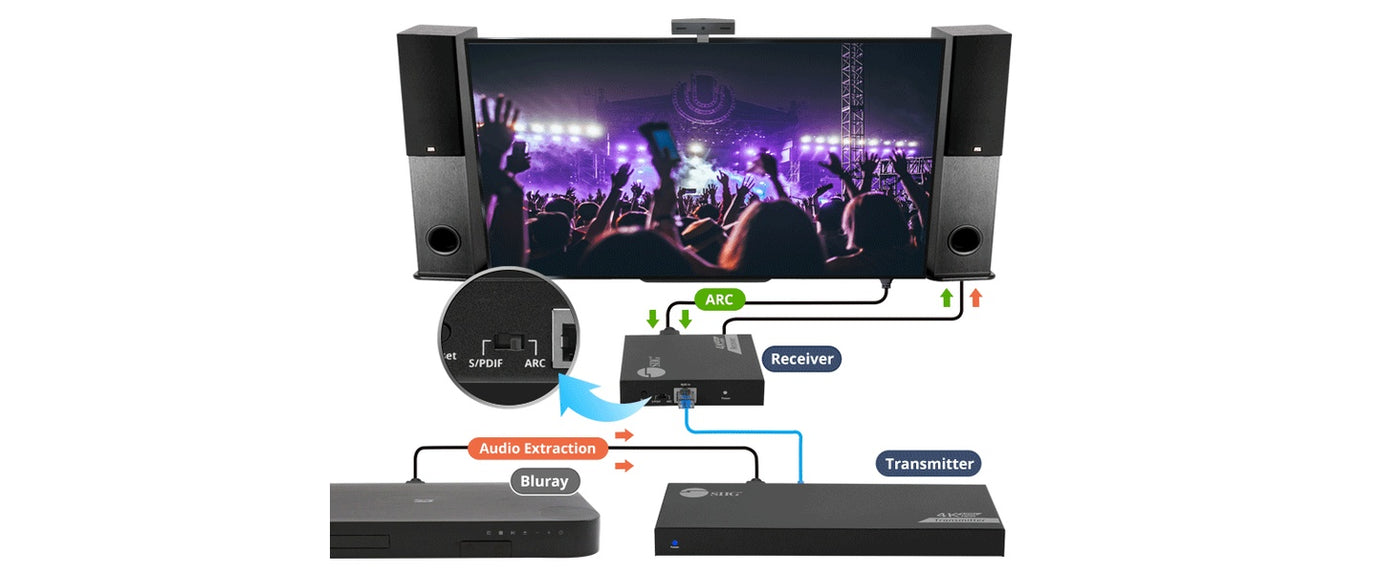

Features Applications Need to Know Before Buying Overview HDMI 1x8 Extender/Splitter, Extends [email protected] HDMI signal to 8 displays up to 230ft (70m) over Cat6/7 cable, HDMI Loopout, IR Control, ARC, RS-232, Zero Latency, Metal Housing, Wall mount design Features Simultaneously splits HDMI audio and video signals to eight displays up to 230ft (70m) via Cat6/7 cable with zero latency, local display, audio extraction, ARC and IR remote control of HDMI devices 4K UHD Resolution Supports Ultra high-definition video resolution up to 4K (3840x2160) @60Hz, HDR, HDCP 2.2, YUV 4:4:4 to deliver a crystal-clear picture quality Allows EDID management via DIP switch to control remote/local displays resolution and RS-232 command control the device Extend Distance This 1x8 HDMI Splitter Over Cat6 Extender with Loopout designed to extends/splits HDMI signals up to 230ft (70m) through RJ45 network to eight remote HDMI displays for reliability transmission HDMI loop-out on the transmitter to connecting a local display for monitoring of the extended displays IR Extension Bi-directional IR remote control through Cat6/7 cable allows you to control the HDMI source device at the remote display location (IR blaster/receiver cables are included) Note: Please make sure the remote control is within the effective range Audio Extraction* Easily extract audio via audio slid switch to select S/PDIF (Toslink) or ARC (Audio Return Channel) to return audio used to TV to the audio system/speaker S/PDIF audio formats: PCM 2.0, Dolby 5.1, and DTS 5.1; HDMI audio formats: PCM 2.0/5.1/7.1, Dolby 5.1, and DTS 5.1 Multiple Connectivity Ports Comes with one HDMI video input port, one HDMI video loop-out port, eight HDMI video output ports, sixteen RJ45 network ports, nine 3.5mm IR emitter ports, nine 3.5mm IR receiver ports, eight S/PDIF ports, one RS-232 terminal block, one DIP switch, nine reset buttons, eight audio slide switches, one DC power jack (12V/2A) for TX, eight DC power jacks (5V/2A) for RXs Connection Maximum Compatibility Supports Plug-n-play. No driver installation required. The reset button allows displays to be re-detected if no displays are detected Protection Components Supports ESD protection, lightning protection, and surge protection to safe your electronic equipment Metal Housing Design Protects the inside PCBA, also enhance the heat dissipation for better performance. Military-grade component for long service life Applications Lecture hall Exhibition Retail store Shopping center Restaurant Transportation Church Broadcast Educational facilities Library Show room Need to Know Before Buying 1. Please confirm your computer or device with HDMI port 2. Check the extended and local displays/monitors with HDMI port and supports [email protected] resolution

Specifications

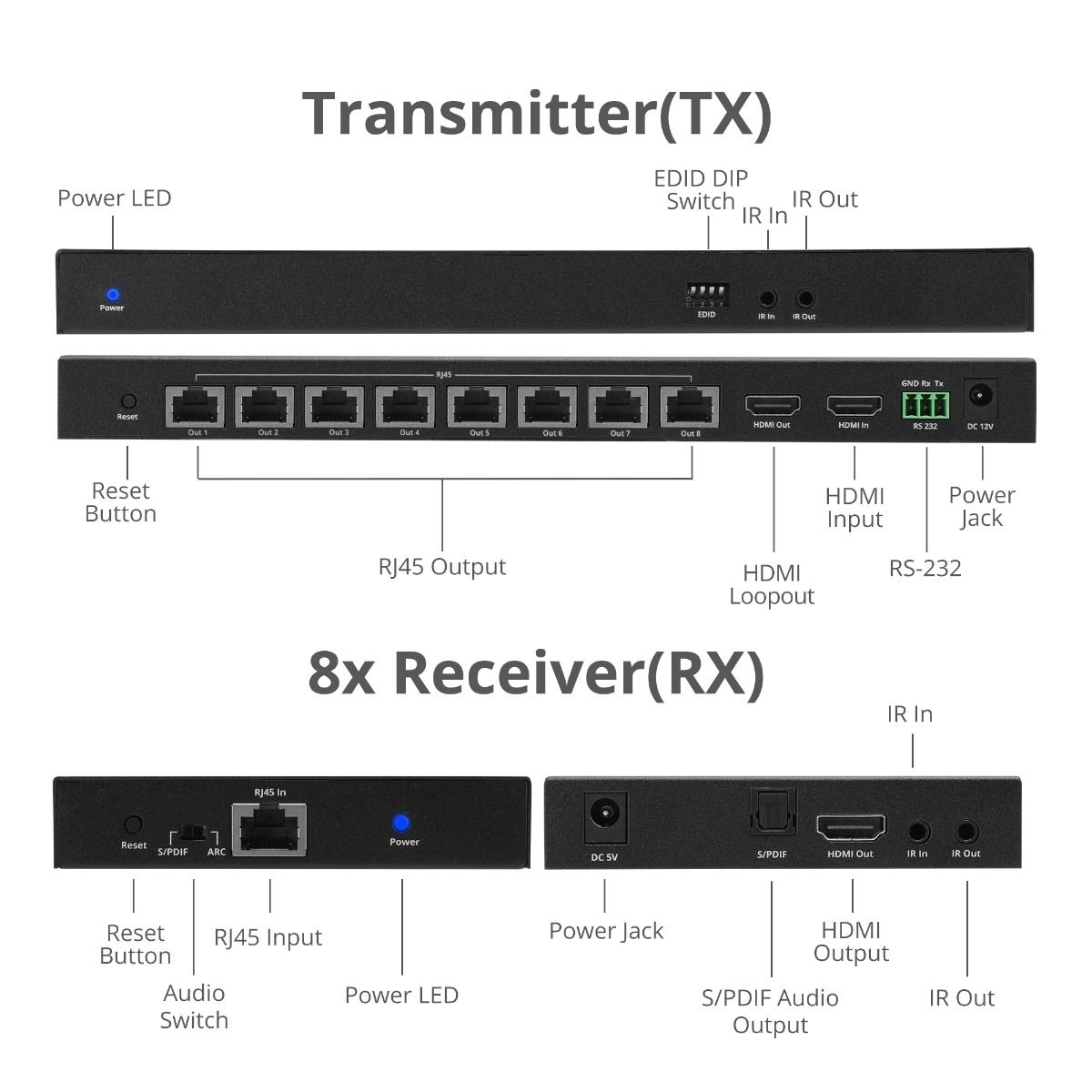

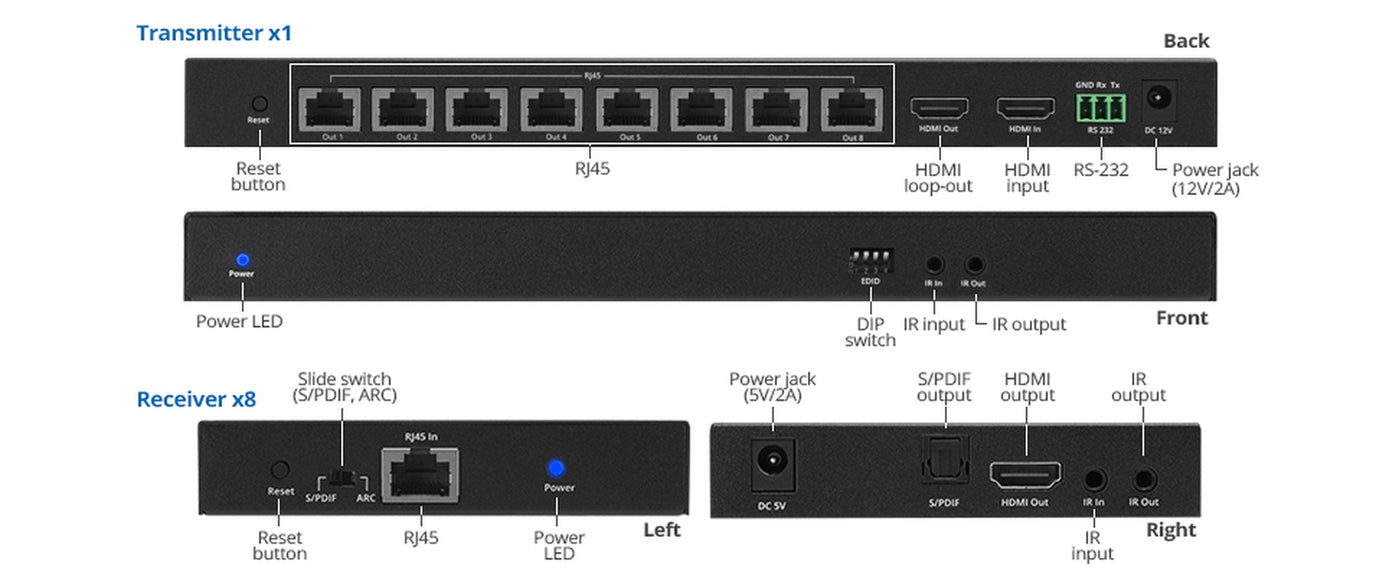

Interface

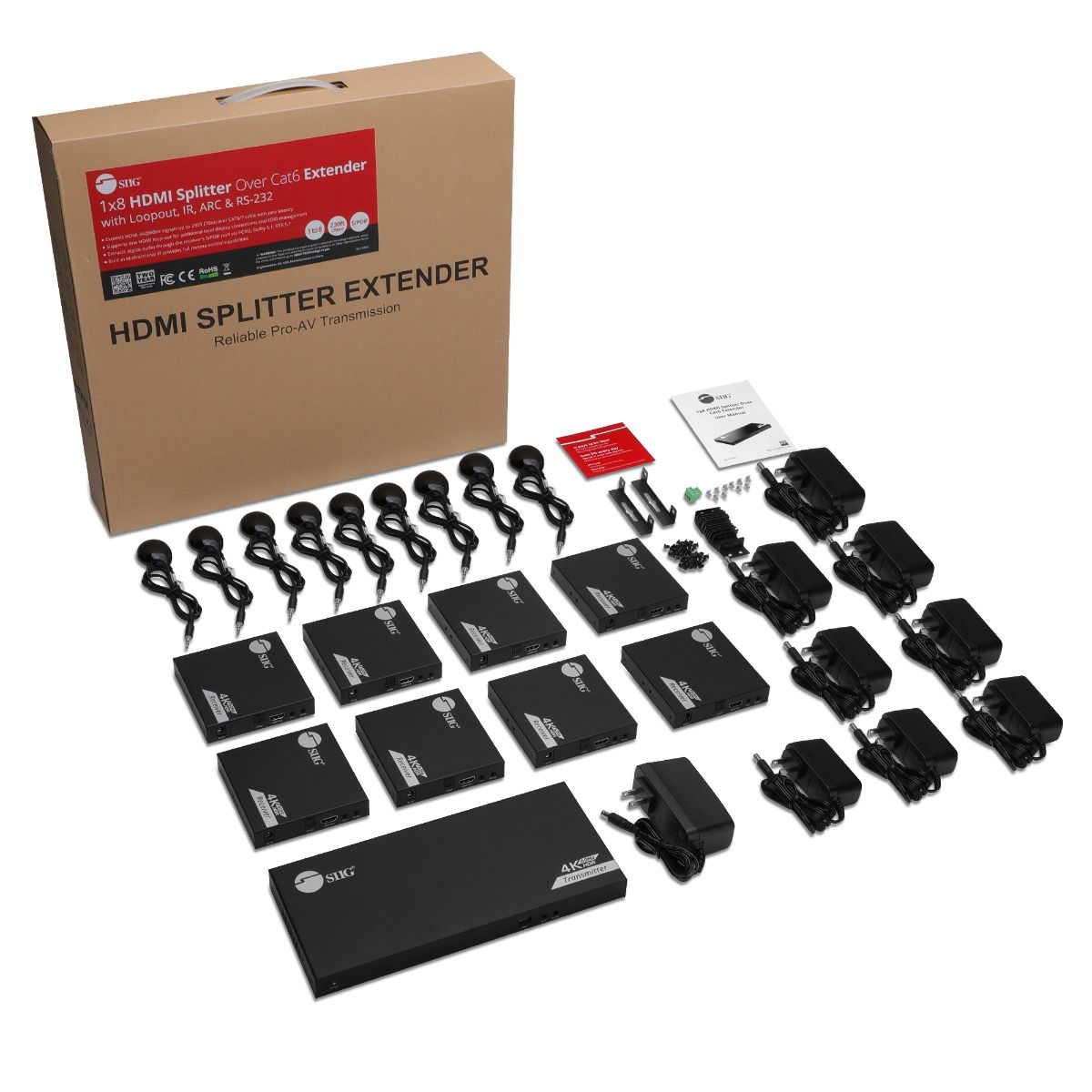

Package Contents

Specifications

Video
HDMI	1x input, 8x output
Resolution	HDCP 2.2, 4K (3840x2160)/1080p/1080i/720p/480i/480p @60Hz
Audio
7.1 channel surround sound from HDMI port, audio format PCM 2.0/5.1/7.1, Dolby 5.1, and DTS 5.1
5.1 channel surround sound from S/PDIF (Toslink) port, audio format: PCM 2.0, Dolby 5.1, and DTS 5.1
IR pass-through
Built-in Bi-directional IR remote control, allows you to control the HDMI source device at the remote display
Full frequency	20KHz to 60KHz
RS-232 Control
Supports up to 115200 baud rates. 3-pin: GND-RxD-TxD, follow RS-232 levels
Power
Power adapter	Input: 100-240V/50-60Hz, TX output: DC 12V/2A, RX output: DC 5V/2A
UL listed	E335801/Level: VI
Environmental conditions
Operating temperature	14 to 140 degrees F
Storage temperature	-4 to 158 degrees F
Relative humidity	0% to 90% RH (non-condensing)
Product Info

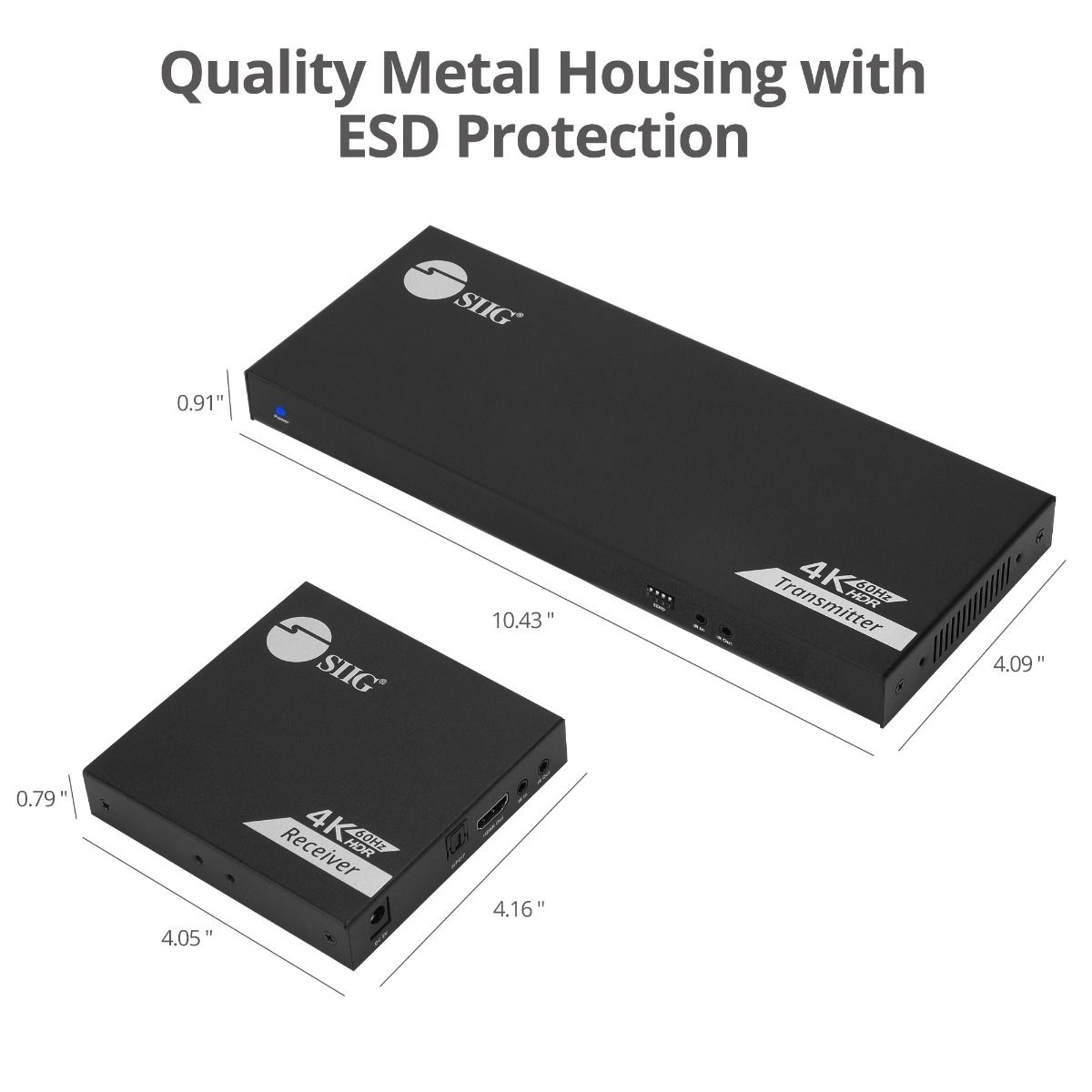

Transmitter unit (TX)	Dimensions: 10.39” (L) x 0.91” (H) x 4.72" (W) Weight: 1.6lbs Color: black Housing material: Metal
Receiver unit (RX)	Dimensions: 4.15” (L) x 0.79” (H) x 4.04" (W) Weight: 0.54lbs Color: black Housing material: Metal
Unit package
Dimensions	18.31” (L) x 3.15” (H) x16.73" (W)
Weight	11.25 lbs
Certifications/Standards
FCC, CE, RoHS, REACH
Warranty: 2 years limited
Country of origin: China
