2-Port 4K HDMI KVM Switch with PBP Roaming Mouse & PIP

• Features
• Applications
• Need to Know Before Buying

---

Overview

2x1 HDMI KVM Switch, Allows you to control 2 HDMI 4K computers using one keyboard and mouse - Mouse Roaming, PBP, PIP, 4K@30, HDCP 1.4, USB 3.0 ports, Stereo Audio Output, Switch Button, Hotkeys, TAA compliant

---

Features

Seamlessly switch two computers to one 4K display/Monitor and USB peripheral via a one set of keyboard & mouse, with mouse roaming, Full-Frame PBP and PIP functions to boost your productivity



---

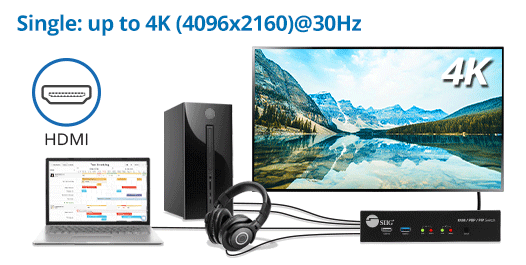

4K Video Resolution
Supports a single 4K (4096x2160) @30Hz or 4K (3840x2160) @30Hz 4:4:4 8-bit Ultra HD video resolution

---

High Performance
Offers a true 10.2Gbps video bandwidth and supports 5.1ch surround sound

---

Mouse Roaming
Simple move the mouse to roam between the two Windows systems make perfect operation experience



---

PBP Function
Split display in half on the left and right from 2 sources simultaneously and without picture compression and fast configuration of up to 8 presets by the user



PIP Function

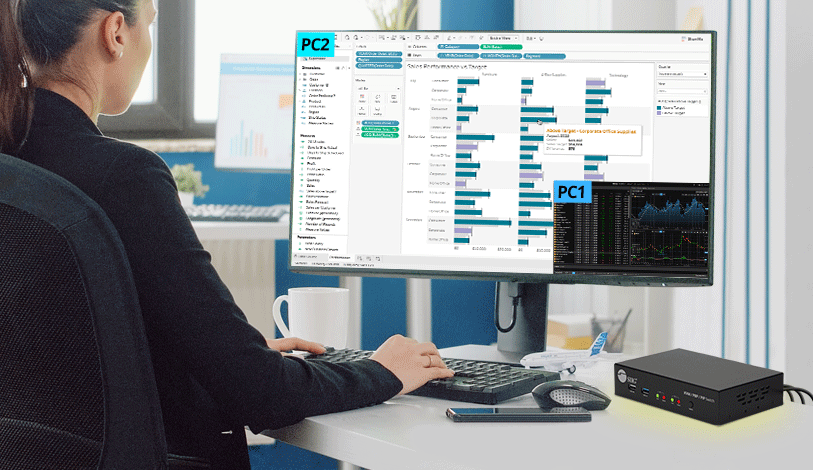

Allows the sources on the same screen simultaneously on the left side of the single screen (PIP monitor up to 1080p only). Built-in screen scaling function on the main screen and PIP screen-full screen, resize, position, and transparency



---

Effortlessly Switch
Easily switching between computer/device via the front panel select button, USB keyboard hotkeys, and mouse roaming make this 2-port 4K KVM Switch with PBP Roaming mouse & PIP user-friendly to operate

* Note: Hotkeys control is only available on Windows ^® system



---

HotKey Operation
A hotkey command is a short keyboard sequence that allows you to monitor these 2 computers by hotkey controls directly with the keyboard







---

Multiple Connectivity Port
Comes with two HDMI video input ports, two USB-B 3.2 Gen 1 input ports (Host), one HDMI video output port, two USB-A 3.2 Gen 1 ports, four USB-A 1.1 HID ports for connecting keyboard and mouse, three 3.5mm phone jack for stereo audio, one PC1/PC2 switch button, and one DC power jack (12V/1.5A)



Connection



---

USB-A Data Transfer
Delivers two USB-A 3.2 Gen 1 ports with data transfer rate up to 5Gbps for flash drive, printer, enclosure, or other USB peripheral devices, and four USB-A 1.1 HID ports with data transfer rate up to 12Mbps for independent HID keyboard and mouse, easy front or back connection

---

Maximum Compatibility
Compatible with Windows^® 11 (32-/64-bit) / 10 (32-/64-bit) / 8.x (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit). Supports Plug-n-play and no driver installation required

---

Metal Housing Design
Protects the inside PCBA, also enhance the heat dissipation for better performance. Military-grade component and ESD protection for long service life

---

TAA Compliant
Completely manufactured in a TAA designated country

---

Applications

• Office
• Workstation
• Home office
• Media editing center
• Web design studio
• Photo shooting studio
• Medical office
• Testing lab
• Server room
• Show room
• Presentation room
• Control center

---

Need to Know Before Buying

1. Please confirm your computers with HDMI, USB-B 3.2 Gen 1, and audio ports



2. Check the extended display/monitor with HDMI and support 4K30Hz resolution. If you are not sure, please check the manual of the monitor

• Interface
• System Requirements
• Package Contents

---

Specifications

Software
OS Compatibility	Windows® 11 and Linux
Video
HDMI	HDCP 1.4
Resolution	4K (4096x2160 or 3840x2160)@30Hz
Video Bandwidth	Up to 10.2Gbps
USB data transfer rate
USB 3.2 Gen 1	2x Type-A, up to 5Gbps, 5V/900mA
USB 1.1	4x Type-A, up to 12Mbps for HID keyboard & mouse
Audio
5.1 channel surround sound from HDMI port
2 channel stereo audio from 3.5mm audio jack
Power Adapter
Input	AC 100-240V / 50-60Hz
Output	DC 12V/1.5A
UL Listed	UL E163743/Level: VI
Environmental conditions
Operating temperature	32 to 114 degrees F
Storage temperature	14 to 178 degrees F
Relative humidity:	5% to 90% RH (non-condensing)
Product Info
Dimensions	6.93” (L) x 1.57” (H) x 4.33” (W)
Weight	1.60 lbs
Color	Black
Housing material	Metal
Unit Package
Dimensions	12.05” (L) x 2.76” (H) x 6.97” (W)
Weight	2.47 lbs
Certifications/Standards
FCC, CE, RoHS 2.0, REACH
Warranty: 2 years limited
Country of origin: Taiwan

---

Interface



Input

• 2x 19-pin, HDMI, Female
• 2x 9-pin, USB-B 3.2 Gen 1, Female
• 1x Switch button, for PC1/PC2 switching
• 1x DC power adapter, 12V/ 1.5A

Output

• 1x 19-pin, HDMI, Female
• 2x 9-pin, USB-A 3.2 Gen 1, Female
• 4x 4-pin, USB-A 1.1, forHID keyboard & mouse, Female
• 3x 3.5mm phone jack, for stereo audio

---

System Requirements

• PC with available HDMI, USB-B 3.2 Gen 1 port, and 3.5mm audio ports
• Windows^® 11 /10
• Linux

---

Package contents

• 1x 2-Port 4K HDMI KVM Switch with PBP Roaming Mouse & PIP
• 4x Silicone pad
• 3x Screw kit
• 1x DC power adapter, 12V/1.5A
• 1x User reference guide
