2-Port DisplayPort 1.2 Smart Console KVM Switch with USB 3.0 and Multi-Media Ports - [email protected]

• Features
• Applications
• Need to Know Before Buying

---

Overview

Allows you to control 2 computers using one keyboard and mouse - [email protected] resolution DisplayPort 1.2, auto EDID, USB 3.0 ports, microphone input, and stereo audio output

---

Features

Create a high-performance workstation via one set of keyboard and mouse to control 2 DisplayPort 1.2 computers with USB 3.0 and audio devices



Effortlessly Switch

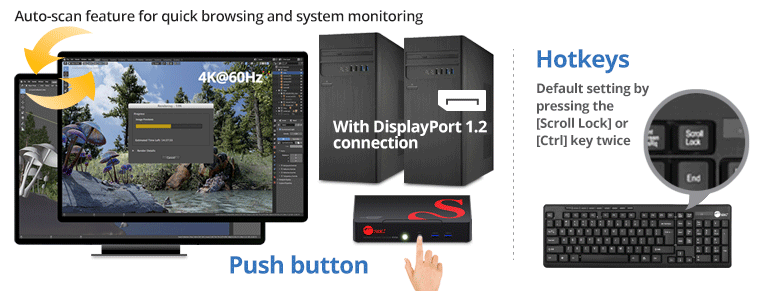

Easily switching between computer/device via the front panel push button or USB keyboard hotkeys make this DisplayPort 1.2 4K Smart Console KVM Switch with USB 3.0 Multi-Media user-friendly to operate



Built-in signal level enhancement slide switch reforms DP source and resolve unstable original DP input automatically



---



High Resolution

Delivers crystal clear picture quality with resolution up to 3840x2160 @60Hz YUV 4:4:4 8-bit, 3D, Deep color.

**Note: Does NOT work with passive or active DP-to-HDMI/DVI/VGA adapters

* HDR is not supported

---

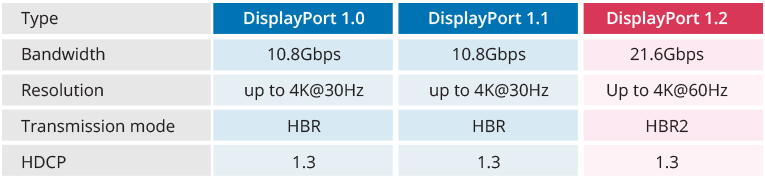

High Performance

Offers a true 21.6Gbps video bandwidth and supports 7.1ch surround sound or stereo audio. PCM, DTS-HD, Dolby Digital and Dolby TrueHD audio also supported



---

Multiple Connectivity Port

Comes with two DisplayPort video ports, four USB 3.0 Type-A ports for connecting multiple USB peripherals such as flash drives, printers…, two USB 1.1ports for keyboard and mouse connection, six 3.5mm audio jack ports to connect stereo speakers / earphone or microphone, one Micro USB port for Firmware update, one DIP Switch, and one Slide Switch (signal level)



Connection



---

HIGH-SPEED DATA TRANSFER

Delivers four USB 3.1 Gen1 Type-A ports and supports data transfer rates up to 5Gbps

---

Maximum Compatibility

Auto EDID (bypass) design maximizes the compatibility from OS to display. Auto-scan feature for quick browsing and system monitoring. Supports Plug-n-play and no driver installation required

---

TAA Compliant

Completely manufactured in a TAA designated country

---

Metal Housing Design

Protects the inside PCBA, also enhance the heat dissipation for better performance. Military-grade component and ESD protection for long service life

---

ESD Protection

An ESD protection device protects a circuit from an Electrostatic discharge (ESD), in order to prevent a malfunction or breakdown of an electronic device

---

Applications

•  Educational facilities
•  Gaming
•  Hospital
•  Workstation
•  Control center
•  Reception desk
•  Media editing
•  Retail stores
•  Audio/Video presentation room

---

Need to Know Before Buying

1. Please confirm your 2 computers with DisplayPort 1.2 port, USB 3.0 Type-B port, audio port and Mic port



2. Requires DisplayPort 1.2 connection for the display/monitor resolution that supports [email protected]* Please note that HDR is not supported

3. If you want to take full advantage of DisplayPort 1.2 full specifications, you need the DisplayPort 1.2 cable capable of the correct bandwidth. For example, if you are running [email protected], then please use our DisplayPort 1.2 cables (those are included) or use the DisplayPort certified cables

4. Four USB 3.0 cables are required to connect to the USB peripheral devices. * Not support Dynamic Device Mapping (DDM) fast switching

• Interface
• System Requirements
• Package Contents

---

Specifications

Hardware
Chipset	TI SN75DP130
Software
OS Compatibility	Windows® and macOS®
Video
DisplayPort 1.2	Bandwidth: up to 21.6Gbps Resolution: 3840x2160 / 3840x1600* @60 / 30 / 24Hz 3440x1440* @100 / 60Hz 2560x1440 @165 / 144 / 120 / 100 / 60 / 30Hz 1920x1200 / 1920x1080 @ 144 / 120 / 100 / 60 / 30 / 24Hz 1680x1050 / 1600x900 / 1440x900 @60Hz 1280x 1024 / 1280x800 / 1280x720 @60Hz 1024x768 / 800x600 / 640x480 @60Hz Note: - *3840x1600 & 3440x1440 resolution need 21:9 monitor (please go to download page to update the firmware of the 21:9 monitor) - 100 / 120 / 144 / 165Hz refresh rate required high refresh rate monitor Video cable length: up to 3M (max.)
USB 3.0	4x Type-A, Gen 1 up to 5Gbps
USB 1.1	2x Type-A, up to 12Mbps
Power Adapter
Input	AC 100-240V/50-60Hz
Output	DC 12V/2A
UL Listed	E163743 /Level: VI
Audio
7.1 channel surround sound
PCM 2.0 channel stereo digital audio
Environmental conditions
Operating temperature	32 to 104 degrees F
Storage temperature	-4 to 140 degrees F
Relative humidity	<85% RH (non-condensing)
Product Info
Dimensions	7.95” (L) x 1.43” (H) x 4.38” (W)
Weight	1.54 lbs
Color	Black
Housing material	Metal
Unit Package
Dimensions:	13.03" (W) x 6.38" (H) x 8.03" (D)
Weight:	4.15 lbs
Certifications/Standards
FCC, CE, RoHS, TAA compliant, Cable UL Listed: E301195
Warranty: 3 years limited
Country of origin: Taiwan

---

Interface



Layout:

• 2x 20-pin DisplayPort 1.2, Female (PC input)
• 2x 9-pin USB 3.0 Type-B, Female
• 4x 3.5mm phone jack for Microphone and Stereo audio, Female (PC)
• 1x 20-pin, DisplayPort, Female, Output
• 2x 3.5mm phone jack for Microphone and Stereo audio, Female (Device)
• 4x 9-pin USB 3.0 Type-A, Female
• 2x 4-pin USB 1.1 Type-A, Female (for Keyboard/Mouse)
• 1x 5-pin Micro USB, FW update, Female
• 1x 2-pin DIP switch (control FW)
• 1x Slide switch (signal level)
• 1x DC power jack (5.5x2.5x10mm)

---

System Requirements

• PC or Laptop with available DisplayPort 1.2 port, USB Type-A port (USB 3.0 recommended), audio and Mic ports
• Compliant with Windows or Mac system

---

Package contents

• 1x 2-Port DisplayPort 1.2 4K Smart Console KVM Switch with USB 3.0 Multi-Media
• 2x DisplayPort 1.2 cable (1.8m)
• 2x 3-in-1 cable (USB 3.0+Mic+Stereo, 1.8m)
• 1x Power Adapter (12V/2A)
• 1x User Reference Guide
