2-Port HDMI 4K60Hz HDR Splitter / Switcher

  • 2 In 2 Out
  • HDMI Splitter/Switcher
  • 18Gbps
  • [email protected]
  • HDR 10
  • HDCP 2.2/1.4
  • Full 3D
  • 7.1-ch
  • Audio Extraction
  • 3.5mm Stereo Audio
  • Auto Downscaling
  • Auto EDID
  • Switch Button
  • IR Sensor
  • Micro USB for FW update & power
  • IR Remote Control
In stock
Quantity in stock: 174
SKU
CE-H26D11-S1
$79.99

We will send this product within 1 business day

Lifetime technical support on all of our product

45 day return and money back guarantee



    Overview

    Share two 4K HDMI displays (mirror mode) between two 4K HDMI sources with IR remote control switching and EDID management

    overview


    Features

    Distributes HDMI video & audio from either of the 2 connected sources to 2 HDMI displays simultaneously with signal degradation

    fea


    Auto Downscaling
    Detects and configures the video resolution automatically according to the capabilities of the connected monitors. Supports mixed 4K and 1080p outputs. A 4K video source device can simultaneously display 4K content to 4K monitor and 1080p content to 1080p monitor via downscaling.
    *Note:
    - [email protected] monitor will display in [email protected] when the source content is [email protected]
    - Not support [email protected] 4:2:2 downscaling

    dow

    EDID modes are controlled by the included IR remote control, supports auto EDID, copy EDID and mixed EDID setting


    4K UHD Resolution
    Supports Ultra HD video resolution up to 4K ([email protected]) YUV 4:4:4 8-bit, HDR, 3D, 36-bit Deep Color offering a high-quality video viewing

    res


    Effortlessly Switch
    Easily switching between computers/devices via the front panel select button or IR remote control make this 2-Port HDMI 4K HDR Splitter/Switcher user-friendly to operate

    swi


    Audio Extraction
    Easily extract 2 channel stereo audio via 3.5mm analog audio jack

    ext


    High Performance
    Offers a true 18Gbps video bandwidth and supports 7.1-ch surround sound

    ban


    Multiple Connectivity Ports
    Comes with two HDMI video input ports, two HDMI video output ports, one HDMI switch and EDID select button, one IR receiving sensor, one 3.5mm stereo audio jack, one Micro USB for FW upgrade and power (5V/1A)

    por

    Connection

    con


    Maximum Compatibility
    Supports Plug-n-play and no driver installation required


    Metal Housing Design
    Protects the inside PCBA, also enhance the heat dissipation for better performance. Military-grade component for long service life

    hou


Applications

    • Home theater
    • Home entertainment
    • Presentation room
    • Meeting room
    • Classroom
    • A/V conference room
    • Boardroom
    • Trade show
    • Hospital
    • Retail store
    • Church
    • Lecture hall
    • Show room
    • Library
    • Exhibition

    Need to Know Before Buying

    1. Please confirm your computers or devices with HDMI port

    computer

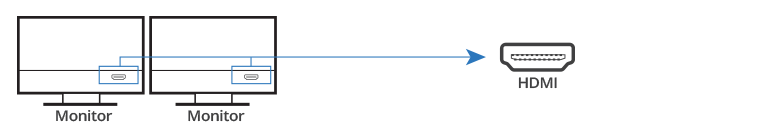

    2. Check for two extended displays/monitors with HDMI port and supports [email protected] resolution

    monitor
    *Note: This 2-Port HDMI 4K HDR Splitter/Switcher will not give you HDR picture! An HDR source, display, and Premium High Speed HDMI cables are needed to obtain HDR video quality


    Specifications

    Video
    HDMI 2x input, 2x output
    Resolution 4K (3840x2160) YUV 4:4:4, HDR10, HDCP 2.2/1080p/1080i/720p/480i/480p @60Hz
    Color format 36-bit Deep Color
    Bandwidth up to 18Gbps
    EDID management Auto EDID: [email protected] (default)
    Copy EDID: from HDMI output 1
    Mixed EDID: follow the lowest resolution
    Audio
    7.1 channel surround sound from HDMI port, supports LPCM, Dolby vision, Dolby Atmos, Dolby digital, DTS-HD Master Audio and Dolby TureHD
    2 channel stereo audio from 3.5mm analog audio, supports audio in formats: PCM 2.0
    IR Pass-through
    Built-in IR sensor allows you to control HDMI source devices via IR remote control
    Power Adapter
    Input AC 100-240V / 50-60Hz
    Output DC 5V/1A, UL listed: E314357/Level: VI
    UL listed E305498/Level: VI
    Environmental conditions
    Operating temperature 23 to 104 degrees F
    Storage temperature -4 to 140 degrees F
    Relative humidity: 5% to 90% RH (non-condensing)
    Product Info
    Dimensions 3.86” (L) x 0.67” (H) x 2.05” (W)
    Weight 0.33 lbs
    Color Black
    Housing material Metal
    Unit Package
    Dimensions 8.19” (L) x 2.17” (H) x 5.91” (W)
    Weight 0.78 lbs
    Certifications/Standards
    FCC, CE, RoHS 2.0, REACH
    Warranty: 2 years limited
    Country of origin: China

    Interface

    interface

    Input

    • 2x 19-pin, HDMI, Female
    • 1x Switch button, for channel and EDID selection
    • 1x IR sensor, for remote control
    • 1x 5-pin, Micro USB, for power and FW update, 5V/1A, Female

    Output

    • 2x 19-pin, HDMI, Female
    • 1x 3.5mm phone jack, for stereo audio

    Package contents

    • 1x 2-Port HDMI 4K HDR Splitter / Switcher
    • 1x IR Remote control
    • 1x USB A to Micro-B cable, 80cm
    • 1x USB-A power adapter, 5V/1A
    • 1x Mounting kits
    • 1x User reference guide

Manuals

Frequently Asked Questions (Q&A)

Q: Can this extend to 2 different screens?

No, it can not extend to 2 different screens. All splitter outputs will always have the same screens
