20-Port Industrial USB 3.0 Hub with Charging - 200W - 5Gbps with 5V/2.1A per port

• Features
• Applications

---

Overview

Adds 20 USB 3.0 ports with 5V/2.1A power output to your system, Over Current, Over Voltage, Over Heating, Over load, Short Circuit, Metal Housing

---

Features






SIIG 20-Port Industrial USB 3.0 Hub with Fast Charging (ID-US0611-S1) - 200W

An USB hub is an extension lead for USB devices. With the hosting cable plugged into your computer, the USB hub allows you to connect more devices than existing USB ports. There are two types of USB hubs, Powered and Unpowered, as the name suggests the main difference. The Powered hubs come with their own AC adapter. Unpowered hubs plug into a computer's USB port to draw power.

If you need to use several devices at once, or your devices that operate on higher voltages, such as external hard drives, printers, or scanners, one industrial level of multiple USB ports hub would suit your need. SIIG's 20-Port Industrial USB 3.0 Hub with Fast Charging ID-US0611-S1 is the premium choice for you to get all things done.

• Data Transfer and Charging Altogether - The hub lets users run USB 3.0 data transfer and fast charge up to 20 tablets, smartphones, mobile devices, or other USB devices to your computer all at once. The data transfer rate is up to 5Gbps and charging power is up to 5V/ 2.1A.
• Extra Loading No Problem - This 20-Port USB hub is compatible with most high-bandwidth USB 3.0 devices, such as external hard drives, high-resolution webcams, camcorders, video surveillance cameras, digital cameras, multi-channel audio, and many more.
• Power Saving - It is designed with a power switch to allow users to conserve energy when the hub is not in use. There is also a built-in LED to indicate power status.


Connectors

• 2x USB 3.0 Type-B, Female, Computer connection
• 1x AC Power Jack
• 1x Power Switch
• 20 x USB 3.0 Type-A, Female, USB device connection




System Requirements

• Desktop, notebook, or laptop with 2 available USB 3.0 Type-A ports
• Windows 11/ 10 / 8.x / 7 / XP (32-/64-bit)
• macOS 10.6 or later
• Linux
• Ubuntu

Versatile USB Hub SIIG's 20-Port USB hub is capable of fast device charging and USB 3.0 data transfer. All 20 Type-A ports provide charging power up to 5V/ 2.1A, and the data transfer rate is up to 5Gbps. It supports almost all computer operating systems on the market from Windows (Win 11 included), macOS, Linux, and Ubuntu.	Safety First This USB hub is designed with high standard protection against unforeseen power spikes or surges. An embedded temperature sensor would trigger the cooling fan to ensure reliable operation performance.	What is in the Box? 20-Port Industrial USB 3.0 Hub with Charging Power cord USB 3.0 Type-A to Type-B cable (2 pcs) Wall-mounting kit (2 Brackets, 8 screws) User Manual



Technical Specifications (ID-US0611-S1)

Chipset	RTS5411
Compliant with	USB 3.0 standard
Maximum data transfer rate	Up to 5Gbps
USB charging standard	BC 1.2, SDP / CDP / DCP
Power Supply	200 Watts (5V/40A)
Cooling fan	Temperature sensing auto On/Off

---

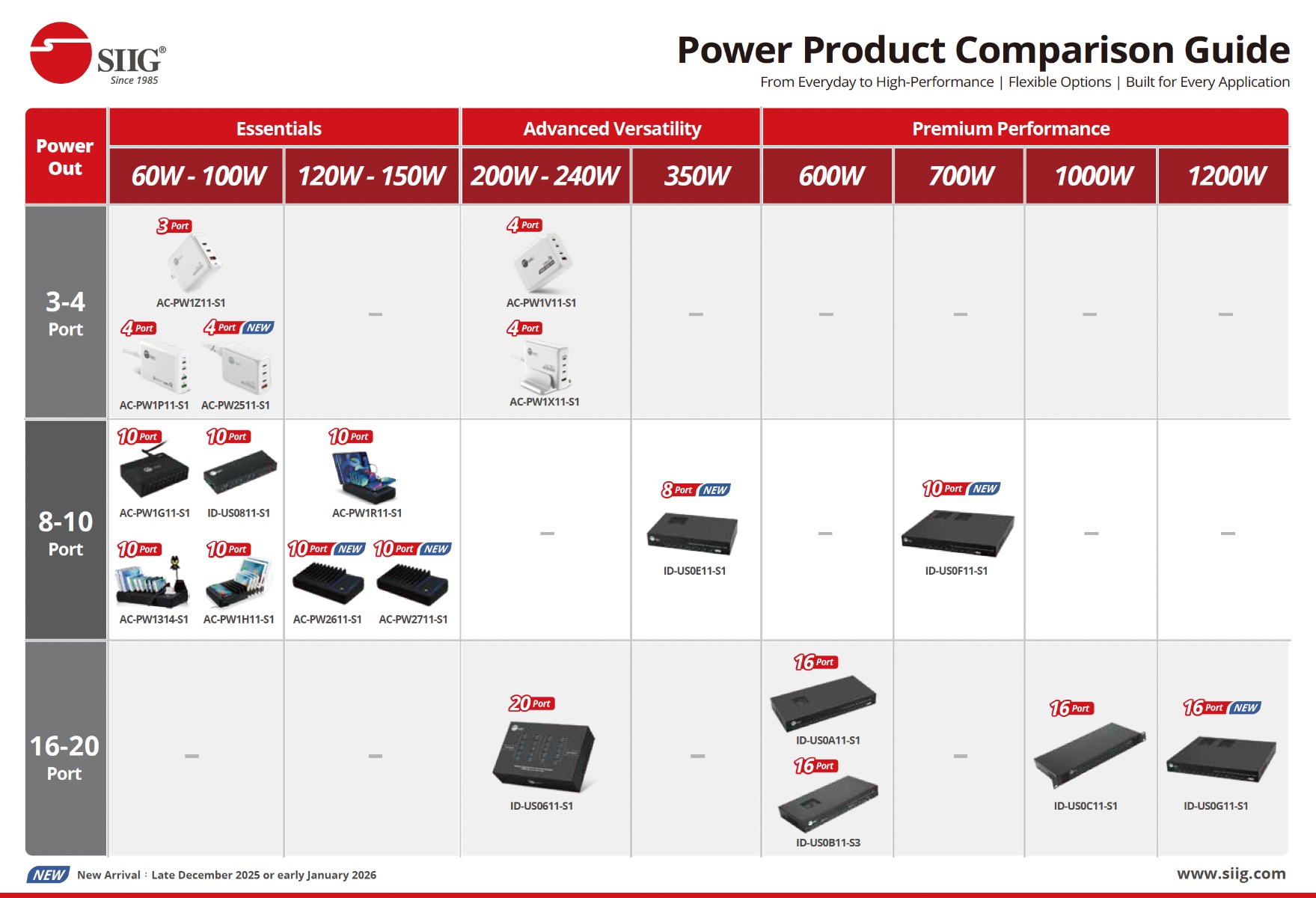

Comparison Table

SKU	ID-US0611-S1	ID-US0811-S1	ID-US0B11-S2
Input	20x USB 3.0 Gen 1 Type-A	2x USB 3.1 Gen 1 Type-C, 7x USB 3.1 Gen 1 Type-A	16x USB 3.0 Type-C (2x PD Host)
Data Transfer Rate	5Gbps	5Gbps	5Gbps
Power Output	USB-A: 2.1A per port	USB-C: 1500mA per port, USB-A: 900mA per port	USB-C: 2x 100W, 14x 30W
Fast Charging Port	20	1	14
Protection	ESD/Short Circuit/Over Voltage/Over Current	ESD/Surge/Short Circuit/Overload/Over Voltage/Over Current	ESD/Short Circuit/Overload/Over Voltage/Over Current
Power Port	Power socket	DC power/Terminal block	Power socket
UASP	✓	✓	✓
Compatibility	Windows 11/10/8.x/7, macOS 10.6 or later	Windows 11/10/8.x/7, macOS 10.6 or later	Windows 11/10/8.x/7, macOS 10.6 or later

---

Applications

• Office
• Video surveillance
• Control center
• Factory
• Workstation
• Research center
• Medical office
• Warehouse
• Home entertainment
• Reception room
• Data center
• Industrial environment
• Educational facilities
• Conference room
• Testing lab

• System Requirements
• Package Contents

---

Specifications

• Chipset: VL822 / RTS5411
• Compliant with USB 3.0 standard
• Maximum data transfer rate: Up to 5Gbps
• USB charging standard: BC 1.2, SDP / CDP / DCP
• Power:

  • Input voltage: 100-120VAC
  • Frequency: 50/60Hz
  • Input current: 4A/115VAC
  • Power supply output : 5V/40A (200 Watts Max)
  • USB-A power output : Up to 5V/2.1A
• Cooling fan:

  • Temperature sensing auto On/Off
  • Operating temperature range: 104 degrees F to 122 degrees F (40C to 50C)
• Product:
• Dimensions: 9.25" (L) x 6.36" (W) x 2.73" (D)
• Weight: 4.63 lbs
• Color: Black
• Housing: Metal housing with mounting mechanism
• Connectors:
• 2x USB 3.0 Type-B, Female, Computer connection
• 1x AC Power Jack
• 1x Power Switch
• 20 x USB 3.0 Type-A, Female, USB device connection
• Unit Package:

  • Dimensions: 10.98" (W) x 11.38" (H) x 3.86" (D)
  • Weight: 5.51 lbs
• Environmental conditions:
• Operating temperature: 32 to 131 degrees F
• Storage temperature: 14 to 140 degrees F
• Relative humidity: 5% to 85% RH (non-condensing)
• Certifications/Standards: FCC, CE, RoHS
• Warranty: 1 year limited
• Country of origin: China

---

System Requirements

• Desktop, notebook, or laptop with 2 available USB 3.0 Type-A ports
• Windows^® 11 (64-bit)/ 10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit) / XP (32-/64-bit)
• Mac OS^® 12 or later

---

Package contents

• 20-Port Industrial USB 3.0 Hub with Charging
• Power cord
• USB 3.0 Type-A to Type-B cable (2pcs)
• Wall-mounting kit (2 Brackets, 8 screws)
• User Manual
