Features



All in One Go - Fast Charging Four Devices Simultaneously

Simultaneously charge for USB-C and USB-A power devices to optimize charging efficiency allows one to charge four devices perfectly at the same time













PD3.1 140W GaN 2 Technology Wide Compatibility

Power Output Rating - 240W Shared All The Charging Ports

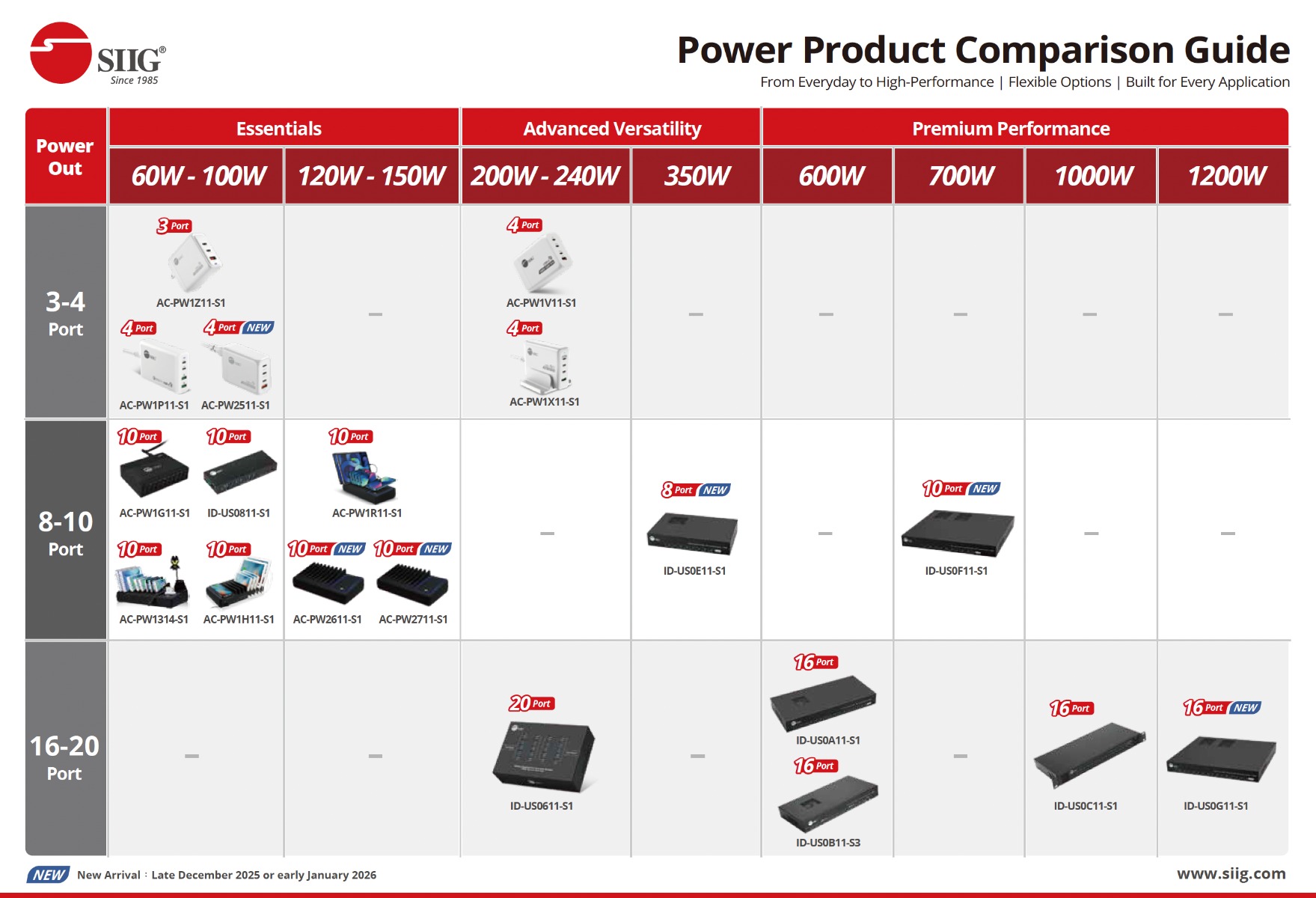

Product Comparison Table




	AC-PW1X11-S1	AC-PW1Y11-S1	AC-PW1V11-S1	AC-PW1P11-S1	AC-PW1N11-S1	AC-PW1714-S1
USB-C Ports	x3	x3	x3	x2	x2	x1
USB-A Ports	x1	x2	x1	x2	x2	x4
Total Power Output	240W	200W	200W	100W	100W	45W
Features	PD3.1 140W Max	LCD Display	X	X	X	x
Charging Devices	Four	Five	Four	Four	Four

---

Applications

• Office
• Meeting room
• Business workspace
• Home
• Hotels and Resorts
• School
• Travel
• Restaurant
• Airports

• Package Contents

---

Specifications

• USB A port: Quick Charger 3.0 protocol
• USB-C1 ports: USB Power Delivery 3.1, Fast Charger 2.0 /PPS specification compatible
• USB-C2/3 ports: USB Power Delivery 3.0, Fast Charger 2.0 /PPS specification compatible
• AC Input: AC 100-240V, 50/60Hz, 2.5A
• Power output:
• Total power output: 240 watts shared among all the charging ports
• Single port used:
  • USB-C1 Up to 140W of 28V/5A
  • USB-C2 Up to 100W of 20V/5A
  • USB-C3 Up to 100W of 20V/5A
  • USB-A Up to 30W of 20V/1.5A
• Dual port used:
  • USB-C1 + USB-C2 = 140W + 100W
  • USB-C1 + USB-C3 = 140W + 100W
  • USB-C1 + USB-A = 140W + 30W
  • USB-C2 + USB-C3 = 65W + 35W
  • USB-C2 + USB-A = 65W + 30W
  • USB-C3 + USB-A = 65W + 30W
• Triple port used:
  • USB-C1 + USB-C2 + USB-C3 = 140W + 65W + 35W
  • USB-C1 + USB-C2 + USB-A = 140W + 65W + 30W
  • USB-C1 + USB-C3 + USB-A = 140W + 65W + 30W
  • USB-C2 + USB-C3 + USB-A = 45W + 35W + 18W
• Quad port used:
  • USB-C1 + USB-C2 + USB-C3 + USB-A = 140W + 45W + 35W + 18W
• Protection: Over-load, Over-Voltage, Over-Current, Over Heating and Short-Circuit
• Product:
• Dimensions: 4.45" (W) x 1.28"(H) x 3.39" (D)
• Weight: 1.26 lbs
• Housing material: Plastic
• Color: White
• Connector:
• 1x AC power plug in AC 100-240V, 50/60Hz, 2.5A, input
• 3x 24-pin, USB-C, Female, output
• 1x 4-pin, USB-A, Female, output
• Unit package:
  • Dimensions: 6.38"(W) x 3.46"(H) x 5.04"(D)
  • Weight: 1.85 lbs
• Environmental conditions:
• Operating temperature: 14 to 104 degrees F
• Storage temperature: -4 to 158 degrees F
• Relative humidity: 5% to 90% RH (non-condensing)
• Certifications/Standards: FCC, CE, RoHS, ETL
• Warranty: 2 years limited
• Country of origin: Engineered in USA , Manufactured in China

---

Package contents

• 240W GaN PD 3.1 Charger - 3C1A
• AC power cord
• Stand
• Carrying pouch
• Quick Start Guide
