2x2 Dual View USB HDMI KVM Switch - 4K, Dual Display or Extended Display

  • HDMI
  • Dual Display
  • Extended display
  • KVM
  • 10.2G
  • 4K30Hz
  • USB Keyboard & Mouse
  • USB 2.0
  • Select button
  • Hotkeys
  • 3.5mm Microphone jacks
  • IR remote control
In stock
Quantity in stock: 69
SKU
CE-KV0711-S1
$289.99

We ship all orders within 1 business day

Lifetime technical support on all of our products

45-day return window and money-back guarantee



    Overview

    Control two 4K HDMI computers with one keyboard, mouse, with microphones input and dual display output for extended or dual display function

    Overview


    Features

    Create a dual display workstation with one set of keyboard and mouse to control two 4K HDMI computers or devices with USB 2.0 and microphone to make your work more efficient

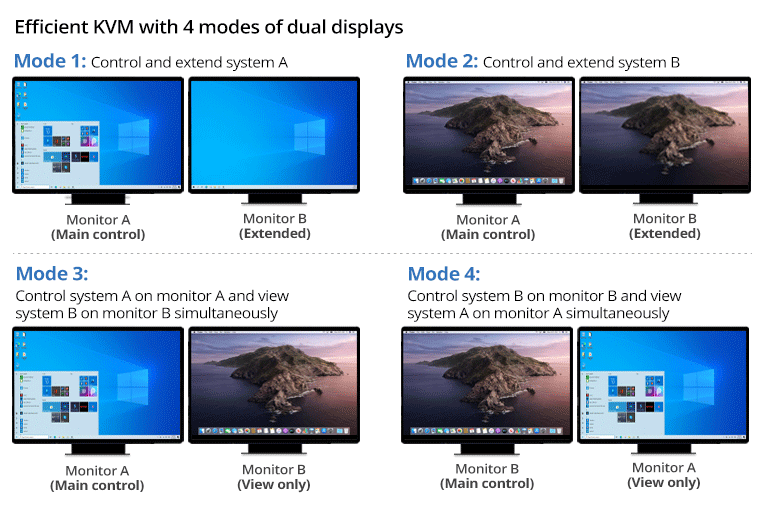

    KVM


    Modes


    Effortlessly Switch

    Easily switching between computer/device via the front panel select button, IR remote control, or USB keyboard hotkeys make this 2x2 Dual View USB HDMI KVM Switch user-friendly to operate

    Switch


    UHD Resolution

    Supports Ultra high-definition 4K@30Hz video resolution to deliver stunning and crystal clear images/videos


    High Performance

    Offers a true 10.2Gbps video bandwidth and supports 5.1ch surround sound or stereo audio. PCM, Dolby TrueHD, DTS-HD Master audio also supported

    HDMI list

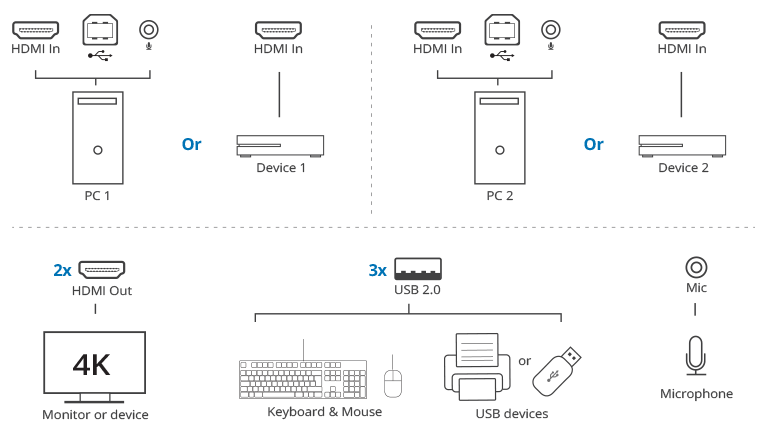

    Multiple Connectivity Port

    Comes with four HDMI video input ports, two HDMI output port, two USB 2.0 Type-B ports for computers/devices, three USB 2.0 Type-A ports for connecting keyboard/mouse and USB peripheral such as flash drives or printers…, and three 3.5mm phone jack to connect microphone

    Ports

    Connection

    Connection


    USB

    SuperSpeed Data Transfer

    Delivers three USB 2.0 Type-A 480Mbps data transfer rate, allows sharing of USB peripherals such as pen drives or printers. Compliant with USB 1.1 specifications


    High-Quality Circuit Design

    With external power adapter provides smooth and reliable performance


    Easy Installation

    Supports Plug-n-play and no driver installation required


    Metal Housing Design

    Protects the inside PCBA, also effectively reduces electromagnetic interference while offering rapid heat dissipation for stable operation and long service life


Applications

    • Educational facilities• Retail stores • Media editing • Workstation• Control center • Reception desk
    • Hospital• Audio/Video presentation room

    Need to Know Before Buying

    1. Please confirm that your 2 computers have HDMI port, USB 2.0 Type-A port, and Microphone port or 2 devices have HDMI port

    computer

    2. Check the extended display/monitor resolution that supports 4K @30Hz and has HDMI port (check on manual of monitor)

    3. Three USB 2.0 cables are required to connect to the USB peripheral devices
    * Not support Dynamic Device Mapping (DDM) fast switching


    Specifications

    Hardware
    Chipset Sil9687, GL850G
    Software
    OS Compatibility Windows®, mac OS®
    Video
    HDMI 3840x2160 @30Hz, HDCP 1.4, 3D
    Bandwidth up to 10.2Gbps
    HDMI frequency up to 300MHz (up to 3Gbps)
    Video cable length HDMI: 4K: up to 2 meters; 1080p: up to 5 meters
    USB 2.0 3x Type-A, up to 480Mbps, Compliant with USB 1.1 specifications
    Power Adapter
    Input AC 100-240V / 50-60Hz
    Output DC 5V/3A
    UL Listed E480963/Level: VI
    Audio
    5.1 channel surround sound
    PCM 2.1 channel stereo digital audio
    Environmental conditions
    Operating temperature 32 to 104 degrees F
    Storage temperature 14 to 158 degrees F
    Relative humidity: 5% to 90% RH (non-condensing)
    Product Info
    Dimensions 6.69” (L) x 1.77” (H) x 2.99” (W)
    Weight 1.9 lbs
    Color Black
    Housing material Metal
    Unit Package: Dimensions: 11.02" (W) x 2.55" (H) x 7.08" (D)
    Weight: 2.27 lbs
    IR remote control
    Working distance: up to 5 meters
    Battery CR2025
    Certifications/Standards
    FCC, CE, RoHS, Cable UL Listed: E465682
    Warranty: 2 years limited
    Country of origin: China

    Interface

    Interface

    Layout:

    • 4x 19-pin HDMI, Female (PC input)
    • 2x 4-pin USB 2.0 Type-B, Female, input
    • 2x 3.5mm phone jack for Microphone, Female (PC)
    • 2x 19-pin HDMI, Female, Output
    • 1x 3.5mm phone jack for Microphone, Female (Device)
    • 3x 4-pin USB 2.0 Type-A, Female (for Keyboard/Mouse and USB device)
    • 1x DC power jack (5.5x2.5x10mm)

    System Requirements

    • PC or Laptop with available HDMI, USB 2.0 Type-A port, and Microphone ports
    • Compliant with Windows or Mac system

    Package contents

    • 1x 2x2 Dual View USB HDMI KVM Switch - 4K
    • 2x USB HDMI KVM Cable with Audio & Mic (1.8m)
    • 4x Rubber pad
    • 1x Remote controller + CR2025 battery
    • 1x Power adapter (5V/3A)
    • 1x User reference guide

Manuals

Frequently Asked Questions (Q&A)

Q: The KVM work on PC1, why can't switch to PC2?

KVM relies on power from USB to determine which computer to control. If only PC1's USB is connected, it will only control PC1 and not switch to PC2. If you want to switch to PC2, you need to connect PC2's USB to KVM. Please connect two USB cables from...
