2x1 HDMI 4K HDR KVM USB 3.0 Switch with Remote Control

  • 2x HDMI In
  • HDMI Single View
  • HDR
  • HDCP 2.2
  • 4K60Hz
  • USB Keyboard & Mouse
  • 2x USB-A 3.2 Gen 1 5Gbps
  • 2x USB 2.0
  • 3.5mm Audio/Mic
  • Auto Screen

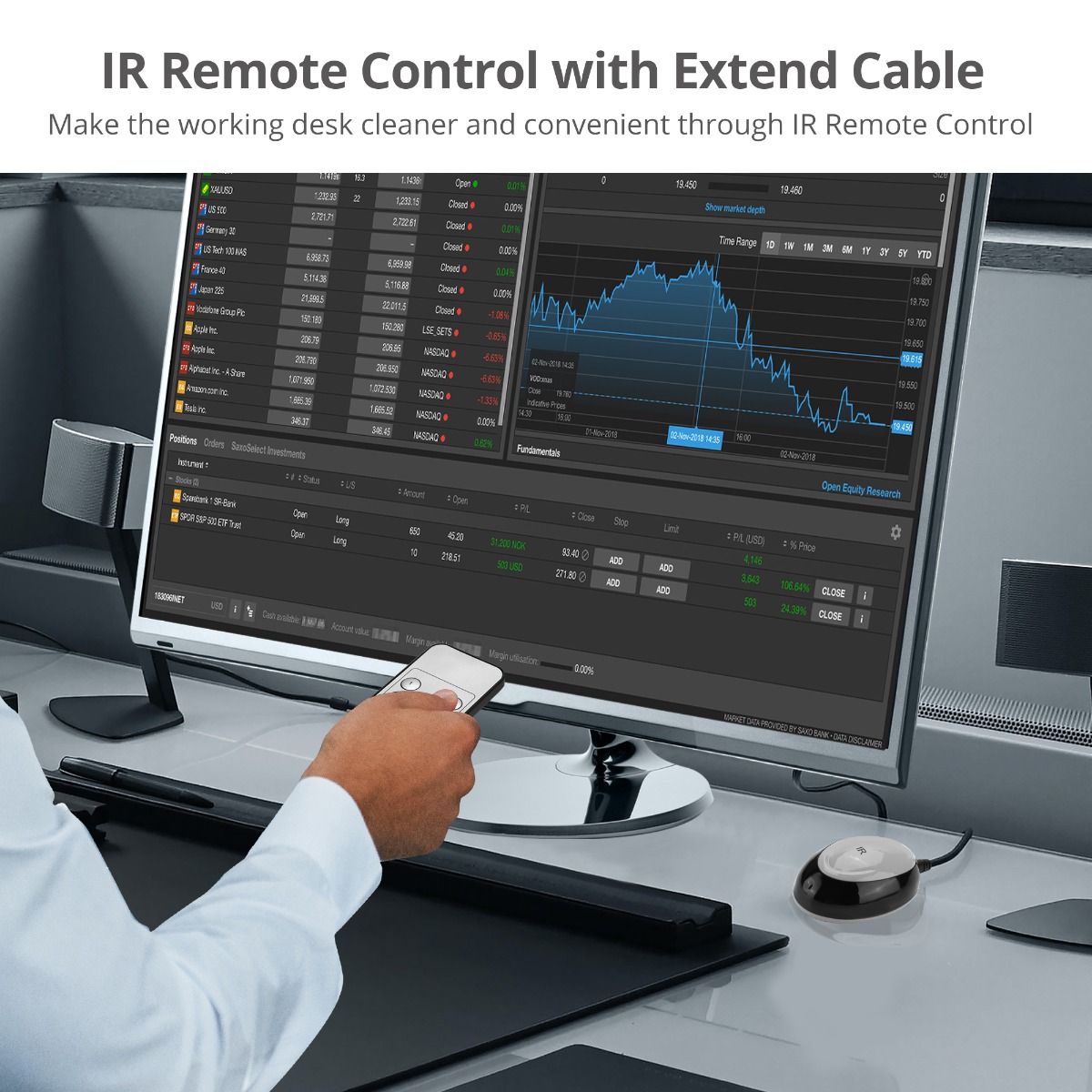

  • IR Extension
  • IR Sensor
  • Hotkeys
  • Switch Button
  • IR Remote Control
  • Auto EDID
  • Windows & Mac
In stock
Quantity in stock: 40
SKU
CE-KV0E11-S1
$189.99

We will send this product within 1 business day

Lifetime technical support on all of our product

45 day return and money back guarantee



    Overview

    2x1 HDMI KVM Switch, allows you to control 2 HDMI 4K computers using one keyboard and mouse - HDMI [email protected], USB 3.2 Gen 1 ports, Microphone Input, and Stereo Audio Output, Switch Button, Hotkeys, Remote Control

    overview


    Features

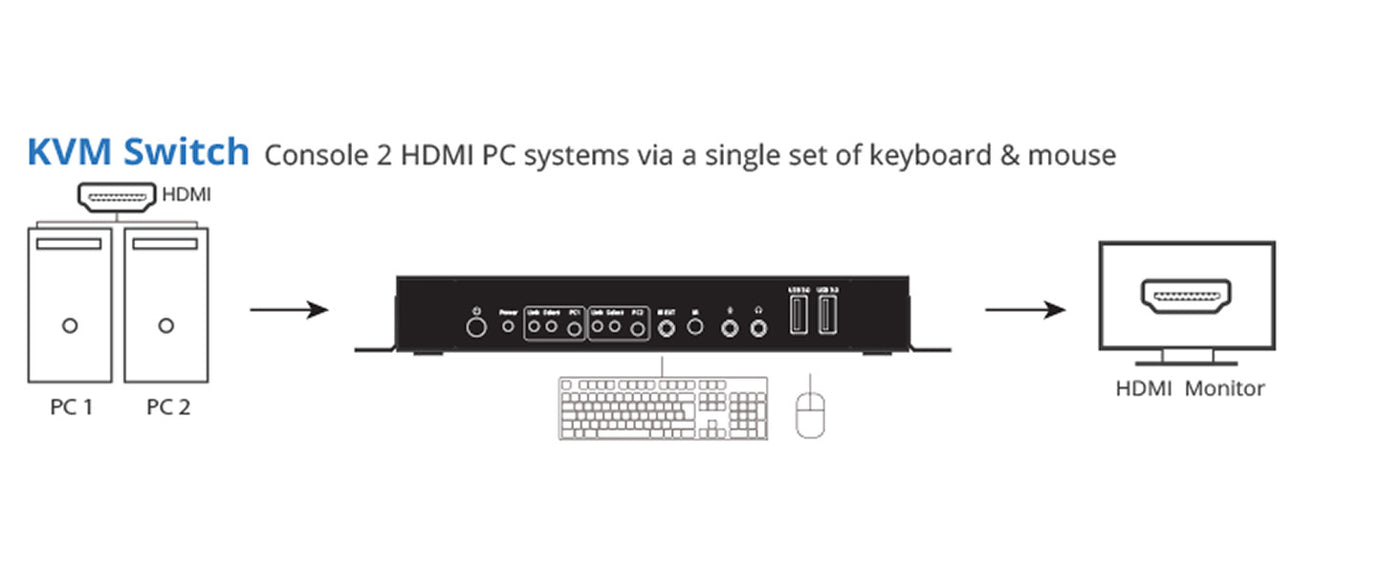

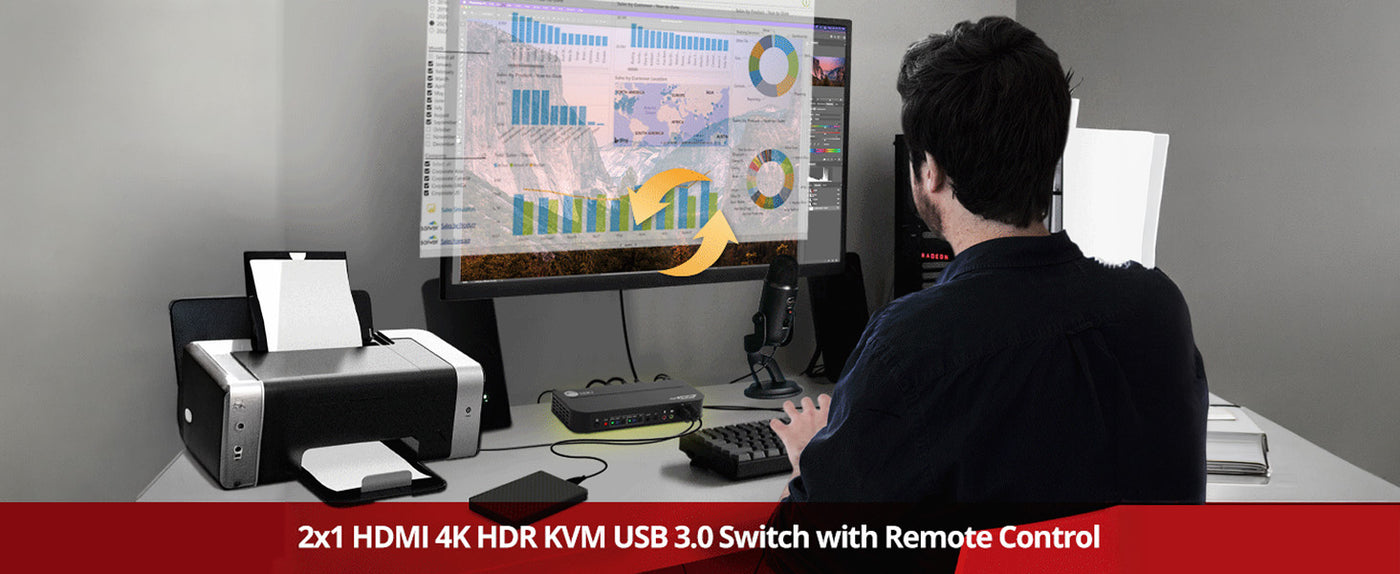

    Easily control 2 HDMI computers and switch a HDMI display/monitor with one set of keyboard & mouse improve your work efficiently

    kvm

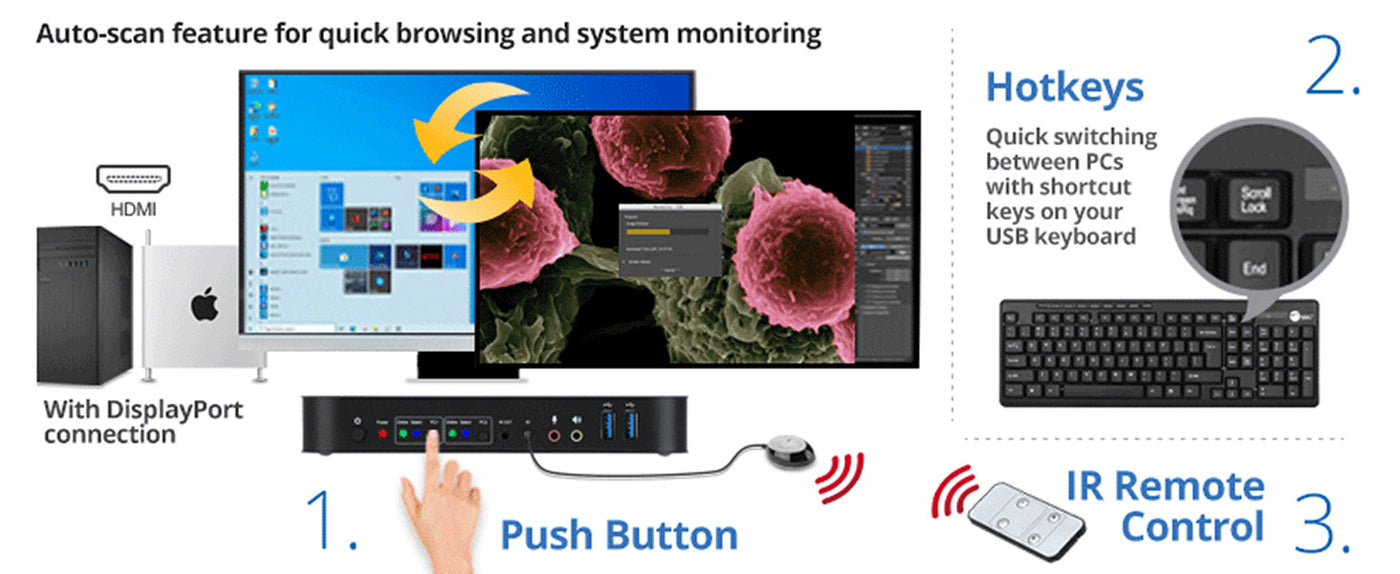

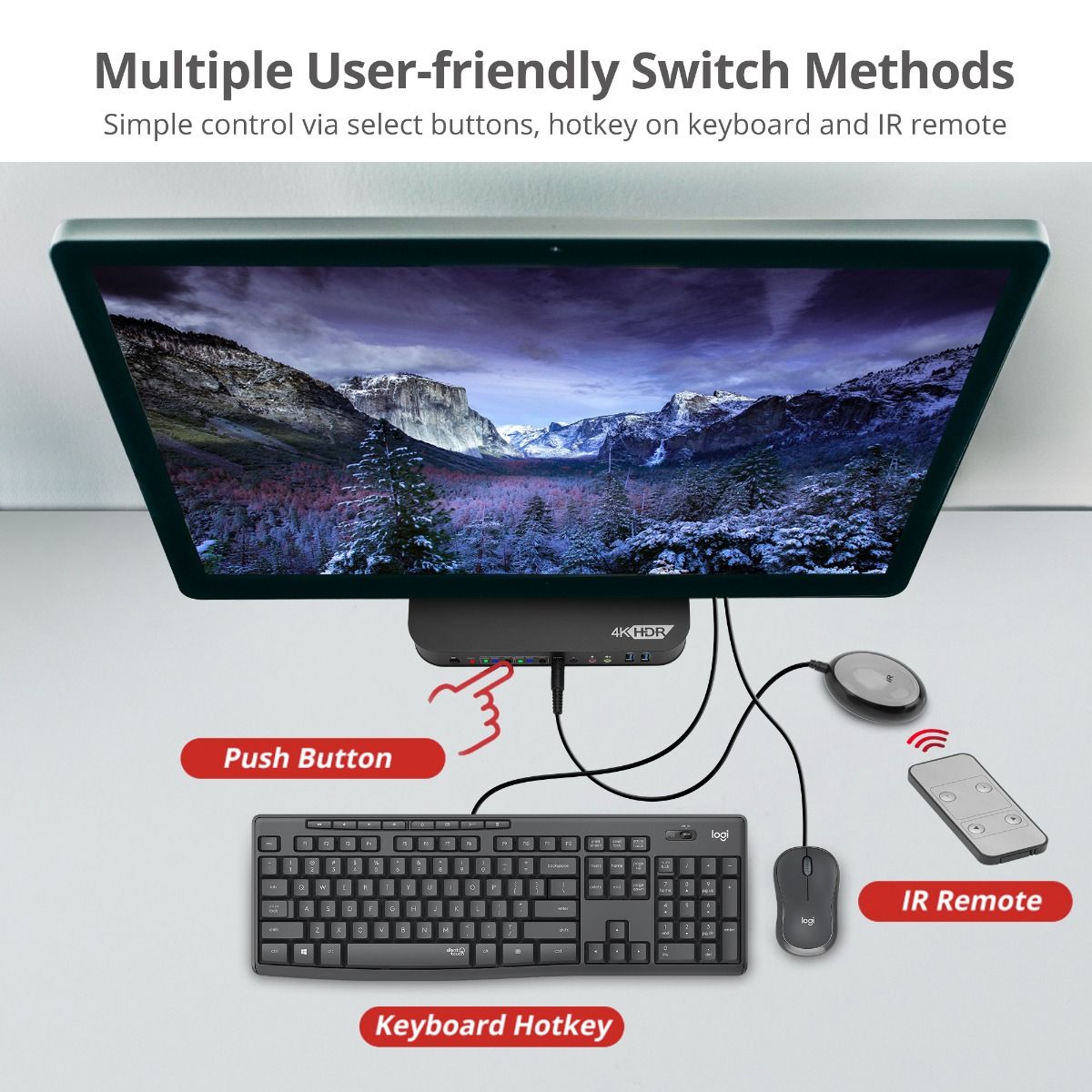

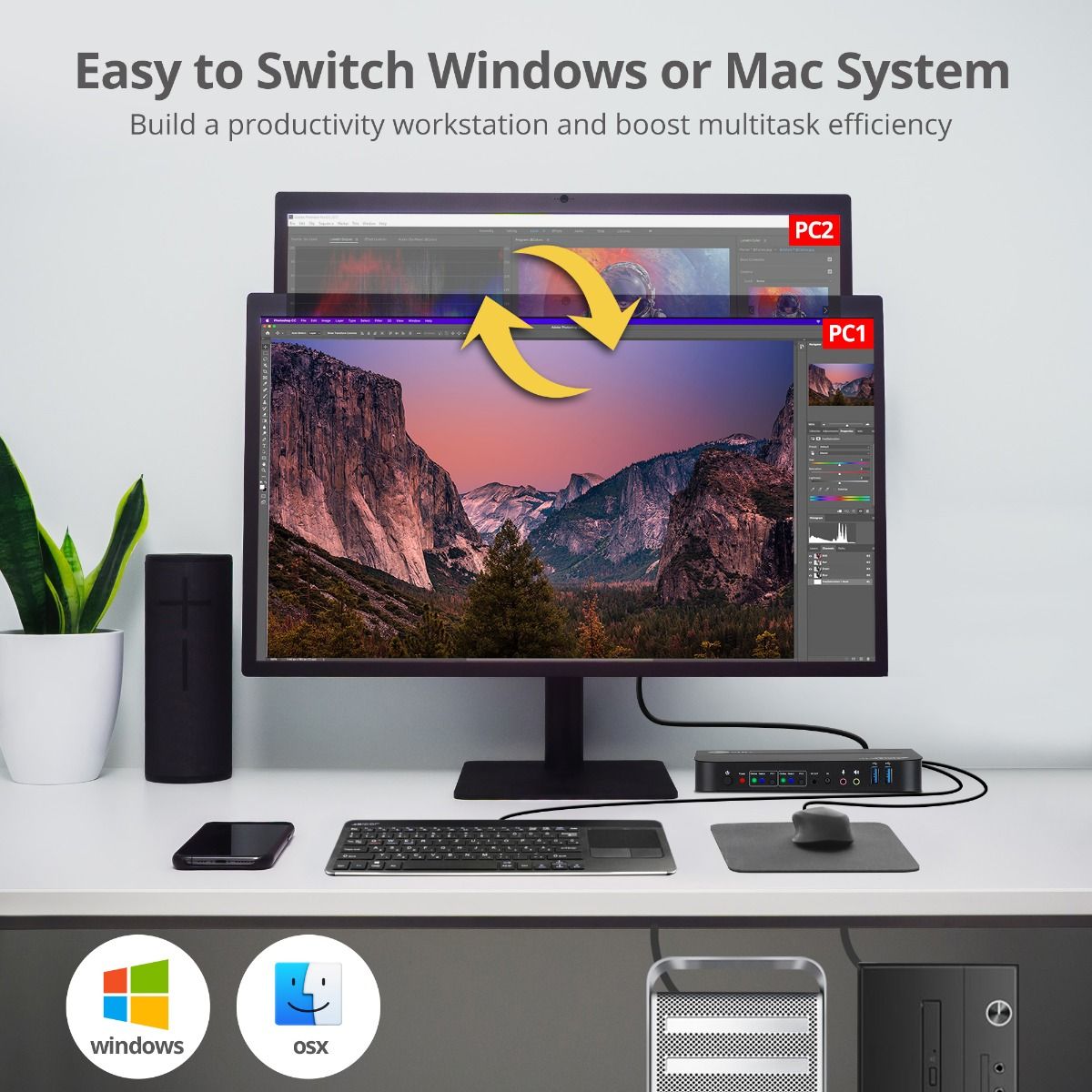

    Effortlessly Switch
    Easily switching between computer/device via the front panel push button, USB keyboard hotkeys or IR remote control make this 2x1 HDMI 4K HDR KVM USB 3.0 Switch with Remote Control user-friendly to operate

    switch

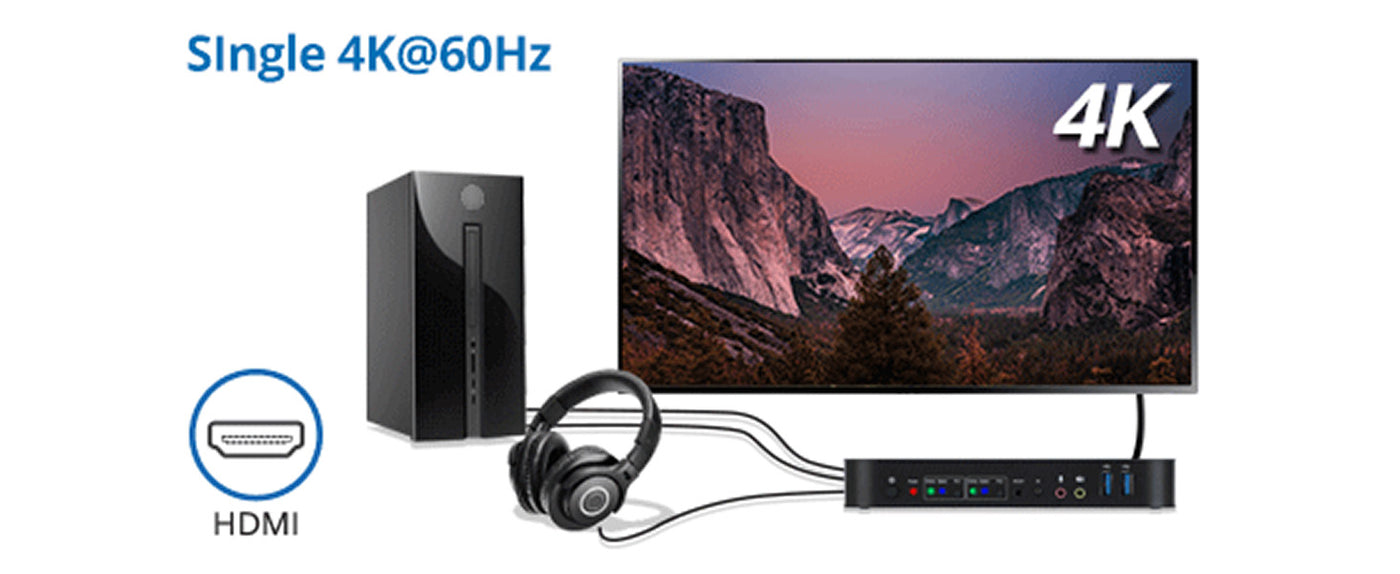

    res4K Ultra HD Resolution

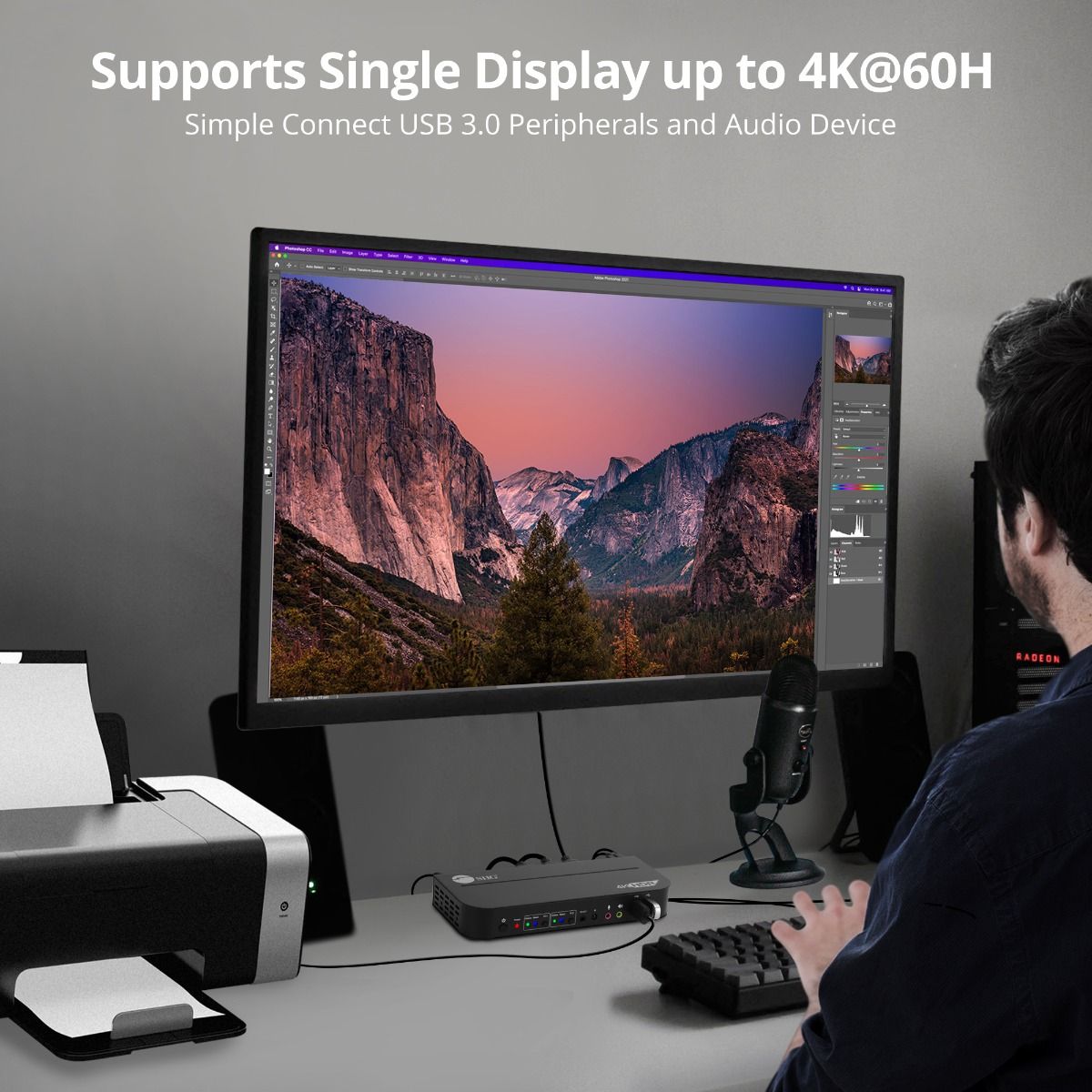

    Allows you to connect a single UHD 4K (3840x2160) @60Hz through a HDMI port to display the crystal-clear video quality. HDR, 3D and deep color are supported. Compliant with 18Gbps video bandwidth

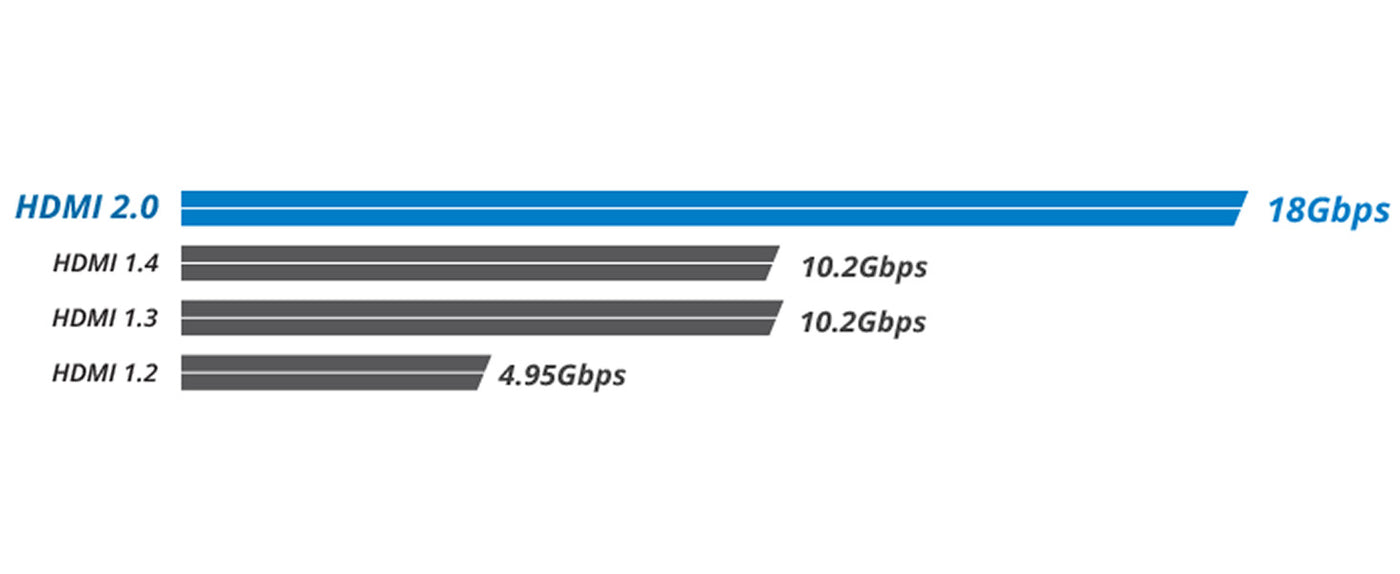

    High Performance
    Offers a true 18Gbps video bandwidth and supports 7.1-ch. surround sound from HDMI or 3.5mm PCM 2-ch stereo audio

    bandw


    Multiple Connectivity Port
    Comes with two HDMI video input ports, two USB 3.2 Gen 1 Type-B ports (Host), eight 3.5mm phone jacks to connect stereo speakers/earphones and microphones, one HDMI video output port, two USB 3.2 Gen 1 Type-A, two USB 2.0 for keyboard & mouse connection, one 3.5mm Infrared jack to extend the IR signal, one IR sensor, two switch buttons, one power button, and one DC power jack (5V/3A)

    port

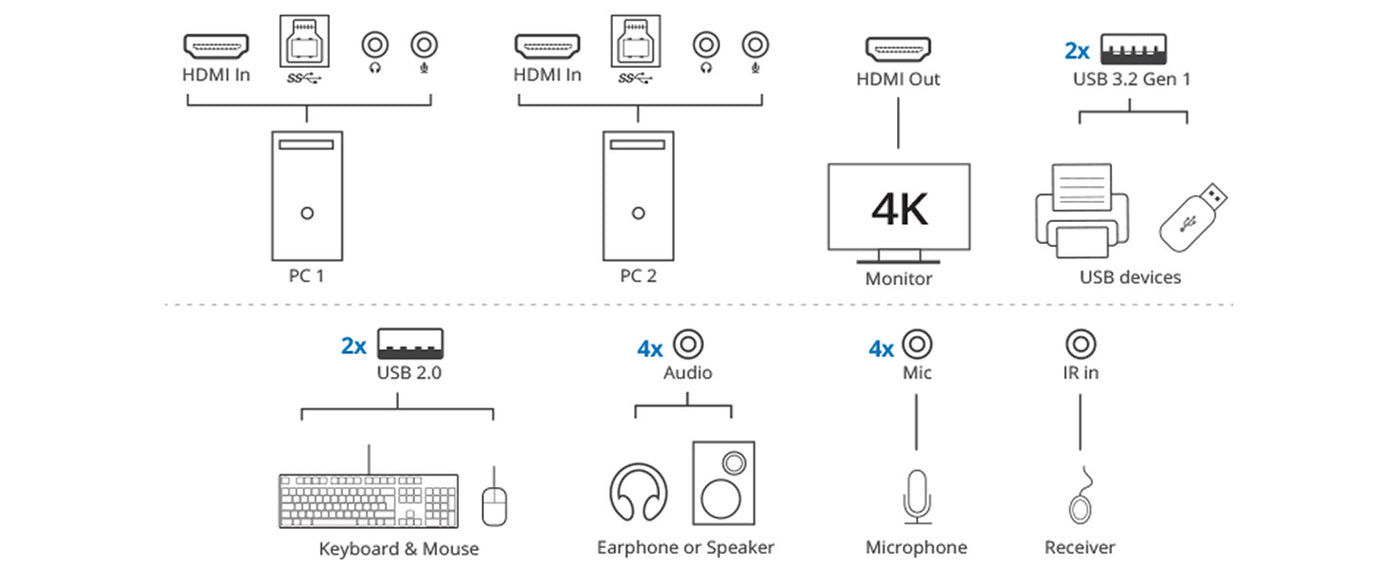

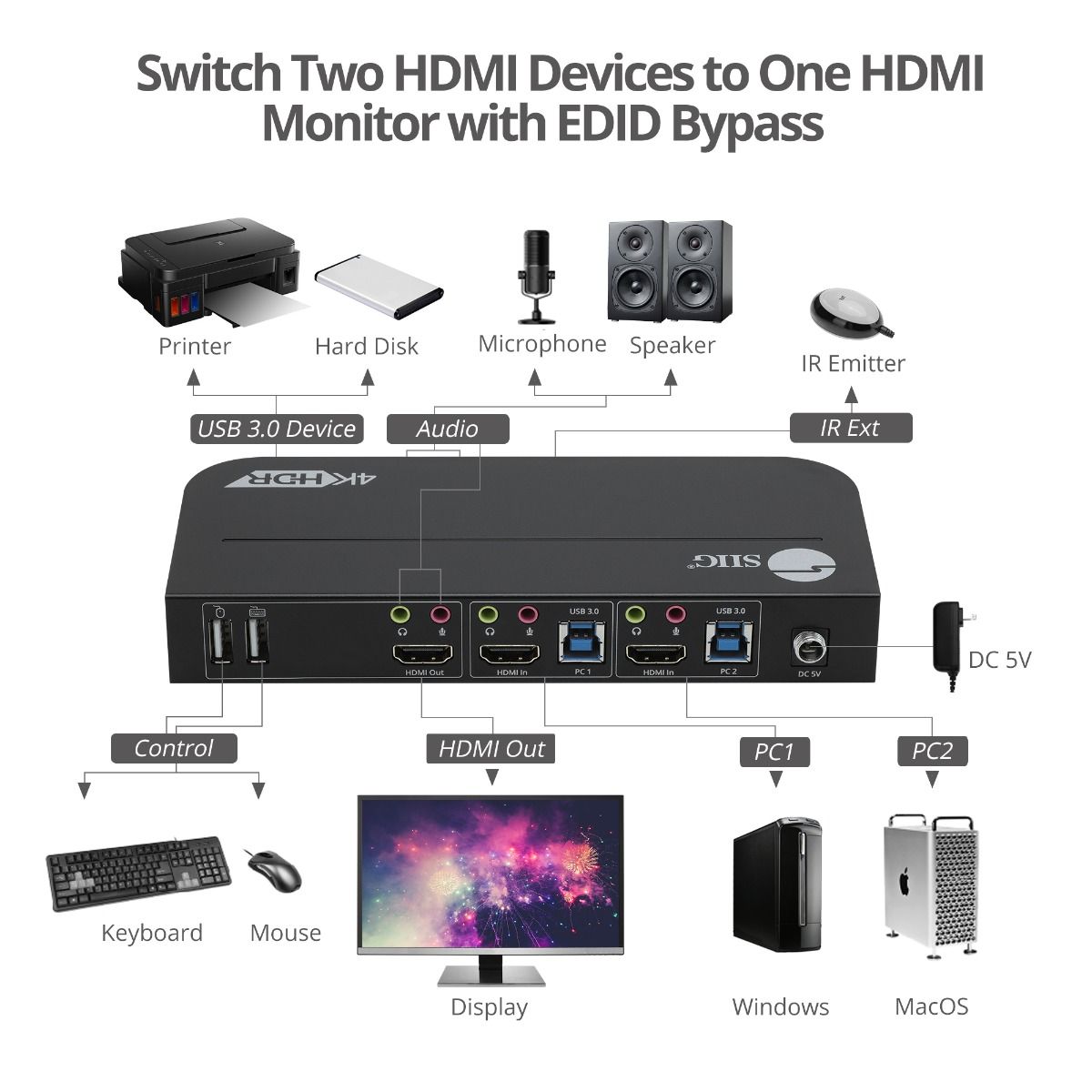

    Connection

    conn


    usbUSB Data Transfer
    Delivers two SuperSpeed USB 3.2 Gen 1 Type-A ports up to 5Gbps data transfer rate on the front side for Flash drive, Printer, and other USB peripheral devices. And two High Speed USB 2.0 Type-A ports up to 480Mbps data transfer rate for independent HID keyboard and mouse


    Maximum Compatibility
    Compatible with Windows® 11 (64-bit) / 10 (32-/64-bit) / 8.x (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit) and macOS® 12.x to 10.13
    Auto EDID bypass design maximizes the compatibility from OS to display, Auto-scan feature for quick browsing and system monitoring. Supports Plug-n-play and no driver installation required


    ESD Protection
    An ESD protection device protects a circuit from an Electrostatic discharge (ESD), in order to prevent a malfunction or breakdown of an electronic device

    esd


    Metal Housing Design
    Protects the inside PCBA, also enhance the heat dissipation for better performance. Military-grade component and ESD protection for long service life


Applications

    • Media editing
    • Photo shooting studio
    • Audio/Video presentation room
    • Meeting room
    • Educational facilities
    • Office
    • Workstation
    • Medical office
    • Server room
    • Control center
    • Retail store

    Need to Know Before Buying

    1. Please confirm your computers or devices with HDMI port, USB 3.2 Gen 1 Type-A port, and audio/mic port

    computer

    2. Check the extended display/monitor with HDMI and supports [email protected] port. If you are not sure, please check the manual of the monitor

    monitor

    3. Comes with two SIIG USB 3.2 Gen 1 Type-A to B cables for connecting two USB 3.2 Gen 1 PCs or USB peripheral devices for best transfer and high quality


    Specifications

    Software
    OS Compatibility Windows® 11, mac OS ® 12.x or new
    Video
    HDMI HDCP 2.2, resolution: up to 4K (3840x2160)@60Hz, video bandwidth: 18Gbps
    USB data transfer rate
    USB 3.2 Gen 1 2x Type-A, up to 5Gbps, 5V/900mA
    USB 2.0 2x Type-A, up to 480Mbps
    Audio
    7.1 channel surround sound from HDMI port
    PCM 2.1 channel stereo digital audio for 3.5mm audio jack
    Power Adapter
    Input AC 100-240V / 50-60Hz
    Output DC 5V/3A
    ETL P/N 4006448
    Environmental conditions
    Operating temperature 32 to 114 degrees F
    Storage temperature 14 to 178 degrees F
    Relative humidity: 5% to 90% RH (non-condensing)
    Product Info

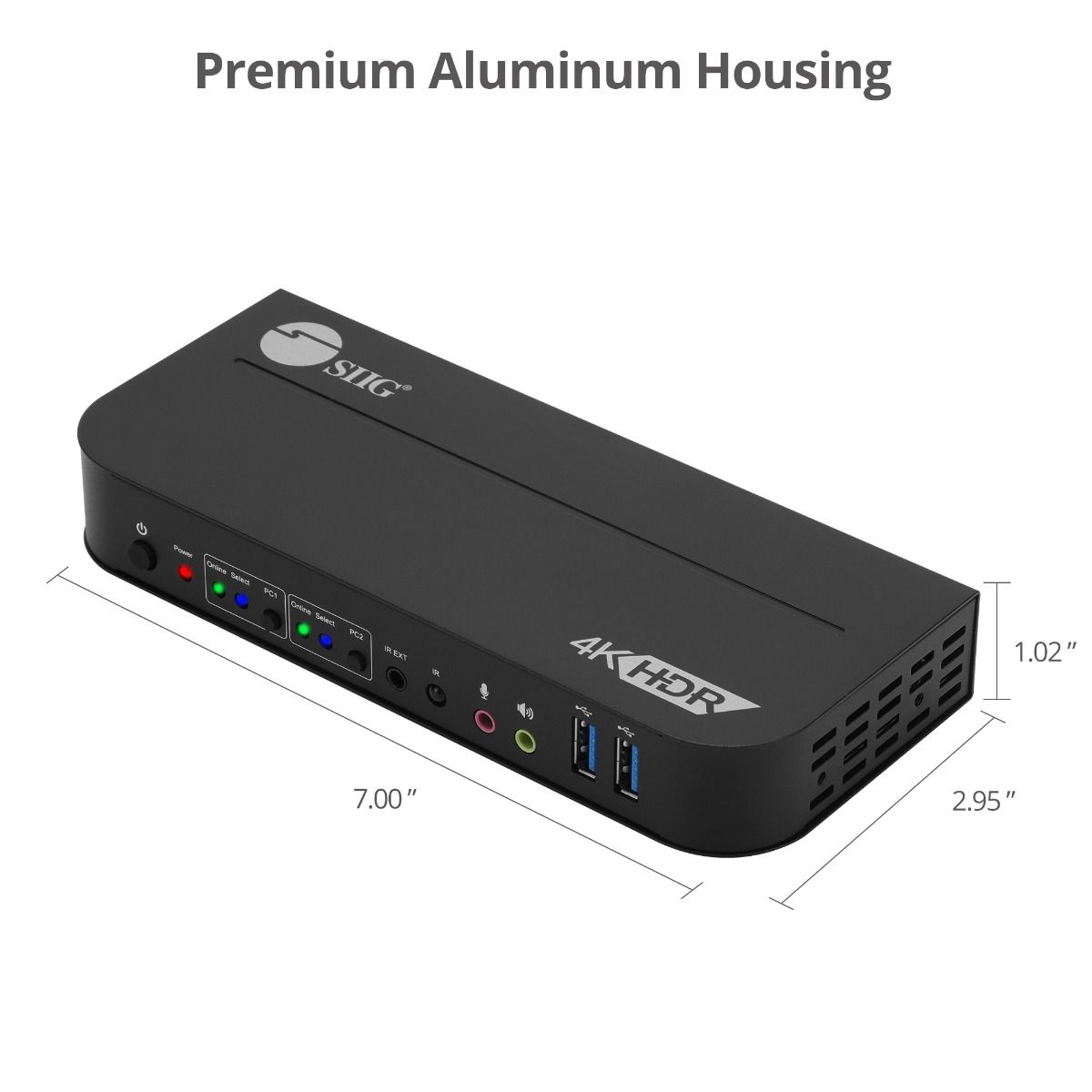

    Dimensions 7.00” (L) x 1.02” (H) x 2.95” (W)
    Weight 0.81 lbs
    Color Black
    Housing material Metal
    Unit Package
    Dimensions 9.13” (L) x 2.56” (H) x 7.09” (W)
    Weight 1.82 lbs
    Certifications/Standards
    FCC, CE, RoHS, REACH
    Warranty: 2 years limited
    Country of origin: China

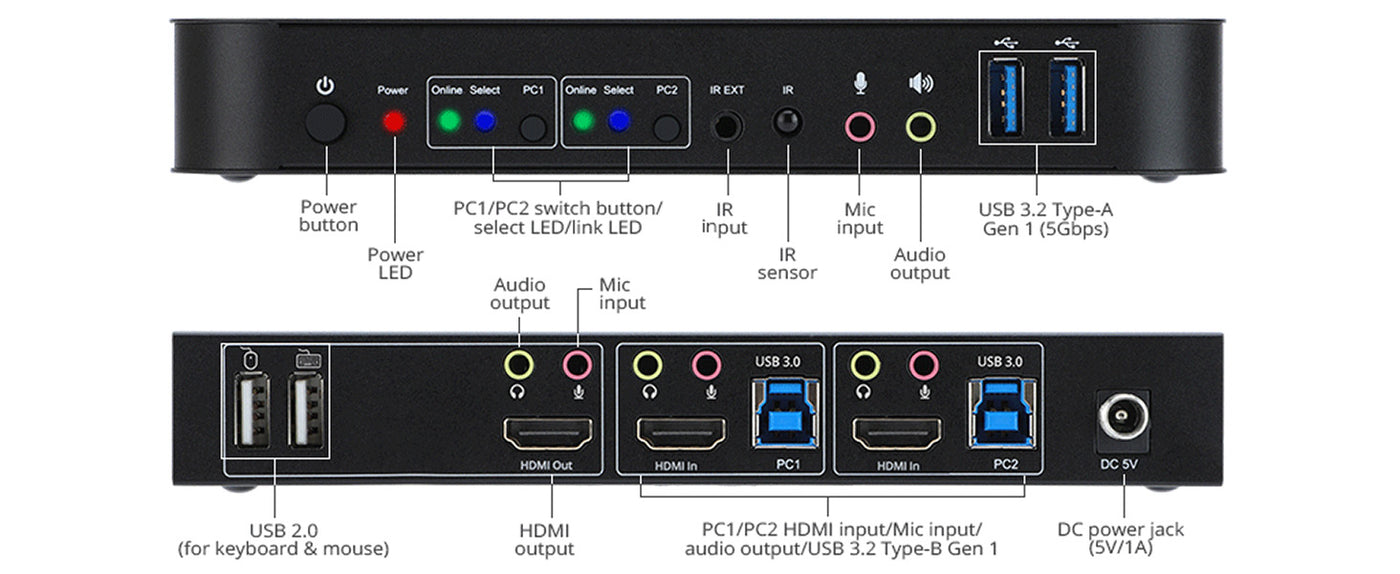

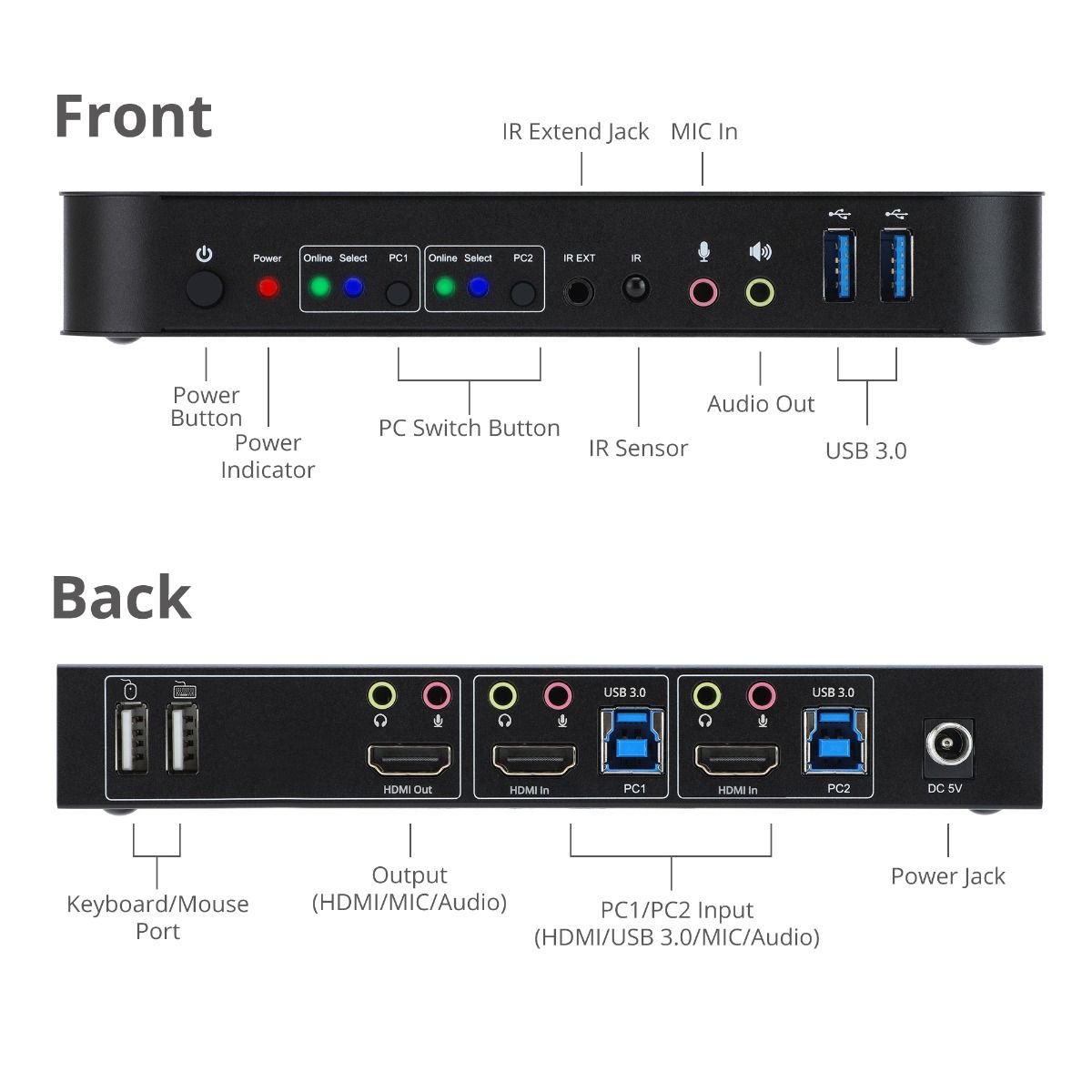

    Interface

    interface

    Input:

    • 2x 19-pin, HDMI, Female
    • 2x 9-pin, USB 3.2 Gen1 Type-B, Female
    • 4x 3.5mm phone jacks, for microphone, Female
    • 2x 4-pin, USB 2.0 Type-A, for Keyboard & Mouse
    • 1x 3.5mm Infrared jack, IR extender
    • 1x IR sensor
    • 2x Switch buttons, for PC1/C2 switching
    • 1x Power button, on/off
    • 1x DC power jack, 5V/3A

    Output:

    • 1x19-pin, HDMI, Female
    • 2x 9-pin, USB 3.2 Gen 1 Type-A, for USB devices
    • 4x 3.5mm phone jacks, for stereo audio, Female


    System Requirements

    • PC or laptop with available HDMI, USB 3.2 Gen 1 Type-A, and audio/mic ports
    • Windows® 11 / 10
    • Mac OS® 12.x to 10.13

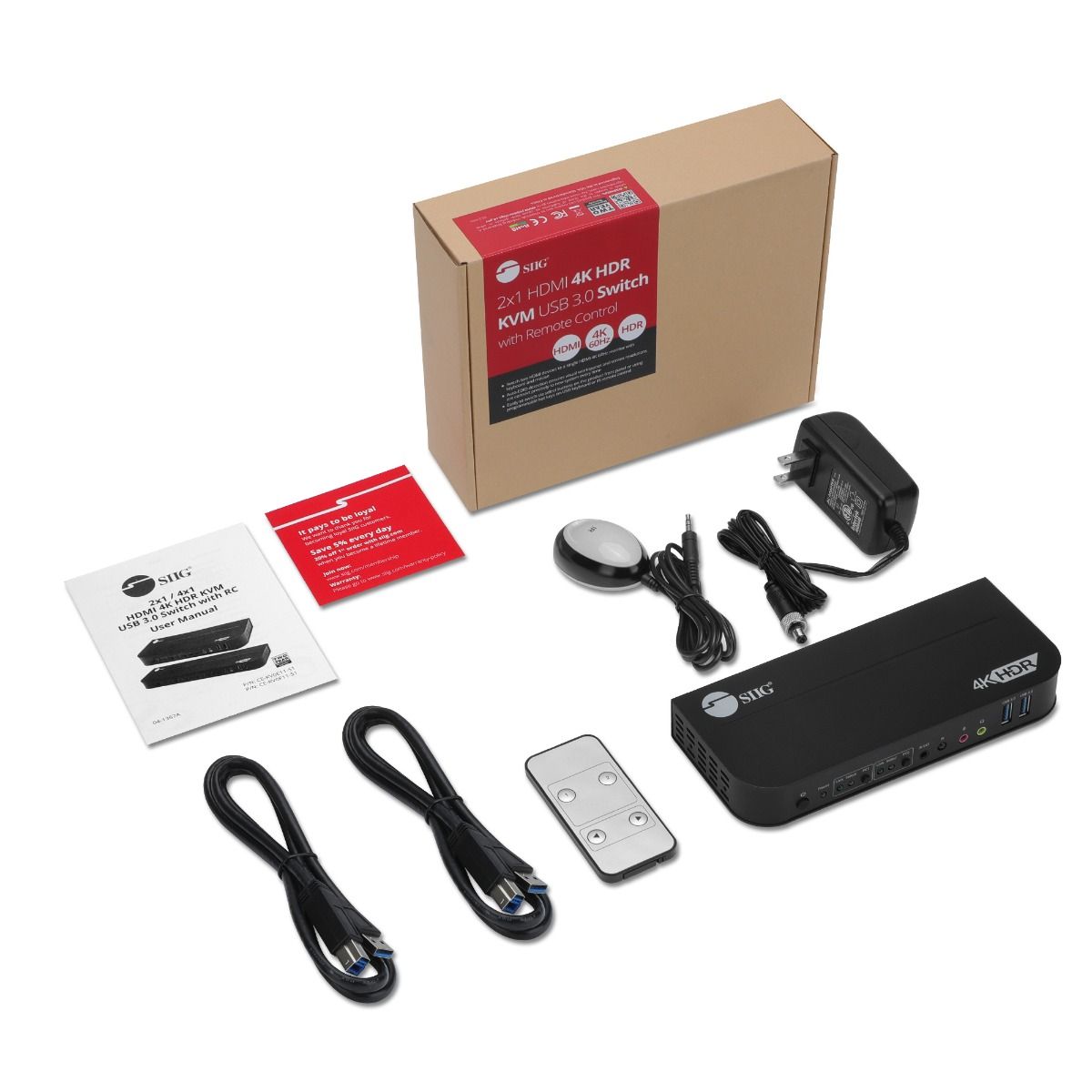

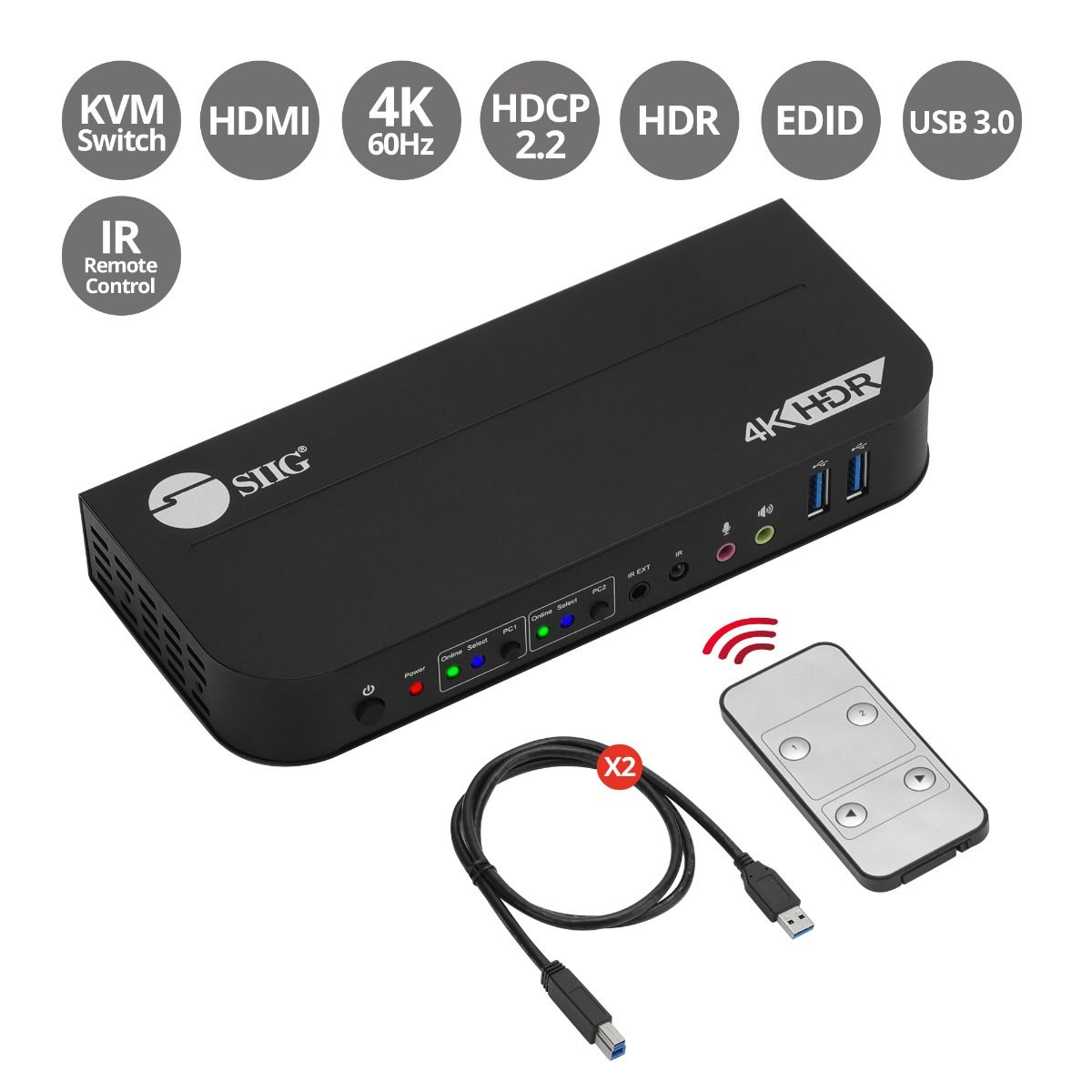

    Package contents

    • 1x 2x1 HDMI 4K HDR KVM USB 3.0 Switch with Remote Control
    • 2x USB 3.2 Gen 1 Type-A to B cables
    • 1x IR extender cable
    • 1x IR remote control
    • 1x DC power adapter, 5V/3A
    • 1x User reference guide

Manuals

04-1367b.pdf Download manual
