2x2 4K HDMI Video Wall Processor with USB-C/DVI/HDMI Input, RS-232/IR Remote/Web GUI control, SPDIF/3.5mm Audio Extract, Cascading up to 10x10

• Features
• Applications

---

Overview

Allows you to select and switch between 4 source devices (2 HDMI, 1 USB-C, and 1 DVI-D) to display on 4 HDMI displays

---

Features

2x2 4K Video Wall Controller and Processor with Audio Extractor

The Videowall controller makes it easy to conjoin multiple TVs into one screen in the configuration of your choice. Display attractive, crisp, high-definition images and videos in a unique way

It is a TV wall processor that is excellent for digital signage solutions for enhanced marketing, decor, or informational content in numerous settings

*Note: TVs are not included



---

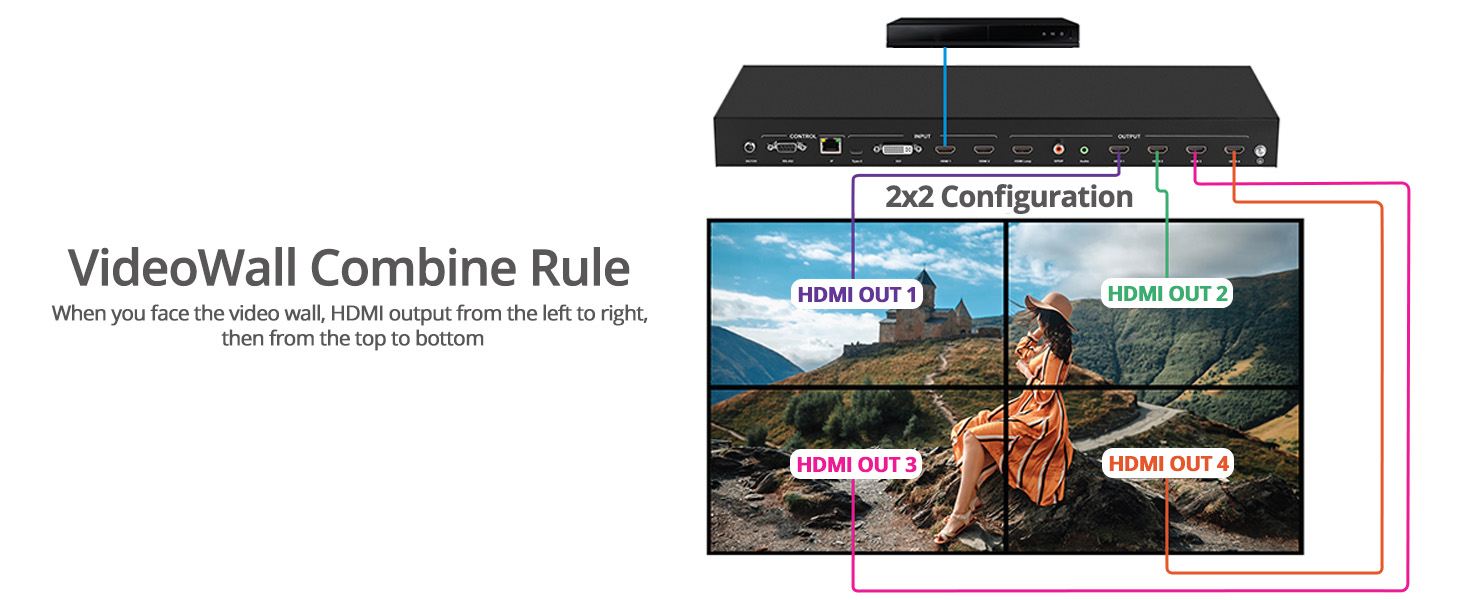

Multiple Video Wall Configuration - Include 11 Preset Modes

Single or cascading video wall includes 1x1, 2x2, 1x2, 2x1, 1x3, 3x1, 1x4, 4x1, and Supports cascading function by using more units to create a bigger video wall, such as 3x3, 4x4, etc., up to 10x10 (max). Also the option to manually configure your video wall (check user guide for details)





---

Advanced Features

• Supports resolution up to 4K 30Hz
• Supports USB-C / DVI / HDMI input
• Built-in Audio Extractor to either coaxial or 3.5mm stereo
• Each screen suppors 180 degree image rotation
• Edge correction
• HDMI loopout
• Firmware up gradable for new features and technology enhancements

---

Inputs and Outputs (4 Switchable Video Options)



• 5x HDMI Output (1 for loopout)
• 1x USB-C Video Input (4K 30Hz)
• 1x DVI-D Video Input (1920x1200)
• 2x HDMI Input (4K 30Hz)
• 1x Coaxial S/PDIF Audio Output
• 1x 3.5mm Stereo Audio Output
• 1x RS-232 Serial Control Port
• 1x Ethernet TCP/IP Control Port
• 1x Micro USB Firmware Update Port

---

Multiple Control Options

Four Control Methods - Front Panel buttons / IR remote control / RS-232 / Web UI with built-in bezel correction, easily resize, position, rotate, and zoom with each output

• Front Panel Buttons
• IR Remote
• RS232 command
• Web GUI

---

1U Rack Design, Easy Installment

Preminm mountable metal housing improves heat dissipation for enhanced safety and stability

---

Applications

• Stadiums	• Bars	• Restaurants	• Clubs	• Malls	• Digital Signage Advertising
• Airports	• Exhibitions

• Package Contents

---

Specifications

• Compliant with HDCP 2.2
• Video resolution: up to 3840x2160@30Hz for Type-C and HDMI inputs, 1920x1200 for DVI input
• Video input: USB-C / DVI / HDMI input
• Audio:

  • Coaxial S/PDIF output: Up to 5.1 channels
  • 3.5mm jack: Stereo 2ch
• LAN port: RJ-45 connector for 10/100 BASE-T CAT-5 extension
• Serial port: DB-9 RS-232 female connector
• Control: Front panel button, remote control, RS232 command and TCP/IP control
• Power consumption: 15watts (Maximun)
• Product:

  • Dimensions: 17.24" (L) x 1.73" (H) x 7.48" (W)
  • Weight: 5.51 lbs
  • Color: Black
  • Housing: Metal
  • Connector:

    • 2 x 19-pin, HDMI, Video Input
    • 1 x 24-pin, USB-C, Video Input
    • 1 x 29-pin, DVI-D, Video Input
    • 5 x 19-pin, HDMI, Video Output
    • 1 x Coaxial S/PDIF, Audio Output
    • 1 x 3.5mm, Stereo Audio Output
    • 1 x 9-pin, RS-232 Serial, Control
    • 1 x 8-pin, Ethernet, TCP/IP Control
    • 1 x 5-pin, Micro USB, Firmware update
• Unit Package:

  • Dimensions: 19.49" (W) x 3.15" (H) x 12.28" (D)
  • Weight: 6.56 lbs
• Power Adapter:

  • Input: 100-240VAC, 50/60 Hz
  • Output: DC 12V,2A
  • UL Listed: E504312 / Level: VI
• Environmental conditions:

  • Operating temperature: 32 to 112 degrees F
  • Storage temperature: -4 to 140 degrees F
  • Relative humidity: 20 to 90% RH (non-condensing)
• Certifications/Standards: FCC, CE, RoHS
• Warranty: 2 years limited
• Country of origin: China

---

Package contents

• 2x2 4K Video Wall Processor with USB-C/DVI/HDMI In
• DC 12V/2A output power adapter
• Remote control
• Mounting bracket kit (6x screws, 2x mounting ears)
• Driver CD
• USB cable
• User manual
