4-Port DisplayPort 1.2 Smart Console KVM Switch with USB 3.0 and Multi-Media ports - [email protected]

  • DisplayPort 1.2
  • 21.6G
  • 4x1
  • 4K60Hz
  • KVM
  • USB 3.0
  • USB Keyboard & Mouse
  • 3.5mm phone & Mic jacks
  • Switch button
  • Hotkeys
  • Auto EDID
  • Supports MST Passthrough
Out of stock

We will send this product within 1 business day

Lifetime technical support on all of our product

45 day return and money back guarantee


    Allows you to control 4 computers using one keyboard and mouse, [email protected] resolution DisplayPort 1.2 video signals, auto EDID, USB 3.0 ports, microphone input, and stereo audio output



    Create a high-performance workstation via one set of keyboard and mouse to control 4 DisplayPort computers with USB 3.0 and audio devices

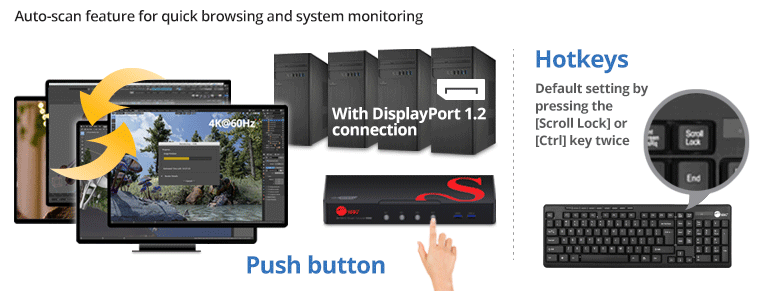

    Effortlessly Switch

    Easily switching between computer/device via the front panel push button or USB keyboard hotkeys make this DisplayPort 1.2 4K Smart Console KVM Switch with USB 3.0 Multi-Media user-friendly to operate


    Built-in signal level enhancement slide switch reforms DP source and resolve unstable original DP input automatically



    High Resolution

    Delivers crystal clear picture quality with resolution up to 3840x2160 @60Hz YUV 4:4:4 8-bit, 3D, Deep color

    **Note: Does NOT work with passive or active DP-to-HDMI/DVI/VGA adapters

    * HDR is not supported.

    High Performance

    Offers a true 21.6Gbps video bandwidth and supports 7.1ch surround sound or stereo audio. PCM, DTS-HD, Dolby Digital and Dolby TrueHD audio also supported

    DP list

    Multiple Connectivity Port

    Comes with four DisplayPort video ports, four USB 3.0 Type-A ports for connecting multiple USB peripherals such as flash drives, printers…, two USB 1.1ports for keyboard and mouse connection, ten 3.5mm audio jack ports to connect stereo speakers / earphone or microphone, one Micro USB port for Firmware update, one DIP Switch, and one Slide Switch (signal level)






    Delivers four USB 3.1 Gen1 Type-A ports and supports data transfer rates up to 5Gbps

    Maximum Compatibility

    Auto EDID (bypass) design maximizes the compatibility from OS to display. Auto-scan feature for quick browsing and system monitoring. Supports Plug-n-play and no driver installation required

    TAA compliant

    Completely manufactured in a TAA designated country

    Metal Housing Design

    Protects the inside PCBA, also enhance the heat dissipation for better performance. Military-grade component and ESD protection for long service life

    ESD protection

    An ESD protection device protects a circuit from an Electrostatic discharge (ESD), in order to prevent a malfunction or breakdown of an electronic device.



    •  Educational facilities
    •  Gaming
    •  Hospital
    •  Workstation
    •  Control center
    •  Reception desk
    •  Media editing
    •  Retail stores
    •  Audio/Video presentation room

    Need to Know Before Buying

    1. Please confirm your 4 computers with DisplayPort 1.2 port, USB 3.0 Type-B port, audio port and Mic ports


    2. Requires DisplayPort 1.2 connection for the display/monitor resolution that supports [email protected] * Please note that HDR is not supported

    3. If you want to take full advantage of DisplayPort 1.2 full specifications, you need the DisplayPort 1.2 cable capable of the correct bandwidth. For example, if you are running [email protected], then please use our DisplayPort 1.2 cables (those are included) or use the DisplayPort certified cables

    4. Four USB 3.0 cables are required to connect to the USB peripheral devices* Not support Dynamic Device Mapping (DDM) fast switching


    Chipset TI SN75DP130
    OS Compatibility Windows® 10, Mac OS ® 10.10 or new
    DisplayPort 1.2 [email protected] YUV 4:4:4 8-bit
    Bandwidth DisplayPort: Up to 21.6Gbps
    Video cable length DisplayPort: Up to 3M (max)
    USB 3.0 4x Type-A, Gen 1 up to 5Gbps
    USB 1.1 2x Type-A, up to 12Mbps
    Power Adapter
    Input AC 100-240V / 50-60Hz
    Output DC 12V/2A
    UL Listed E163743 /Level: VI
    7.1 channel surround sound
    PCM 2.0 channel stereo digital audio
    Environmental conditions
    Operating temperature 32 to 104 degrees F
    Storage temperature -4 to 140 degrees F
    Relative humidity <85% RH (non-condensing)
    Product Info
    Dimensions 11.10” (L) x 1.43” (H) x 4.38” (W)
    Weight 2.09 lbs
    Color Black
    Housing material Metal
    Unit Package
    Dimensions: 13.03" (W) x 6.38" (H) x 8.03" (D)
    Weight: 5.72 lbs
    FCC, CE, RoHS, TAA compliant, Cable UL Listed: E301195
    Warranty: 3 years limited
    Country of origin: Taiwan




    • 4x 20-pin DisplayPort 1.2, Female (PC input)
    • 4x 9-pin USB 3.0 Type-B, Female
    • 8x 3.5mm phone jack for Microphone and Stereo audio, Female (PC)
    • 1x 20-pin, DisplayPort, Female, Output
    • 2x 3.5mm phone jack for Microphone and Stereo audio, Female (Device)
    • 4x 9-pin USB 3.0 Type-A, Female
    • 2x 4-pin USB 1.1 Type-A, Female (for Keyboard/Mouse)
    • 1x 5-pin Micro USB, FW update, Female
    • 1x 2-pin DIP switch (control FW)
    • 1x Slide switch (signal level)
    • 1x DC power jack (5.5x2.5x10mm)

    System Requirements

    • PC or Laptop with available DisplayPort 1.2 port, USB Type-A port (USB 3.0 recommended), audio and Mic ports
    • Windows® 10 / 8.x / 7 (32-/64-bit)
    • Mac OS® 10.10 or later

    Package contents

    • 1x 4-Port DisplayPort 1.2 4K Smart Console KVM Switch with USB 3.0 Multi-Media
    • 4x DisplayPort 1.2 cable (1.8m)
    • 4x 3-in-1 cable (USB 3.0+Mic+Stereo, 1.8m)
    • 1x Power Adapter (12V/2A)
    • 1x User Reference Guide



Software compatible in Windows 10 / 8 / 7 only
Download Firmware update version 201008
USB function and compatibility updates; Enables CTRL and Scroll Lock hot-key simultaneous use

Frequently Asked Questions (Q&A)

Are the 4K Smart Console KVM Switches DDM Fast Switching Compliant?

Applies to the Following Products: - 2-Port HDMI 2.0 4K HDR Smart Console KVM Switch with USB 3.0 and Multimedia Ports (CE-H25511-S1)- 4-Port HDMI 2.0 4K HDR Smart Console KVM Switch with USB 3.0 and Multimedia Ports (CE-H25611-S1) - 2-Port DVI Dual...
