4-Port DisplayPort 1.4 8K MST Dual Head KVM Console Switch

  • 4x DisplayPort PCs In
  • Single 8K
  • Dual 4K
  • 32.4Gbps
  • HDCP 2.2
  • 2x DisplayPort MST Output
  • 4x USB-A 3.2 Gen 1 | 5Gbps
  • USB KM
  • Hotkeys
  • 2x USB-A 1.1
  • 3.5mm Audio
  • 3.5mm Mic
  • Switch Button
  • Auto EDID
  • ESD Protection
  • TAA Compliant
  • Mac Mirror Mode Only
In stock
Quantity in stock: 100
SKU
CE-KV0H11-S1
$599.99

We will send this product within 1 business day

Lifetime technical support on all of our product

45 day return and money back guarantee



    Overview

    4 port DisplayPort 8K MST Dual-Head KVM Switch, allows you to control 4 DisplayPort 8K computers using one keyboard and mouse and support to separate for dual head 4K60Hz DisplayPort via MST feature output, DP 1.4/[email protected], 32.4Gbps, 4 USB 3.2 Gen-1 ports, 3.5mm Phone & Mic Jacks, Switch Button, Hotkeys, Metal Housing, TAA Compliant

    overview


    Features

    Easily control/switch four DisplayPort 1.4 and USB computers with one set of keyboard & mouse to one 8K DisplayPort monitor or two 4K DisplayPort monitors and supports Multi-Stream Transport (MST) technology to enhance your productivity and efficiency

    kvm


    8K/4K Video Resolution
    Supports Ultra HD video resolution up to a single 8K (7680x4320) @30Hz display and dual 4K (4096x2160) @60Hz displays YUV 4:4:4 8-bit, Deep color, and 3D
    *Note: DisplayPort 1.2 only supports single [email protected] display, dual [email protected] displays and no HDR supported

    res

    Monitor Solution
    mon


    High Performance
    Offers a true 32.4Gbps video bandwidth and supports 7.1ch surround sound

    band


    Effortlessly Switch
    Switch freely between 4 computers/devices in different ways, such as front panel selection buttons and USB keyboard hotkeys

    swi
    *Note: Hotkeys control is only available on Windows system


    Multiple Connectivity Port
    Comes with four DisplayPort 1.4 video input ports, four USB-B 3.2 Gen 1 ports (Host), two DisplayPort 1.4 MST output ports, four USB-A 3.2 Gen 1 ports, two USB-A 1.1 HID ports for connecting keyboard and mouse, five 3.5mm phone jack for stereo audio, five 3.5mm phone jack for microphone, one DIP Switch for Firmware control, one Micro USB for Firmware update, four PC1/PC2/PC3/PC4 switch buttons, and one DC power jack (12V/2A)

    ports

    Connection

    conn

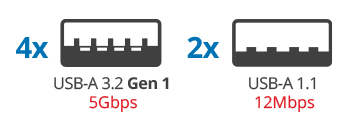

    usbUSB-A Data Transfer
    Easily connect four USB-A 3.2 Gen 1 ports on the front or back with data transfer rate up to 5Gbps for Flash drive, Printer, Enclosure, and other USB peripheral devices, and two USB-A 1.1 HID ports with data transfer rate up to 12Mbps for independent HID keyboard and mouse

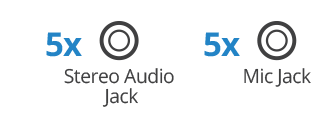

    aud3.5mm Audio/Mic
    Supports ten 3.5mm phone jacks for stereo audio and Microphone


    Maximum Compatibility
    Compatible with Windows® 11 (64-bit) / 10 (32-/64-bit) / 8.x (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit)
    Supports Plug-n-play and no driver installation required. Auto-EDID detection to ensure visual workspaces and resolutions are easy to connect to a new system every time and auto-scan feature for quick browsing and system monitoring


    ESD Protection
    An ESD protection device protects a circuit used to an Electrostatic discharge (ESD), in order to prevent a malfunction or breakdown of an electronic device

    esd


    Metal Housing Design
    Drop resistant and Anti-collision design enhances heat dissipation, providing better performance, stability, and safety


    TAA Compliant
    Completely manufactured in a TAA designated country


Applications

    • Media editing center
    • Web design studio
    • Audio/Video presentation room
    • Photo shooting studio
    • Office
    • Workstation
    • Home office
    • Medical office
    • Show room
    • Educational facilities
    • Control center
    • Server room
    • Hospital
    • Testing lab

    Need to Know Before Buying

    1. Please confirm your computers with DisplayPort, USB-A 3.2 Gen 1, audio, and microphone ports

    computer

    2. Check the extended displays/monitors with DisplayPort and support [email protected] or [email protected] resolution. If you are not sure, please check the manual of the monitor

    monitor


    *Note:
    - DisplayPort 1.2 only supports single [email protected] display, dual [email protected] displays and no HDR supported
    - Includes four DisplayPort cables for optimal video quality

    3. NVIDIA graphics card is recommended for MST function, AMD graphics card may not be supported
    *Note: The MST function depends on different graphics card

    4. Comes with four USB 3-in-1 cables for connecting to USB-A 3.2 Gen 1 PCs for best transfer


    Specifications

    Software
    OS Compatibility Windows® 11 or new
    Video
    DisplayPort 4x input, 2x output
    Resolution Single: 8K (7680x4320) @30Hz, Dual: 4K (3840x2160) @60Hz, YUV 4:4:4 8-bit, HDCP 2.2, Deep Color, 3D
    Video bandwidth Up to 32.4Gbps
    USB data transfer rate
    USB 3.2 Gen 1 4x Type-A, up to 5Gbps, 5V/900mA
    USB 1.1 2x Type-A, up to 12Mbps, for HID keyboard & mouse
    Audio
    7.1 channel surround form DisplayPort port. Audio format: PCM, Dolby Digital, DTS-HD and Dolby True-HD audio
    2 channel stereo audio from 3.5mm audio jack. Audio format: PCM 2-ch. stereo Audio
    Power Adapter
    Input AC 100-240V / 50-60Hz
    Output DC 12V / 2A
    UL Listed E253376/Level: VI
    Environmental conditions
    Operating temperature 32 to 104 degrees F
    Storage temperature -4 to 140 degrees F
    Relative humidity: 20% to 90% RH (non-condensing)
    Product Info
    Dimensions 11.10” (L) x 1.43” (H) x 4.39” (W)
    Weight 2.15 lbs
    Color Black
    Housing material Metal
    Unit Package
    Dimensions 13.03” (L) x 6.38” (H) x8.03” (W)
    Weight 5.59 lbs
    Certifications/Standards
    FCC, CE, RoHS, REACH, TAA compliant
    Warranty: 3 years limited
    Country of origin: Taiwan

    Interface

    interface

    Input

    • 4x 20-pin, DisplayPort, Female
    • 4x 9-pin, USB-B 3.2 Gen 1, Female (Host)
    • 4x 9-pin, USB-A 3.2 Gen 1, Female
    • 2x 4-pin, USB-A 1.1, for HID keyboard & mouse, Female
    • 5x 3.5mm phone jacks, for microphone
    • 1x 5-pin, Micro USB, for Firmware update
    • 1x 2-pin, DIP switch, for Firmware control
    • 4x Switch button, for PC1/PC2/PC3/PC4 switching
    • 1x DC power adapter, 12V/2A

    Output

    • 2x 20-pin, DisplayPort, Female
    • 5x 3.5mm phone jack, for stereo audio


    System Requirements

    • PC with available DisplayPort, USB-A 3.2 Gen 1, 3.5mm audio, and 3.5mm microphone ports
    • Windows® 11 / 10
      * macOS® only supports Mirror mode

    Package contents

    • 1x 4-Port DisplayPort 1.4 8K MST Dual Head KVM Console Switch
    • 4x DisplayPort cable
    • 4x 3-in-1 cable (USB-A 3.2 Gen 1 to USB-B+MIC+audio)
    • 1x DC power adapter, 12V/2A
    • 1x User reference guide
