4-Port HDMI 4K HDR Smart Console KVM Switch with USB 3.0 and Multimedia Ports

  • HDMI
  • 18G
  • 4x1
  • KVM
  • HDR
  • 4K60Hz
  • USB 3.0
  • USB keyboard & mouse
  • 3.5mm phone & Mic jacks
  • Switch button
  • Hotkeys
  • Auto EDID
Out of stock
SKU
CE-H25611-S1
$539.99

We ship all orders within 1 business day

Lifetime technical support on all of our products

45-day return window and money-back guarantee



    Overview

    Allows you to control four computers using one keyboard and mouse, 4K resolution HDMI video signals, USB 3.0 ports, microphone input, and stereo audio output. TAA compliant


    Features

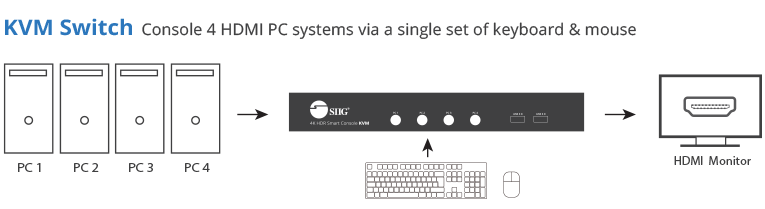

    The Best KVM Solution for Working at Home - create a high-performance workstation via one set of keyboard and mouse to control 4 HDMI computers with USB 3.0 and audio devices

    solution

    KVM

    Effortlessly Switch

    Easily switching between computer/device via the front panel push button or USB keyboard hotkeys make this HDMI 4K HDR Smart Console KVM Switch with USB 3.0 Multi-Media user-friendly to operate

    Switch


    resolution

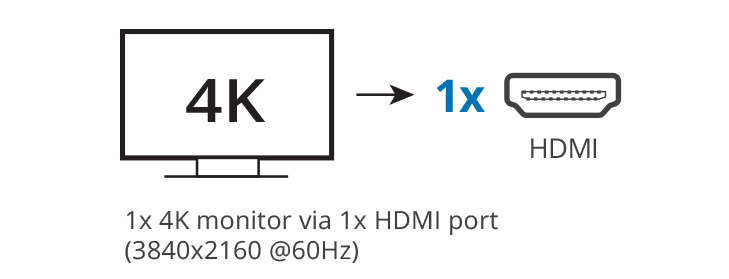

    High Resolution

    Delivers crystal clear picture quality with resolution up to 3840x2160 @60Hz YUV 4:4:4 8-bit, HDR 3840x2160 @60Hz YUV 4:2:0 10bit, 3D, Deep color
    Note: 3440x1440 resolution not supported


    HDR (High Dynamic Range)

    HDR TV

    4K and HD refer to a specific screen resolution, but HDR refers to the contrast or color range between the lightest and darkest tones in an image. HDR delivers a higher contrast than Standard Dynamic Range (SDR) and is more visually impactful than 4K

    HDR


    High Performance

    Offers a true 18Gbps video bandwidth and supports 7.1ch surround sound or stereo audio. PCM, DTS-HD, Dolby Digital and Dolby TrueHD audio also supported

    list

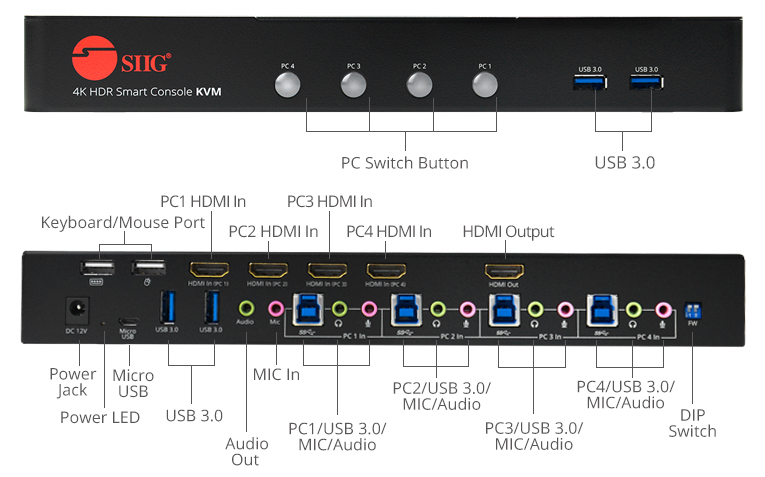

    Multiple Connectivity Port

    Comes with four HDMI video ports, four USB 3.0 Type-A ports for connecting multiple USB peripherals such as flash drives, printers…, two USB 1.1ports for keyboard and mouse connection, ten 3.5mm audio jack ports to connect stereo speaker/earphone or microphone, and one Micro USB port for Firmware update

    Ports

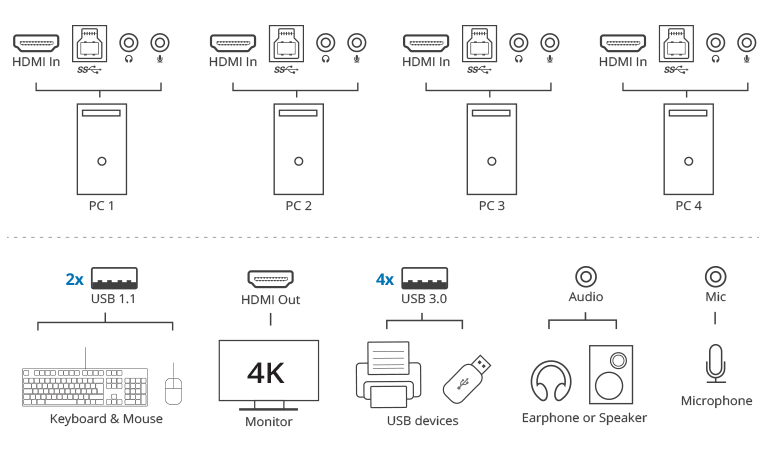

    Connection

    Connection


    USB

    USB

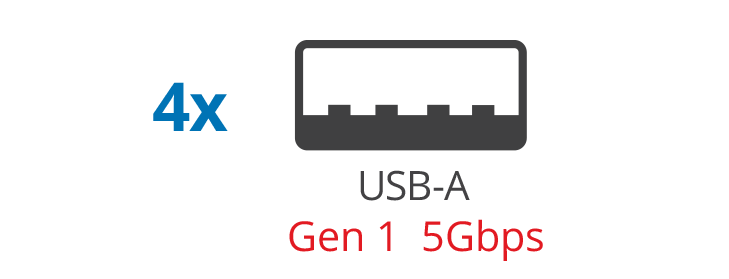

    High-Speed Data Transfer

    Delivers four USB 3.1 Gen1 Type-A ports and supports data transfer rates up to 5Gbps


    Maximum Compatibility

    Auto EDID (bypass) design maximizes the compatibility from OS to display. Auto-scan feature for quick browsing and system monitoring. Supports Plug-n-play and no driver installation required


    TAA Compliant

    Completely manufactured in a TAA designated country


    Metal Housing Design

    Protects the inside PCBA, also enhance the heat dissipation for better performance. Military-grade component and ESD protection for long service life


    ESD Protection

    An ESD protection device protects a circuit from an Electrostatic discharge (ESD), in order to prevent a malfunction or breakdown of an electronic device

    ESD


Applications

    • Gaming
    • Hospital
    • Reception desk
    • Workstation
    • Control center
    • Retail stores
    • Media editor
    • Educational facilities
    • Audio/Video presentation room

    Need to Know Before Buying

    1. Please confirm your 4 computers with HDMI port, USB 3.0 Type-B port, audio port, and Mic port

    Computer

    2. Check the extended HDMI display/monitor resolution that supports 4K @60Hz, and HDR compatible (check on manual of monitor)

    monitor

    3. If you want to take full advantage of HDMI full specifications, you need an HDMI cable capable of the correct bandwidth. For example, if you are running 4K@60Hz with HDR, then please use our HDMI cables (those are included) or use the cable labeled "Premium High Speed" or 18Gbps

    4. Four USB 3.0 cables are required to connect to the USB peripheral devices

    * Not support Dynamic Device Mapping (DDM) fast switching


    Specifications

    Hardware
    Chipset TI SN75DP130
    Software
    OS Compatibility Windows®, macOS®
    Video
    HDMI 4Kx2K @60Hz, HDCP 2.2, 3D, Deep color
    Bandwidth Single-link 594MHz, Up to 18Gbps
    Resolution

    Up to 3840x2160@60Hz YUV 4:4:4 8-bit
    HDR 3840x2160@60Hz YUV 4:2:0 10-bit
    Note: 3440x1440 not supported

    USB 3.0 4x Type-A, Gen 1 up to 5Gbps
    USB 1.1 2x Type-A, up to 12Mbps
    Power Adapter
    Input AC 100-240V / 50-60Hz
    Output DC 12V/2A
    UL Listed E163743 /Level: VI
    Audio
    7.1 channel surround sound
    PCM 2.1 channel stereo digital audio
    Environmental conditions
    Operating temperature 32 to 104 degrees F
    Storage temperature -4 to 140 degrees F
    Relative humidity: <85% RH (non-condensing)
    Product Info
    Dimensions 11.1” (L) x 1.46” (H) x 4.42” (W)
    Weight 2.09 lbs
    Color Black
    Housing material Metal
    Unit Package:   Dimensions: 13.03" (W) x 8.03" (H) x 6.37" (D)
    Weight: 5.72 lbs
    Certifications/Standards
    FCC, CE, RoHS, TAA compliant, Cable UL Listed: E465682
    Warranty: 3 years limited
    Country of origin: Taiwan

    Interface

    Interface

    Layout:

    • 4x 19-pin HDMI, Female (PC input)
    • 4x 9-pin USB 3.0 Type-B, Female
    • 8x 3.5mm phone jack for Microphone and Stereo audio, Female (PC)
    • 1x 19-pin HDMI, Female, Output
    • 2x 3.5mm phone jack for Microphone and Stereo audio, Female (Device)
    • 4x 9-pin USB 3.0 Type-A, Female
    • 2x 4-pin USB 1.1 Type-A, Female (for Keyboard/Mouse)
    • 1x 5-pin Micro USB, FW update, Female
    • 1x DC power jack (5.5x2.5x10mm)

    System Requirements

    • PC or Laptop with available HDMI, USB Type-A port (USB 3.0 recommended), audio and Mic ports
    • Compliant with Windows or Mac system

    Package contents

    • 1x 4-Port HDMI 4K HDR Smart Console KVM Switch with USB 3.0 Multi-Media
    • 4x HDMI cable (1.8m)
    • 4x 3-in-1 cable (USB 3.0+Mic+Stereo, 1.8m)
    • 1x Power Adapter (12V/2A)
    • 1x User Reference Guide

Manuals

Frequently Asked Questions (Q&A)

Q: Are the 4K Smart Console KVM Switches DDM Fast Switching Compliant?

Applies to the Following Products: - 2-Port HDMI 2.0 4K HDR Smart Console KVM Switch with USB 3.0 and Multimedia Ports (CE-H25511-S1)- 4-Port HDMI 2.0 4K HDR Smart Console KVM Switch with USB 3.0 and Multimedia Ports (CE-H25611-S1) - 2-Port DVI Dual...

Does this unit support USB dongles for wireless keyboards and mice? If yes, will one dongle suffice OR must one be put in each USB port?

Yes, it does support USB dongles. Each wireless device comes with it's own dongle, so you will plug in a dongle for each wireless device, in your case one for the keyboard and one for the mouse.
