4 Port HDMI HDR Splitter with EDID and Downscaling - 4K@60Hz HDR Auto Video Scaling

Features

SIIG Compact 1x4 HDMI Splitter 4K (CE-H26C11-S1)

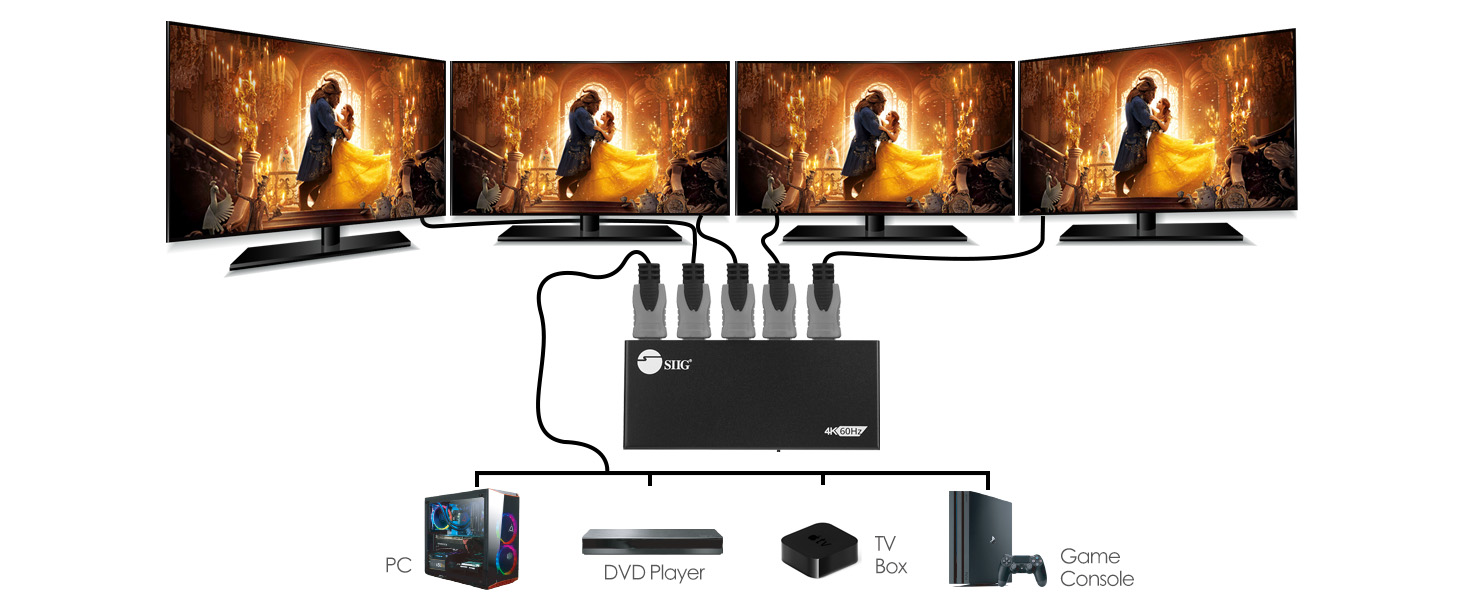

Distributes HDMI video & audio fro.m a single source to 4 HDMI displays simultaneously without signal degradation (NO Extended Mode supported)

Supports mixed 4K and 1080p outputs. A 4K video source device can simultaneously display 4K content to 4K monitor(s) and 1080p content to 1080p monitor(s) via downscaling.

Use Elgato or other or other game capture device to record gameplay footage in 1080p, while playing in 4K.

(See Important Notes and downscaling limitations below)

EDID Management

Built-in EDID management and firmware update mechanisms offer wide range of monitor/display/TV support fro.m either pre-programmed EDID or EDID learning fro.m the connected displays and expands compatibility into the future.

Firmware upgradeable via Mini USB port for expanded compatibility

Compact Metal Housing

High quality materials with metal housing extend the stability and durability, allowing for long hours of operation.

Low heat generation with durable metal housing provides excellent heat dissipation and minimizes EMI/RFI interference for stable and reliable performance and long life.

Mixed Resolution Downscaling (Downscaler)

Distribute 4K signal to one display and 1080p to the other, allowing for the seamless integration of newer displays with older displays in the same environment.

Use Elgato or other game capture device to record game play footage in 1080p, while actually playing in 4K!

Save money, by not needing to upgrade to an expensive capture card that will allow for this.

ONLY downscales fro.m 4K @60Hz 4:4:4 to 1080p

(See Important Notes and downscaling limitations below)

4 Way HDMI Splitter

Package Contents

• 4 Port HDMI 2.0 HDR Splitter with EDID and Downscaler
• Power adapter with micro USB cable
• Quick Start Guide

• Downscaling fro.m 720p to 480p or 4K @60hz 4:2:2 to 1080p or 2K to 1080p NOT supported
• 4K HDR to 1080p makes the 1080p display look washed out (CE-H26911-S1 fixes). This splitter can bypass 4K HDR data content but cannot process it to make 4K HDR content fit 1080p proportionally

• Will not work correctly with AVRs using HDMI 1.4 and earlier (CE-H22X11-S1 / CE-H22Y11-S1 fixes this)
• Frame rate conversion (e.g., 60Hz to 24Hz) is not supported

Specifications

• Compliant with HDCP 2.2/1.4
• Supported resolution: 480p/720p/1080i/1080p/ HDR 4K2K@60 (YUV 4:2:0 10bits) / 4K2K@60 (YUV 4:4:4 8bits), Dolby Vision
• Video bandwidth: Up to 18Gbps (single-line 600MHz)
• Audio support: DTS-HD Master Audio, Dolby Atmos, Dolby TrueHD Dolby Digital, DTS, DVD-Audio, LPCM
• HDMI cable distance: Up to 10 meters for 4K@60Hz (YUV 4:4:4 8bits) (Input 5m + Output 5m)
• LED indicator for power and video signal status
• EDID management:

  • Copy EDID: The display connected to HDMI Output 4 has priority over the other HDMI outputs. Recommended to connect the monitor with the highest resolution to Output 4 for the best performance/compatibility
  • Auto EDID: Default 3840x2160 @60Hz
  • Mixed EDID: Uses the lowest resolution/audio capabilities of the connected displays
          Note: HDR, Dolby Vision, Dolby Atmos and 7.1ch supports Copy EDID mode only
• Product:

  • Dimensions: 5.91" (L) x 0.67" (H) x 2.53" (W)
  • Weight: 0.54 lbs
  • Color: Black
  • Housing: Metal
  • Power consumption:  2 Watts (max)
  • Connectors:

    • 1x 19-Pin, HDMI, Type A, Female, Input
    • 4x 19-pin, HDMI, Type A, Female, Output
    • 1x 5-pin Micro USB, Female, F/W update
    • 1x 3-pin DIP switch, EDID control
    • 1x Power jack
• Unit Package:

  • Dimensions: 8.46" (W) x 2.36" (H) x 7.09" (D)
  • Weight: 1.01 lbs
• Power Adapter:

  • Input: 100-240VAC, 50/60 Hz
  • Output: 5V/1A
  • UL No.: E305498; Level: VI
• Environmental conditions:

  • Operating temperature: 23 to 104 degrees F
  • Storage temperature: -4 to 140 degrees F
  • Relative humidity: 5% to 90% RH (non-condensing)
• Certifications/Standards: FCC, CE, RoHS
• Warranty: 2 years limited
• Country of origin: China

System Requirements

• HDMI source device, such as computers, game consoles, Blu-ray/DVD players, and media players
• HDMI displays, monitors, and HD TVs

Package contents

• 4 Port HDMI HDR Splitter with EDID and Downscaler
• Power adapter
• Mounting kit (2x ears, 4x screws)
• User Reference Guide
