4K 60Hz HDMI over IP Matrix - Encoder (TX)

  • HDMI & USB over Ethernet
  • IP Extender
  • 394ft/120m
  • 4K60Hz
  • HDR
  • HDCP 2.2
  • 18Gbps
  • Cat6/7
  • Gigabit Ethernet
  • PoE
  • One to Many
  • Multicast Networking
  • DIP Switch
  • RS-232 Control
  • Bi-directional IR
  • Video Wall
  • S/PDIF
  • Audio/Mic
  • ESD Protection
  • TAA Compliant
In stock
Quantity in stock: 29
SKU
CE-H27F11-S1
$569.99

We ship all orders within 1 business day

Lifetime technical support on all of our products

45-day return window and money-back guarantee



    Overview

    HDMI over IP Matrix - Encoder (TX) , transmits 4K@60Hz HDMI signal up to 394ft (120m) over a single Cat6/7 cable, PoE, One to One, One to Many, Multi-casting, Video Wall, KVM, 18Gbps, HDCP 2.2, HDR 10, 7.1ch, Bi-directional IR, RS-232 Control, TAA Compliant, Kit (CE-H28A11-S1), Decoder (RX) (CE-H27G11-S1). TAA compliant

    overview


    Features

    Flexible matrix function to extend HDMI HDMI audio/video signals to the remote displays/monitors over UTP Cat6/7 cable up to 394ft (120m) and send the 4K@60Hz Ultra HD HDR resolution to the receiver for stable transmission and cost saving. Allows multiple receivers to be used simultaneously in multiple configurations

    fea


    Highly Scalable
    Works as a scalable TX/RX matrix over the dedicated IP network and extends/splits HDMI signals to multiple displays. Allows up to 65,536 total units, limited to 1,023 transmitter units, the additional encoder (TX) unit (CE-H27F11-S1), decoder (RX) unit (part#- CE-H27G11-S1), and Kit (part#- CE-H28A11-S1) are sold separately
    *Note: IGMP Gigabit Switch is recommended for best performance and reliability

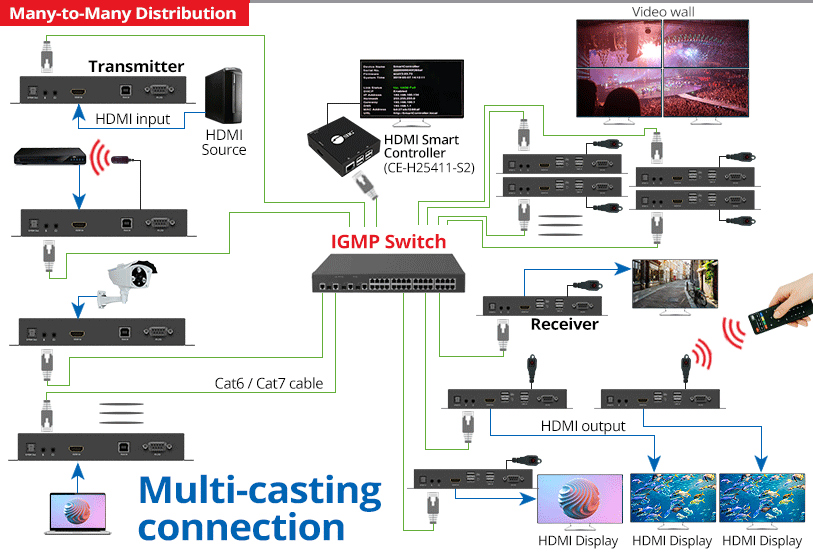

    one

    many

    mul


    PoE Technology
    Allows the power supply connected to either the TX or RX unit by Ethernet port to power both units, making it easy to construct and improve system robustness. No additional power adapter required

    poe


    Long Distance
    This 4K 60Hz HDMI over IP Matrix Kit is designed for reliably extend HDMI signals up to 394ft (120m) to remote HDMI displays through Gigabit Ethernet network and Gigabit Ethernet switch

    dis


    res4K UHD Resolution
    Supports Ultra High-Definition video resolution up to 4K (4096x2160) @60Hz HDCP 2.2, 4:4:4, HDR 10, Deep Color and 3D. Image rotation supports clockwise 90°, 180°, and 270° in video wall only
    *Note: Video wall, ARC, KVM and audio embedded functions must use with SIIG HDMI Smart Controller (Part# CE-H25411-S2)


    IR Extension/RS-232 Control
    Bi-directional IR pass back function and RS-232 control source devices from remote RX locations, allowing you to select and switch between HDMI source devices


    High Performance
    Offers a true 18Gbps video bandwidth and supports 7.1-ch surround sound

    ban


    Extract Audio
    Audio extraction via digital S/PDIF (Toslink), 3.5mm stereo audio, or HDMI output ports. Digital S/PDIF audio format: PCM 2.0, Dolby 5.1, and DTS 5.1; 3.5mm stereo audio format: PCM 2.0; HDMI audio format: PCM 2.0/5.1/7.1, Dolby 5.1/7.1, and DTS 5.1/7.1

    ext


    Multiple Connectivity Ports
    Comes with one HDMI video input port, one USB-B 2.0 port for Host- WebCam, one USB-B 2.0 port for Host-KM and flash drive, one Gigabit Ethernet network port, one 3.5mm IR emitter port, one 3.5mm IR receiver port, one 3.5mm microphone jack, one 3.5mm audio jack, one S/PDIF output port, one DIP switch for video channel selection, one RS-232 port for control, one DC power jack (5V/2A)

    ports

    Connection

    conn


    Maximum Compatibility
    Supports Plug-n-play and no driver installation required


    Protection Components
    Supports ESD protection, lightning protection, and surge protection to safe your electronic equipment


    Metal Housing Design
    Protects the inside PCB and enhance the heat dissipation for better performance. Wall mounted design is simple and sturdy installation


Applications

    • Airport• Exhibition• Lecture hall• Control center• Security center• Network operation center
    • Retail store• Restaurant• Digital signage• Shopping center• Surveillance control center

    Need to Know Before Buying

    1.Please confirm your computer or device with HDMI port

    computer

    2. Check the extended display/monitor with HDMI port and supports 4K@60Hz resolution

    monitor

    3. Please ensure using UTP Cat6/7 cable for the best video quality and accurate transmission distance

    4. IGMP Switch or Managed Ethernet Switch is recommended for the best performance and reliability

    5. The additional encoder (TX) unit (CE-H27F11-S1) and decoder (RX) unit (CE-H27G11-S1) for Kit (CE-H28A11-S1) only

    6. HDMI smart controller (CE-H25411-S2) is recommended for more video features such as video wall, KVM, ARC and audio embedded


    Specifications

    Video
    HDMI 1x input
    Resolution 4K (4096x2160)/4K (3840x2160)/1080p/1080i/720p/480i/480p @60Hz, HDCP 2.2, 4:4:4, HDR 10
    Image rotation 90°, 180°, and 270° clockwise in video wall mode
    * need to be enabled by the controller (part# CE-H25411-S2)
    Bandwidth Up to 18Gbps
    Transport Protocol
    TCP/IP protocol Audio/video digital connection transmission protocol
    Audio
    7.1-ch surround sound from HDMI port, audio format: PCM 2.0/5.1/7.1, Dolby 5.1/7.1, and DTS 5.1/7.1
    5.1-ch surround sound from S/PDIF port, audio format: PCM 2.0, Dolby 5.1, and DTS 5.1
    2-ch stereo audio from 3.5mm audio jack, audio format: PCM 2.0
    * S/PDIF and microphone input ports need to be enabled by the controller (part# CE-H25411-S2)
    IR Pass-through
    Bi-directional IR allows remote control of the HDMI source device and playback function at the remote display
    Full frequency: 20KHz to 60KHz
    RS-232 Control
    Full duplex RS-232 (Serial port) can transfer rate up to 115,200 baud
    Power
    Power adapter AC 100-240V/50-60Hz, Output: DC 5V/2A, UL listed: E135856/Level: VI
    PoE (Power over Ethernet) 48V
    Environmental conditions
    Operating temperature 32 to 104 degrees F
    Storage temperature -4 to 140 degrees F
    Relative humidity: 5% to 90% RH (non-condensing)
    Product Info
    Dimensions Dimensions: 6.81” (L) x 1.09” (H) x 5.19" (W)
    Weight 1.41 lbs
    Color Black
    Housing material Metal (Housing with wall mount design)
    Unit package Dimensions: 10.39” (L) x 3.03” (H) x 6.85" (W)
    Weight: 1.87 lbs
    Certifications/Standards
    FCC, CE, RoHS 2.0, REACH, TAA compliant
    UPC: 662774045566
    Warranty: 3 years limited
    Country of origin: Taiwan

    Interface

    interface

    Input

    • 1x 19-pin, HDMI, Female
    • 1x 4-pin, USB 2.0 Type-B, for WebCam (Host)
    • 1x 4-pin, USB 2.0 Type-B, for KM or USB devices (Host)
    • 1x 3.5mm infrared jack, IR receiver
    • 1x 6-pin, DIP switch for video channel selection
    • 1x 3.5mm phone jack for microphone* need to be enabled by the controller (part# CE-H25411-S2)
    • 1x 9-pin, RS-232, serial port for control
    • 1x DC power jack, 5V/2A

    Output

    • 1x 3.5mm infrared jack, IR emitter
    • 1x 8-pin, Gigabit Ethernet, RJ45
    • 1x S/PDIF (Toslink) digital audio* need to be enabled by the controller (part# CE-H25411-S2)
    • 1x 3.5mm phone jack for audio

    Package contents

    • 1x 4K 60Hz HDMI over IP Matrix- Encoder (TX)
    • 1x 3.5mm IR emitter extension cable
    • 1x DC power adapter, 5V/2A
    • 1x Mounting kit
    • 1x User reference guide

Manuals

04-1391b.pdf Download manual

Frequently Asked Questions (Q&A)

Q: Why the Over IP extender video can not cross the Router?

The Over IP extender are using Multicast Protocol, please check do the Switch and Router can support Multicast packet pass through

Please note that you must be logged in to submit questions.
