4K 60Hz HDR HDMI KVM Over Cat6 Extender with S/PDIF & Touch Screen Support

  • HDMI Extender with USB
  • Cat6/7
  • 230ft/70m
  • 18Gbps
  • HDR
  • 4K@60Hz
  • HDCP 2.2
  • USB Keyboard & Mouse
  • HDMI Loop-out
  • S/PDIF Audio
  • EDID Passthrough
  • Reset Button
  • ESD Protection
  • Support Touch Screen
In stock
Quantity in stock: 80
SKU
CE-H27811-S1
$329.99

We ship all orders within 1 business day

Lifetime technical support on all of our products

45-day return window and money-back guarantee



    Overview

    Transmits 4K@60Hz HDMI and USB 2.0 signals up to 230ft (70m) via Cat6/6a/7 cable - HDMI KVM Extender, Touch Screen, HDMI Loopout, S/PDIF, HDCP 2.2, USB 2.0 signal transmission

    overview


    Features

    Easily extend HDMI audio/video and USB signals up to 230ft (70m) to remote 4K Ultra HD display and use a one set of keyboard & mouse or touchscreen for remote control

    fea


    Extend Distance
    This 4K 60Hz HDR HDMI KVM Over Cat6 Extender with S/PDIF & Touch Screen Support designed to extends/splits HDMI signals up to 230ft (70m) through RJ45 network to a remote HDMI display for reliability transmission
    HDMI loop-out on the transmitter to connecting a local display for monitoring of the extended displays

    dis


    High Performance
    Offers a true 18Gbps video bandwidth and supports pure unaltered uncompressed 5.1-ch. surround sound from HDMI

    band


    res4K UHD Resolution
    Supports Ultra High-Definition video resolution up to 4K (3840x2160) @60Hz YUV 4:4:4 8-bit and HDR YUV 4:2:0 10-bit, HDCP 2.2 to deliver a crystal-clear picture quality and allows EDID auto-learning for remote and local displays


    Audio Extraction
    Easily extract digital audio via S/PDIF (Toslink) to return audio from TV to the audio system/speaker
    S/PDIF audio formats: PCM 2.0, Dolby 5.1, and DTS 5.1; HDMI audio formats: PCM 2.0/5.1/7.1, Dolby 5.1, and DTS 5.1


    usbUSB-A Data Transfer
    Delivers three USB 2.0 Type-A ports with data transfer rate up to 480Mbps, two for independent HID keyboard & mouse or capacitive/resistive touch screen to operate your PC system in an extended location, and one for host connection such as Laptop, desktop
    *Note: The touch screen is only compatible with USB 1.1 single touch screen


    Multiple Connectivity Ports
    Comes with one HDMI input port, one HDMI video loop-out port, one HDMI video output port, one USB 2.0 port (for Host), two USB 2.0 ports for keyboard & mouse or touch screen, one S/PDIF (Toslink) audio output port, two RJ45 network ports, two reset buttons, two DC power jacks (5V/2A)

    pors

    rx


    Connection

    conn


    Maximum Compatibility
    Supports Plug-n-play and no driver installation required. The reset button allows displays to be re-detected if no displays are detected


    Protection Components
    Supports ESD protection, lightning protection, and surge protection to safe your electronic equipment


    Metal Housing Design
    Protects the inside PCBA, also enhance the heat dissipation for better performance. Military-grade component for long service life


Applications

    • Audio/Video conference room
    • Show room
    • Digital signage
    • Broadcast
    • Indoor and outdoor advertising
    • Concert
    • Control center
    • Security room
    • Educational facilities
    • Media room
    • Restaurant
    • Shopping center
    • Church
    • Lecture hall
    • Library

    Need to Know Before Buying

    1. Please confirm your computer or device with HDMI port

    computer

    2. Check the extended and local displays/monitors with HDMI port and supports 4K@60Hz resolution

    monitor

    3. Note that after changing the display, please press the reset button to relearn the EDID


    Comparison Table

    h278 h274 h25h h234 h26g
    SKU CE-H27811-S1 CE-H27411-S1 CE-H25H11-S1 CE-H23411-S1 CE-H26G11-S2
    Max Resolution 4K 60Hz 1080p 60Hz 4K 30Hz 4K 60Hz 4K 60Hz
    Transmission Distance 230 Feet 230 Feet 328 Feet 230 Feet 500 Feet
    HDCP Version 2.2 1.4 2.2 2.2 2.2
    Transmission Mode Cable Cable Cable Cable (HDBaseT) Wireless
    # of USB Port 1 2 2 1 1
    HDMI Loop-out
    EDID
    Audio Extractor S/PDIF (Toslink) Stereo/Toslink

    Specifications

    Video
    HDMI 1x input, 1x output, 1x loop-out
    Resolution HDCP 2.2/1.4, 4K (3840x2160)/2160p/1080p/1080i/720p/480i/480p @60Hz
    USB
    USB 2.0 3x USB-A, data transfer rate: up to 480MB/s
    *Note: The touch screen is only compatible with USB 1.1 single touch screen
    Audio
    7.1 channel surround sound from HDMI port, audio format PCM 2.0/5.1/7.1, Dolby 5.1, and DTS 5.1
    5.1 channel surround sound from S/PDIF (Toslink) port, audio format: PCM 2.0, Dolby 5.1, and DTS 5.1
    Power adapter
    Input 100-240V/50-60Hz
    Output DC 5V/2A
    UL listed E335801/Level: VI
    Environmental conditions
    Operating temperature 14 to 140 degrees F
    Storage temperature -4 to 158 degrees F
    Relative humidity 5% to 90% RH (non-condensing)
    Product Info
    Transmitter unit (TX) Dimensions: 6.02” (L) x 0.87” (H) x 4.15" (W)
    Weight: 0.77lbs
    Color: black
    Housing material: Metal
    Receiver unit (RX) Dimensions: 6.02” (L) x 0.87” (H) x 4.15" (W)
    Weight: 0.77lbs
    Color: black
    Housing material: Metal
    Unit package
    Dimensions 14.06” (L) x 3.35” (H) x6.04" (W)
    Weight 2.73 lbs
    Certifications/Standards
    FCC, CE, RoHS, REACH
    Warranty: 2 years limited
    Country of origin: China

    Interface

    interface

    Transmitter unit (TX):

    • 1x 19-pin, HDMI, Female (input)
    • 1x 19-pin, HDMI, loop-out, Female (output)
    • 1x 4-pin, USB 2.0 Type-A, Female (for Host)
    • 1x 8-pin, RJ45 (output)
    • 1x Reset button
    • 1x DC power jack (5V/2A)

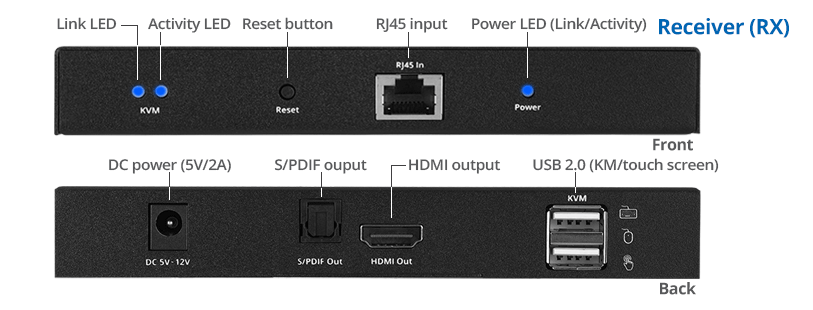

    Receiver unit (RX):

    • 1x 19-pin, HDMI, Female (output)
    • 2x 4-pin, USB 2.0 Type-A, Female (for keyboard & mouse/touch screen)
    • 1x 8-pin, RJ45 (input)
    • 1x S/PDIF audio, Toslink (output)
    • 1x Reset button
    • 1x DC power jack (5V/2A)


    Package contents

    • 1x 4K 60Hz HDR HDMI KVM Over Cat6 Extender with SPDIF & Touch Screen Support
    • 1x USB 2.0 Type-A to Type-A cable
    • 2x DC power adapter, 5V/2A
    • 1x Mounting kits
    • 1x User Reference Guide

Manuals

04-1377b.pdf Download manual
