SKU:
CE-H26211-S1

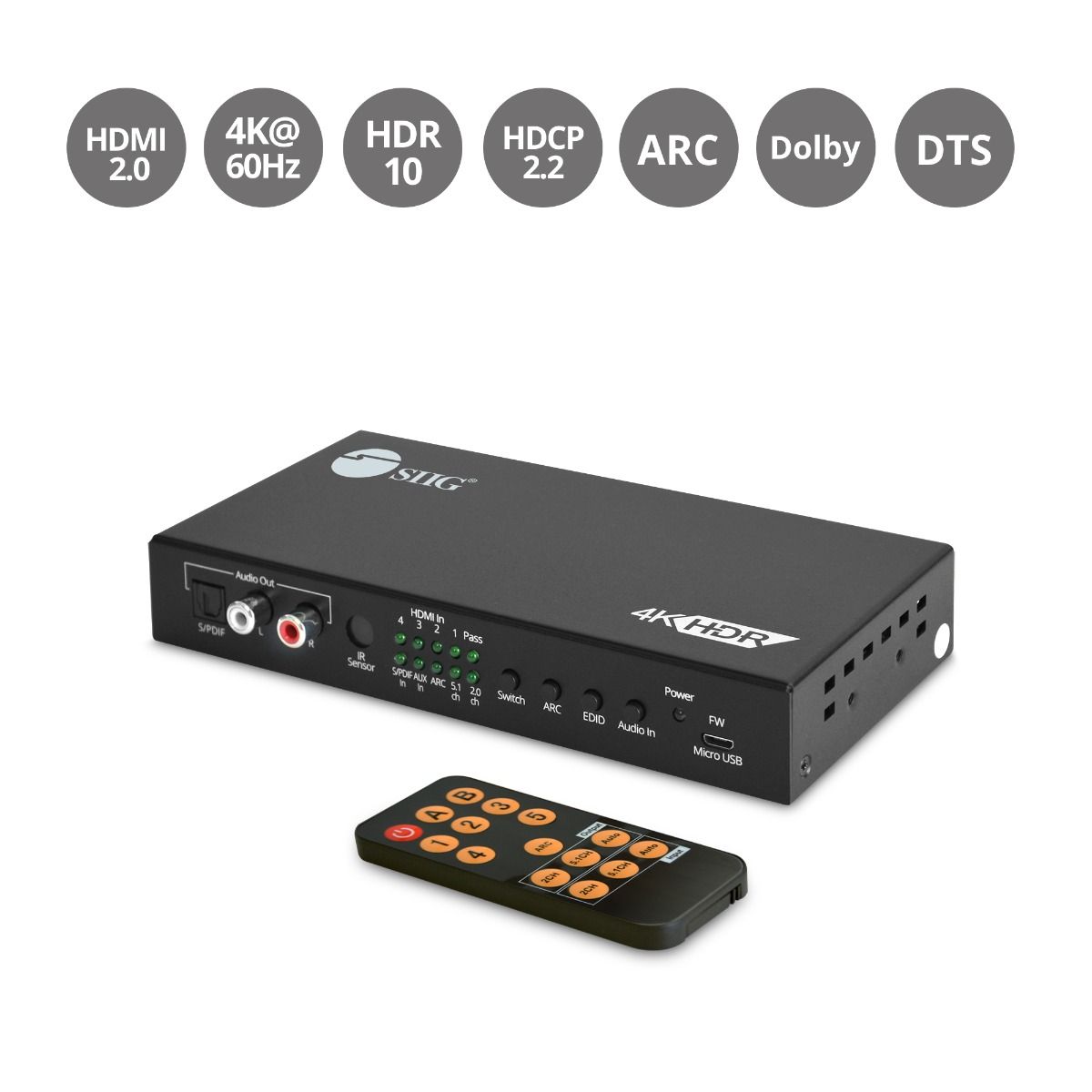

4x1 HDMI 4K 60Hz Switch with ARC & Audio Extractor
HDMI Switch
Audio Extractor
4K60Hz
Remote Control
ARC
Regular price
$119.99
Unit price
/
Unavailable
Shipping calculated at checkout.
4x1 HDMI 4K 60Hz Switch with ARC & Audio Extractor is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
High Quality HDMI Switcher
High Quality HDMI Switcher
Board Compatibility
Board Compatibility
Rich Audio Features
Rich Audio Features
Latest HDMI Techonolgy
Latest HDMI Techonolgy

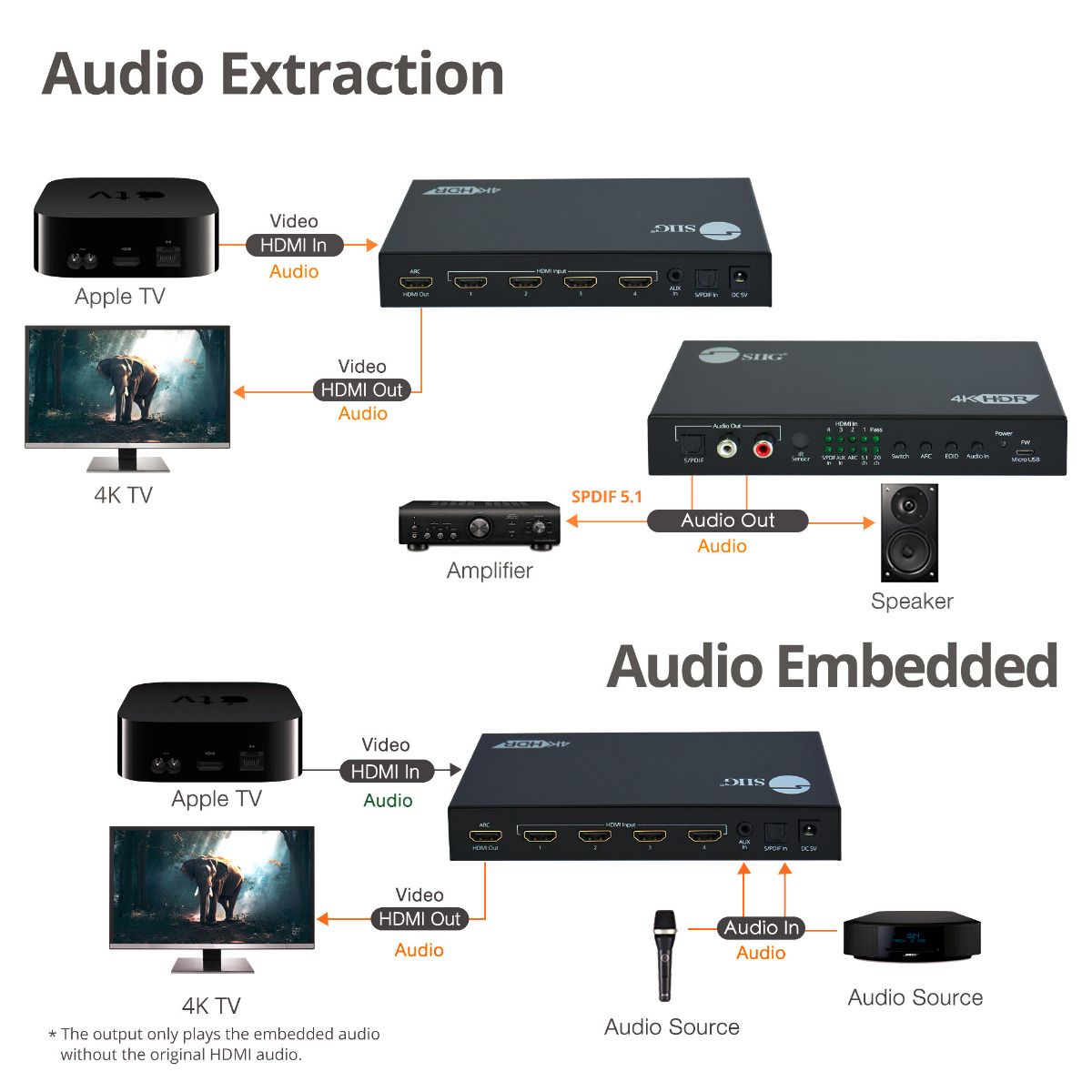

Embedded Audio
Embedded Audio
No content found
| Video | |
| HDMI | 4x input 1x output |
| Resolution | 4K (3840x2160) YUV 4:4:4 HDR10 HDCP 2.2 1080p/1080i/720p/480i/480p @60Hz |
| Color format | 36-bit Deep Color |
| Bandwidth | Up to 18Gbps |
| Audio | |
| HDMI Audio | 7.1 channel surround sound from HDMI port Supports LPCM Dolby digital DTS-HD Master Audio Dolby TrueHD |
| S/PDIF Audio | 5.1 channel surround sound from S/PDIF (Toslink) |
| Analog Audio | 2 channel stereo audio from RCA and AUX analog audio |
| Audio in formats | RCA and AUX: PCM 2.0 |
| Audio out formats | S/PDIF: PCM 2.0 Dolby 5.1 DTS 5.1 HDMI: PCM 2.0/5.1/7.1 Dolby 5.1 DTS 5.1 |
| IR Pass-through | |

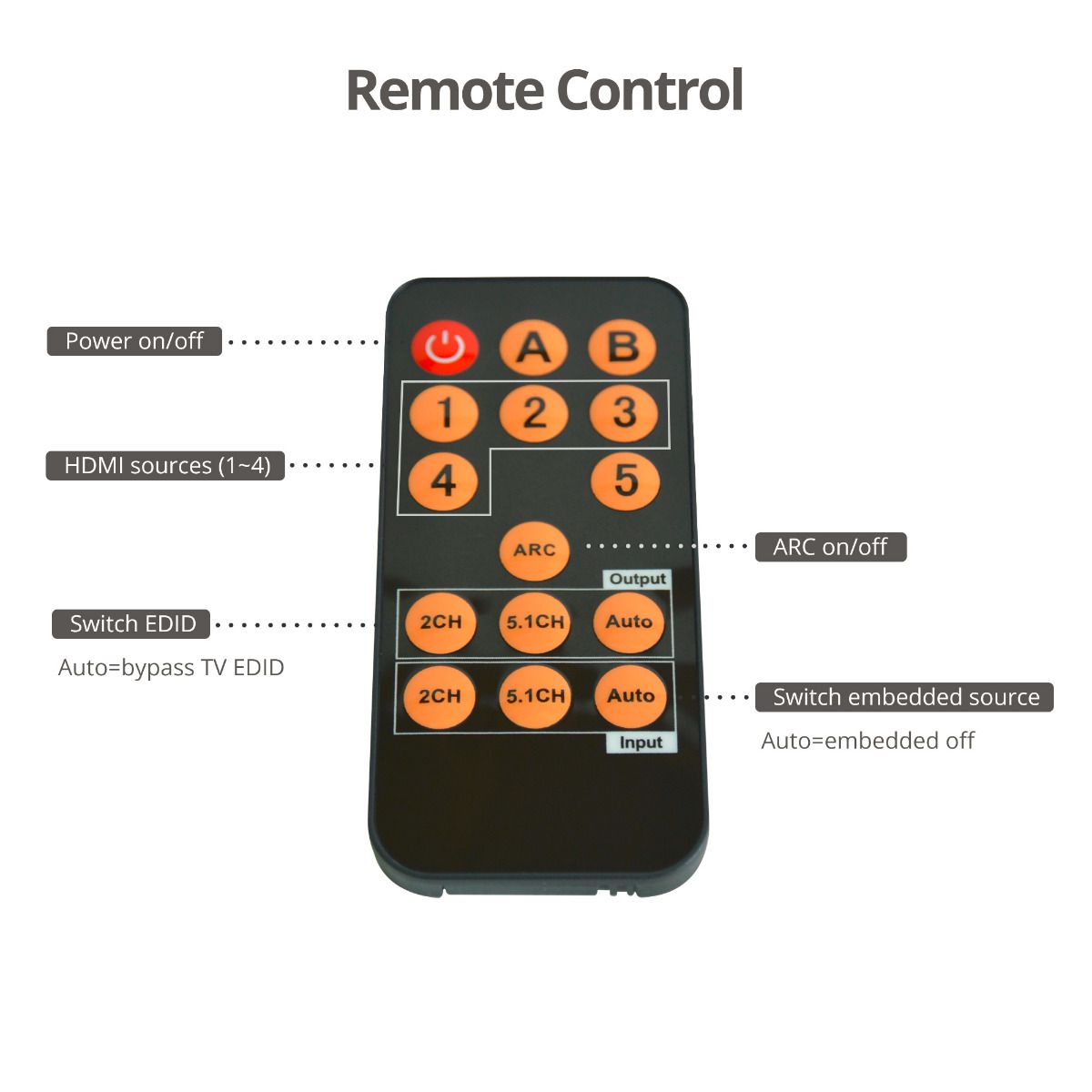

| IR | Built-in IR sensor allows you to control HDMI source devices via IR remote control |
| Power | |
| Power adapter | Input: AC 100-240V/50-60Hz Output: DC 5V/1A |
| UL listed | E305498 Level VI |

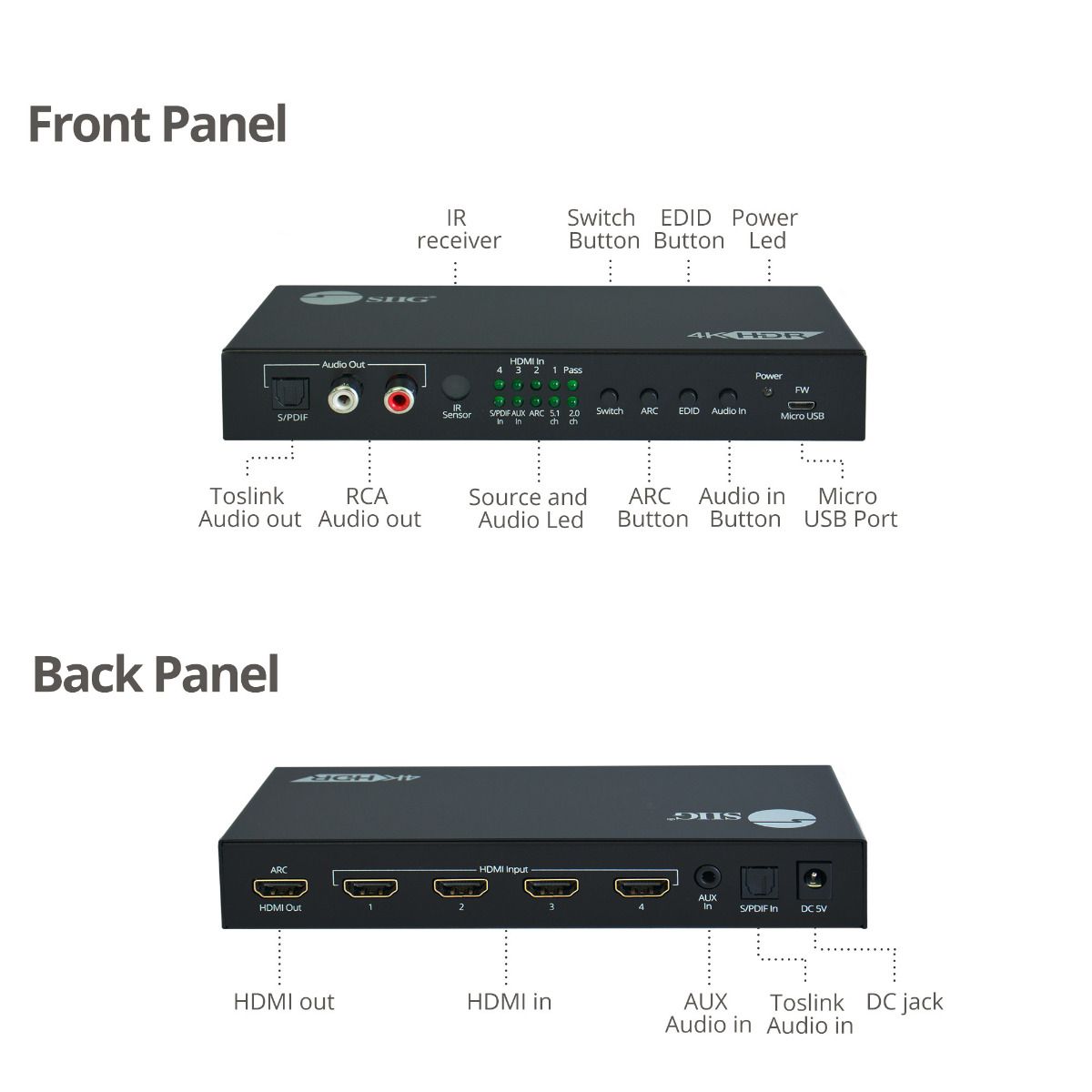

| Interface | |
| Input | 4x 19-pin HDMI Female 1x AUX stereo analog audio Female 1x S/PDIF (Toslink) digital audio Female 1x IR receiving sensor 1x HDMI switch button 1x ARC On/Off button 1x EDID switch button (2.1-ch, 5.1-ch, bypass) 1x Audio switch button (embedded sources) 1x 5-pin Micro USB Female (FW update) 1x DC power jack (5V/1A) |
| Output | 1x 19-pin HDMI Female with ARC function 1x S/PDIF (Toslink) digital audio Female 1x RCA stereo analog audio Female |
| Product | |

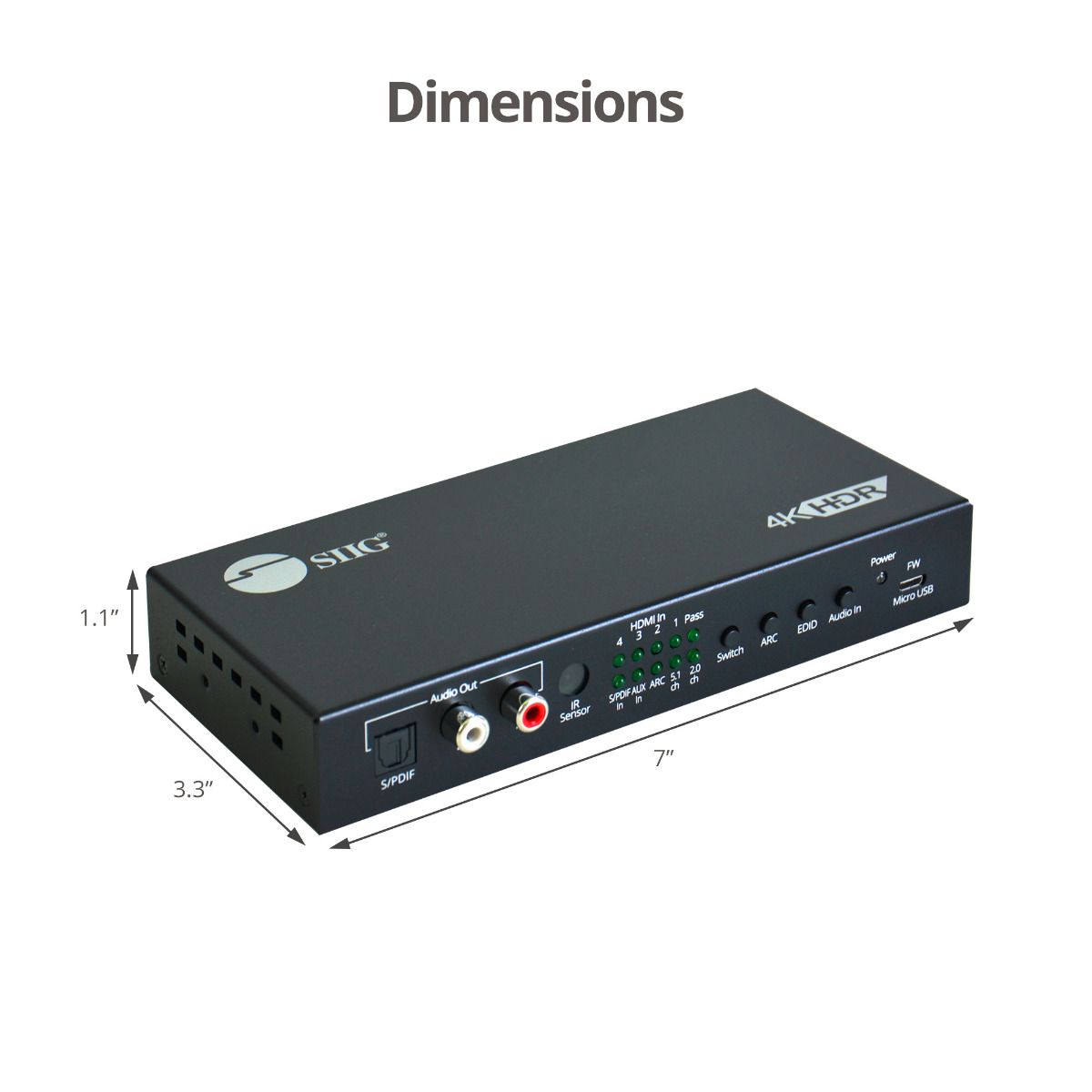

| Dimensions | 7.00″ (L) x 1.11″ (H) x 3.31″ (W) |
| Weight | 0.97 lbs |
| Color | Black |
| Housing | Metal |
| Unit package | |
| Dimensions | 9.06″ (L) x 2.17″ (H) x 7.87″ (W) |
| Weight | 1.50 lbs |
| Master carton | |
| Dimensions | 18.70″ (W) x 11.61″ (H) x 16.54″ (D) |
| Weight | 32.08 lbs |
| Quantity | 20 pcs/ctn |
| Package contents | |

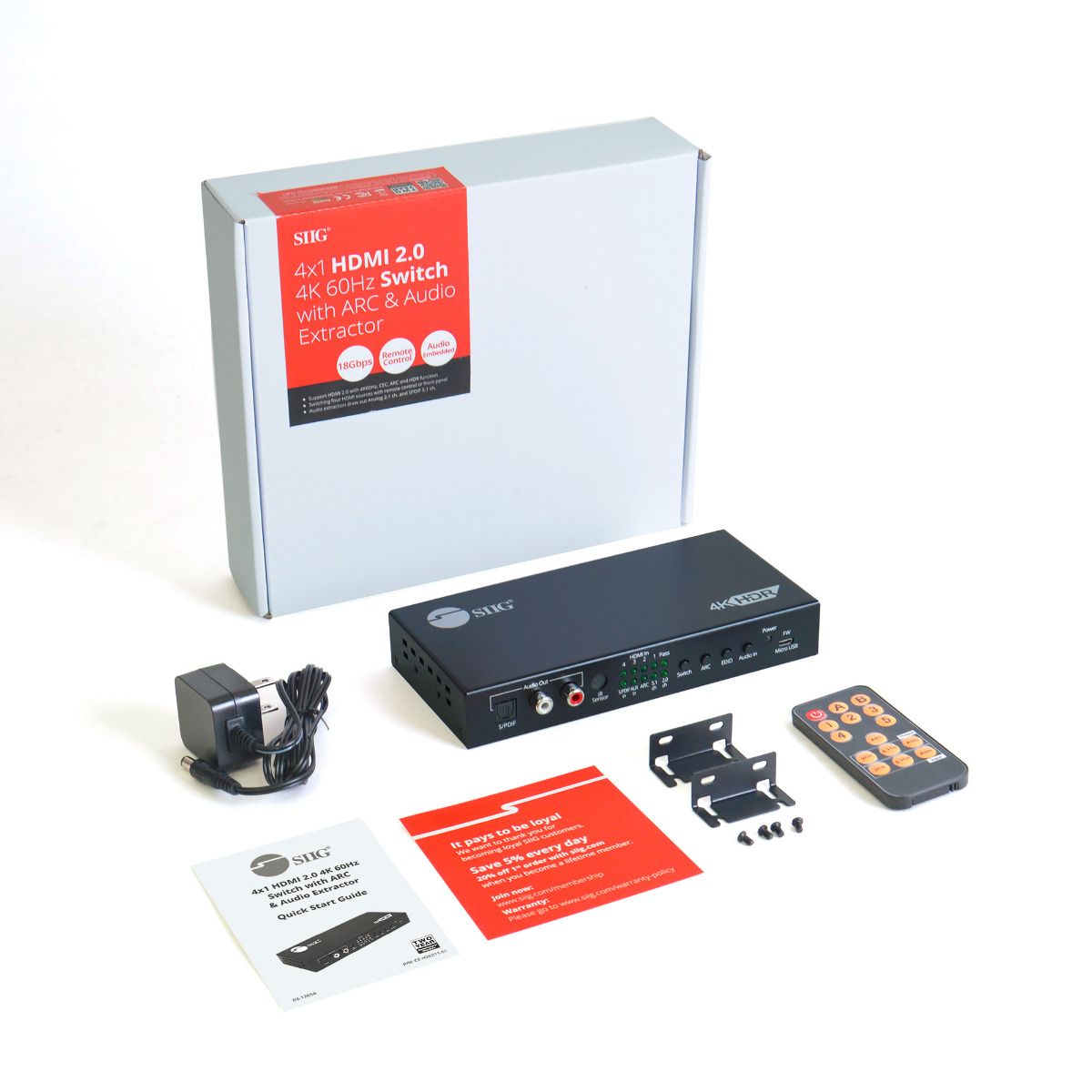

| Package contents | 1x 4x1 HDMI 4K 60Hz Switch with ARC & Audio Extractor 1x IR remote control 1x DC power adapter (5V/1A) 1x Mounting kits 1x User Reference Guide |
| Environmental conditions | |
| Operating temperature | 23 to 104 degrees F |
| Storage temperature | -4 to 140 degrees F |
| Relative humidity | 5% to 90% RH (non-condensing) |
| Certifications/Standards | FCC CE RoHS 2.0 REACH |
| Warranty | 2 years limited |
| Country of origin | China |
