4x1 HDMI 4K HDR KVM USB 3.0 Switch with Remote Control

  • 4x HDMI In
  • HDMI Single View
  • HDR
  • HDCP 2.2
  • 4K60Hz
  • USB Keyboard & Mouse
  • 2x USB-A 3.2 Gen 1 5Gnps
  • 2x USB 2.0
  • 3.5mm Audio & Mic
  • Auto Screen
  • IR Extension
  • IR Sensor
  • Hotkeys
  • Switch Button
  • IR Remote Control
  • Auto EDID
  • Windows & Mac
In stock
Quantity in stock: 58

We ship all orders within 1 business day

Lifetime technical support on all of our products

45-day return window and money-back guarantee


    4x1 HDMI KVM Switch, allows you to control 4 HDMI 4K computers using one keyboard and mouse - HDMI 4K@60, USB 3.2 Gen 1 ports, Microphone Input, and Stereo Audio Output, Switch Button, Hotkeys, Remote Control



    Easily control 4 HDMI computers and switch a HDMI display/monitor with one set of keyboard & mouse improve your work efficiently


    Effortlessly Switch

    Easily switching between computer/device via the front panel push button, USB keyboard hotkeys or IR remote control make this 4x1 HDMI 4K HDR KVM USB 3.0 Switch with Remote Control user-friendly to operate



    4K Ultra HD Resolution

    Allows you to connect a single UHD 4K (3840x2160) @60Hz through a HDMI port to display the crystal-clear video quality. HDR, 3D and deep color are supported. Compliant with 18Gbps video bandwidth

    High Performance

    Offers a true 18Gbps video bandwidth and supports 7.1-ch. surround sound from HDMI or 3.5mm PCM 2-ch stereo audio


    Multiple Connectivity Port

    Comes with four HDMI video input ports, four USB 3.2 Gen 1 Type-B ports (Host), twelve 3.5mm phone jacks to connect stereo speakers/earphones and microphones, one HDMI video output port, two USB 3.2 Gen 1 Type-A, two USB 2.0 for keyboard & mouse connection, one 3.5mm Infrared jack to extend the IR signal, one IR sensor, two switch buttons, one power button, and one DC power jack (5V/3A)

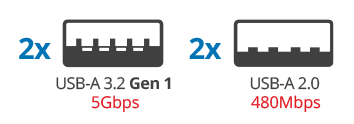

    USB Data Transfer

    Delivers two SuperSpeed USB 3.2 Gen 1 Type-A ports up to 5Gbps data transfer rate on the front side for Flash drive, Printer, and other USB peripheral devices. And two High Speed USB 2.0 Type-A ports up to 480Mbps data transfer rate for independent HID keyboard and mouse

    Maximum Compatibility

    Compatible with Windows® 11 (64-bit) / 10 (32-/64-bit) / 8.x (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit) and macOS® 12.x to 10.13
    Auto EDID bypass design maximizes the compatibility from OS to display, Auto-scan feature for quick browsing and system monitoring. Supports Plug-n-play and no driver installation required

    ESD Protection

    An ESD protection device protects a circuit from an Electrostatic discharge (ESD), in order to prevent a malfunction or breakdown of an electronic device


    Metal Housing Design

    Protects the inside PCBA, also enhance the heat dissipation for better performance. Military-grade component and ESD protection for long service life


    • Media editing• Photo shooting studio• Audio/Video presentation room • Meeting room• Educational facilities• Office
    • Workstation• Medical office• Server room• Control center• Retail store

    Need to Know Before Buying

    1. Please confirm your computers or devices with HDMI port, USB 3.2 Gen 1 Type-A port, and audio/mic port


    2. Check the extended display/monitor with HDMI and supports 4K@60Hz port. If you are not sure, please check the manual of the monitor


    3. Comes with two SIIG USB 3.2 Gen 1 Type-A to B cables for connecting two USB 3.2 Gen 1 PCs or USB peripheral devices for best transfer and high quality


    OS Compatibility Windows® 11, mac OS ® 12.x or new
    HDMI HDCP 2.2
    Video bandwidth: 18Gbps
    3840x2160 @60 / 30Hz
    3440x1440 @100 / 60Hz
    2560x1600 @60 / 30Hz
    2560x1440 @100 / 60Hz
    2048x1536 @60 / 50 / 30Hz
    1920x1080 / 1680x1050 / 1600x900 / 1400x900 / 1280x1024 / 1280x800 / 1280x720 / 1024x768 / 800x600 / 640x480 @ 60Hz
    USB data transfer rate
    USB 3.2 Gen 1 2x Type-A, up to 5Gbps, 5V/900mA
    USB HID 2x Type-A, for Keyboard hot key & Mouse traversal switch
    Note: Direct to plug-in the mouse the front panel to disable the traversal switch feature
    7.1 channel surround sound from HDMI port
    PCM 2.1 channel stereo digital audio for 3.5mm audio jack
    Power Adapter
    Input AC 100-240V / 50-60Hz
    Output DC 5V/3A
    ETL P/N 4006448
    Environmental conditions
    Operating temperature 32 to 114 degrees F
    Storage temperature 14 to 178 degrees F
    Relative humidity: 5% to 90% RH (non-condensing)
    Product Info
    Dimensions 9.53” (L) x 1.02” (H) x 2.76” (W)
    Weight 1.09 lbs
    Color Black
    Housing material Metal
    Unit Package
    Dimensions 11.02” (L) x 2.56” (H) x 7.09” (W)
    Weight 2.37 lbs
    Warranty: 2 years limited
    Country of origin: China




    • 4x 19-pin, HDMI, Female
    • 4x 9-pin, USB 3.2 Gen 1 Type-B, Female
    • 6x 3.5mm phone jacks, for microphone, Female
    • 2x 4-pin, USB 2.0 Type-A, for Keyboard & Mouse
    • 1x 3.5mm Infrared jack, IR extender
    • 4x Switch buttons, for PC1/PC2/PC3/PC4 switching
    • 1x Power button, on/off
    • 1x DC power jack, 5V/3A


    • 1x 19-pin, HDMI, Female
    • 2x 9-pin, USB 3.2 Gen 1 Type-A, for USB devices
    • 6x 3.5mm phone jacks, for stereo audio, Female

    System Requirements

    • PC or laptop with available HDMI, USB 3.2 Gen 1 Type-A, and audio/mic ports
    • Windows® 11 / 10
    • Mac OS® 12.x to 10.13

    Package contents

    • 1x 4x1 HDMI 4K HDR KVM USB 3.0 Switch with Remote Control
    • 4x USB 3.2 Gen 1 Type-A to B cable
    • 1x IR extender cable
    • 1x IR remote control
    • 1x DC power adapter, 5V/3A
    • 1x User reference guide


04-1367b.pdf Download manual

Frequently Asked Questions (Q&A)

Q: Does this KVM support 3440x1440 and if so, what refresh rate?

Yes, this KVM supports 21:9 monitors and 3440X1440 resolutions with refresh rates up to 100Hz, but we recommend 60Hz for best performance

Q: Does this KVM support special multimedia keys on a keyboard like buttons for play/pause, volume control, mute etc.?

Yes, it supports the special multimedia keys on a keyboard, such as play/pause, volume control, mute etc.

Q: Can I use it to share a HD Webcam between computers?

Yes, it can share a USB Webcam, but the video will disconnect when switching. It can only be connected to one PC at once

Q: I have an extra display, why my mouse can't cross over to the extra display?

You're using a single display KVM switch, which means it can only handle one monitor at a time. That's why your mouse cursor can't seem to move to the extra display. Try connecting your mouse directly to a USB port on the front of your computer instead...

Q: How can I to disable the mouse traversal function?

For CE-KV0C11-S1 or CE-KV0E11-S1 models: Visit the download page for your KVM switch and update the firmware to disable the mouse traversal function. For CE-KV0D11-S1 or CE-KV0F11-S1 models or if you don't want to update the firmware: Try connecting...
