8-Port HDMI Splitter Over Cat6 Extender with IR - 40M

Extends 1080p signals up to 130 feet to eight HDMI displays over a single Cat6 cable
In stock
Quantity in stock: 82
SKU
CE-H24811-S1
$499.99

We ship all orders within 1 business day

Lifetime technical support on all of our products

45-day return window and money-back guarantee



    Features

    SIIG 8-Port HDMI Splitter Extender Over Ethernet w/ Loopout

    8x HDMI ext split 1 source 8 displays hdmi ovr cat ethernet cat7 splitter extender 1080p out put

    SIIG 8-Port HDMI Extender Splitter w/ Loopout - extends and distributes 1080p 60Hz HDMI signals to eight HDMI displays simultaneously over single economical Cat5e/Cat6/Cat7 ethernet cable up to 130 feet (40 meters). Easy Plug and Play Set up!

    Our team is always ready to help with installation or troubleshooting if necessary!

    sdfg

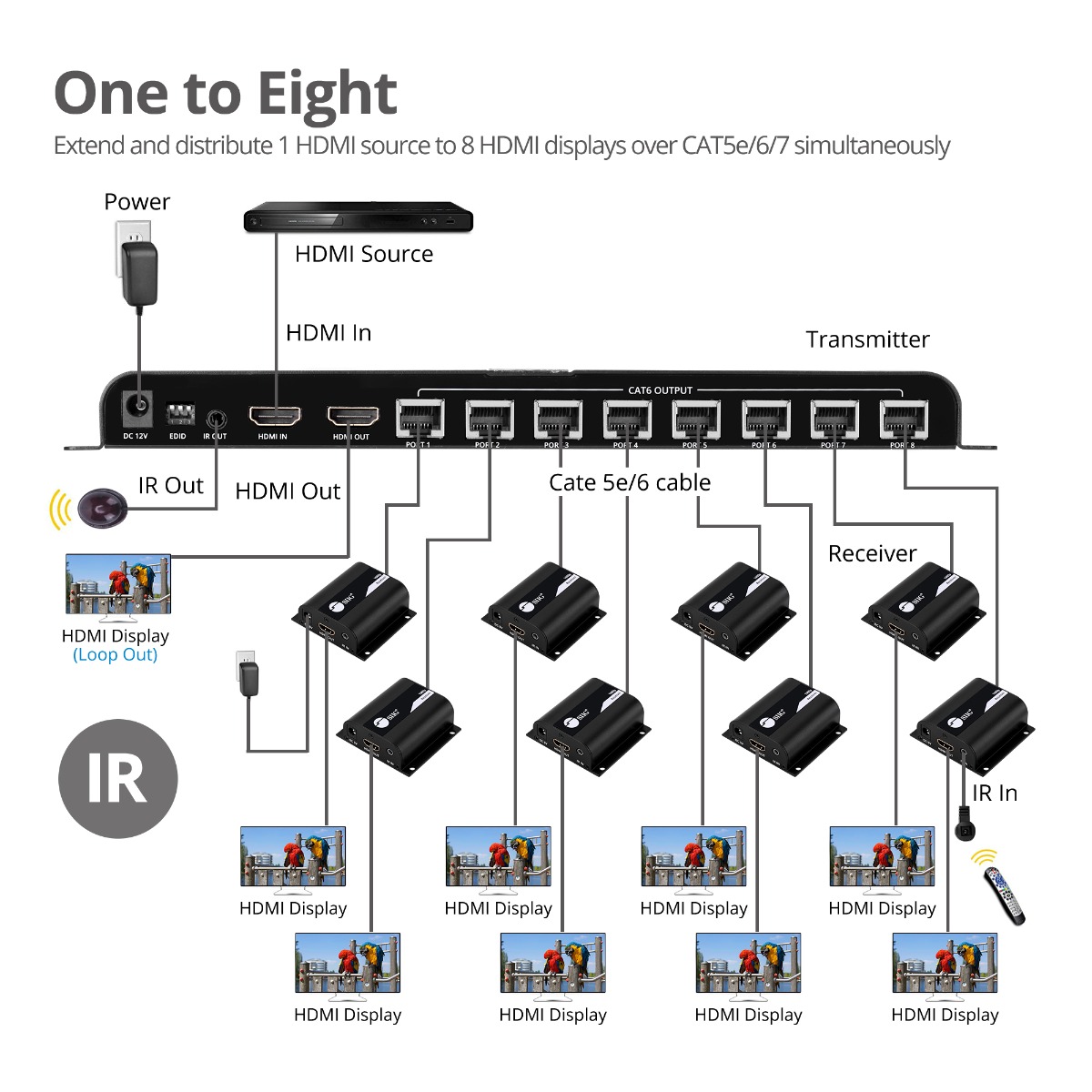

    Extend HDMI Signal to 8 Distant HD Displays

    Easily install this AV system in various environments, such as restaurants, sports bars, museums, lecture halls, home theater systems, church services, and much more! Plug and play with no software installation and hassle free set up.

    Features:

    • Supports up to 1080p @60Hz with HDMI 1.3 & HDCP 1.2 ( 480p / 720p / 1080i / 1080p 60Hz )
    • Supports digital stereo 7.1-channel, PCM, DTS, AC3 audio
    • Extend HDMI signals to up to 130ft (40m) with *CAT6 Ethernet cable
    • HDMI Loopout for easy monitoring
    • IR Remote Control to control HDMI source from the display side receiver. No need to walk to the source to change channel - 20KHz to 60KHz
    • EDID Management Auto Scaling Technology
    • Metal housing with wall mount design

    sdfgdfg

    HDMI Loopout / IR Control / EDID (Extended Display Identification Data)

    The HDMI Loopout allows for you to connect a local display to the transmitter for easy monitoring. No need to check on your remote displays to see what is being displayed from your source device.

    Convenient IR control through Catx cable allows you to control the HDMI source device at the remote display location.

    EDID Management Auto Scaling Technology to facilitate a handshake between the source and display to output the correct signal resolution - results in better picture quality. Most useful for users with different model HD displays.

    Important Notes

    • Good quality CATx cables are essential in delivering quality content - CAT6 and up recommended
    • A surge protecter power strip is recommended
    • This kit will NOT work with a router/switch based TCP/IP network

    Specifications

    • HDMI 1.3 and HDCP 1.2 compliant
    • Transmission protocol: HDBitT
    • Transmission distance: Up to 130 feet (40 meters) at 1080p@60Hz
    • Supports digital stereo 7.1-channel, PCM, DTS, AC3 audio
    • Supports full frequency IR signal from 20KHz to 60KHz
    • Resolution: 480p / 720p / 1080i / 1080p@60Hz
    • Aluminum housing with wall mount design

    Requirements

    • HDMI source device, such as XBOX One S, PS3/PS4, Amazon Fire TV Cube, Apple TV, Roku, DVD or BlueRay Player, Satellite Box, Cable Box, Android Box, and more
    • HDMI displays, monitors, and HD TVs
    • HDMI cables (5m MAX)
    • CAT6/Cat7 Cables x 4

    Package Contents

    • 8-Port HDMI Splitter Over Cat6 Extender (1 TX & 8 RX)
    • Power adapter (9pcs)
    • IR Blaster extension cable (1pc)
    • IR Receiver extension cable (8pcs)
    • Screw Kit
    • User Reference Guide

    4 port extender splitter siig distribution amplifier balun over cat ethernet8 port extender splitter siig distribution amplifier balun over cat ethernet 1x8long range over ip or direct siig extender splitter 4 port 1x4 distribution amplifier balunlong range over ip or direct siig extender splitter 8 port 1x8 distribution amplifier balun
    CE-H23U11-S1CE-H24811-S1CE-H26V11-S1CE-H26W11-S1
    Max Distance 40m (130ft) 40m (130ft) 120m (395ft) 120m (395ft)
    Max Resolution 1080p@60Hz 1080p@60Hz 1080p@60Hz 1080p@60Hz
    HDMI/HDCP 1.3/1.2 1.3/1.2 1.3/1.4 1.3/1.4
    HDMI Local Output
    EDID Management
    Network Switch Compatible

    Specifications

    • Compliant with HDCP 1.2
    • Transmission distance: up to 40m (130ft) at 1080p@60Hz resolution
    • Supports Digital stereo 2-ch DTS and PCM 7.1-ch audio
    • Supports full frequency IR signal from 20KHz to 60KHz
    • Supports EDID manual setting function
    • Resolution: 480p / 720p / 1080i / 1080p 60Hz
    • Metal housing with wall mount design
    • Network cable: UTP/STP CAT5e/6/6a/7
    • Product:
      • Transmitting unit (TX):
        • Dimensions: 10.87" (L) x 0.91" (H) x 3.82" (W)
        • Weight: 1.33 lbs
        • Housing: Metal
        • Color: Black
        • Connectors:
          • 1x 19-pin HDMI, Type A, Female, Input
          • 1x 19-pin HDMI, Type A, Female, loopout
          • 1x 3.5mm jack, IR Blaster
          • 8x 8-pin, RJ45, HDMI signal output
          • 1x Power jack
          • 1x Reset button
          • 1x 3-Pin Switch, EDID adjustment
      • Receiving unit (RX):
        • Dimensions: 2.81" (L) x 0.98" (H) x 2.64" (W)
        • Weight: 0.19 lbs
        • Housing: Metal
        • Color: Black
        • Connectors:
          • 1x 19-pin HDMI, Type A, Female, Output
          • 1x 3.5mm jack, IR Receiver
          • 1x 8-pin, RJ45, HDMI signal input
          • 1x Power jack
          • 1x Reset button
    • Power adapter:
      • Input: 100-240V / 50-60Hz
      • Output: DC 12V/2A for TX
      • Output: DC 5V/1A for RX
      • UL listed: E335801 / Level: VI
    • Environmental conditions:
      • Operating temperature: 32 to 140 degrees F
      • Storage temperature: 14 to 158 degrees F
      • Relative humidity: 5% to 90% RH (non-condensing)
    • Certifications/Standards: FCC, CE, RoHS
    • Warranty: 2 years limited
    • Country of origin: China
    Notes:
    • This kit is point to point connection and comes with 1 Transmitter and 8 Receivers. Does not work through routers or network switches
    • Good quality Cat6 cables are essential in delivering reliable quality content

    System Requirements

    • HDMI source device, such as computers, Blu-ray/DVD players, and media players
    • HDMI displays, monitors, and HD TVs
    • HDMI cables
    • CAT 6 cable

    Package contents

    • 8-Port HDMI Splitter Over Cat6 Extender with IR - 40M
      • 1 Transmitter and 8 Receivers
    • Power adapter 12V/2A (1pc)
    • Power adapter 5V/1A (8pcs)
    • IR Blaster extension cable (1pc)
    • IR Receiver extension cable (8pcs)
    • Screw kit
    • User reference guide

Manuals

Frequently Asked Questions (Q&A)

Q: Can this extend to 8 different screens?

No, it can not extend to 8 different screens. All splitter outputs will always have the same screens
