Features

•


  Professional-Grade 8x8 HDMI Matrix Switcher for Your 4K Projects

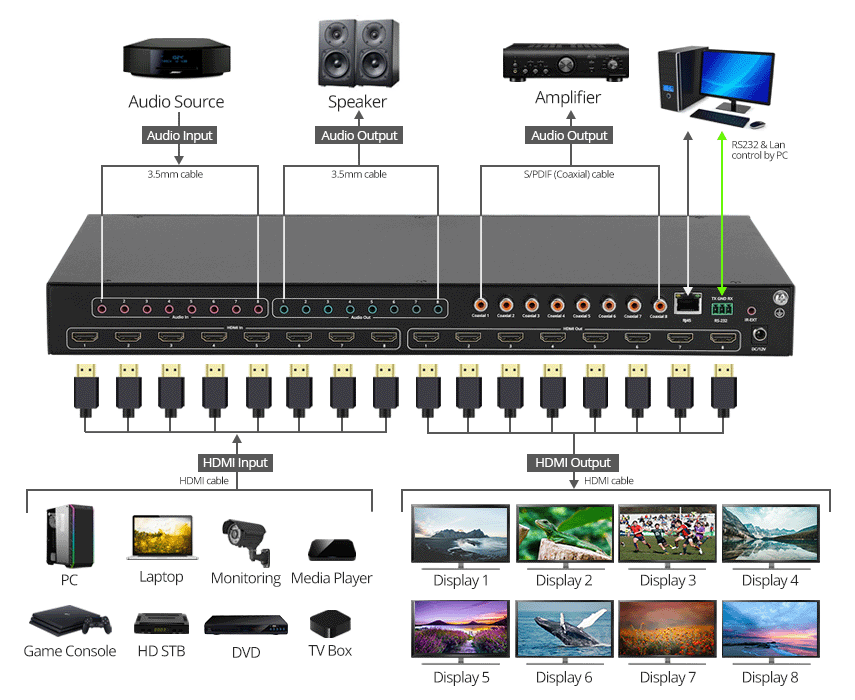

  Connect up to 8 HDMI input sources and distribute them to 8 HDMI output displays. This versatility enables you to easily switch and control the content displayed on different screens, making it ideal for multi-room setups or commercial applications.

  Support HDCP 2.2 Support HDCP 2.2 ensures secure content transmission for high-definition devices.	RS232 & LAN Port Control Control the matrix by sending TCP/IP commands over the local network.	Audio Extraction & Matrix Built-in 8 audio inputs & outputs, and support HDMI ARC on Coaxial only.	High Quality Components Designed to fit in a 19-inch standard 1U cabinet or rack, with 2 rack mount ears included for convenient installation in server rooms.



---

Applications

• Video/TV Wall Display and Control
• Security Surveillance and Control
• Commercial Advertising, Display and Control
• University Lecture Hall, Display and Control
• Retail Sales and Demonstration
• Hotel System

• Package Contents

---

Specifications

• Compliant with HDCP 2.2/1.4 specification
• Video bandwidth: Up to 18Gbps
• Video resolution: 480p@60Hz / 576P@50Hz / 720P@60Hz / 1080p@24Hz / 1080P@50Hz / 1080P@60Hz / 4K@24Hz / 4K@30Hz / 4K@60Hz YUV4:2:0 / 4K@60Hz YUV4:4:4
• Support 3D, EDID management and HDMI ARC on Coaxial only
• Support HDMI downscaling from 4K@60Hz to 1080p@60Hz
• Analog L+R Audio Format: Supports PCM 2.0
• Digital SPDIF Audio Format: Supports PCM 5.1, Dolby Digital, DTS
• HDMI Audio Format: Supports PCM 2.0 to 7.1 / 16 to 24bit, Dolby / DTS / Dolby Atmos / DTS-HD
• S/PDIF Audio Sampling Rate: Supports up to 96KHz
• HDMI Audio Sampling Rate: Supports up to 192KHz
• The matrix switcher can switch every output channels to any HDMI inputs by front-panel button, IR remote, RS-232, IP and Web GUI
• Product:
  • Dimensions: 18.99" (W) x 1.73" (H) x 8.66" (D)
  • Weight: 6.16 lbs
  • Color: Black
  • Housing: Metal
  • Connector:
    • 8x Push Button, HDMI Input, Control
    • 8x Push Button, HDMI Output, Control
    • 6x Push Button, Menu, Control
    • 8x 19-pin, HDMI, Type A, Female, Input
    • 8x 19-pin, HDMI, Type A, Female, Output
    • 8x 3.5mm Analog audio, Female, Input
    • 8x 3.5mm Analog audio, Female, Output
    • 8x S/PDIF (Coaxial) audio, Female, Output
    • 1x 8-pin, RJ45, TCP/IP Ethernet Control
    • 1x 3-pin to DB9, RS-232, Control
    • 1x 3.5mm IR, Control port
    • 1x Grounding connect
    • 1x power jack
• Unit package:
  • Dimensions: 19.49" (W) x 3.15" (H) x 12.20" (D)
  • Weight: 8.00 lbs
• Power adapter:
  • Input: 100-240V AC, 50/60 Hz
  • Output: DC 12V/3A
  • UL listed: E504312 / Level: VI
• Environmental conditions:
  • Operation Temperature: 32 to 104 degrees F
  • Storage Temperature: 14 to 140 degrees F
  • Relative humidity: 10 to 90% RH (non-condensing)
• Certifications/Standards: FCC, CE, RoHS
• Warranty: 2 years
• Country of origin: Engineered in USA , Manufactured in China

---

Package contents

• 8x8 HDMI 4K60Hz Matrix Switcher
• Mounting Kit, 2x Mounting Ears with 6 Screws
• IR Remote Control
• IR RX cable
• Power Adapter DC 12V/3A
• 3-pin Terminal Block
• CD for Control Software and User Manual
• User Manual
