Articulating Dual Monitor Desk Mount - 17" to 32" - Max Load 19.8 lbs(each) - VESA Plate 75x75mm/100x100mm

Overview

Features

Fits Most of Monitors

• Designed for monitor sizes up to 32"
• Support weight up to 19.8 lbs (9 kg) (per arm)
• Use with VESA 100x100mm or 75x75mm monitor. Ensure you use the VESA screws that came your screen or TV as this product does not include all screw sizes

Quick & Easy Setup For A Collaborative Workspace

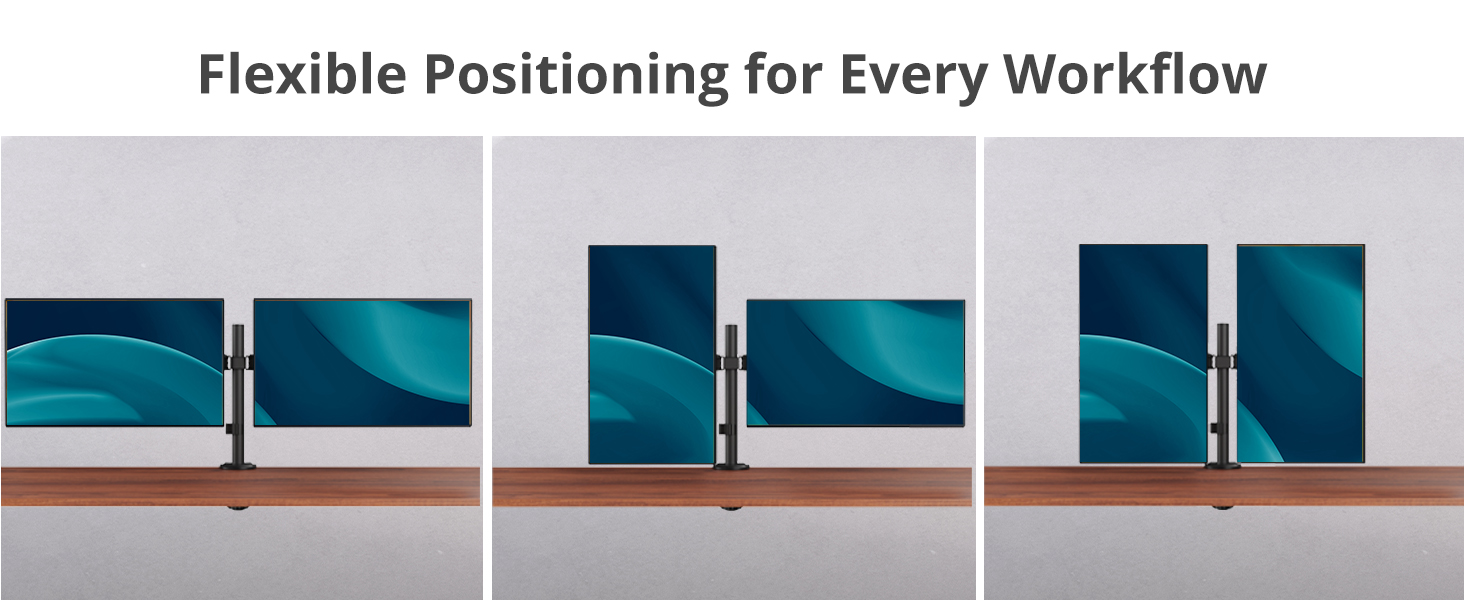

Multiple Screen Combinations

With support for a wide range of screen configurations, you have the freedom to design your ideal display setup. Whether you use dual monitors as extended displays or in a mirrored output arrangement, this solution adapts seamlessly to your specific requirements. Enjoy enhanced flexibility in any environment, ensuring optimal viewing angles, improved workflow efficiency and a customized user experience

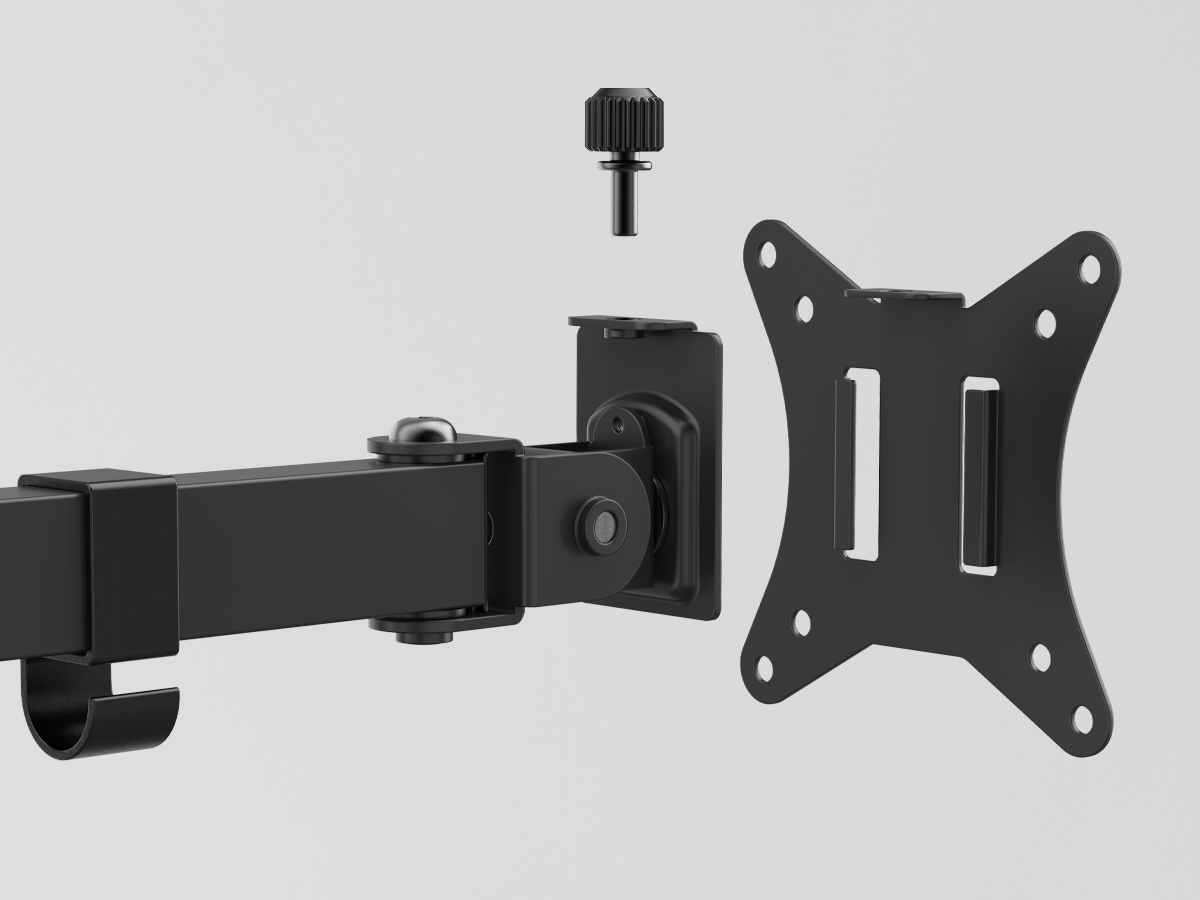

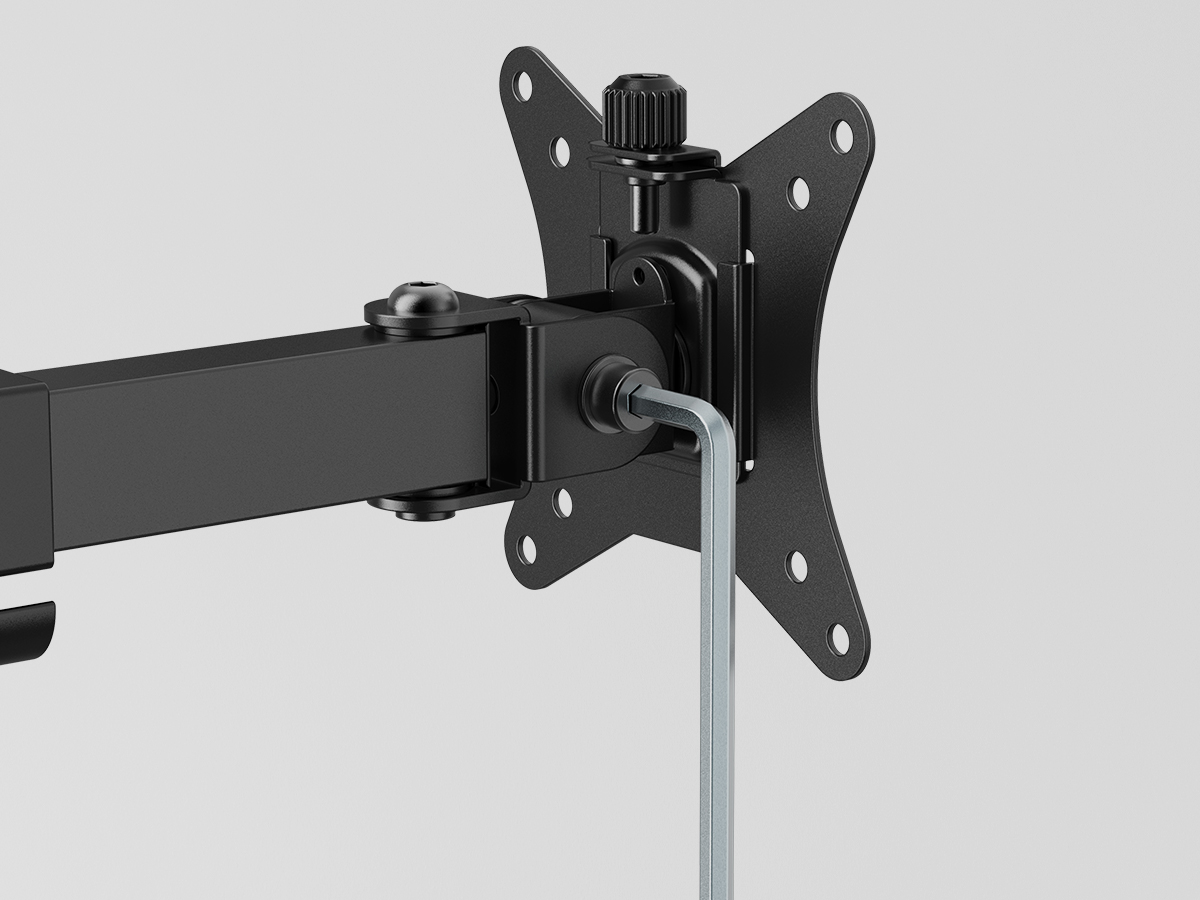

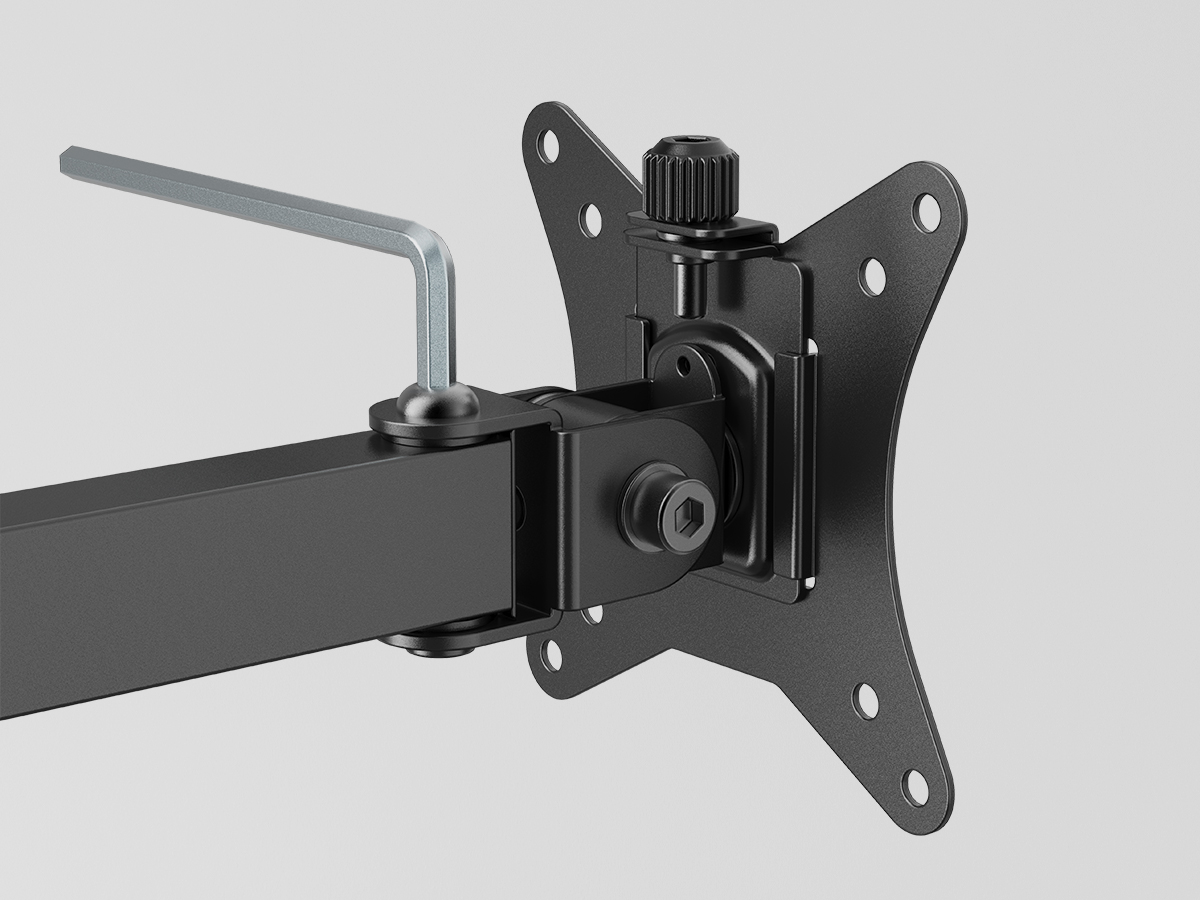

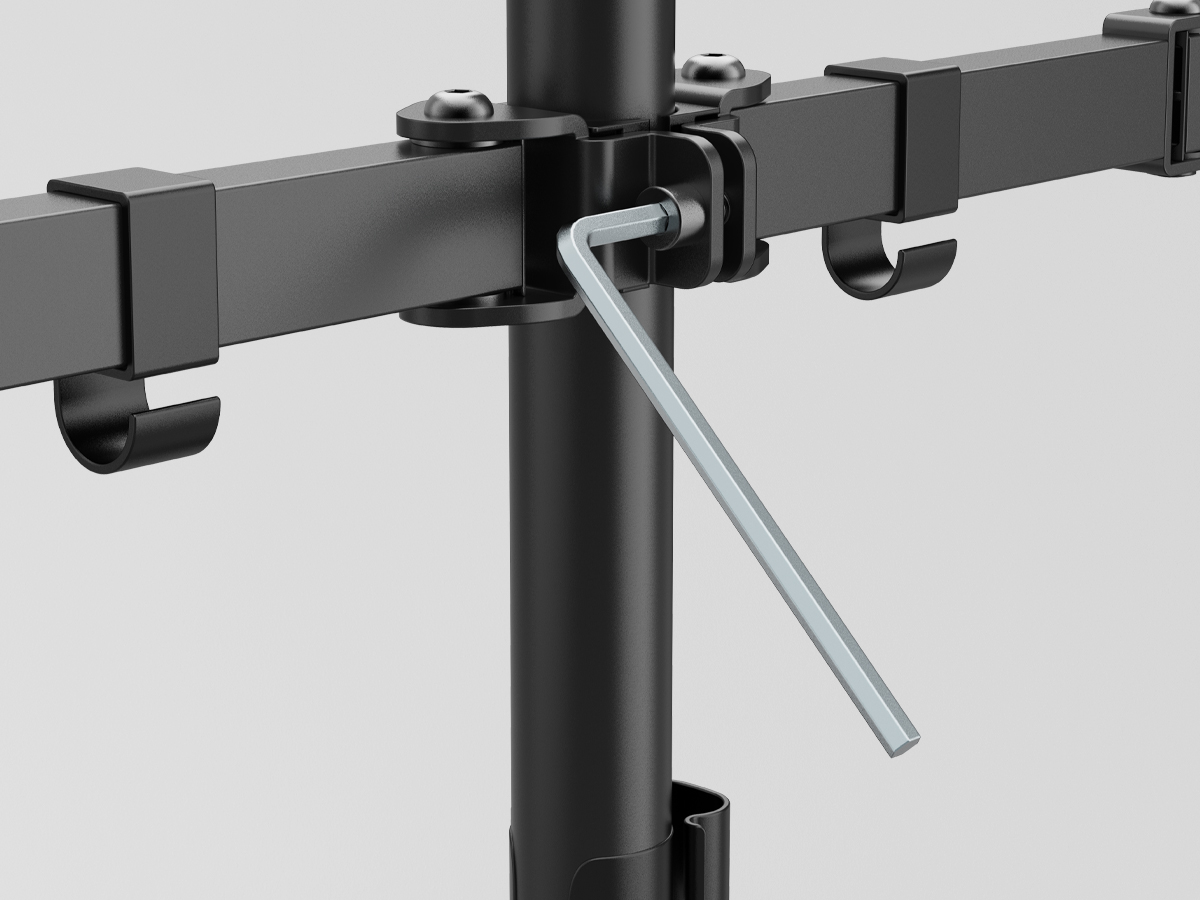

Detachable VESA Plate	Adjustable Tilt	Adjustable Swivel	Leveled Adjustable Height
Installing the VESA plate onto your monitor allows easy hooking up to the monitor mount. Includes fine height adjustment to level identical monitors	Find the best screen color reproduction and reduce glare with monitor tilt	Maximize desk space by arranging the horizontal placement of both monitors	A single adjustment allows both monitor height to be adjusted simultaneously

Save Desk Space With Compact Base Footprint

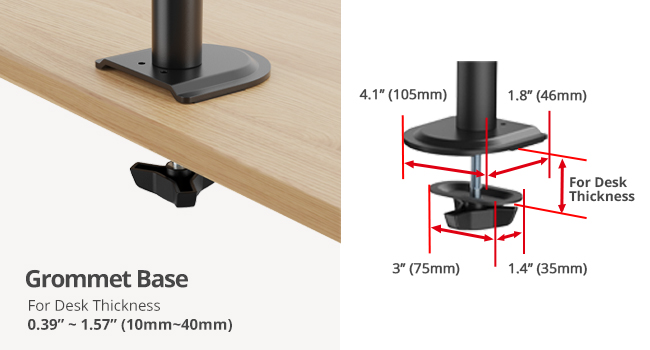

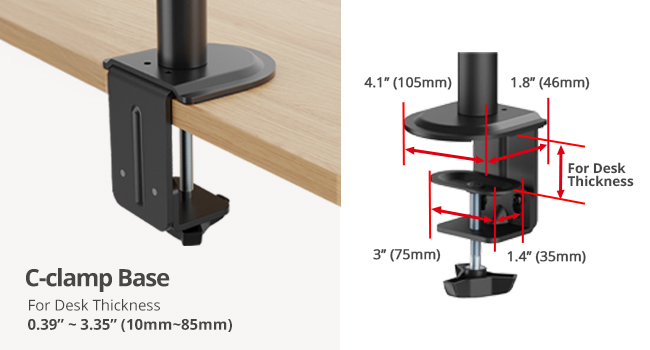

C-clamp Base Supported Thickness	Grommet Base Supported Thickness
C-clamp base fits most desktops from 0.39” to 3.35” (10mm to 85mm) thick with a needed 1.4" (35mm) depth	Grommet base fits most desktops up to 1.57" (40mm) thick with Grommet hole diameter between 0.39” to 2.36” (10mm to 60mm)

Need to Know Before Buying

1. Make sure to choose an arm that is compatible with your monitor’s weight and size

2. Consider how much flexibility you need in your monitor arms and choose the arms that can accommodate your needs, so you can find the perfect position for your monitor

3. Verify that the mount is compatible with the VESA mounting plate on your monitors

4. Make sure the mount arm you choose is stable and can hold your monitors securely in place

5. Choose an arm with built-in cable management features to keep your desk tidy and organized

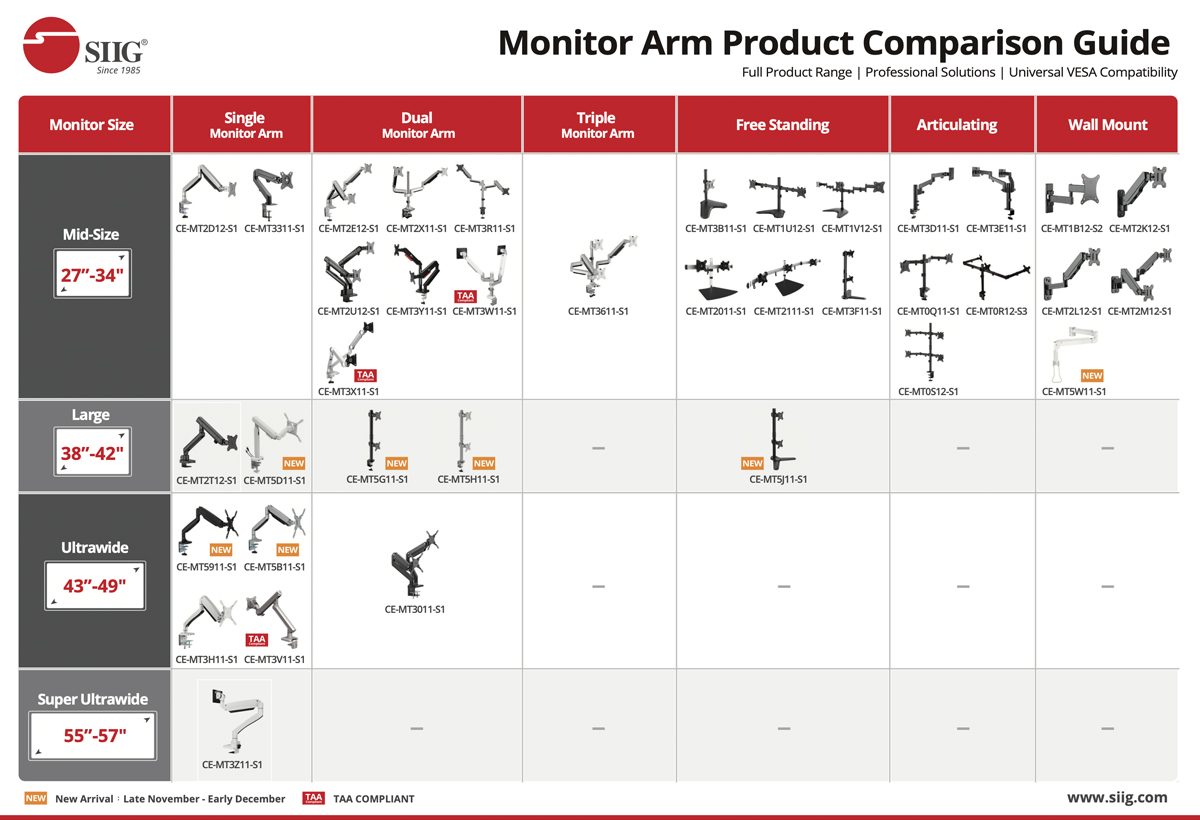

Comparison Table

SKU	CE-MT0Q11-S1	CE-MT1822-S1	CE-MT0R12-S3	CE-MT0S12-S1
Fits Screen Size	17"-32"	13"-32"	13"-32"	13"-32"
Max Load Per Arm	19.8 Ibs	19.8 Ibs	17.6 Ibs	19.8 Ibs
Fits VESA Size	75x75mm, 100x100mm	75x75mm, 100x100mm	75x75mm, 100x100mm	75x75mm, 100x100mm
Max. Height	16.02”	16.02”	17.7"	31.6"
Max. Arm Extension	14.8”	14.8”	29.9”	15.9"
Mount Type	C-Clamp, Grommet	C-Clamp, Grommet	C-Clamp, Grommet	C-Clamp, Grommet
Cable Management	✓	✓	✓	✓
Detachable VESA Plate	✓	✓	✓	✓

Specifications

• Supports monitors up to 19.8 lbs (9 kgs)
• Screen size: 17" to 32"
• VESA Tilt angle: +/-45 degrees
• VESA Swivel: 180 degrees
• VESA Rotation: 360 degrees
• Height adjustment: Up to 16.02" (407 mm)
• Dual articulating mounting arms extend up to 14.8"(376 mm)
• Compatible with VESA mounting 75x75mm and 100x100mm patterns
• Mounting options:
• C-Clamp: Desktop Thickness: 0.39" to 3.35" (10mm to 85mm) | Desktop Depth: 1.4" (35mm)
• Grommet: Desktop Thickness: Up to 1.57" (40mm) | Desktop Grommet Hole Diameter: 0.39" to 2.36" (10mm to 60mm)
• Certifications/Standards: RoHS
• UPC code: 662774009773
• Warranty: 2 years limited
• Country of origin: China
• Product
• Material: Metal
• Color: Black

Package contents

• Articulating Dual Monitor Desk Mount - 17" to 32"
• Installation kit
• Installation guide
