Digital Audio Extender Over Cat5e/6 Cable with PoC - Audio Signals up to 990ft

Extend Coaxial or Toslink digital audio signals up to 990ft over CAT cable, Power over Cable, Dolby digital, DTS 5.1ch, PCM

In stock

Quantity in stock: 129

SKU

CE-AU0411-S1

$79.99

Overview

Features

Features

SIIG's 990 Feet S/PDIF Toslink and Coaxial Extension Balun

audio extender environment outdoor sound system to indoor optical digital toslink coaxial 5.1 ch

optical digital audio balun extender coaxial toslink extension cable ethernet cat6 cat5e dts dolby

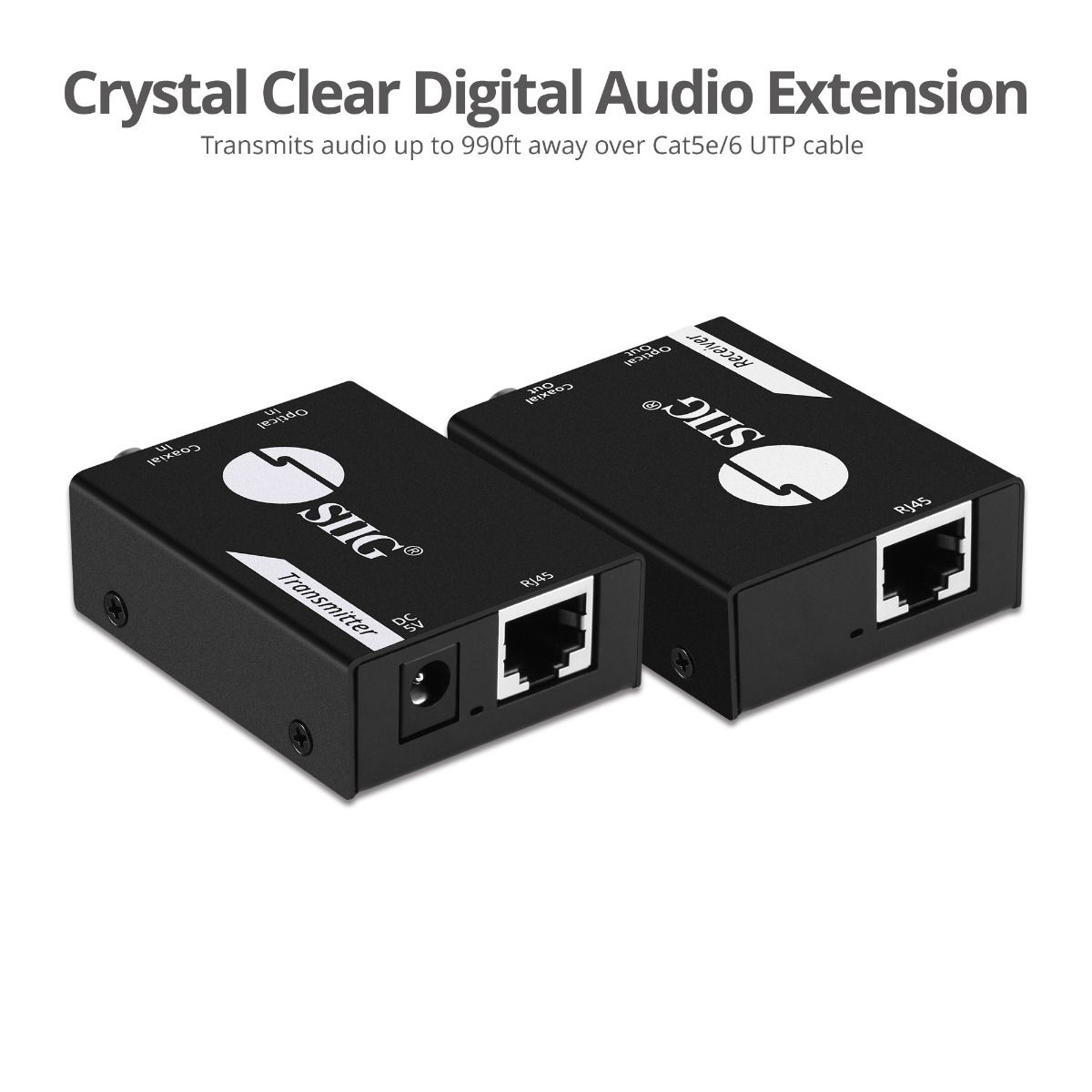

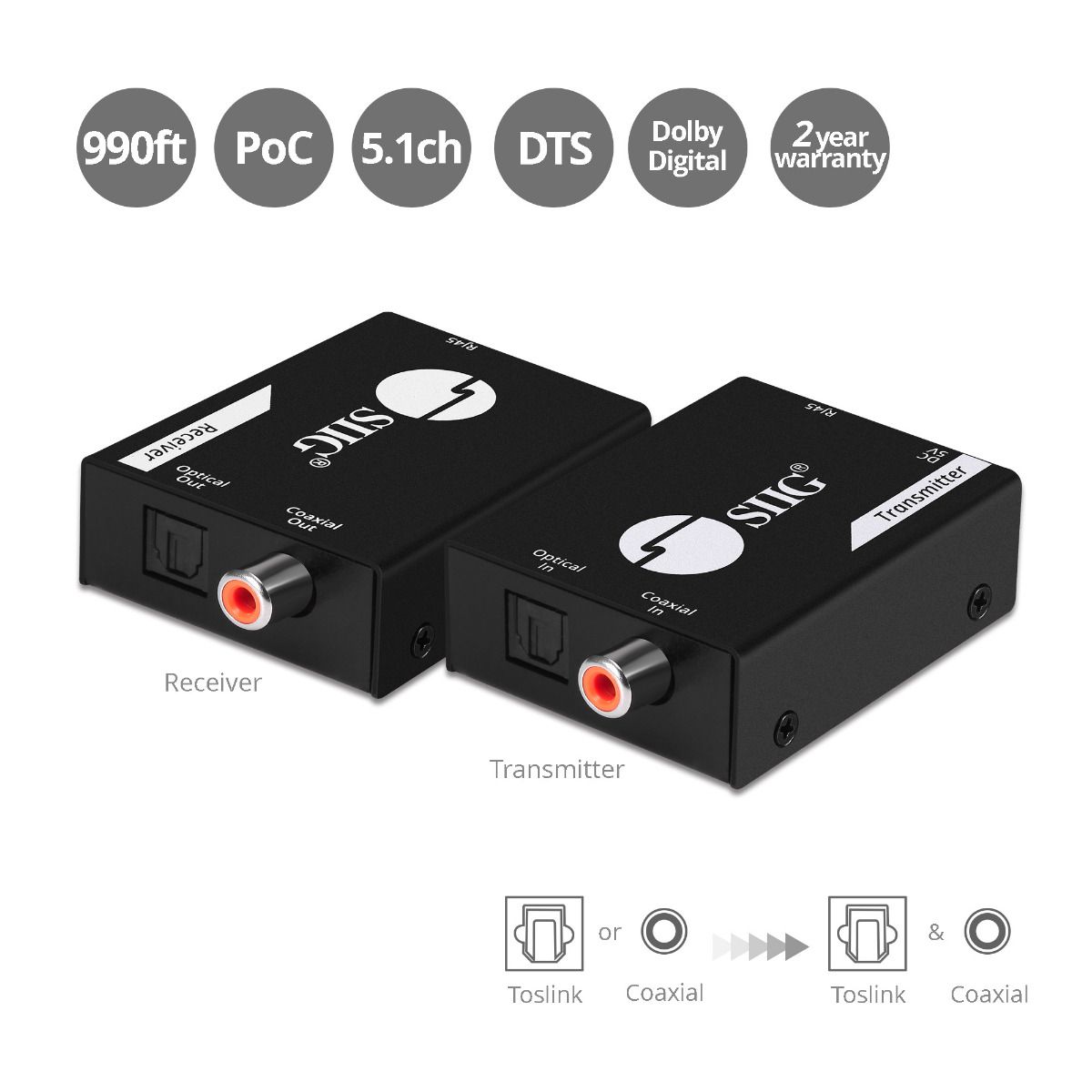

SIIG Digital/Optical Audio Extender over Ethernet

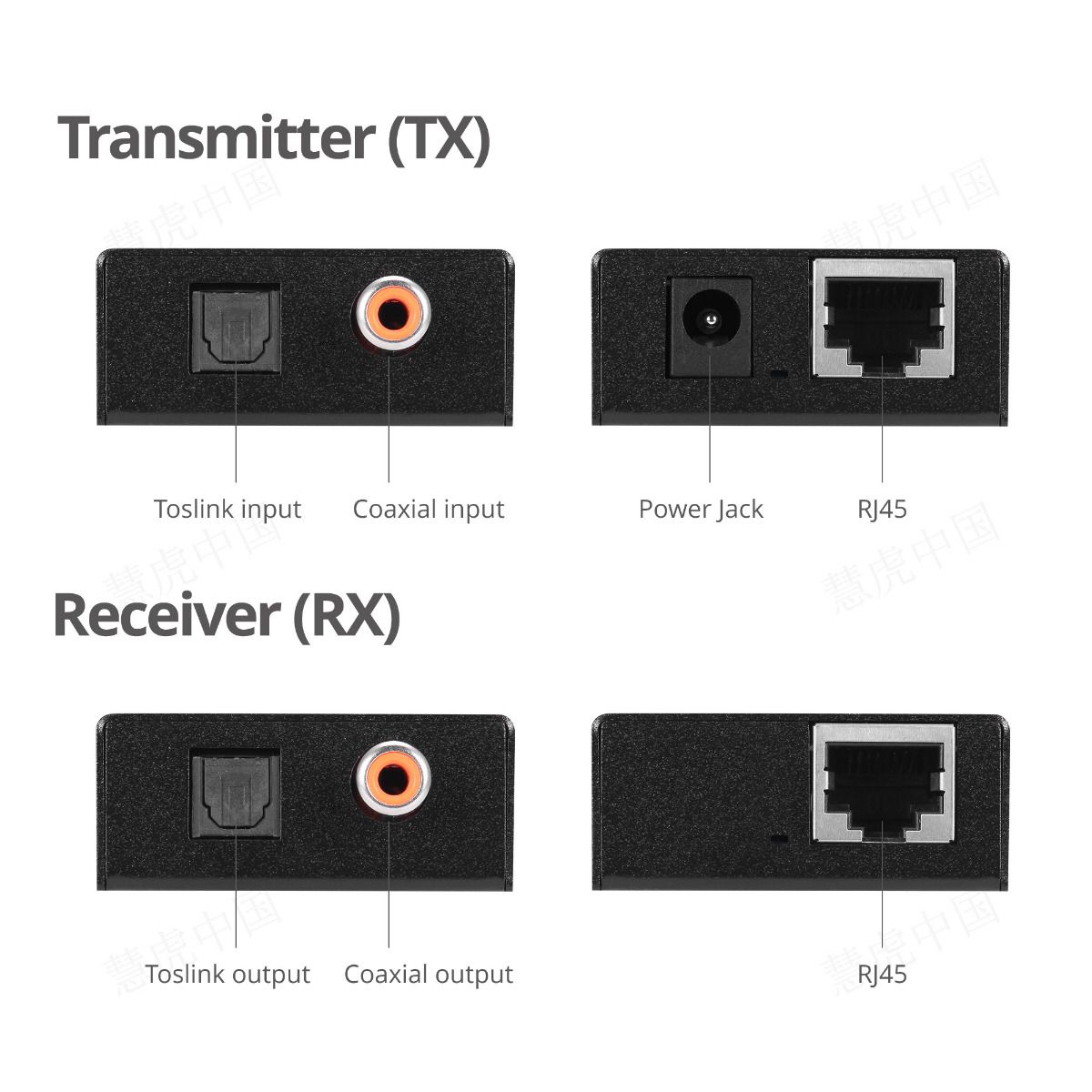

Toslink & Coaxial Input/Output

Conveniently extend coaxial or optical Toslink audio signals up to 990 ft. (300 m.) over a single ethernet CAT cable.

Keep your media devices in a clean and secure area while utilizing external speaker systems in remote areas.

Streamlines audio installations by allowing source devices to be located in off-site or unseen rack.

Supplies clear digital audio over long distances as if connect locally. Audio is transmitted digitally for zero signal loss.

*Only one input source can be used at a time on the transmitter side*

A/V Uses Cases

Bring your speakers outside and keep your sources inside during events
Utilize in lectures, training sessions, conferences, live stage events, and more.
Broadcast audio publicly at retail stores, exhibitions, train stations, school events, etc.

Features

Supports coaxial and optical Toslink digital audio 5.1, Dolby Digital 5.1, DTS-HD 5.1, DTS-HD, and PCM (*DOES NOT support DTS-HD Mater or Dolby TrueHD 7.1 Audio formats*).
PoC: Allows 1 power adapter to be connected to the TX to power the RX through the CAT cable (1 less power outlet and 1 less cable to connect).

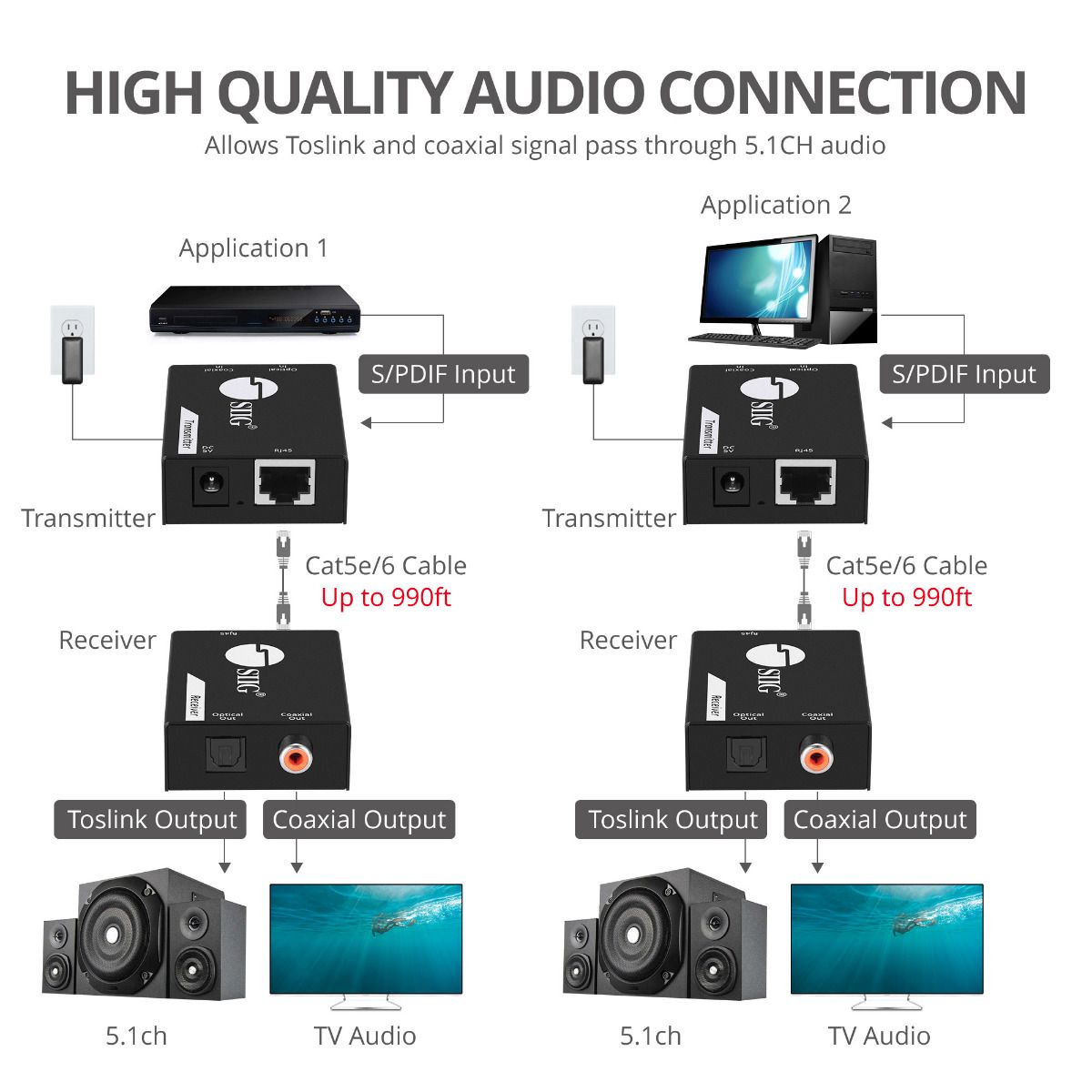

Receiver Converts & Extracts Incoming Audio Signal

Simultaneously transmits and converts audio to both coaxial and optical Toslink outputs on the receiver end. Only one input source can be used at a time, but both output sound systems can be used at the same time.

Utilize both your Toslink and coaxial speaker systems at the same time.

Things to Note

Does not support transmission of DTS-HD Master or Dolby TrueHD Audio formats (7.1)
We recommend using high performance pure copper gofanco CAT6 cables to further ensure reliable performance
Only one input source can be used at a time on the transmitter side

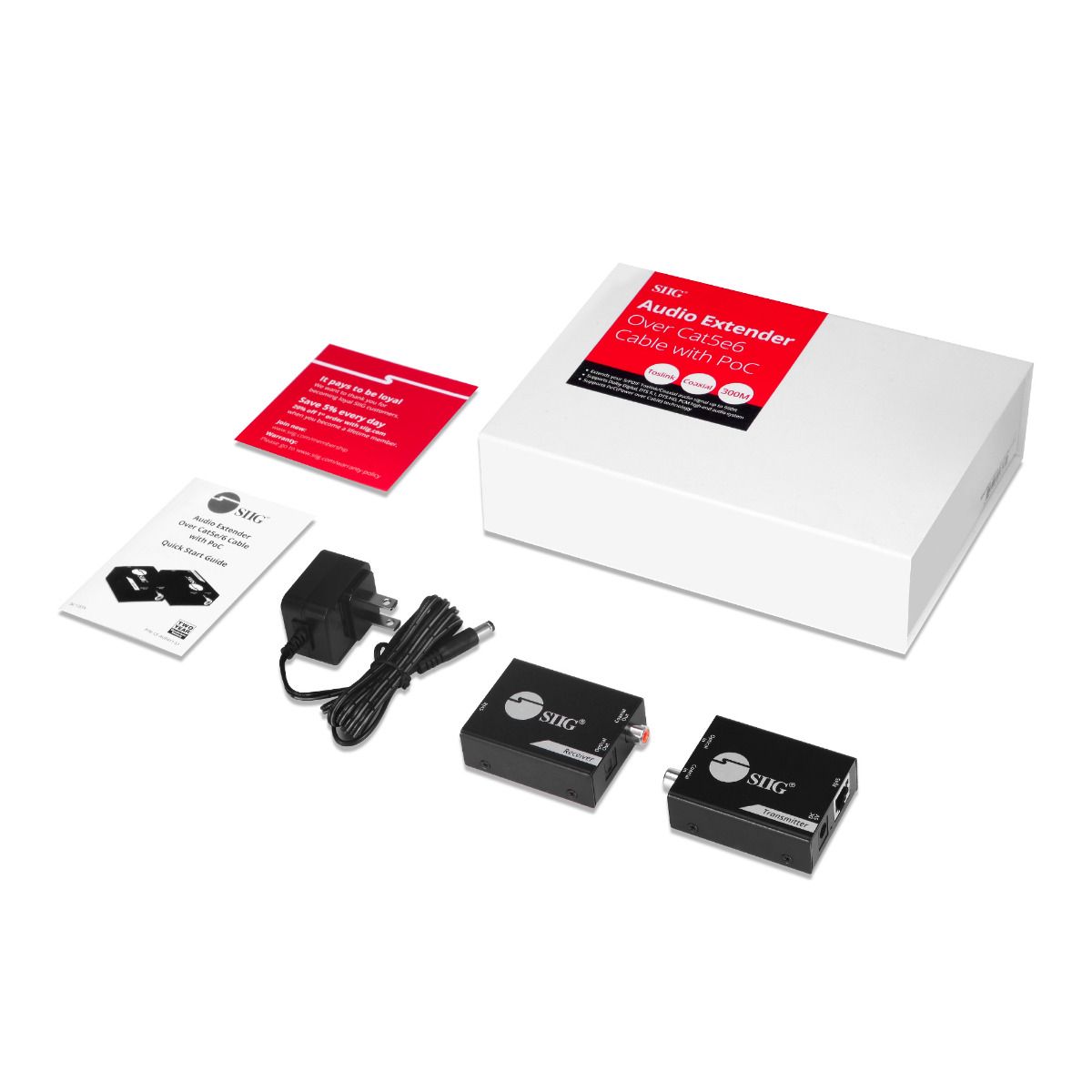

This kit is point-to-point and comes with 1 transmitter and 1 receiver. It's not meant to work though routers or network switches

packages contents audio extender coaxial toslink dts dolby 5.1 sound system speaker booster extend

Specifications

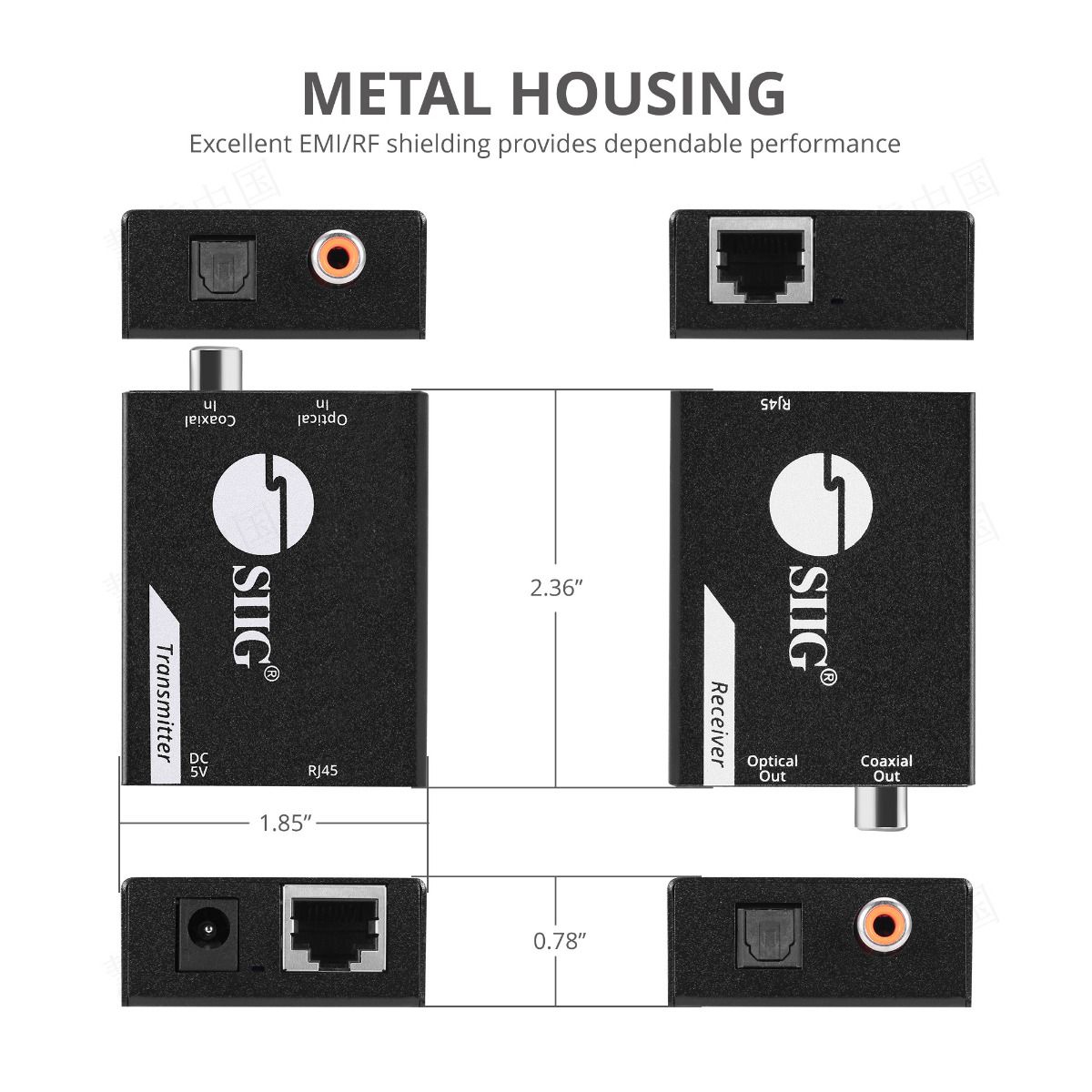

Package Contents Specifications Audio format: Digital Audio Audio data transfer rate: 12.8 Mbps S/PDIF (Digital Coax): 96 kHz performance Power consumption: 1 Watt (max) Power transmission: Power over Cable (PoC) Transmission distance: up to 990ft (300 meters) via Cat5e/6 cable Compatible audio formats: Dolby Digital, DTS 5.1, DTS-HD, 2ch PCM Audio outputs: Coaxial & Toslink simultaneously Product: Housing material: Metal Color: Black Transmitting unit (TX): Dimensions: 2.38" (L) x 1.83" (W) x 0.79" (H) Weight: 0.165 lbs Connectors: 1x Coaxial, Digital Audio Input 1x TOSLINK, Digital Audio Input 1x 8-Pin RJ-45, Signal output 1x Power jack Receiving unit (RX): Dimensions: 2.38" (W) x 1.83" (H) x 0.79" (D) Weight: 0.165 lbs Connectors: 1x Coaxial, Digital Audio output 1x TOSLINK, Digital Audio output 1x 8-Pin RJ-45, Signal input Unit Package: Dimensions: 8.07" (W) x 5.91" (H) x 2.17" (D) Weight: 0.98 lbs Power adapter: Input: 100-240V / 50-60Hz Output: DC 5V/1A UL listed: E305498 / Level: VI Environmental conditions: Operating temperature: 32 to 104 degrees F Storage temperature: -4 to 158 degrees F Relative humidity: 5% to 90% RH (non-condensing) Certifications/Standards: FCC, CE, RoHS Warranty: 2 years limited Country of origin: China Package contents Audio Extender Over Cat5e/6 Cable with PoC Power adapter Quick Start Guide
