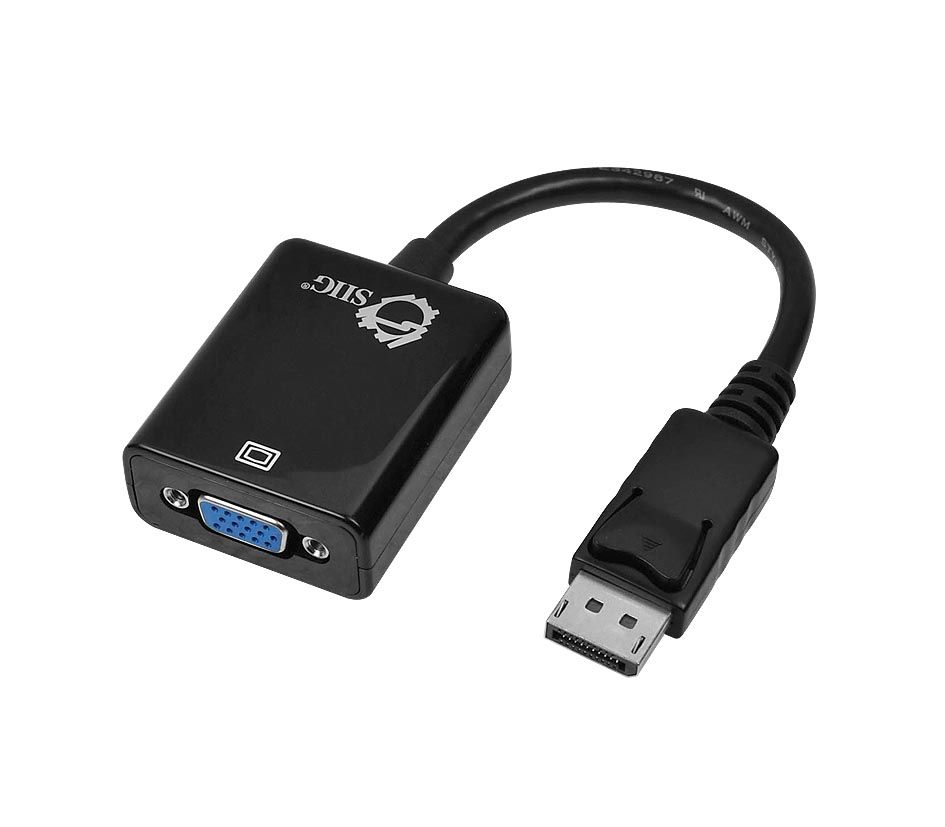

DisplayPort to VGA Adapter
DisplayPort to VGA Adapter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
DisplayPort to VGA Connectivity
DisplayPort to VGA Connectivity
High Bandwidth Performance
High Bandwidth Performance
Broad Resolution Support
Broad Resolution Support
Superior Signal Protection
Superior Signal Protection
Certified & Secure Compatibility
Certified & Secure Compatibility
DisplayPort to VGA Adapter
Estimated shipping by May 24, 2026
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support
Features
- Designed for connecting the DisplayPort equipped computer systems to analog VGA equipped monitors to provide optimal video quality
- Triple-shielded cable with PVC jacket for maximum video performance and prevention of signal loss
- Features 20-pin DisplayPort (male) to 15-pin VGA (female) connectors
- Delivers video bandwidth of up to 5.7 Gb/s and offers up to 5.4 Gb/s over two lanes
- Supports HDTV resolutions of 480i, 576i, 480p, 576p, 1080i, and 1080p, PC VGA, SVGA, XGA, SXGA and UXGA display modes
- Compliant with DisplayPort 1.1 and supports HDCP (High-bandwidth Digital Content Protection) on HDCP compliant VGA displays
| Chip | PTN3392BS |
| Triple-Shielded Cable with PVC Jacket | For maximum video performance and prevention of signal loss |
| Cable Technology | Active |
| Connectors | 20-Pin DisplayPort (male) to 15-pin VGA (female) |
| Environmental Conditions | |
| Operating Temperature | 32 to 140 degrees F |
| Storage Temperature | 14 to 158 degrees F |
| Operating Humidity | < 85% non-condensing |
| Certifications/Standards | FCC, CE, RoHS |
| UPC Code | 662774-006390 |
| Warranty | Lifetime limited |
| Country of Origin | China |
| Package Contents | DisplayPort to VGA adapter cable |
| Product | |
| DP Connector Dimensions (L) x (H) x (W) | 1.88" x 0.75" x 0.44" 4.70 cm x 1.90 cm x 1.10 cm |
| VGA Connector Dimensions (L x W x H) | 2.2" x 1.7" x 0.75" 5.60 cm x 4.50 cm x 1.90 cm |
| Cable Overall Length | 9.0” ± 0.5" (230mm ± 13mm) |
| Weight | 0.10 lbs (0.05 kg) |
| Color | Black |
| Unit Package | |
| Dimensions (L) x (W) | 6.30" x 8.19" 16.00 cm x 20.8 cm |
| Weight | 0.10 lbs (0.05 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 19.69" x 12.60" x 8.27" 50.00 cm x 32.00 cm x 21.00 cm |
| Weight | 17.64 lbs (8.00 kg) |
| Quantity | 100pcs/ctn |
