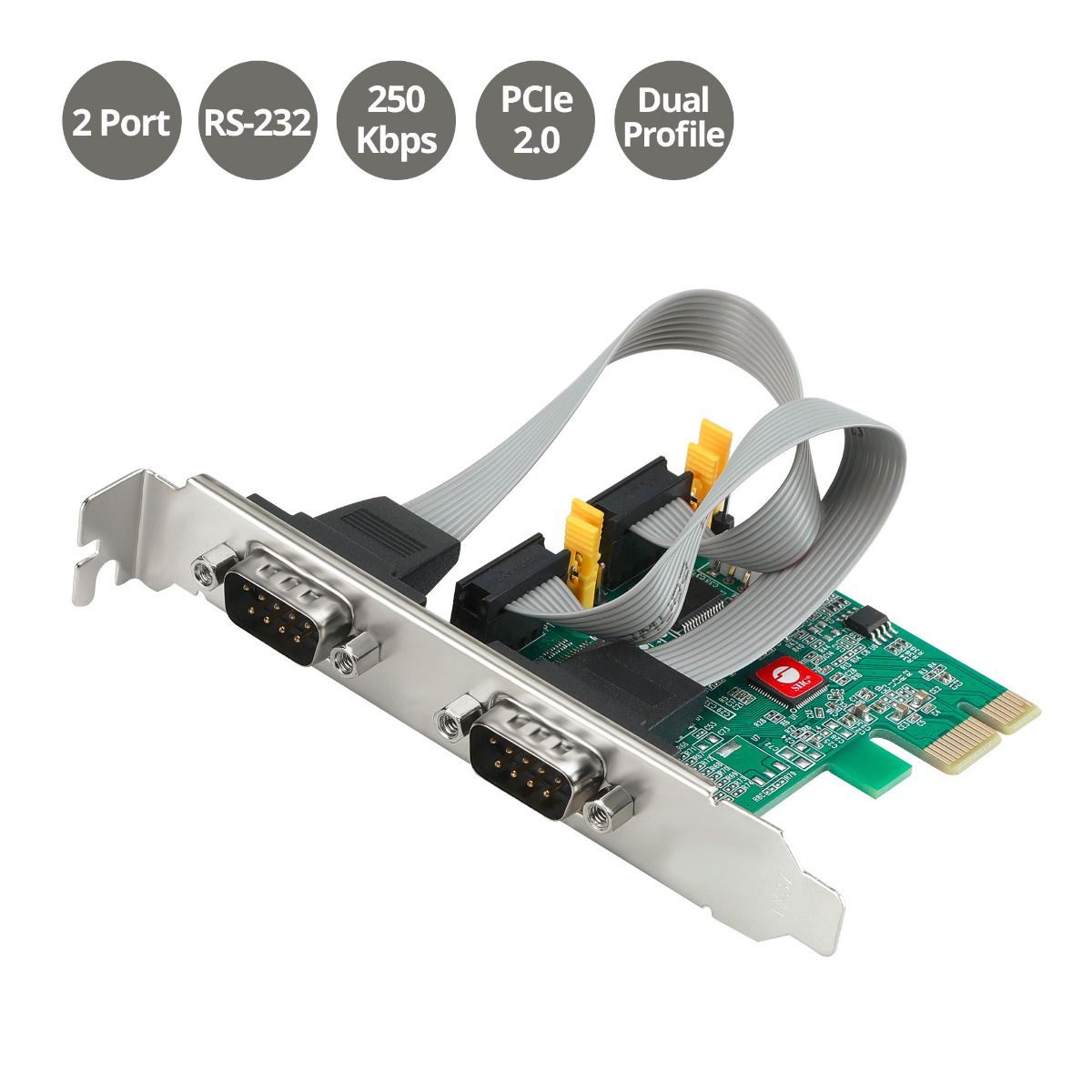

DP Cyber 2S PCIe Card

Features

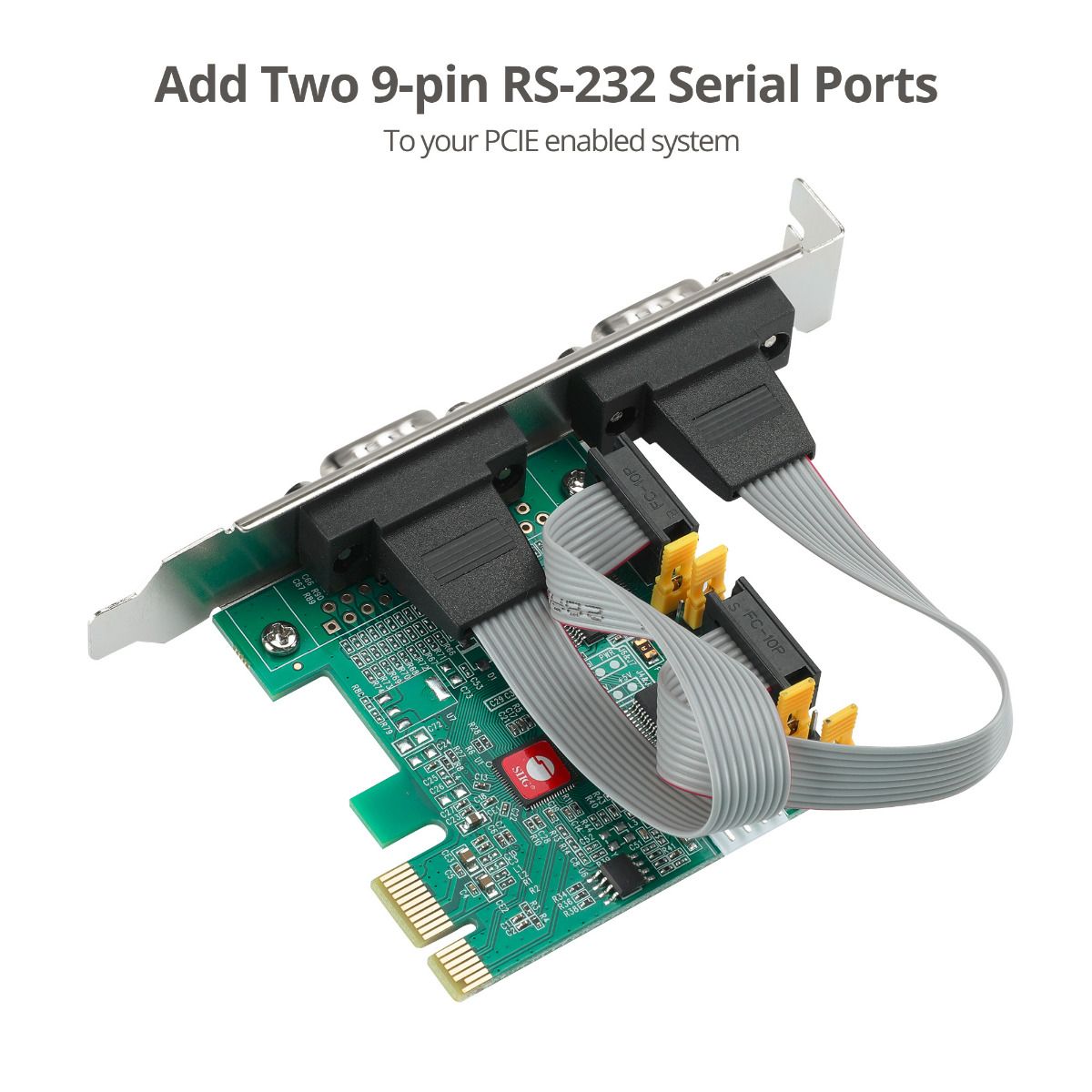

• Adds two 9-pin RS-232 serial ports to PCIe enabled desktop computers
• Two 16C650 UART serial ports support data transfer rate up to 250Kbps
• Compliant with PCI Express 2.0 Gen 1
• Single-lane (x1) PCI Express End-point Controller with PHY integrated
• Full serial modem control with hardware and software flow control
• Supports 5, 6, 7, 8 and 9-bit serial formats
• Supports Even, Odd, None, Space and Mark parity
• On chip 256-byte FIFO buffers in transmit and receive path for each serial port
• Works as either standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays and many more). Configurable via jumpers
• Supports PCI Bus Power Management Interface Specification Revision 1.2

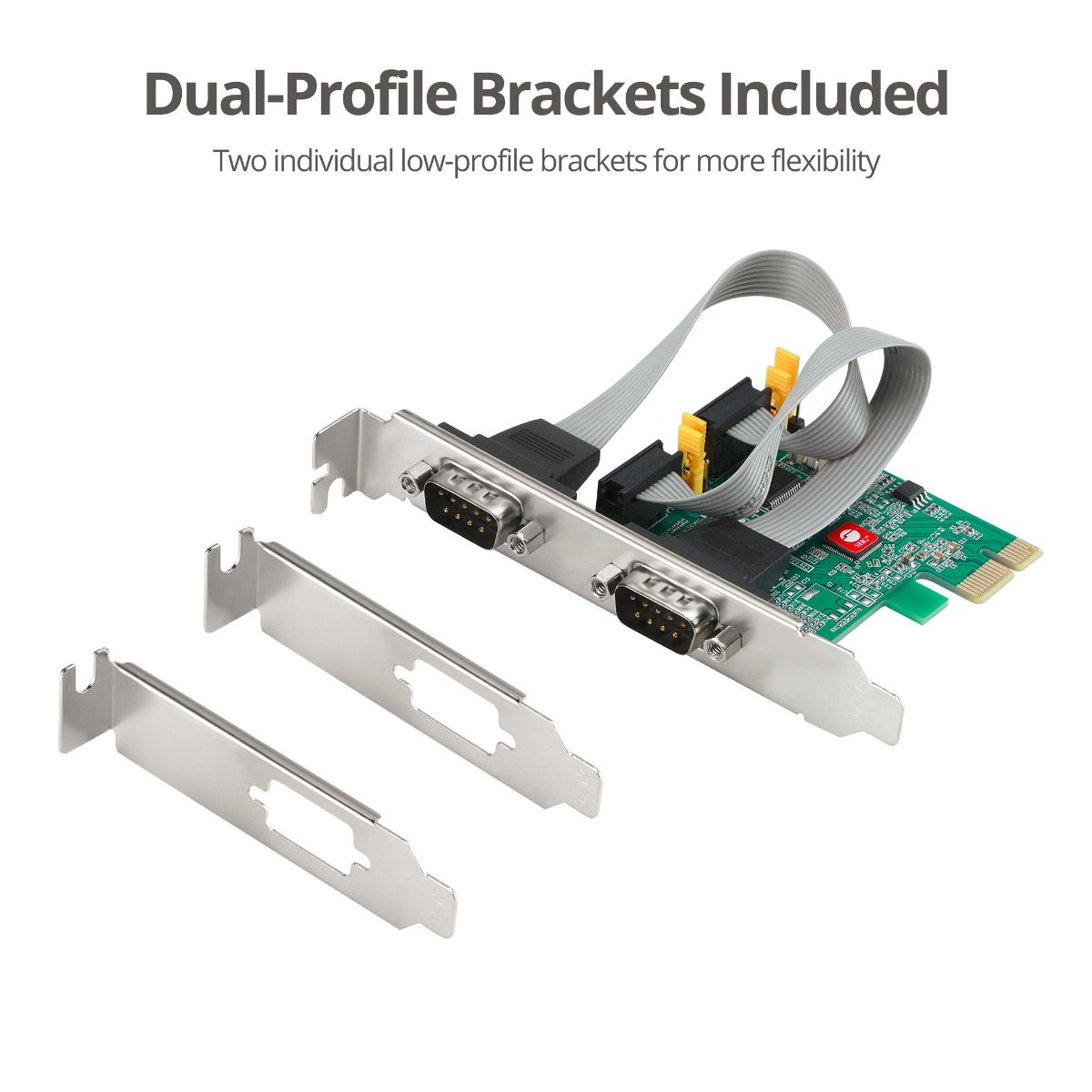

• Dual profile design installs into both full-size and low-profile system chassis with the included mounting brackets
• Installs into any PCI Express slot of any lane width
• Perfect solution to connect with POS system, industrial testing and control device, security system, logistic management equipment, printers, scanners, etc

Note: Replaces JJ-E10D11-S3, JJ-E02111-S1, and JJ-E20011-S3

Specifications

• Chipset: ASIX AX99100
• Compliant with PCI Express Base Specification 2.0
• Bus type: One lane (x1) PCI Express
• Data transfer rate: Up to 250Kbps
• Flow control: Hardware and software
• Serial format:  5, 6, 7, 8 and 9-bit
• On chip 256-byte transmit and receive FIFO buffers for each serial port
• Serial power output: 0V / 5V / 12V configured by jumpers
• Power consumption: 3W
• PCB form factor: Full and low profile (full height and low profile brackets included)
• Product:

  • Dimensions (with full height bracket): 4.72" (L) x 0.71" (H) x 2.87" (W)
  • Weight: 0.12 lbs
  • Color: Green
  • Connectors:

    • 2x, 9-pin RS-232 Serial, Male
    • 1x, 4-pin, Molex mini, Power connector
• Unit Package:

  • Dimensions: 7.28" (W) x 5.31" (H) x 1.18" (D)
  • Weight: 0.36 lbs
• Environmental conditions:

  • Operating temperature: 32 to 140 degrees F
  • Storage temperature: 14 to 158 degrees F
  • Relative humidity: 5 to 90% RH (non-condensing)
• Certifications/Standards: FCC, CE, RoHS
• Warranty: 2 years limited
• Country of origin: China

Note: Replaces JJ-E10D11-S3, JJ-E02111-S1, and JJ-E20011-S3

System Requirements

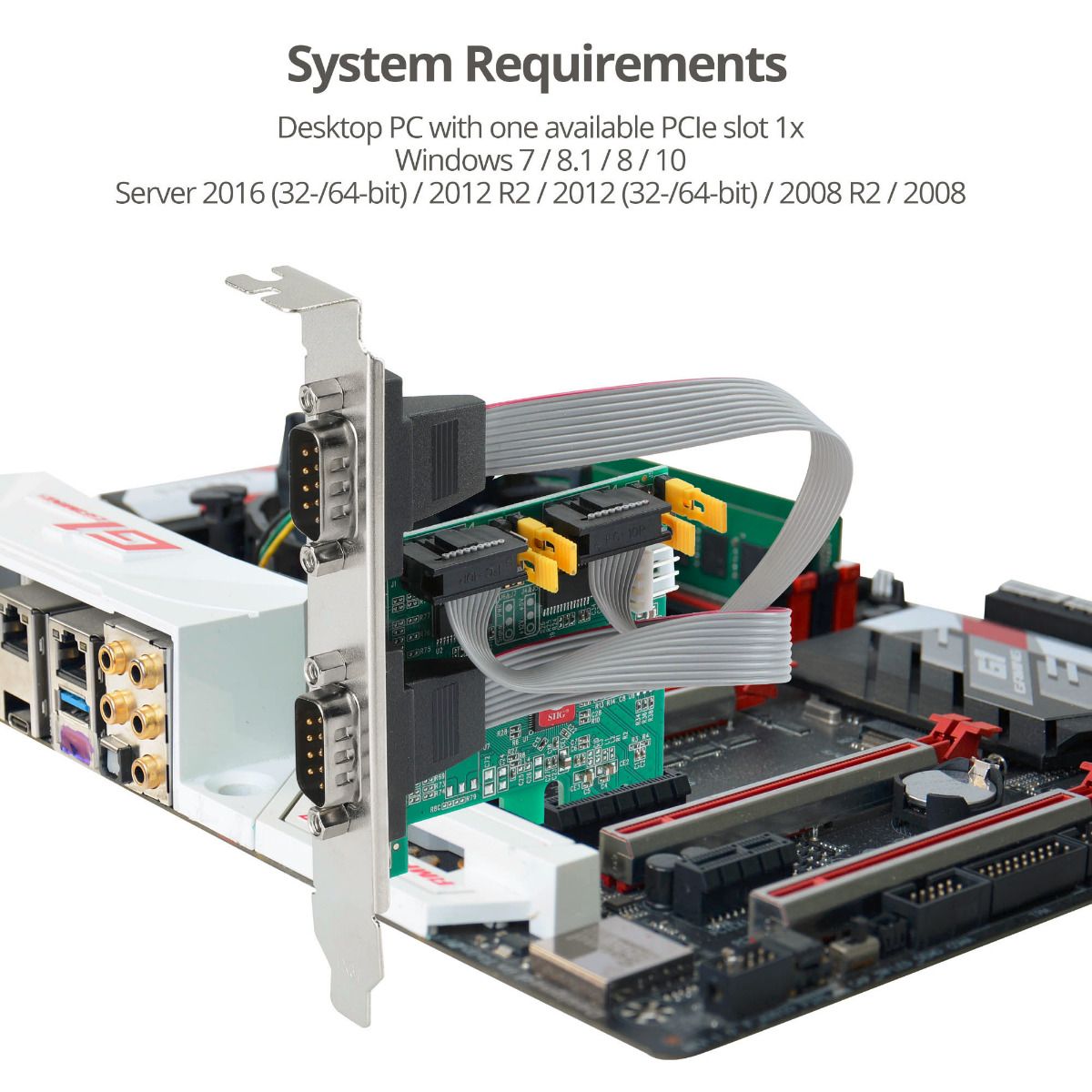

• PCI Express-enabled system with an available PCI Express slot
• Windows^® 11 (32-/64-bit) /10 (32-/64-bit) / 8.1 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit)
• Windows Server 2016 (32-/64-bit) / 2012 R2 / 2012 (32-/64-bit) / 2008 R2 / 2008

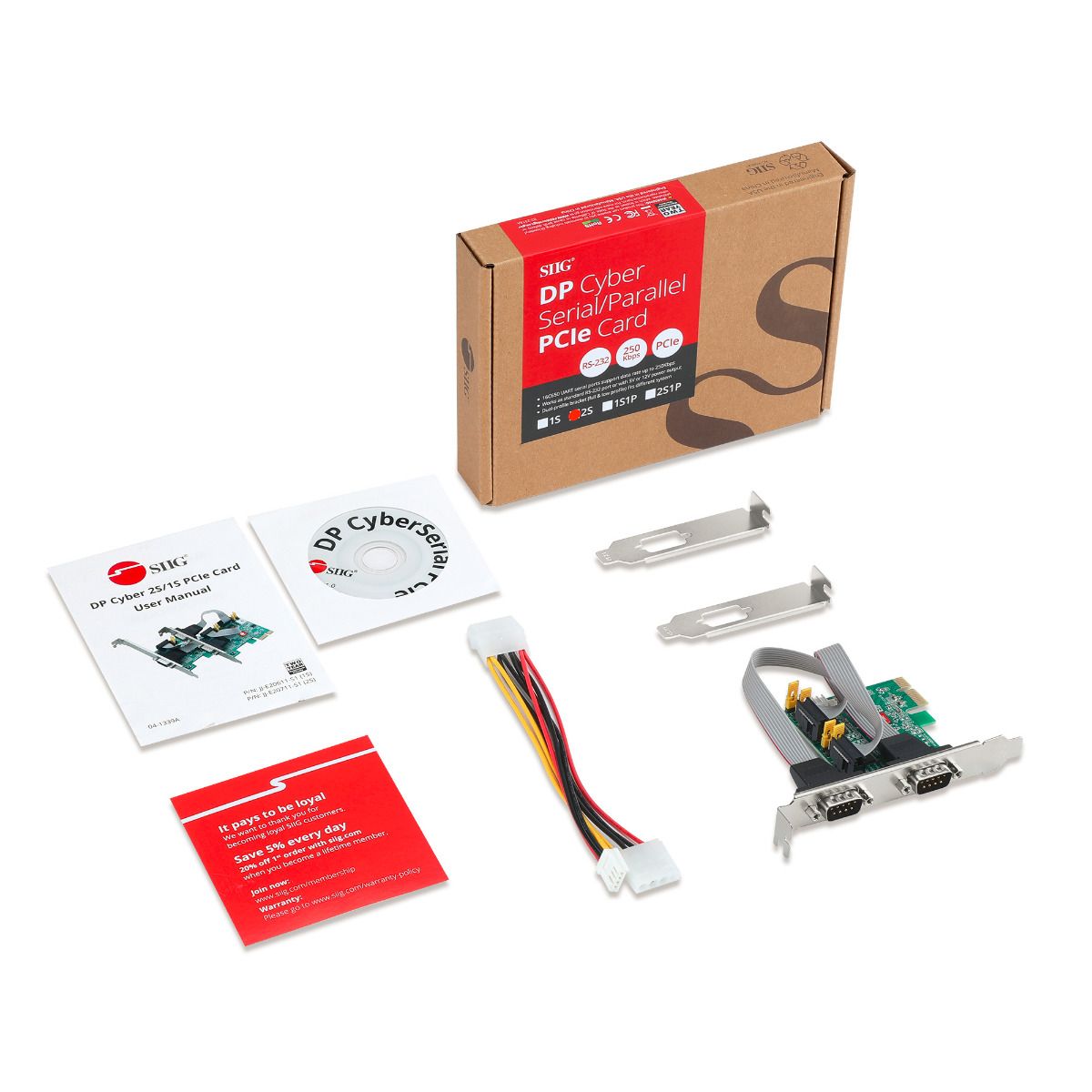

Package contents

• DP Cyber 2S PCIe card
• Low profile bracket (2pcs)
• Y-Split power cable
• Voltage jumper (4pcs)
• Software CD
• User manual
