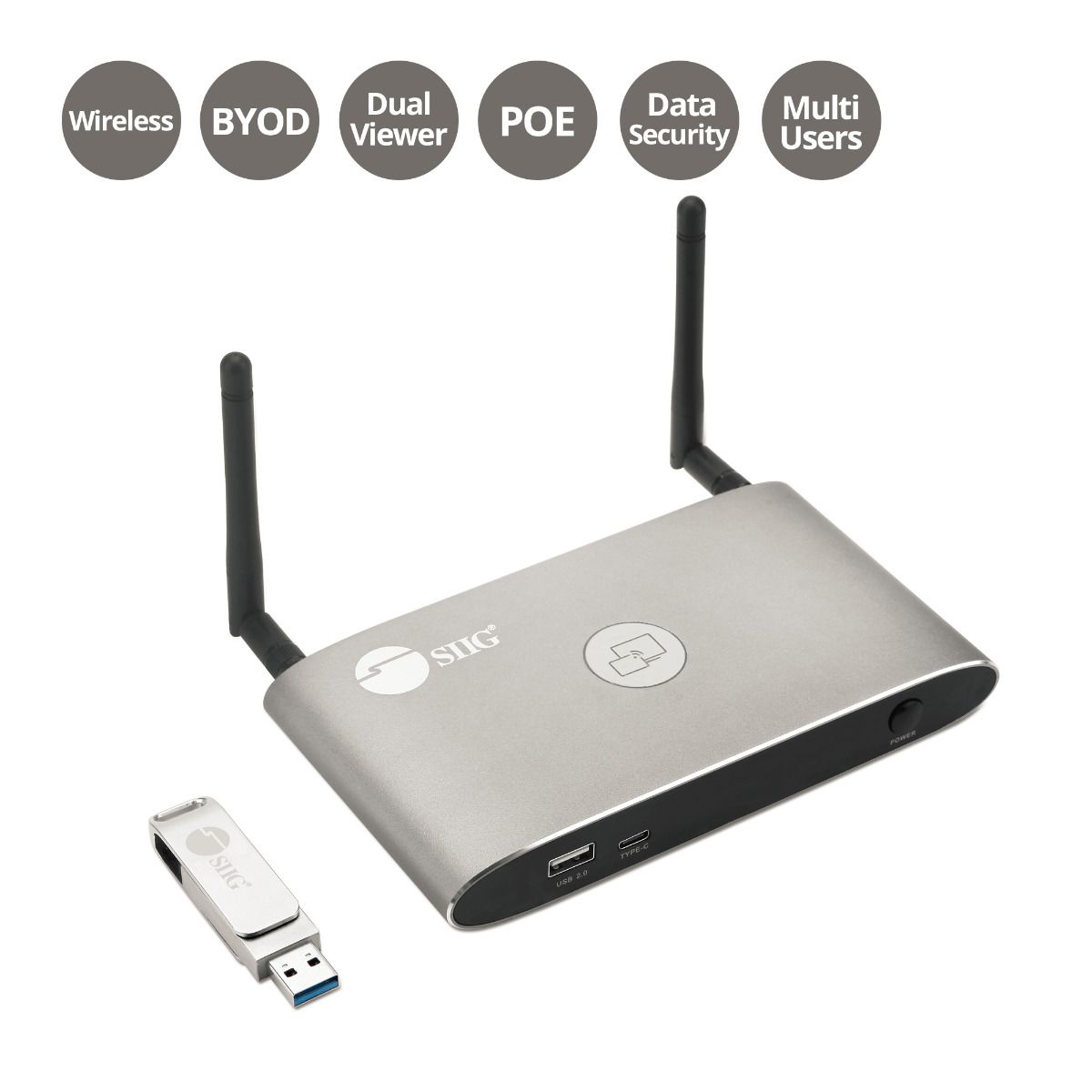

Dual View Wireless Media Presentation Switch Gateway

  • Wireless/Wired Lan
  • PoE
  • 4K@60Hz
  • On Screen Dual View
  • BYOD
  • Whiteboard Mode
  • Annotation Mode
  • Touchscreen
  • Remote Mouse Control
  • Auto Detecting
  • USB-A 3.2 Gen 1
  • USB-C
  • USB-A 2.0
  • 3.5mm Audio
  • RS-232 Phoenix Terminal
  • 3 Security Levels
  • USB A/C Dongle
In stock
Quantity in stock: 18
SKU
CE-H25Y11-S1
$499.99

We ship all orders within 1 business day

Lifetime technical support on all of our products

45-day return window and money-back guarantee



    Overview

    Wireless Media Presentation Switch Gateway allows sharing laptop, tablet, smart phone wirelessly and supports 4K@60Hz dual view on screen display easy joining meeting room and board room presentation. Supports HDMI output, USB-C, USB-A 3.2 Gen 1, USB-A 2.0, 3.5mm stereo audio, RS_232, whiteboard, annotation, touchscreen, two segmented routing option, PoE, Airplay, WirelessMedia, and 3 security levels


    Features

    one

    Sharing dual view on one screen display with a remote mouse to control the source devices, and easily extend HDMI single with stereo audio by connecting HDMI touch and play dongle (CE-H26711-S1, sold separately), and supports wireless BYOD (Bring your own device) solution make your presentation more effective

    yea

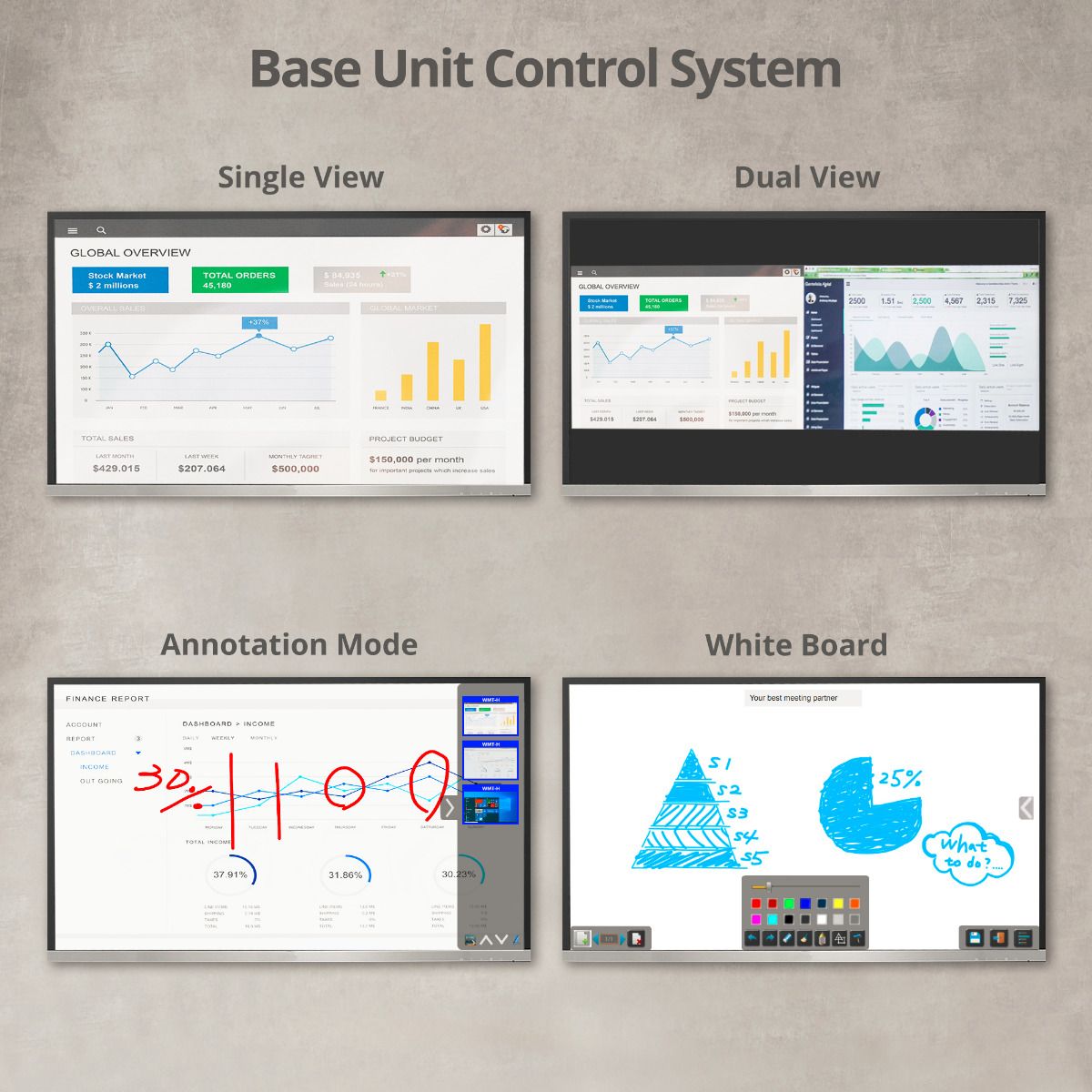

    Dual View On-Screen Display

    Showing two different displays on one screen at once and allows up to 16 laptops, tablets, and smartphones to be connected simultaneously (at the same time)

    due
    *Note:
    - Number of window simultaneous on screen: 2+14 (2 main windows+14 thumbnail windows)
    - Two display mode: Mirror or Extended
    - Additional Wireless Media Presentation Transmitter- HDMI dongle (part# CE-H26711-S1) sold separately

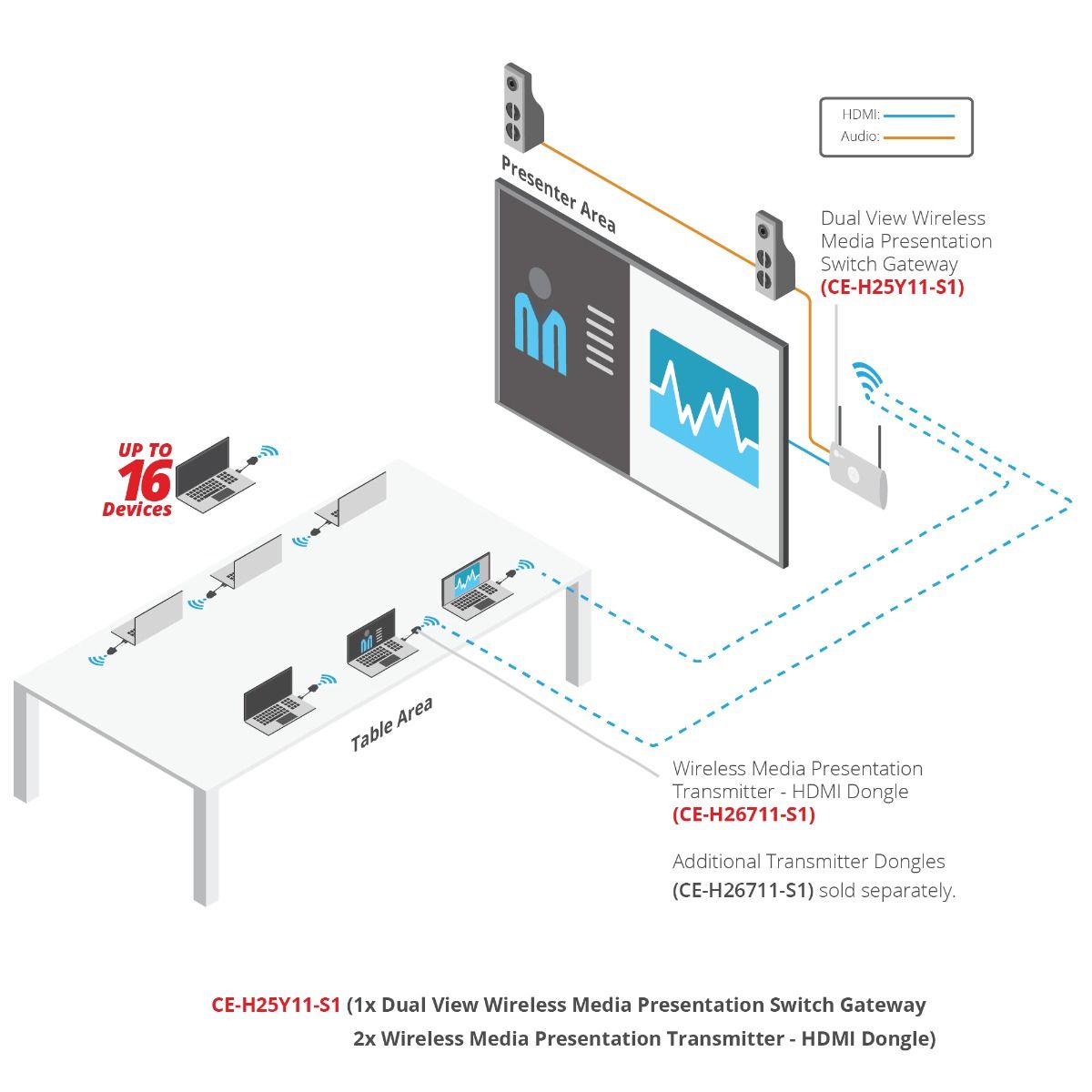

    Wireless BYOD Transmission

    Allows to wirelessly share your presentation from a smartphone, tablet and laptop, and can extend HDMI signals up to 15m (49ft) to a remote HDMI display

    wir

    *Note:
    - Use HDMI touch & play dongle to connect to laptop; download Airplay app for iOS system.; WMedia2 app for Android system before use
    - The transmission distance will vary depending on building layout, electronic interference, walls and partitions, other environmental conditions, and maybe much less than maximum

    dis

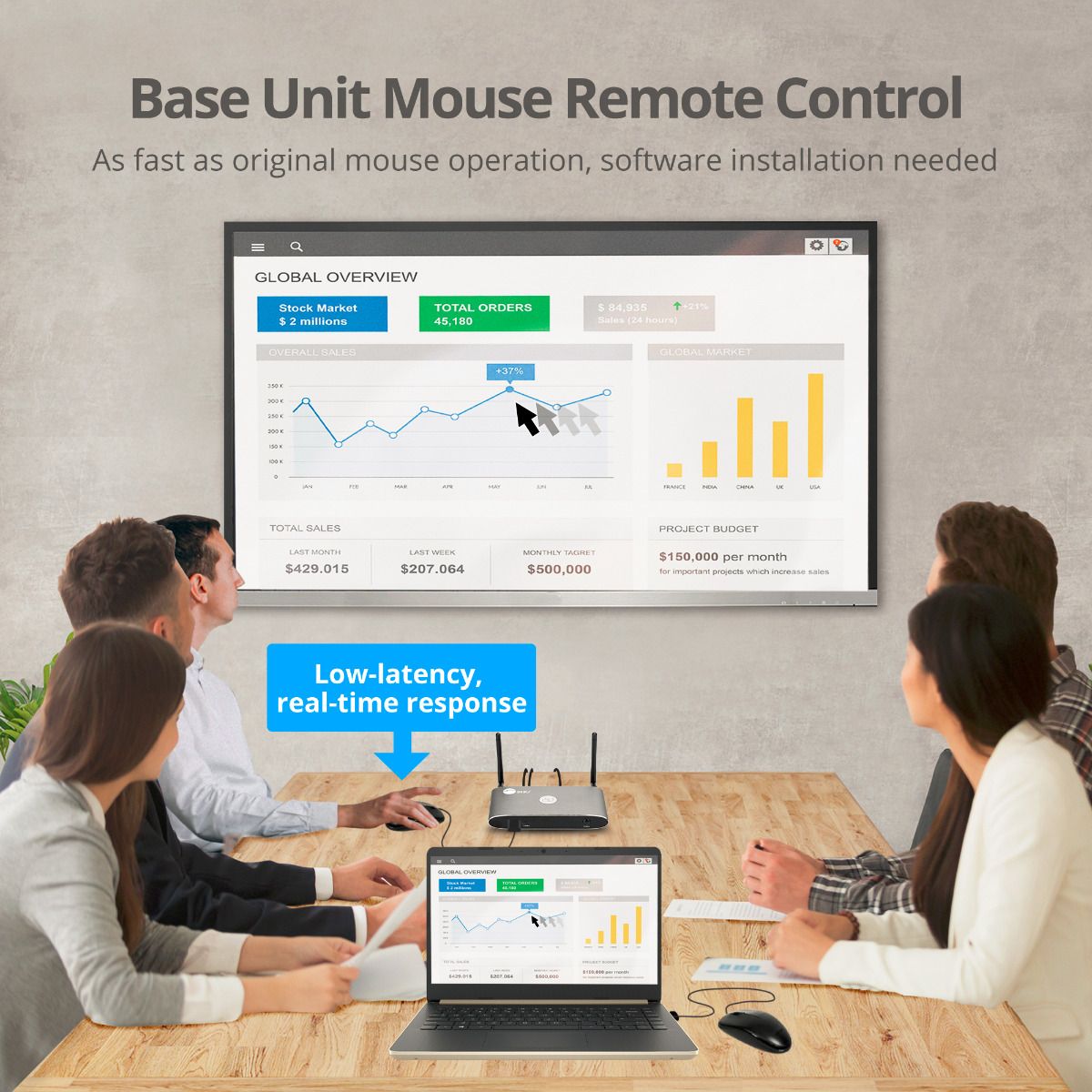

    Interactive Wireless Control

    Use a remote USB mouse or touch screen to write, edit, capture, and share documents on the whiteboard or annotation at any time

    con


    Multiple Connectivity Ports

    Adds one HDMI output port, 1x 3.5mm audio output, one USB-A 3.2 Gen 1 port, one USB-C port, one USB-A 2.0 port, one 100Mbps Fast Ethernet port, one 1000Mbps Gigabit Ethernet with PoE port, one RS-232 3-pin phoenix terminal, one power button, one back-lit LED indicator, and one DC power jack (12V/1.5A)

    por

    Connection

    con


    conn

    90-rotation design and 16G data storge, comes with USB-A 3.2 Gen 1 and USB-C connectors easy to plug-in and auto-configuration/pairing to quickly share your screen


    Audio

    Compatible with any 3.5mm audio devices for premium sound quality, supports 7.1 channel surround sound from HDMI port and PCM 2.1 channel analog audio from 3.5mm stereo audio port

    aud

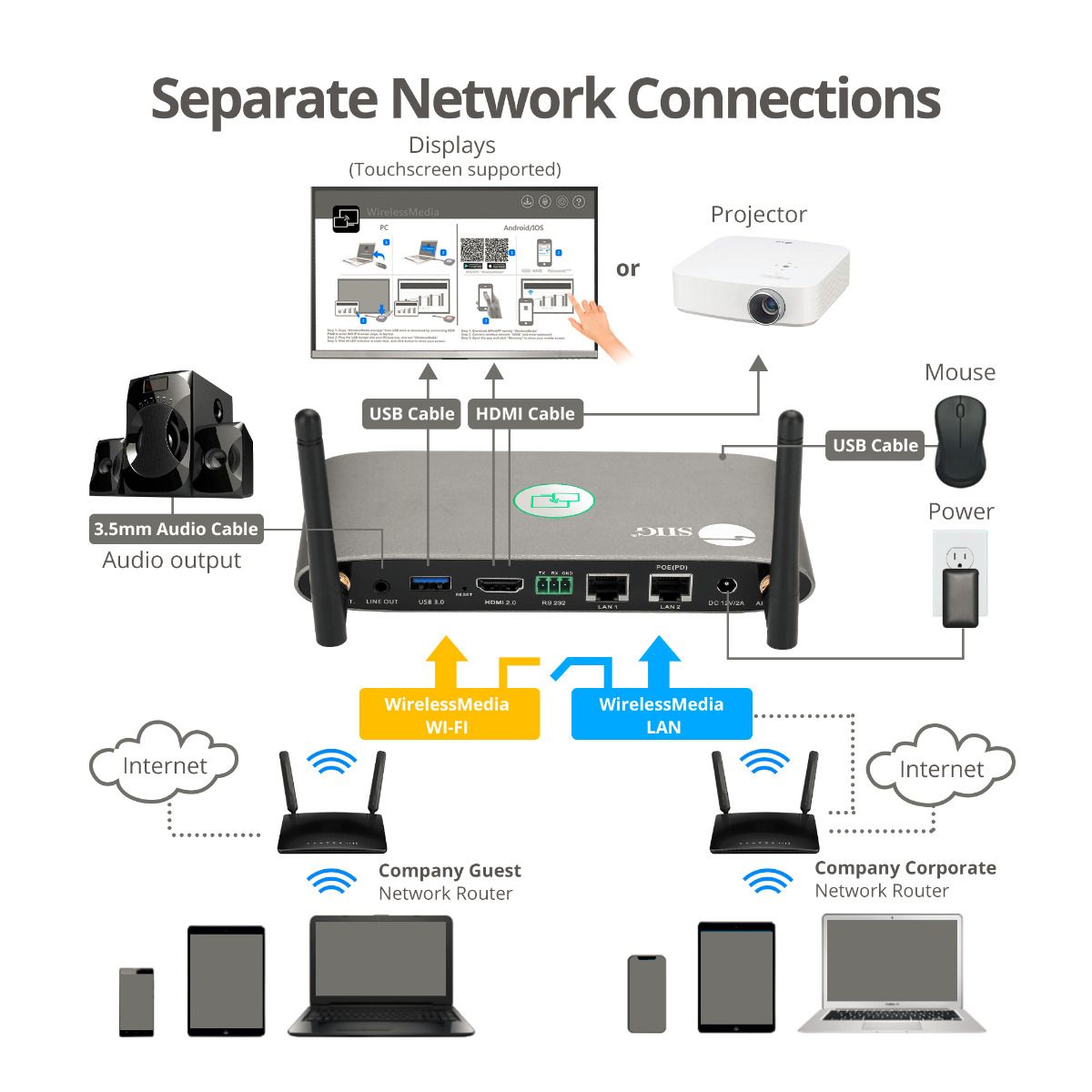

    Two Segment Routing

    Connects to a wired and a wireless network simultaneously and separately, including wireless Wi-Fi network and wires LAN network (10/100/1000Mbps Ethernet port with PoE (Power over Ethernet) technology and 10/100Mbps Ethernet port)

    you


    sec

    Three Security Levels

    Whether you use the smartphone, tablet, or laptop to share files, three security levels are provided to protect your data. Data encryption and control of the presentation system can be customized, and according to different security requirements can be met according to different security sensitive environments or security strategies



    Maximum Compatibility

    Supports Plug-n-play and CEC (Consumer Electronics Control) to allow users to control multiple devices with one remote control



    Housing Design

    - Dual View Wireless Media Presentation: Base Unit

    Protects the inside PCBA with metal housing design to enhance the heat dissipation for better performance and long service life
    Indicates the status of the button- Green LED color is ready to mirror on the screen; blinking green is initializing; Blue LED color is mirroring on the screen

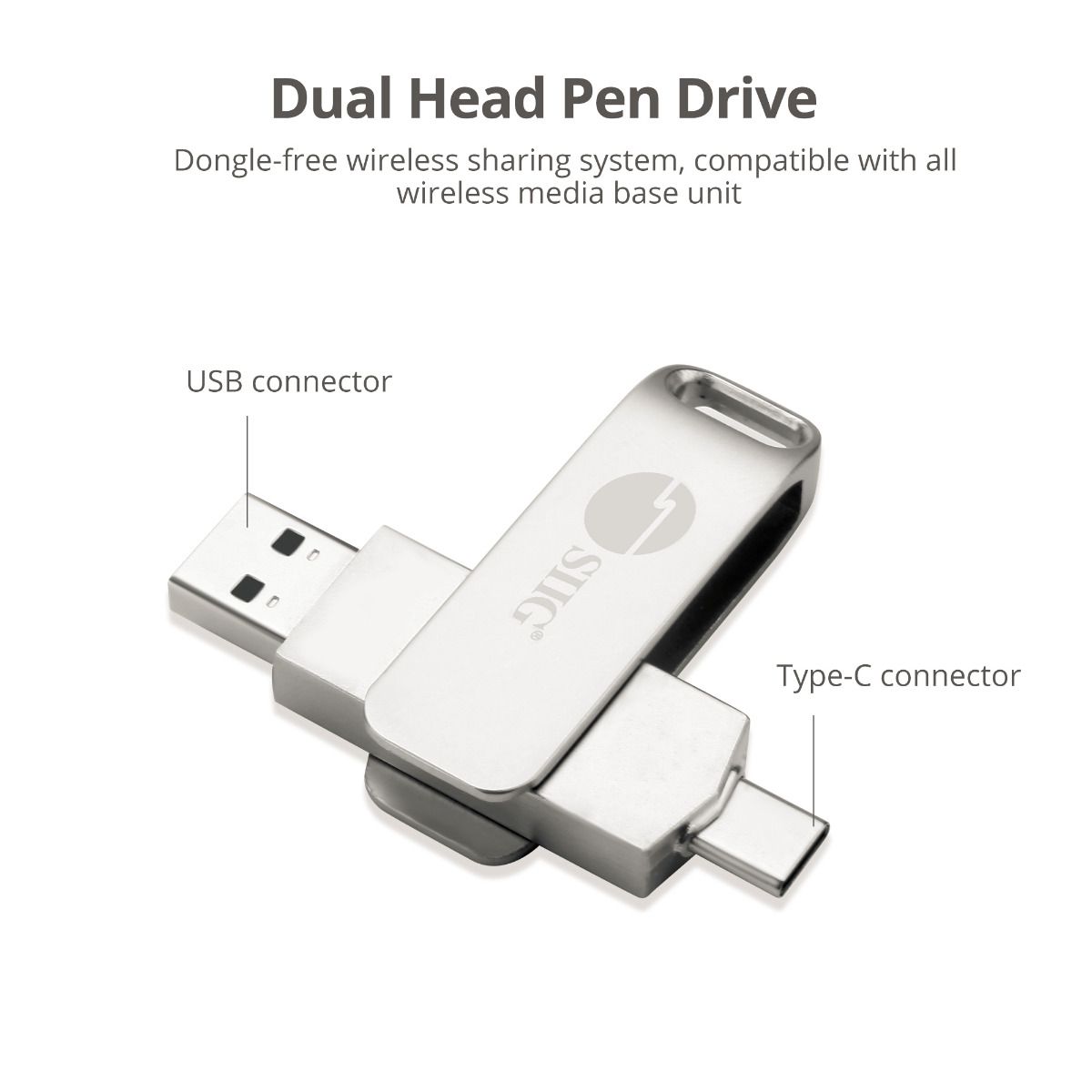

    - USB A/C Dongle

    Strong and compact design with premium zinc alloy housing and come with USB-C or USB-A connectors with 90 rotation design for quick pairing of devices

    hou

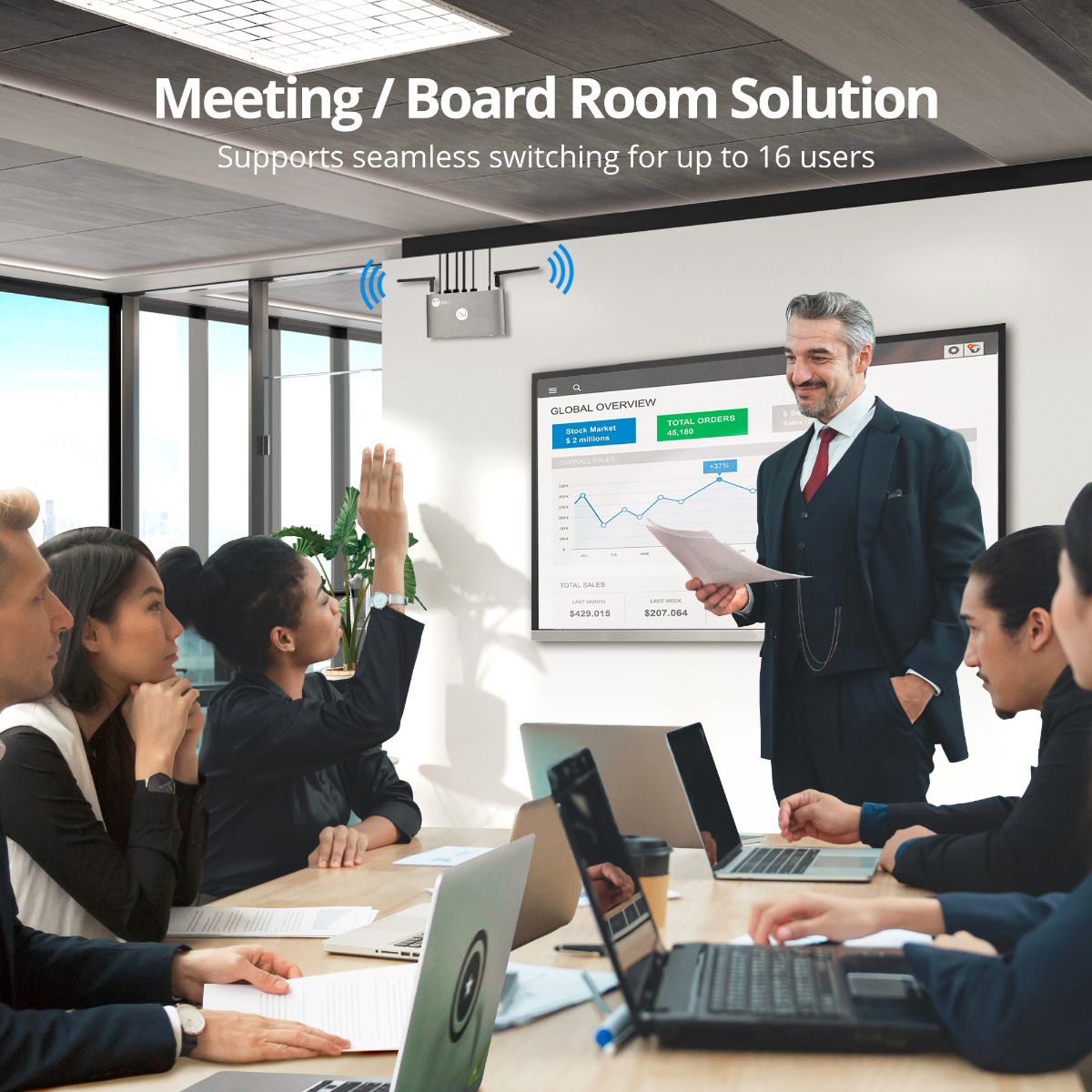

Applications

    • Presentation room• Boardroom• Classroom• Meeting room• Trade show• Hospital
    • Retail store• Lecture hall• Church• Home entertainment• Educational facilities

    Need to Know Before Buying

    1. Please confirm your laptop with USB-C 3.2 Gen 1or USB-A 3.2 Gen 1, and HDMI ports

    computer

    2. If you use an ethernet switch with PoE (Power over Ethernet), then you can connect "LAN Ethernet port 2" which is better than using an external power adapter

    3. Make sure that Dual View Wireless Media Presentation- base unit is connected to the internet and powered, the the "Homepage" will be displayed on the HDMI display/monitor

    homepage

    4. Before using the smartphone or tablet, please download the app. (Airplay for iSO system, WMedia2 for Android system)

    app

    5. Check the extended HDMI display/monitor resolution that supports 4K (Full-HD display only provides 1080p resolution)

    monitor

    6. If you want to separate audio to the speaker, please connect a 3.5mm audio jack. If connected, the LED will show the green color on the Dual View Wireless Media Presentation- base unit

    7. For second-time users, USB A/C Dongle will automatically run to share the screen, no need to click “Launcher”


    Specifications

    Video
    HDMI (on base unit) x1, HDCP 2.2/1.4
    Resolution: 3840x2160@60Hz, 3840x2160@30Hz, 1920x1080@60Hz, 1280x720@60Hz
    Video playbackframe rate 20-60FPS
    Capacity Resolution Airplay for iOS system: 1080p < 60Hz
    WirelessMedia for Android system: 1080p < 60Hz
    Show-me button (HDMI Dongle): 1080p <30Hz
    Audio
    7.1 channel surround sound from HDMI port
    PCM 2.1 channel stereo audio from 3.5mm stereo audio port
    Data Transfer rate
    USB 2.0 1x Type-A, up to 480Mbps
    USB 3.2 Gen 1 (on base unit) 1x Type-A / 1x Type-C, up to 5Gbps
    USB 3.2 Gen 1 (on USB dongle) 1x Type-A (male) / 1x Type-C (male) , up to 5Gbps
    Power
    Power Adapter Input: AC 100-240V/50-60Hz, Output: DC 12V/1.5A
    PoE (Power of Ethernet) Powers the transmitter(s) and receiver(s) over Cat cable from your PoE Gigabit Switch (purchase separately)
    PoE standard: IEEE 802.3af
    Network
    Wireless data rate Up to 1,200Mbps
    Wireless transmission protocol Wi-Fi IEEE 802.11 a/g/n/ac
    Frequency bandwidth 2.4GHz & 5GHz
    Wi-Fi antenna MIMO 2x2
    Ethernet
    LAN Ethernet port 1 Data transfer rate: Up to 100Mbps, backward compatible with 10Mbps
    LAN Ethernet port 2 Data transfer rate: up to 1G (1,000Mbps), backward compatible with 10/100Mbps, with PoE
    Supports IEEE 802.3x Full Duplex flow operation, crossover detection, and auto-correction
    Environmental conditions
    Operating temperature 32 to 104 degrees F
    Storage temperature -4 to 140 degrees F
    Relative humidity: 20% to 90% RH (non-condensing)

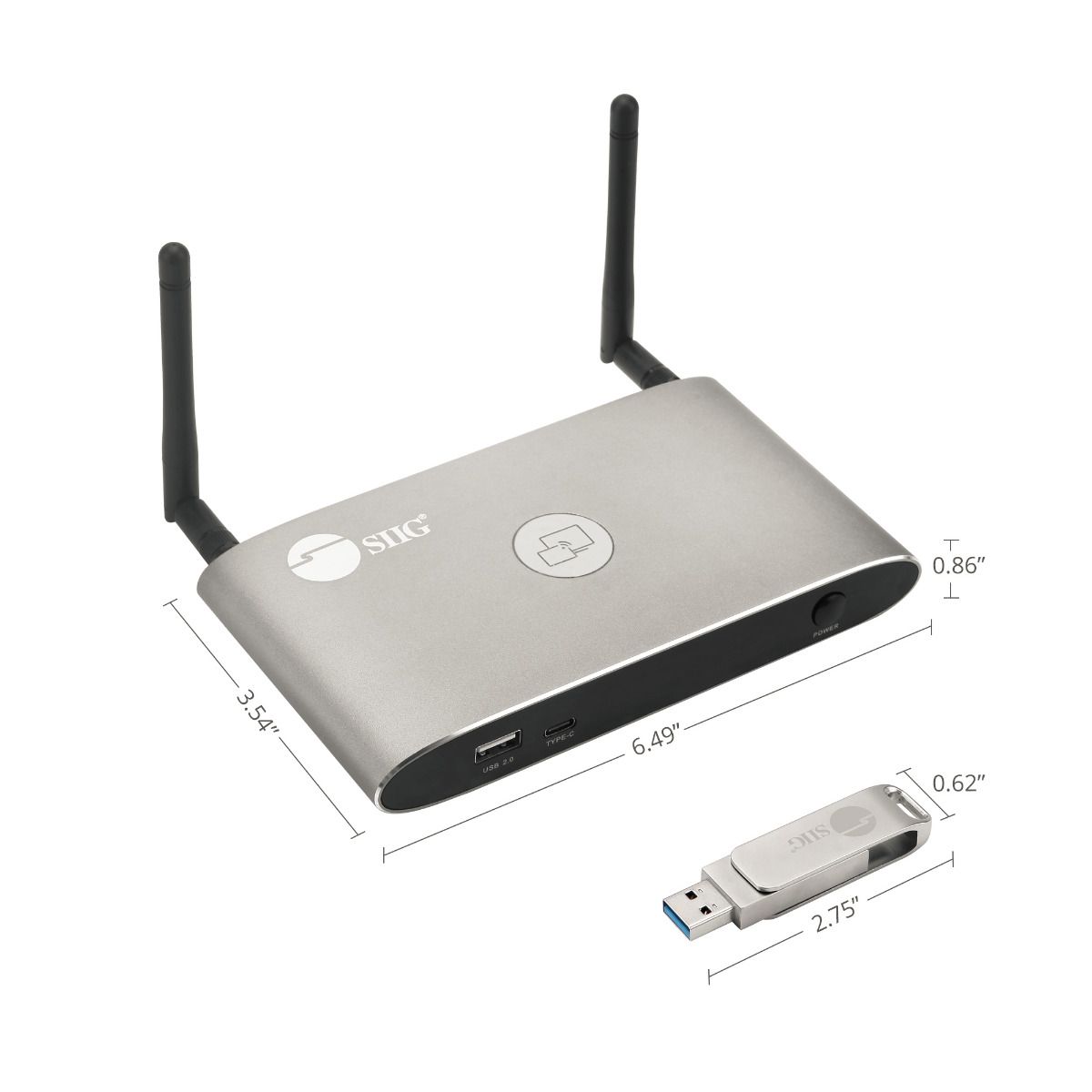

    Product Info
    Base Unit Dimensions: 6.50” (L) x 0.87” (H) x 3.54" (W)
    Weight: 0.80lbs
    Color: Silver
    Housing material: Metal
    USB A/C Dongle Dimensions: 2.76” (L) x 0.39” (H) x 0.67" (W)
    Weight: 0.18lbs
    Color: Silver
    Housing material: Zinc Alloy
    Unit Package
    Dimensions 9.92” (L) x2.60” (H) x 7.87" (W)
    Weight 2.40lbs
    Certifications/Standards
    FCC, CE, RoHS, REACH
    Warranty: 2 years limited
    Country of origin: China

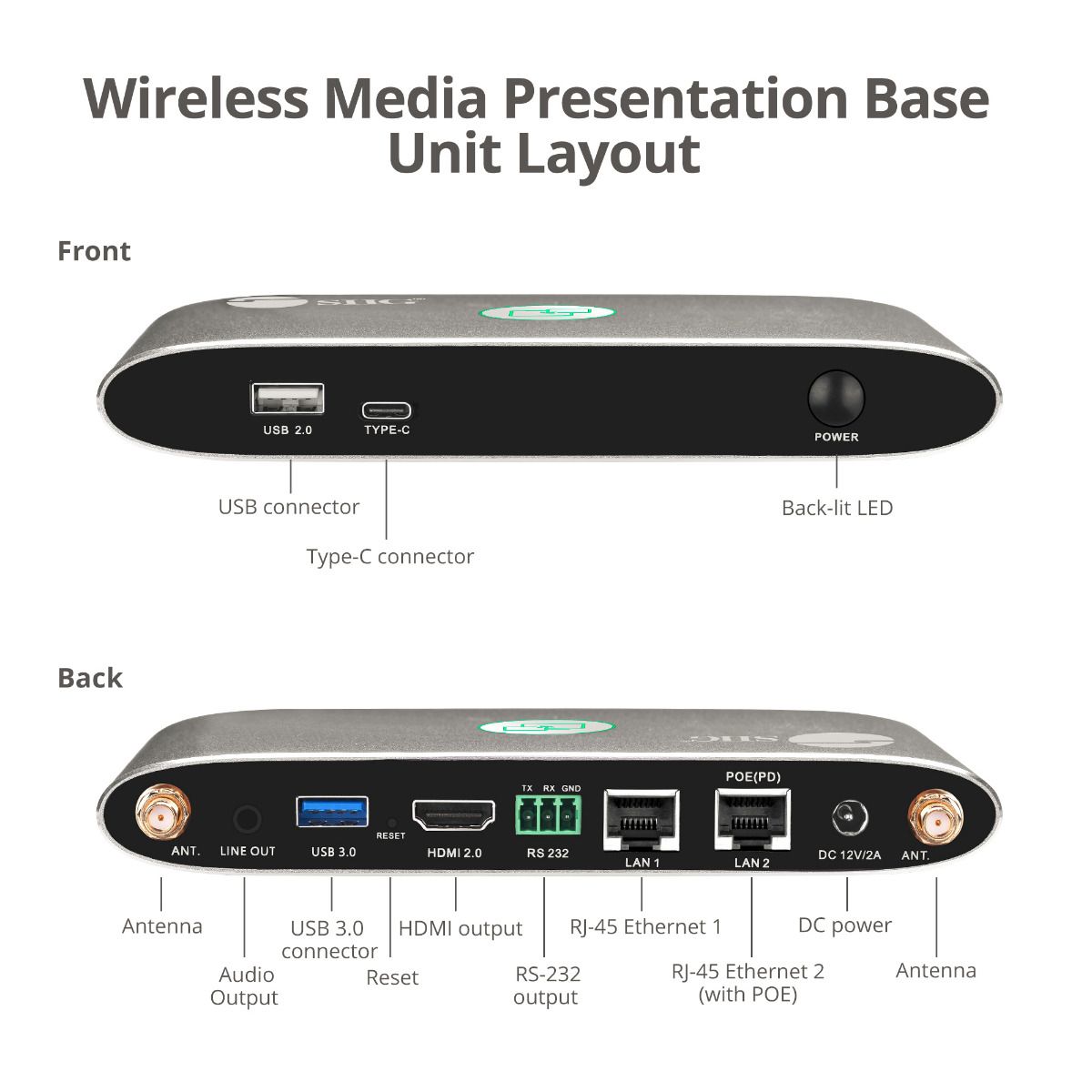

    Interface

    interface

    • 1x Back-lit LED, power/ready/sharing
    • 1x 19-pin, HDM, Female (output)
    • 1x 4-pin, USB-A 2.0, for paring/connecting, Female
    • 1x 24-pin, USB-C 3.2 Gen 1, Female
    • 1x 9-pin, USB-A 3.2 Gen 1, Female
    • 1x 8-pin, RJ45, Fast Ethernet, 100Mbps
    • 1x 8-pin, RJ45, Gigabit Ethernet with PoE, 1,000Mbps
    • 1x 3.5mm audio jack, Female
    • 1x 3-pin, RS-232 phoenix terminal block, (for control)
    • 1x Power button
    • 1x DC power jack, 12V/1.5A
    • 2x Wi-Fi antenna jack, MIMO 2x2, 5G bandwidth

    USB A/C Dongle

    • 1x 9-pin, USB-A 3.2 Gen 1, male
    • 1x 24-pin, USB-C 3.2 Gen 1, male

    System Requirements

    • Laptop with available HDMI, USB-C 3.2 Gen 1 or USB-A 3.2 Gen 1 ports
    • Application software installed on a smartphone or tablet (Airplay for iOS system or WMedia2 for Android system)

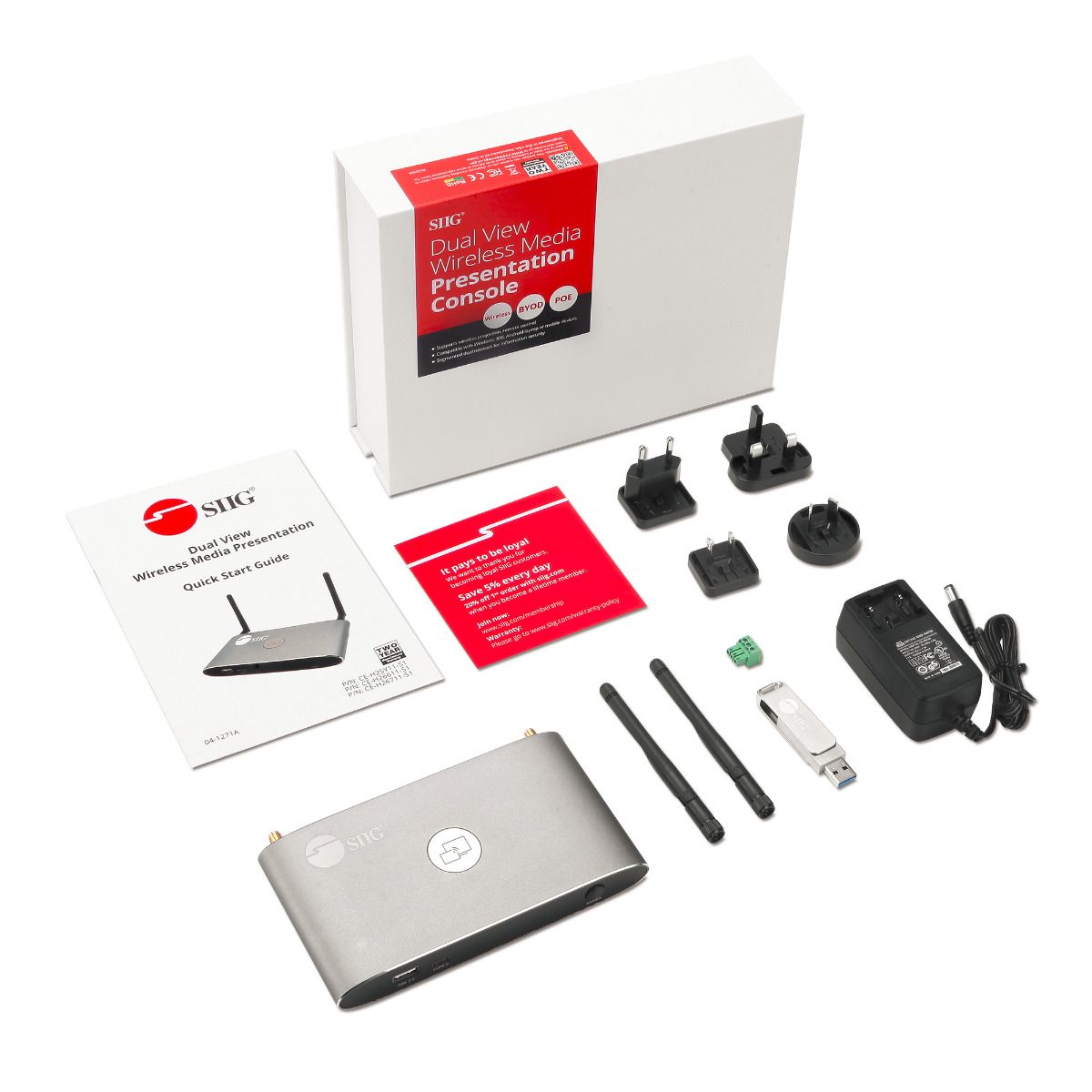

    Package contents

    • 1x Dual View Wireless Media Presentation- Base unit
    • 1x USB A/C Dongle
    • 2x Wi-Fi Antenna, MIMO 2x2, 5G bandwidth
    • 1x 3-pin RS-232 terminal block
    • 1x DC Power adapter (12V/1.5A) with US, UK, EU and AU plugs
    • 1x User Reference Guide
