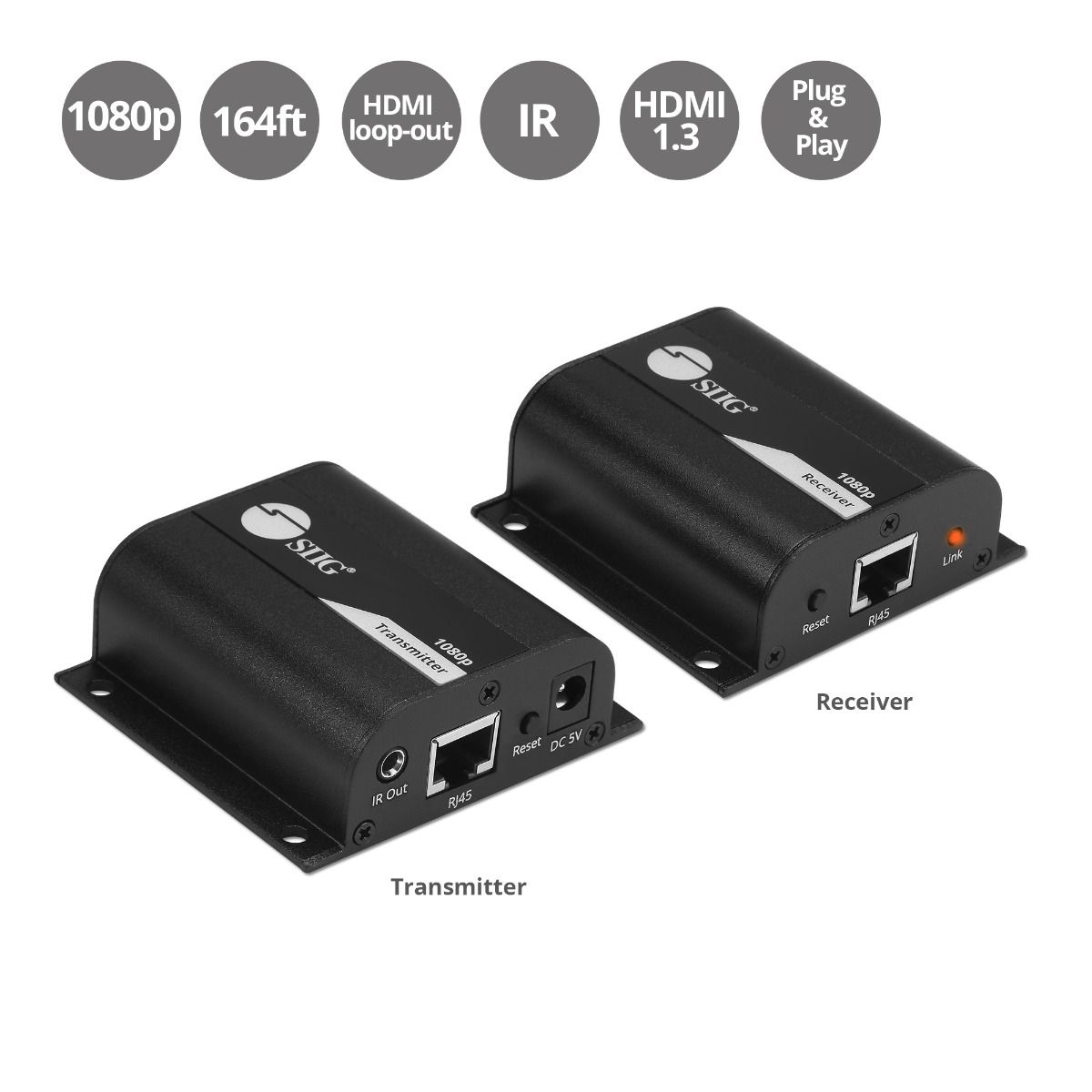

Full HD HDMI Extender over Cat5e/6 with IR and local HDMI out - 164ft

  • HDMI Extender
  • Cat5e/6
  • 164ft/50m
  • 10.2Gbps
  • 1080p@60Hz
  • HDCP 1.2
  • HDMI Loop-out
  • 7.1-ch
  • EDID Passthrough
  • IR Extension
  • Reset Button
  • Wall Mountable
Out of stock

We ship all orders within 1 business day

Lifetime technical support on all of our products

45-day return window and money-back guarantee


    Extends HDMI signals up to 164ft over a single CAT5e/6 cable with a local HDMI output for monitoring the extended display



    Easily extend HDMI audio/video signals over a cost effective Cat5e/6 network cable, while maintaining signal strength and superior quality and supports up to 1080p resolution and extends transmission distance up to 164ft (50m) with nearly zero latency


    Extend Distance

    This Full HD HDMI Extender over Cat5e/6 with IR designed to extends/splits HDMI signals up to 164ft (50m) through RJ45 network to a remote HDMI display for reliability transmission

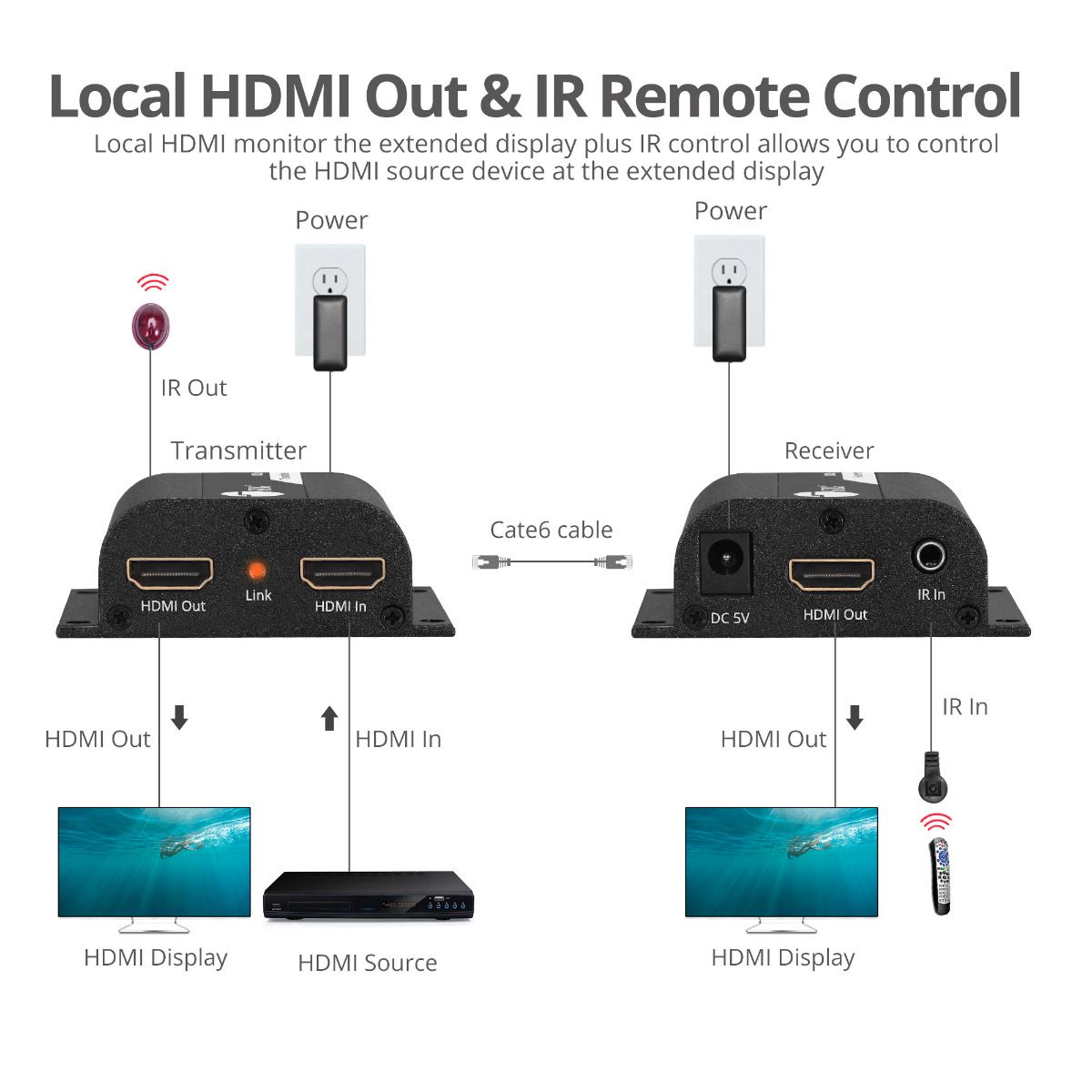

    HDMI Loop-out

    Added capability of HDMI loop-out on transmitter acts as a splitter for connecting to a local display

    IR Extension

    Built-in on way IR signal extension modules allows remote controlling the HDMI source device at the receiver and playback at the distant display. Supports an IR signal in the 20-60KHz carrier frequency


    *Note: Remote controller should be used within 15 feet of transmitter to send signal to the receiver. The best result for the sensor is to point directly

    High Performance

    Offers a true 10.2Gbps video bandwidth and supports pure unaltered uncompressed 7.1-ch. surround sound from HDMI


    Full HD Video Resolution

    Supports video resolution up to 1080p (1920x1080) @60Hz YUV 4:4:4 8-bit, HDCP 1.2 to deliver a clear picture quality and allows EDID auto-learning for remote and local displays

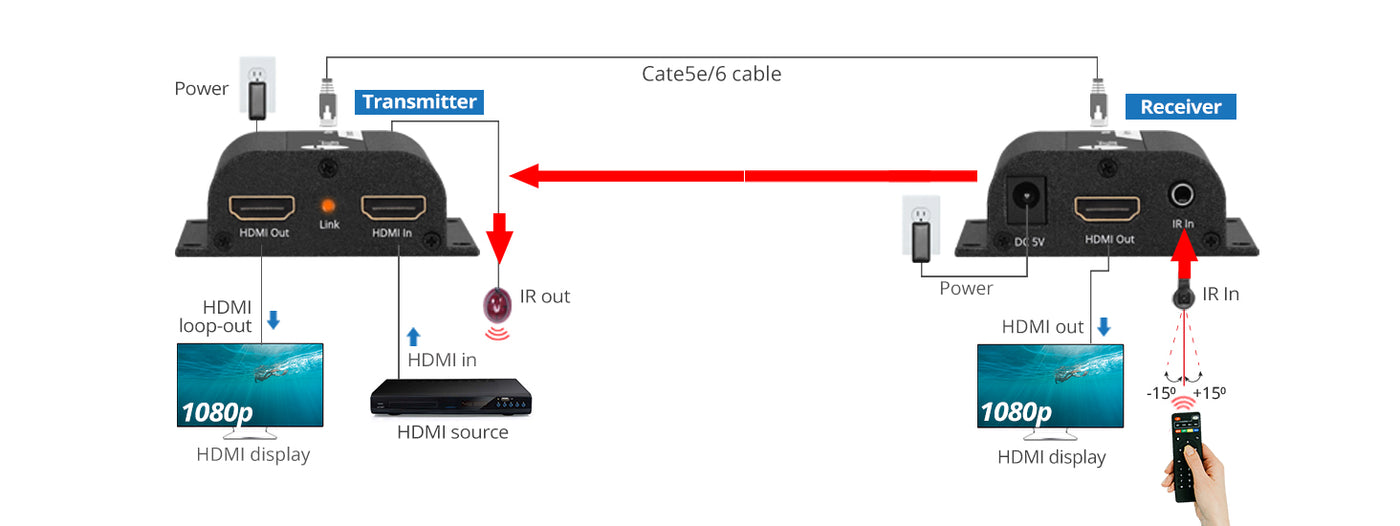

    Multiple Connectivity Ports

    Comes with one HDMI video input port, one HDMI loop-out port, one HDMI video output port, two RJ45 network ports, one 3.5mm IR emitter port, one 3.5mm IR receiver port, two reset buttons, two DC power jacks (5V/1A)




    Maximum Compatibility

    Supports Plug-n-play and no driver installation required. The reset button allows displays to be re-detected if no displays are detected

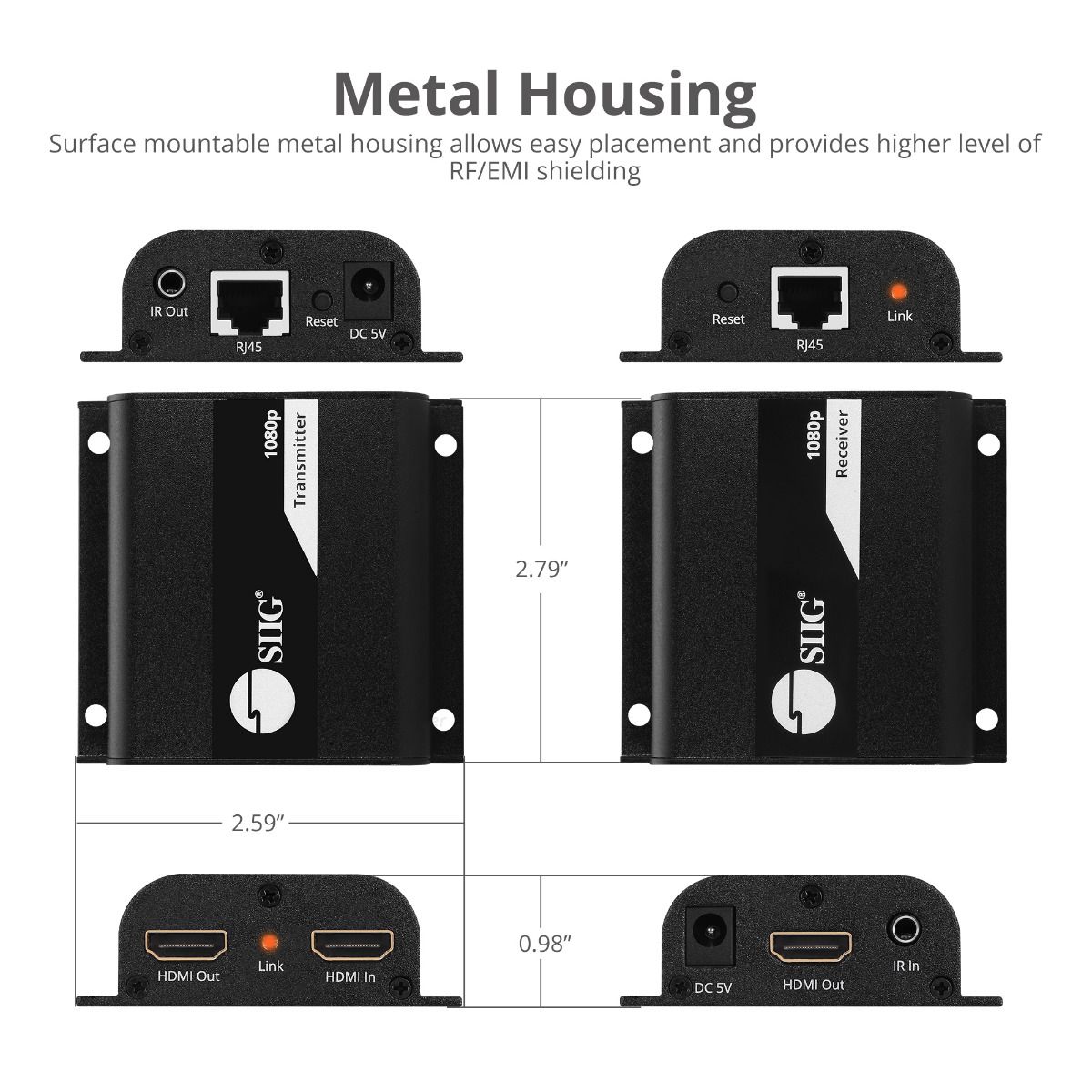

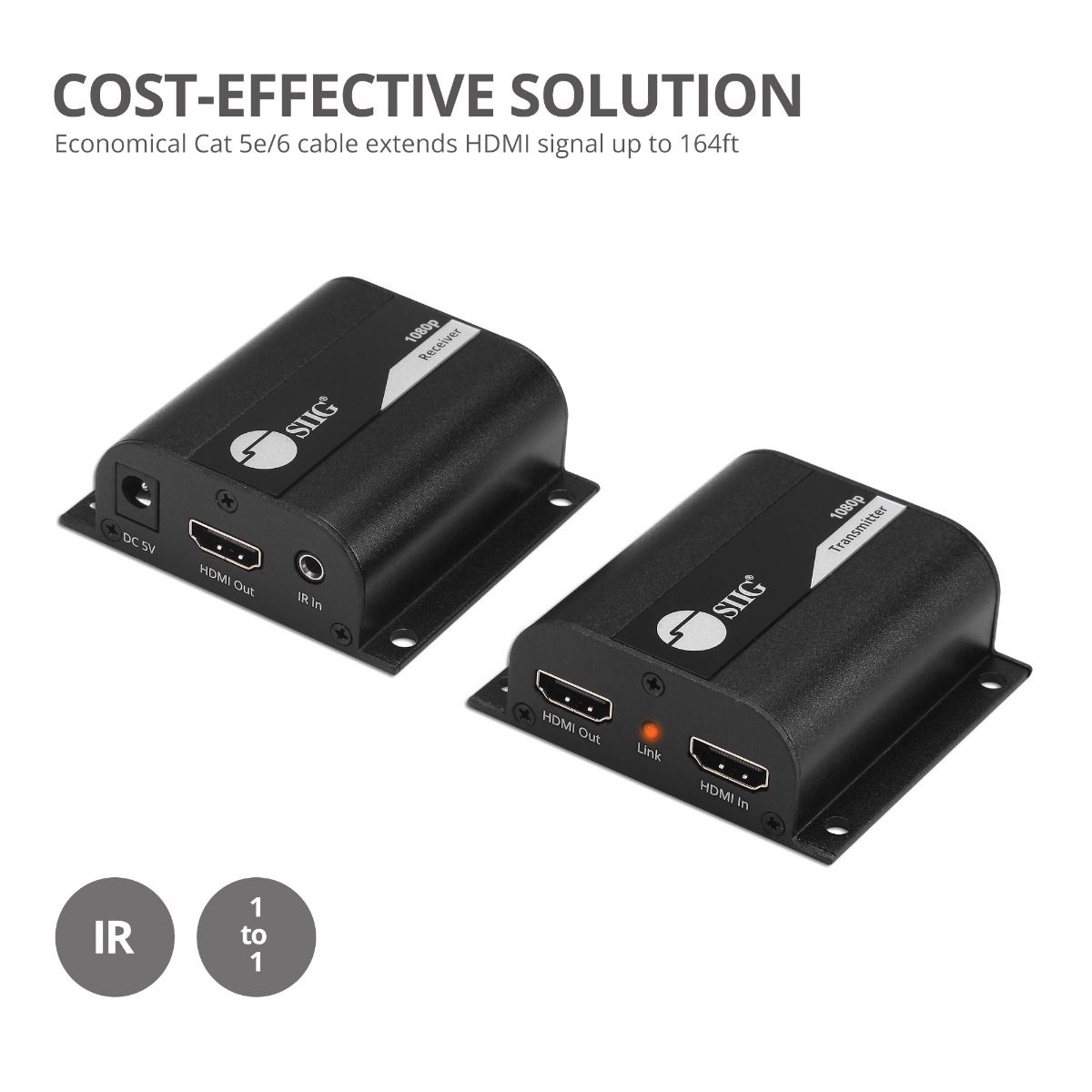

    Aluminum Alloy Housing Design

    Small and durable design with an Aluminum alloy housing that improves heat dissipation and ensure system stability during long hours of operation. Integrated mounting bracket for easy placement



    • Home Theater• Educational facilities• Workstation• Office• Conference room• Show room
    • Security room• Home surveillance• Control center• Medial room• Hospital• Church
    • Lecture hall• Library• Shopping center• Restaurant• Sport bar• Concert
    • Digital signage• Indoor & outdoor advertising

    Need to Know Before Buying

    1. Please confirm your computer or device with HDMI port


    2. Check the extended and local displays/monitors with HDMI port and supports 1080p@60Hz resolution


    3. After changing the display, please press the reset button to relearn the EDID

    4. Please prepare a Cat6 extension cable over 100ft of 100% copper UTP cable for best transmission quality

    5. This Full HD HDMI extender over Cat5e/6 with IR is a point-to-point (1 to 1) connection and does not work with router or Ethernet switch

    6. Replaces products: part# CE-H22E11-S1


    HDMI 1x input, 1x output, 1x loop-out
    Resolution HDCP 1.2, 1080p/1080i/720p/480i/480p @60Hz
    Transmission distance Up to 164ft (50m)
    Bandwidth Up to 10.2Gbps
    7.1 channel surround sound from HDMI port
    Power Adapter
    Input AC 100-240V/50-60Hz
    Output DC 5V/1A
    UL listed E335801/Level: VI
    Environmental conditions
    Operating temperature 32 to 122 degrees F
    Storage temperature 14 to 158 degrees F
    Relative humidity: 0% to 90% RH (non-condensing)
    Product Info

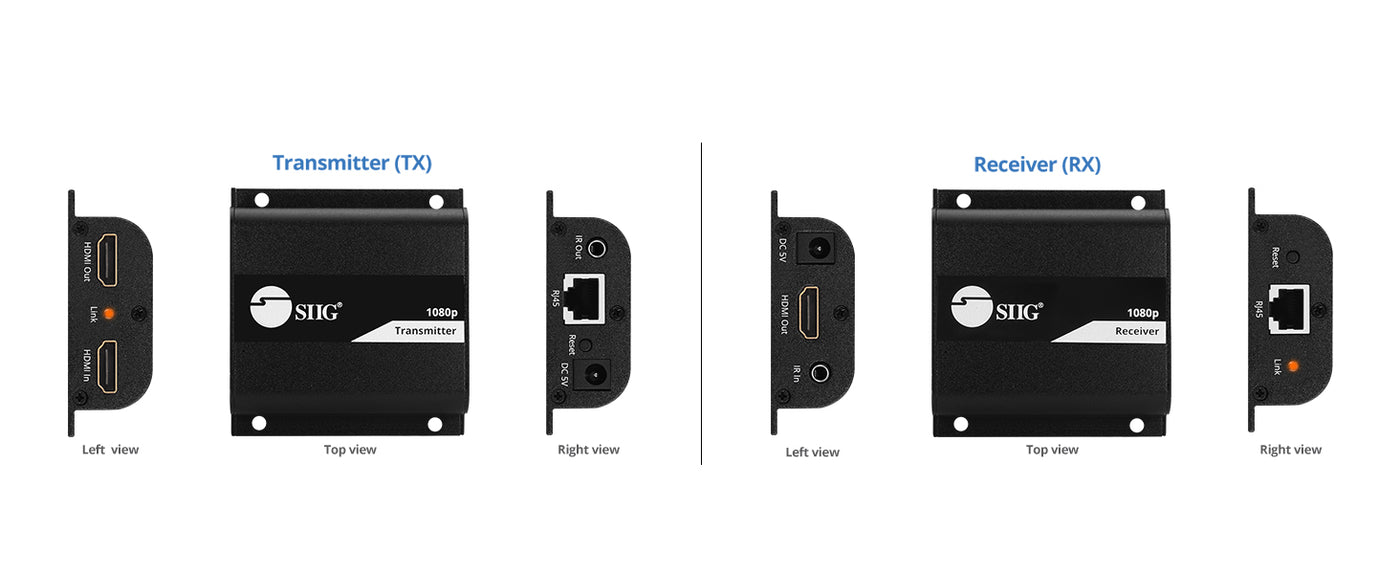

    Transmitter unit (TX) Dimensions: 2.80” (L) x 0.97” (H) x 2.60" (W)
    Weight: 0.19 lbs
    Color: Black
    Housing material: Aluminum alloy (Housing with wall mount design)
    Receiver unit (RX) Dimensions: 2.80” (L) x 0.97” (H) x 2.60" (W)
    Weight: 0.18 lbs
    Color: Black
    Housing material: Aluminum alloy (Housing with wall mount design)
    Unit package Dimensions: 7.83” (L) x 3.15” (H) x 5.87" (W)
    Weight: 1.10 lbs
    FCC, CE, RoHS 2.0, REACH
    Warranty: 2 years limited
    Country of origin: China

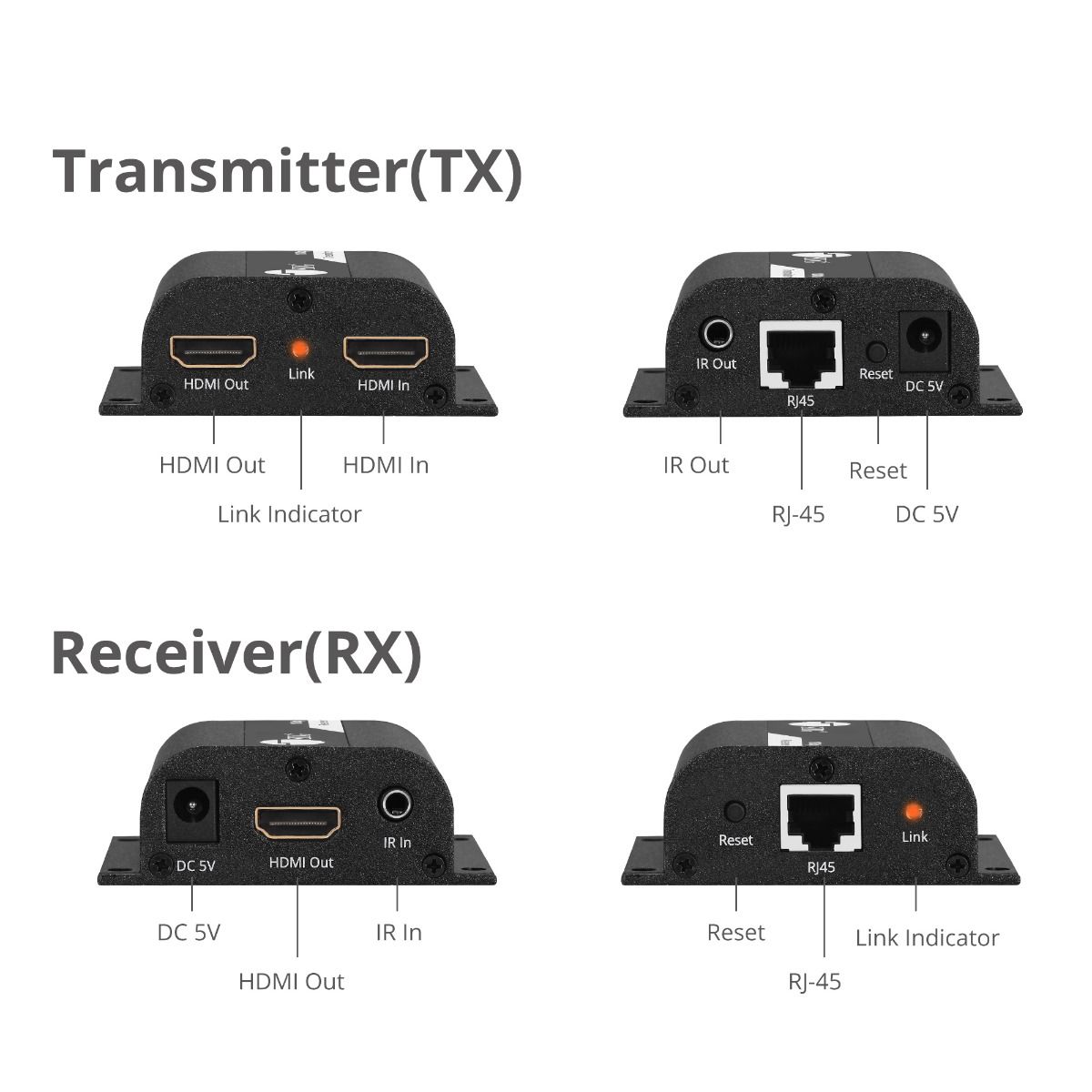

    Transmitter unit

    • 1x 19-pin, HDMI, Female (input)
    • 1x 19-pin, HDMI, Loop-out, Female
    • 1x 8-pin, RJ45 network (output)
    • 1x 3.5mm Infrared jack, IR emitter (output)
    • 1x reset button
    • 1x power jack, 5V/1A

    Receiver unit

    • 1x 19-pin, HDMI, Female (output)
    • 1x 8-pin, RJ45 network (input)
    • 1x 3.5mm Infrared jack, IR receiver (input)
    • 1x reset button
    • 1x power jack, 5V/1A

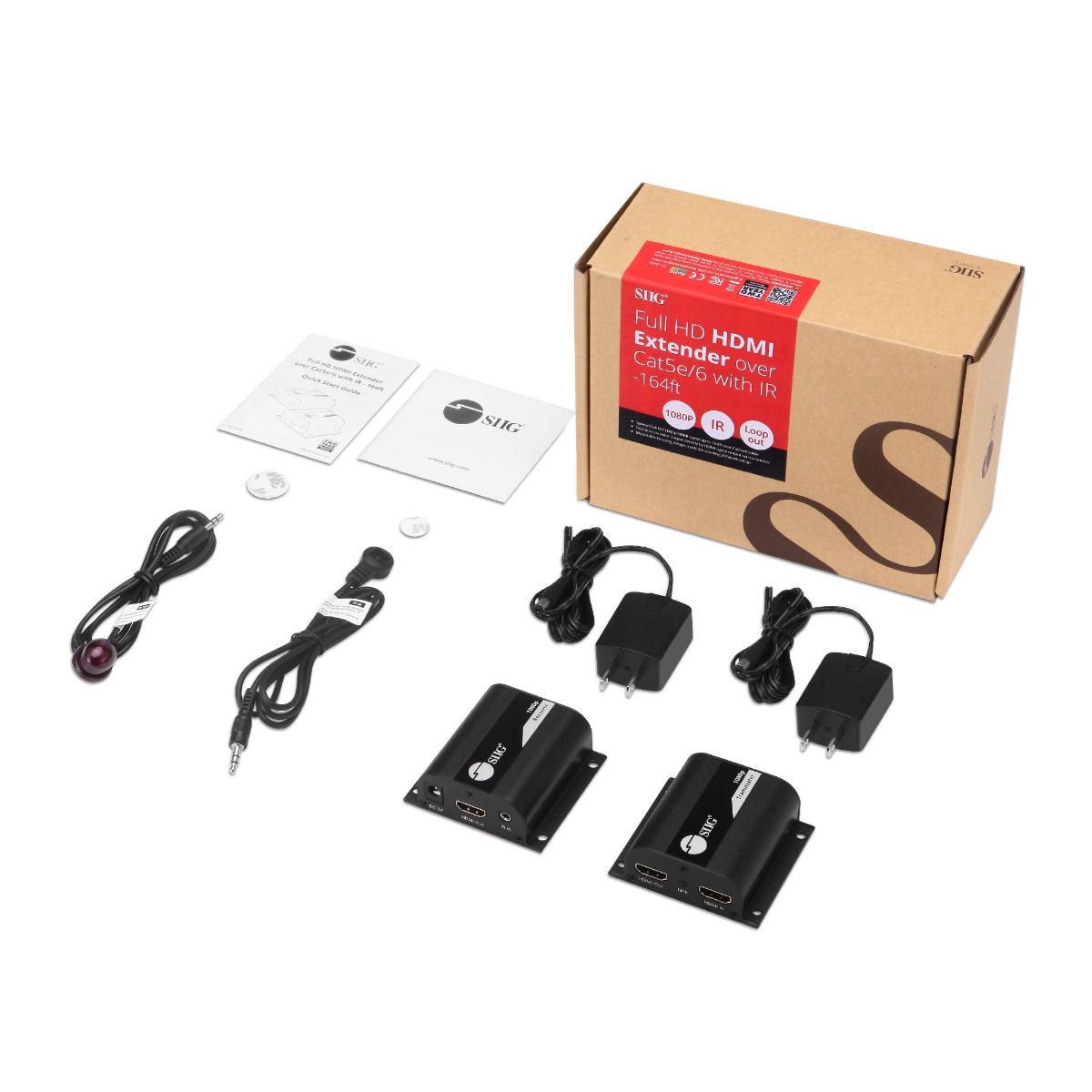

    Package contents

    • 1x Full HD HDMI Extender over Cat5e/6 with IR - 164ft
    • 1x 3.5mm IR emitter extension cable
    • 1x 3.5mm IR receiver extension cable
    • 2x DC power adapter, 5V/1A
    • 1x User reference guide
