Wireless |
SKU:
CE-H22T11-S1
Full HD Multi-Channel Expandable Wireless HDMI Extender Kit – Mid Range, 1080p @60Hz, 5GHz, 165FT
HDMI Wireless Extender
165ft (50m)
1080p 60Hz
IR extension
Multi -input
Regular price
$459.99
Unit price
/
Unavailable
Shipping calculated at checkout.
Full HD Multi-Channel Expandable Wireless HDMI Extender Kit – Mid Range, 1080p @60Hz, 5GHz, 165FT is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Wirelessly Transmits 1080P Full HD Media Contents
Wirelessly Transmits 1080P Full HD Media Contents
Connects up to 3 HDMI Sources
Connects up to 3 HDMI Sources
LED & IR Extension
LED & IR Extension
Built-in Switch Button
Built-in Switch Button
Premium and Durable Aluminum Housing
Premium and Durable Aluminum Housing
-
45 Days Free Return
-
2 Years Warranty
-
Lifetime Technical Support
No content found
| Wireless Technology | 5GHz |
| Standard | HDCP 1.2 compliant |
| Resolution | 480p / 720p / 1080i / 1080p 60Hz |
| Wireless Transmission Distance | Up to 165ft (line of sight) *Note: The transmission distance will vary depending on building layout, electronic interference, walls and partitions, other environmental conditions, and may be much less than the maximum. |
| HDMI Cable Length | Up to 5 meters (input & output) |
| Audio | 2-Ch PCM stereo audio |
| IR Frequency Range | 20-60KHz |
| Wireless Channels | Channel 0: 5.180 (Frequency), 20MHz Channel 1: 5.220 (Frequency), 20MHz Channel 2: 5.230 (Frequency), 20MHz Channel 3: 5.230 (Frequency), 40MHz Channel 4: 5.745 (Frequency), 20MHz Channel 5: 5.765 (Frequency), 20MHz Channel 6: 5.785 (Frequency), 20MHz Channel 7: 5.805 (Frequency), 20MHz Channel 8: 5.825 (Frequency), 20MHz Channel 9: 5.805 (Frequency), 40MHz |
| Supported Topology | 1 Transmitter (TX) to 1 Receiver (RX) 1 Transmitter (TX) to 2 Receivers (RX) |
| Video Compression Technology | H.264 |
| Wireless Delay | < 200ms |
| Connector | |

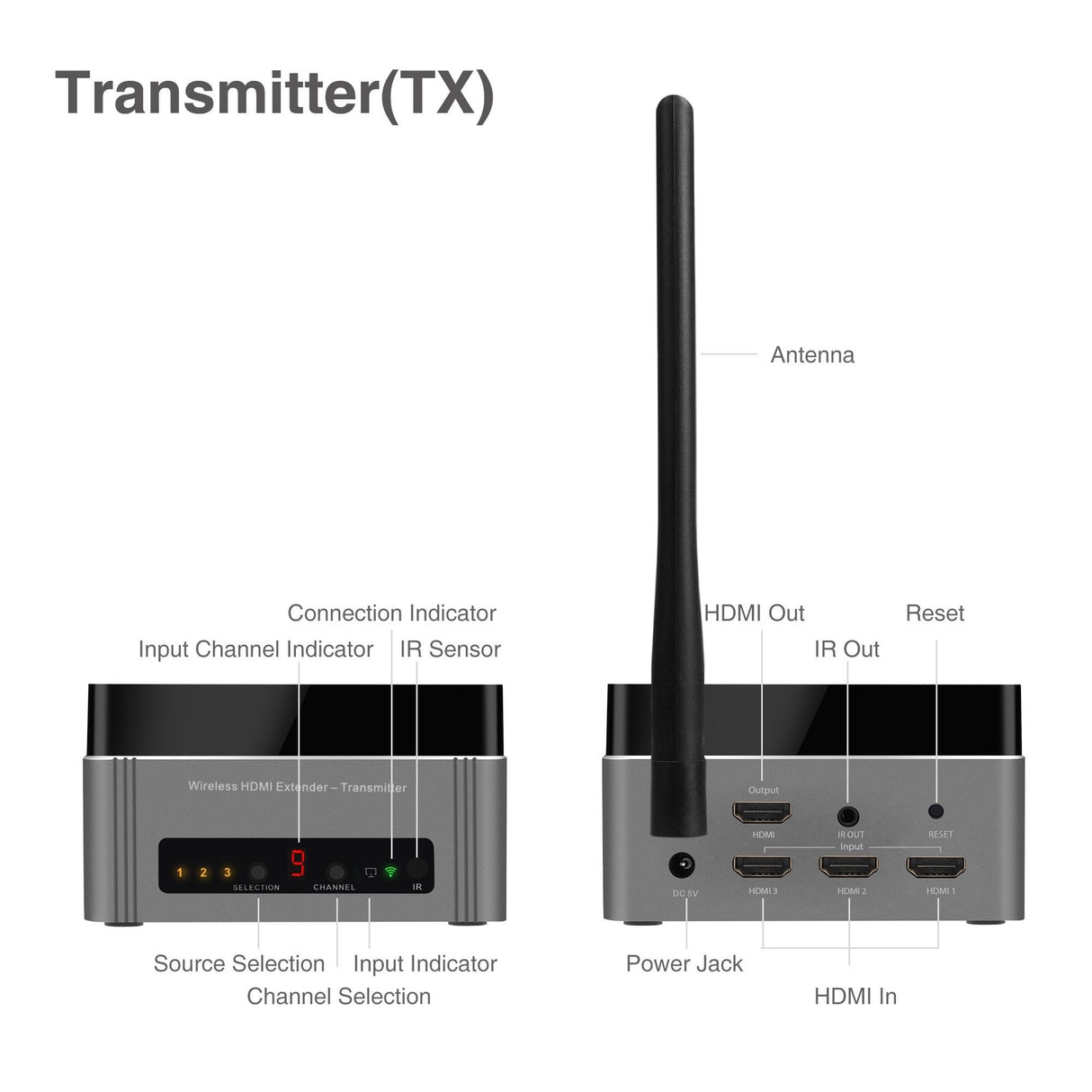

| Transmitter Unit (TX) | 3x 19-pin, HDMI, female, input 1x 19-pin, HDMI, female, output 1x 3.5mm Jack, IR blaster 1x Power jack 2x Switch buttons (channel & source) 1x Antenna |
| Receiver Unit (RX) | 1x 19-pin, HDMI, female, output 1x 3.5mm Jack, IR receiver 1x Power jack 2x Switch buttons (channel & source) 1x Antenna |
| Power Adapter | |
| Input | 100-240V AC / 50-60Hz |
| Output | 5V DC / 2A |
| Certifications/Standards | FCC, CE, RoHS |
| UPC Code | 662774-040721 |
| Product | |
| Transmitter Unit (TX) | |

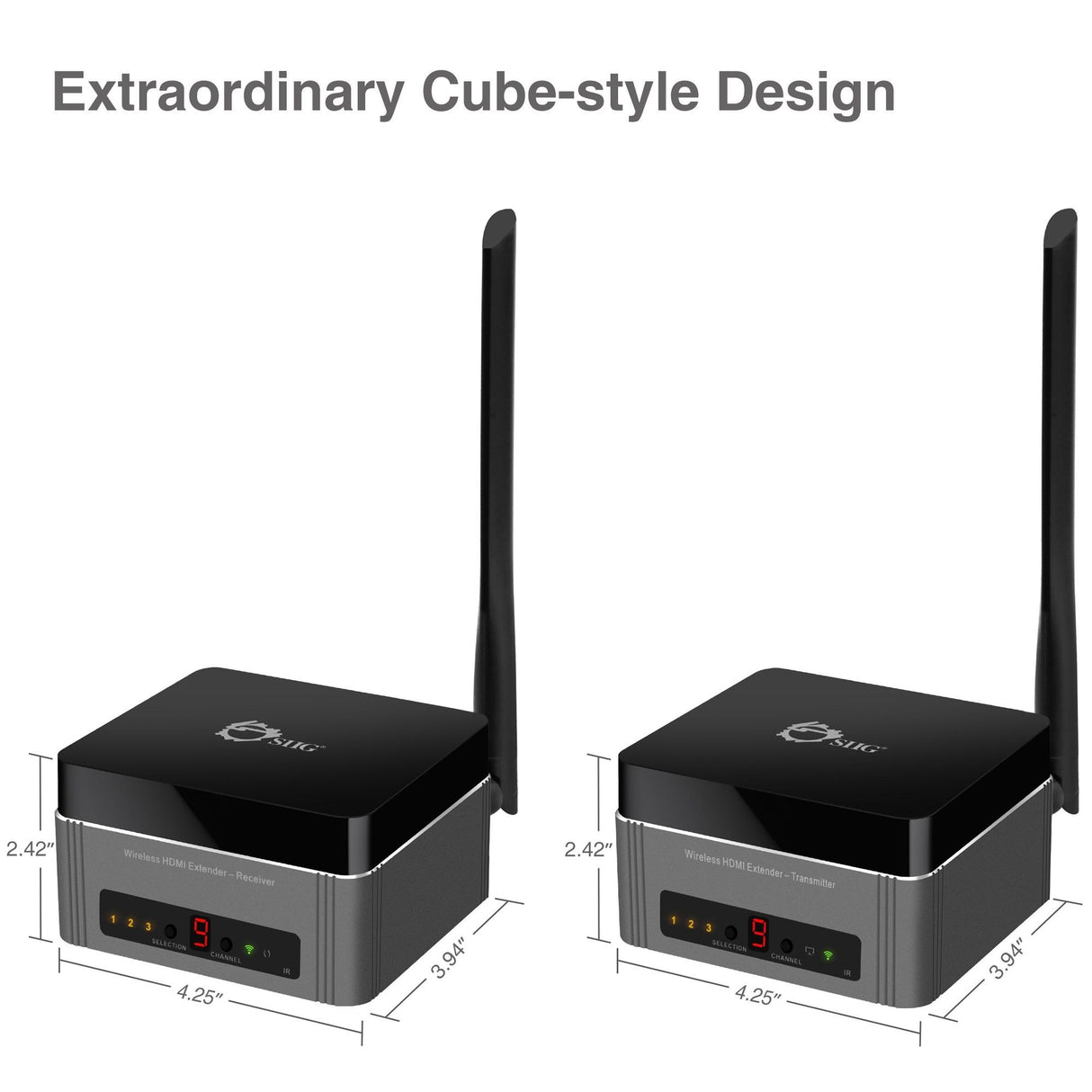

| Dimensions (L) x (H) x (W) | 4.25" x 3.94" x 2.42" 10.80 cm x 10.01 cm x 6.15 cm |
| Weight | 0.51 lbs (0.23 kg) |
| Color | Black & Deep Grey |
| Housing | Aluminum |
| Receiver Unit (RX) | |
| Dimensions (L) x (H) x (W) | 4.25" x 3.94" x 2.42" 10.80 cm x 10.01 cm x 6.15 cm |
| Weight | 0.51 lbs (0.23 kg) |
| Color | Black & Deep Grey |
| Housing | Aluminum |
| Unit Package | |
| Dimensions (L) x (H) x (W) | 14.06″ x 3.35″ x 6.02″ 35.71 cm x 8.51 cm x 15.29 cm |
| Weight | 2.36 lbs (1.07 kg) |
| Master Carton | |
| Dimensions (L) x (H) x (W) | 18.70″ x 12.60″ x 14.57″ 47.50 cm x 32.00 cm x 37.01 cm |
| Weight | 25.57 lbs (11.60 kg) |
| Quantity | 10 pcs/ctn |

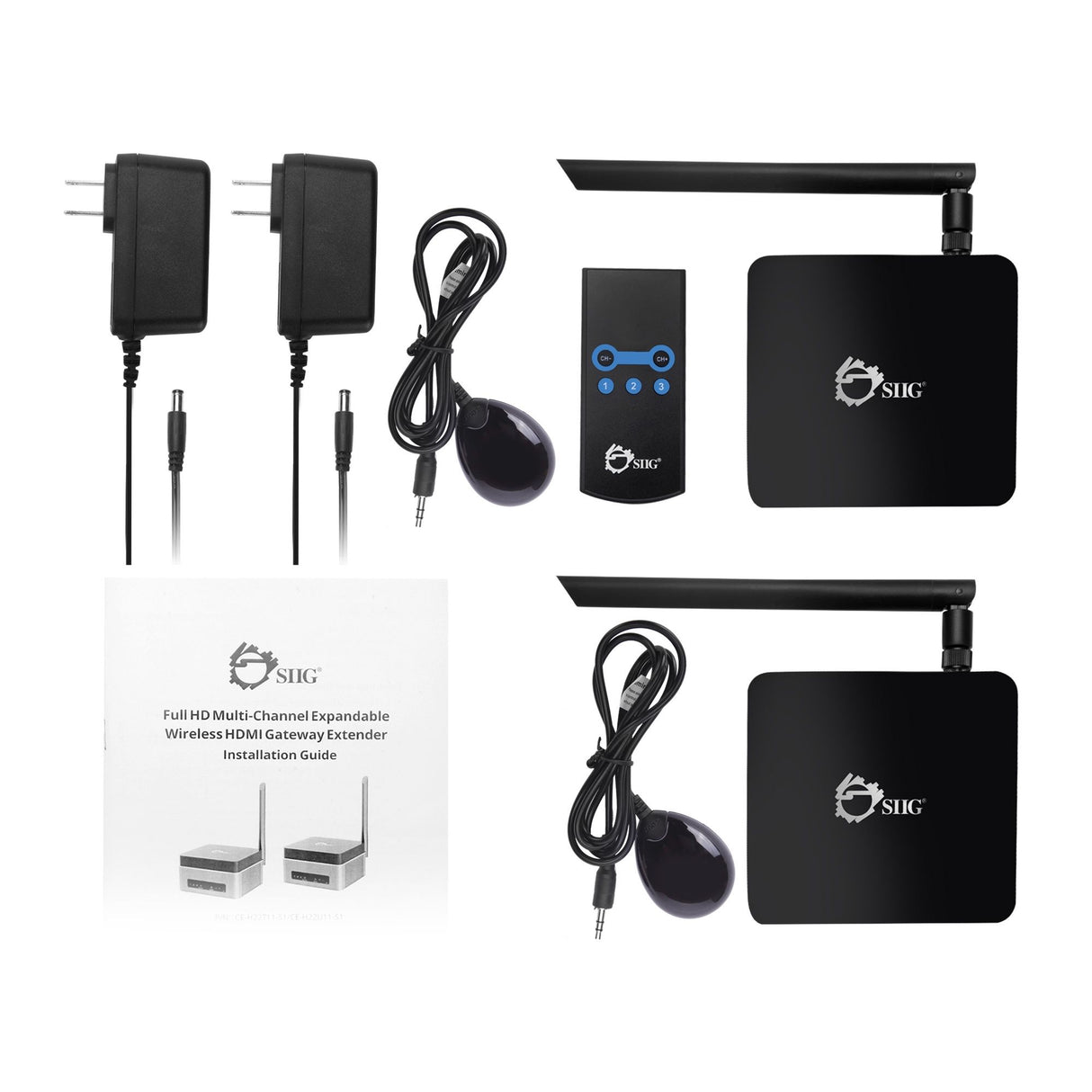

| Package Contents | 1x Full HD Multi-Channel Expandable Wireless HDMI Extender Kit – Mid Range 2x Power adapter 1x IR Blaster extension cable 1x IR Receiver extension cable 1x Remote Control 1x User reference guide |
| Environmental Conditions | |
| Operating Temperature | 32° to 104° F |
| Operating Humidity | 5% to 90% RH (non-condensing) |
| Storage Temperature | 14° to 140° F |
| Warranty | 2 years limited |
| Country of Origin | China |

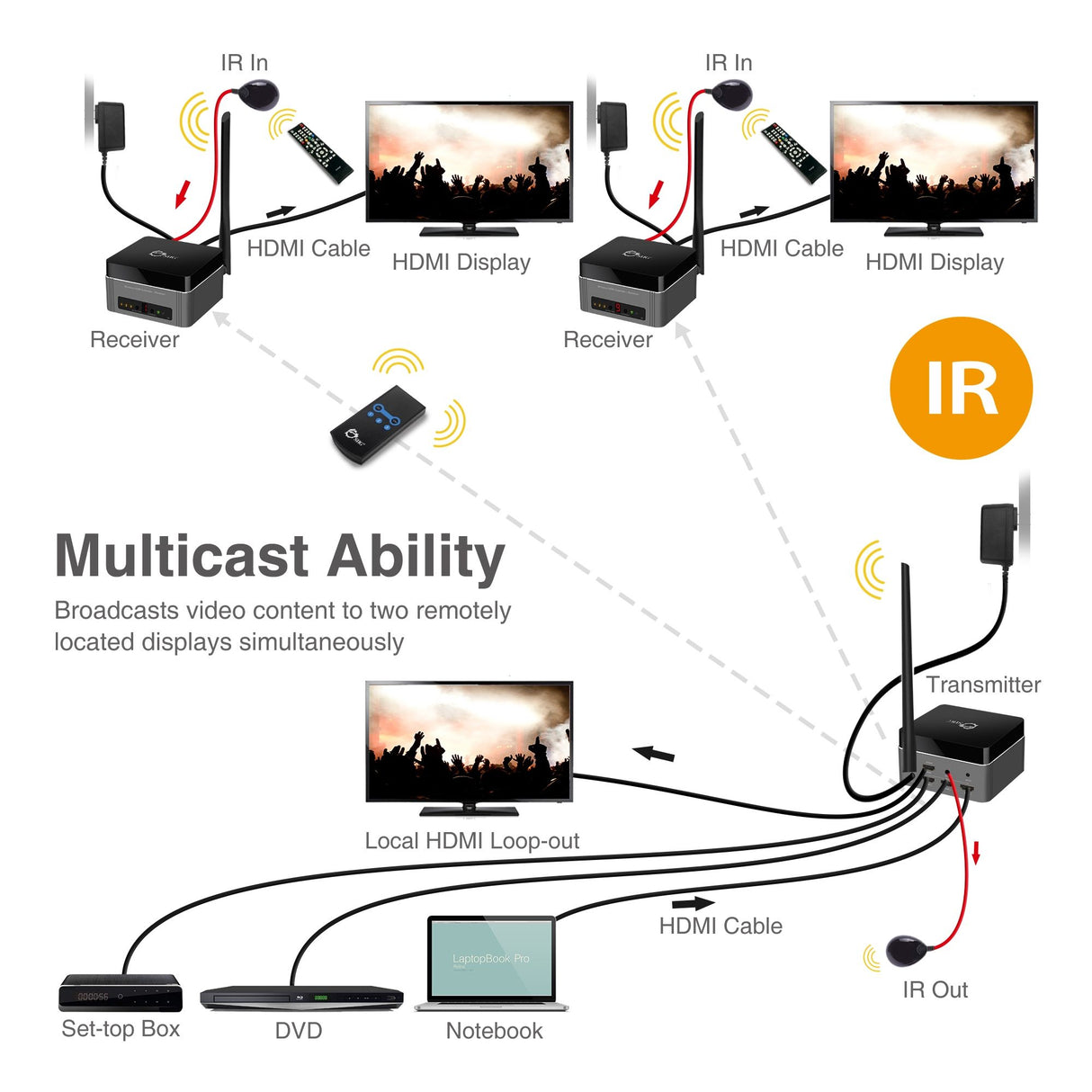

Q1 : This system is labeled as "expandable". Does that mean the transmitter has the capability to communicate with two receivers simultaneously?
Q1 : This system is labeled as "expandable". Does that mean the transmitter has the capability to communicate with two receivers simultaneously?
A1: Yes, the transmitter is capable of broadcasting to 2 receivers simultaneously, when adding a 2nd receiver unit (part # CE-H22U11-S1, sold separately). Please note the transmitter acts as an extender/splitter, showing the same content on both displays, when a 2nd receiver unit is added.
Q2: If I buy more than two receivers, will the signal be displayed on more than two screens?
Q2: If I buy more than two receivers, will the signal be displayed on more than two screens?
A2: Yes, but more than two receivers will decrease wireless performance and reduce video quality, so we recommend using only two receivers.
Q3: Can I display the different screens on the local monitor and the remote monitor?
Q3: Can I display the different screens on the local monitor and the remote monitor?
A3: No, you cannot. The local monitor and the remote monitor will display the same.
