Full HD Quad-View HDMI KVM MultiView Processor

  • HDMI 1.3
  • HDCP 1.4
  • 1080p
  • Four Screen on One Screen
  • Keyboard & Mouse
  • 4x USB 3.0
  • 4x USB 3.1 Gen 1
  • 2x USB 2.0
  • 3.5mm Audio & Mic
  • DIP Switch
  • Hotkey
  • Switch Button
  • Audio Lock
  • Mouse Roaming in different Systems
  • 3x Display Modes
  • Windows & mac
In stock
Quantity in stock: 17
SKU
CE-KV0A11-S1
$599.99

We will send this product within 1 business day

Lifetime technical support on all of our product

45 day return and money back guarantee



    Overview

    Control up to four computers using one keyboard, mouse, and 1080p display, with quad viewing, mouse roaming, 4-port USB 3.1 hub

    Overview


    Features

    Features

    Sharing four views displayed on one screen with four Full HD HDMI devices or computers at the same time via one set of keyboard & mouse to create a powerful workstation


    3 Display Modes

    Video screen layout included One View Mode, Quad View Mode and Quad View Cycled Mode

    Mode


    Mouse Roaming Function

    Simple move the mouse to roam between the four Windows or mac systems make perfect operation experience

    Mouse


    resolution

    Resolution

    Supports video resolution up to [email protected] Full HD for clear image. Compliant with HDMI 1.3 (HDCP 1.4) with 6.75Gbps video bandwidth


    KVM

    Effortlessly Switch

    Easily switching between computer/device via the front panel push button or USB keyboard hotkeys make this Full HD Quad-View HDMI KVM MultiView Processor user-friendly to operate

    Switch

    Supports audio lock function, easily lock the stereo audio to the selected source device, which can avoid switching to stereo audio when switching to another source devices


    Multiple Connectivity Port

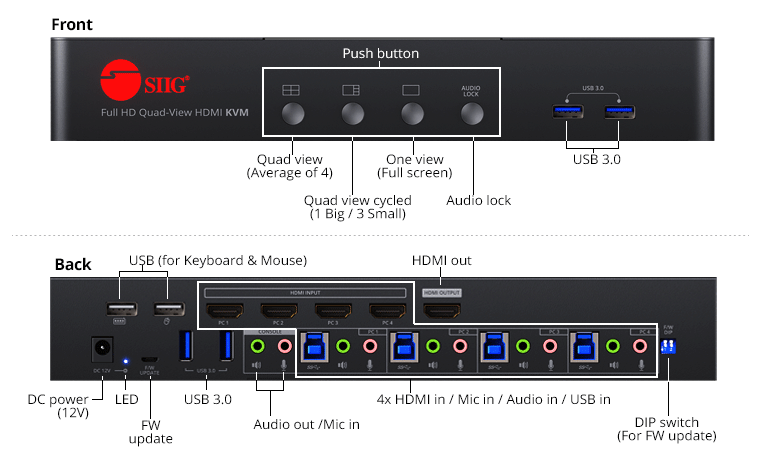

    Comes with four USB 3.0 Type-B (Host), four HDMI video input ports, two USB 1.1 for keyboard & mouse connection, four USB 3.1 Gen 1 Type-A, one HDMI video output port, ten 3.5mm jack to connect a stereo speaker/earphone or microphone, Micro USB for firmware updated, and four switch buttons, and one FW DIP switch

    Ports

    Connection

    Connection


    USB

    USB Data Transfer

    Delivers four SuperSpeed USB 3.1 Gen 1 Type-A ports up to 5Gbps data transfer rate on the front side for Flash drive, Printer, and other USB peripheral devices. Two High Speed USB 2.0 Type-A ports up to 480Mbps data transfer rate for independent HID keyboard and mouse


    Maximum Compatibility

    Supports Plug-n-play, no driver installation required and firmware upgradeable for new technology enhancement


    ESD Protection

    ESD


    Metal Housing Design

    Protects the inside PCBA, also enhance the heat dissipation for better performance. Military-grade component and ESD protection for long service life


Applications

    • Gaming room
    • Control center
    • Medical office
    • Educational facilities
    • Media editing
    • Testing lab
    • Workstation
    • Audio/Video presentation room
    • Photo shooting studio
    • AirPort

    Need to Know Before Buying

    1. Please confirm your computer or devices with HDMI port, USB 3.0 port, and audio & Mic ports

    Computer

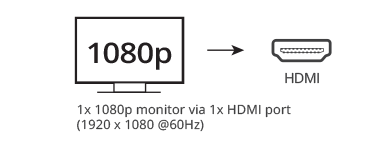

    2. Check the extended display/monitor with HDMI port

    Monitor

    3. Four USB 3.0 cables are required to connect to the USB 3.0 peripheral devices


    Specifications

    Software
    OS Compatibility Windows® 10, mac OS ® 10.13 or new
    Video
    HDMI 1.3 HDCP 1.4
    Bandwidth Up to 6.75Gbps
    Resolution 480i / 480p / 576i / 576p / 720p / 1080i / 1080p
    Display mode Single view mode, Quad view mode, and Quad view cycled mode
    USB Data Transfer Rate
    USB 2.0 up to 480Mbps
    USB 3.0 up to 5Gbps
    Audio
    5.1 channel surround sound from HDMI port
    PCM 2.1 channel stereo digital audio for 3.5mm audio jack
    Power Adapter
    Input AC 100-240V / 50-60Hz
    Output DC 12V/2A
    UL Listed E263376 /Level: VI
    Environmental conditions
    Operating temperature 32 to 104 degrees F
    Storage temperature -4 to 140 degrees F
    Relative humidity:
    Product Info
    Dimensions 11.10” (L) x 1.70” (H) x 4.39” (W)
    Weight 2.23 lbs
    Color Black
    Housing material Metal
    Unit Package
    Dimensions 13.03” (L) x 6.38” (H) x 8.03” (W)
    Weight 5.70 lbs
    Certifications/Standards
    FCC, CE, RoHS, TAA compliant
    Warranty: 3 years limited
    Country of origin: Taiwan

    Interface

    Interface

    Input:

    • 4x 19-pin, HDMI 1.3, Female
    • 4x 9-pin, USB 3.0 Type-B, Female (Host)
    • 4x 9-pin, USB 3.1 Gen 1 Type-A, Female
    • 2x 4-pin, USB 2.0 Type-A, Female (for Keyboard & Mouse)
    • 4x 3.5mm phone jack for stereo audio, Female
    • 1x 3.5mm phone jack for Microphone, Female
    • 1x 5-pin, Micro USB for FW update, Female
    • 1x2-pin, DIP switch (control)
    • 4x Push button (device switching)
    • 1x DC power jack, 12V/2A

    Output:

    • 1x 19-pin, HDMI 1.3, Female
    • 4x 3.5mm phone jack for Microphone, Female
    • 1x 3.5mm phone jack for stereo audio, Female

    System Requirements

    • Desktop or Laptop with an available HDMI, USB 3.0 Type-A, audio and microphone ports
    • Windows® 10 / 8.x / 7 / XP (32-/64-bit)
    • mac OS® 10.13 or new

    Package contents

    • 1x Full HD Quad-View HDMI KVM MultiView Processor
    • 1x DC Power adapter (12V/2A)
    • 4x HDMI cable (1.8m)
    • 4x 3-in-1 cable (USB+Audio+Mic)
    • 1x User Reference Guide
