AV-Converter/Adapter |
SKU:
CE-H26A11-S1
HDMI to DisplayPort 1.2 Converter with Audio Extractor
HDMI to DP
18Gbps
Audio extractor
EDID button
Metal housing
Regular price
$329.99
Unit price
/
Unavailable
Shipping calculated at checkout.
HDMI to DisplayPort 1.2 Converter with Audio Extractor is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
High Performance
High Performance
Resolution
Resolution
Audio Extractor
Audio Extractor
Metal Housing Design
Metal Housing Design
Power & FW
Power & FW
No content found
| Compliance | Compliant with HDMI and DisplayPort 1.2a specifications Compliant with HDCP 1.4 and 2.2 Supports xvYCC, x.v.Color and Deep Color Supports 4K2K@60Hz 4:4:4 8bits Supports 8-bit, 10-bit, and 12-bit Deep Color |
| Video Bandwidth | 18Gbps (single-link 600MHz) |

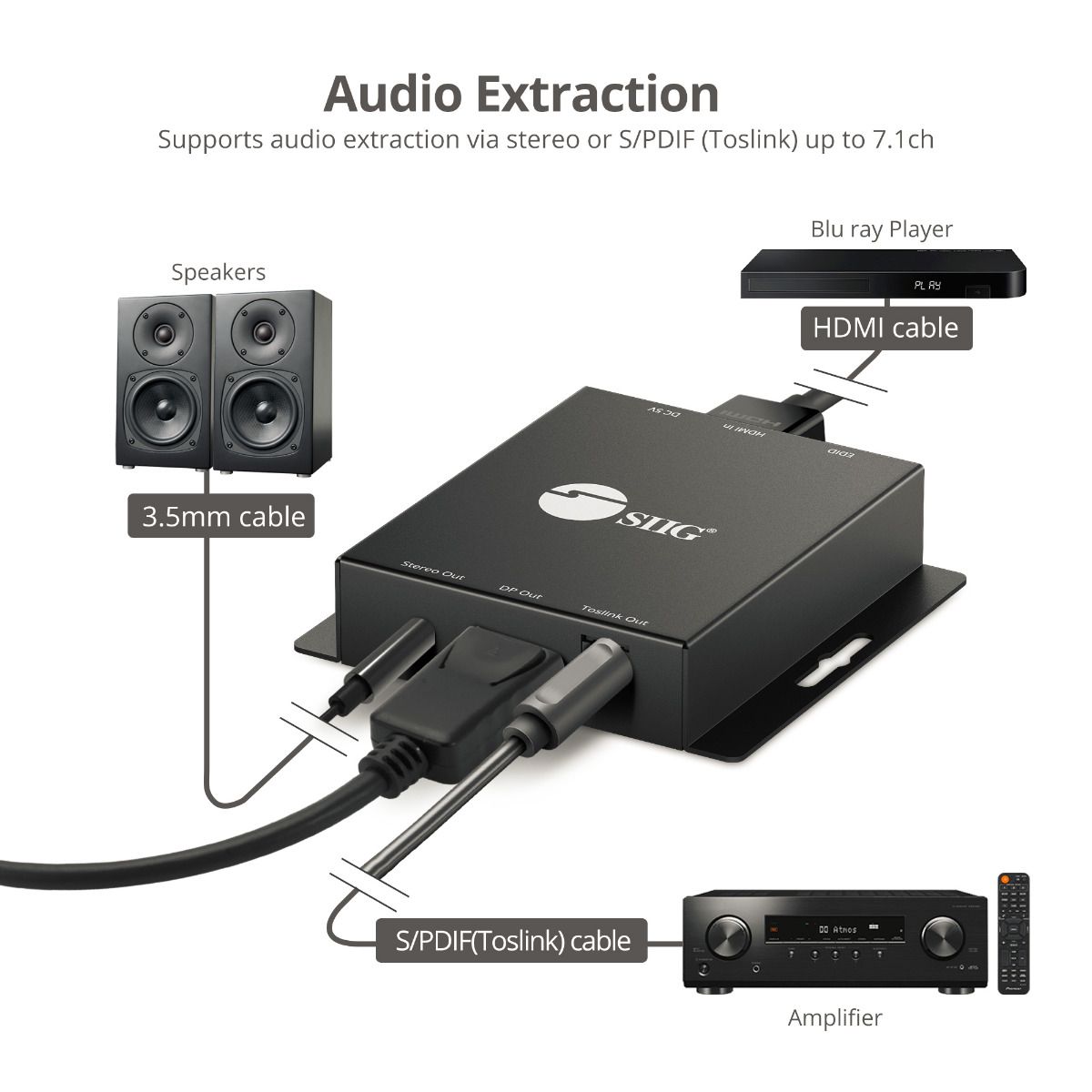

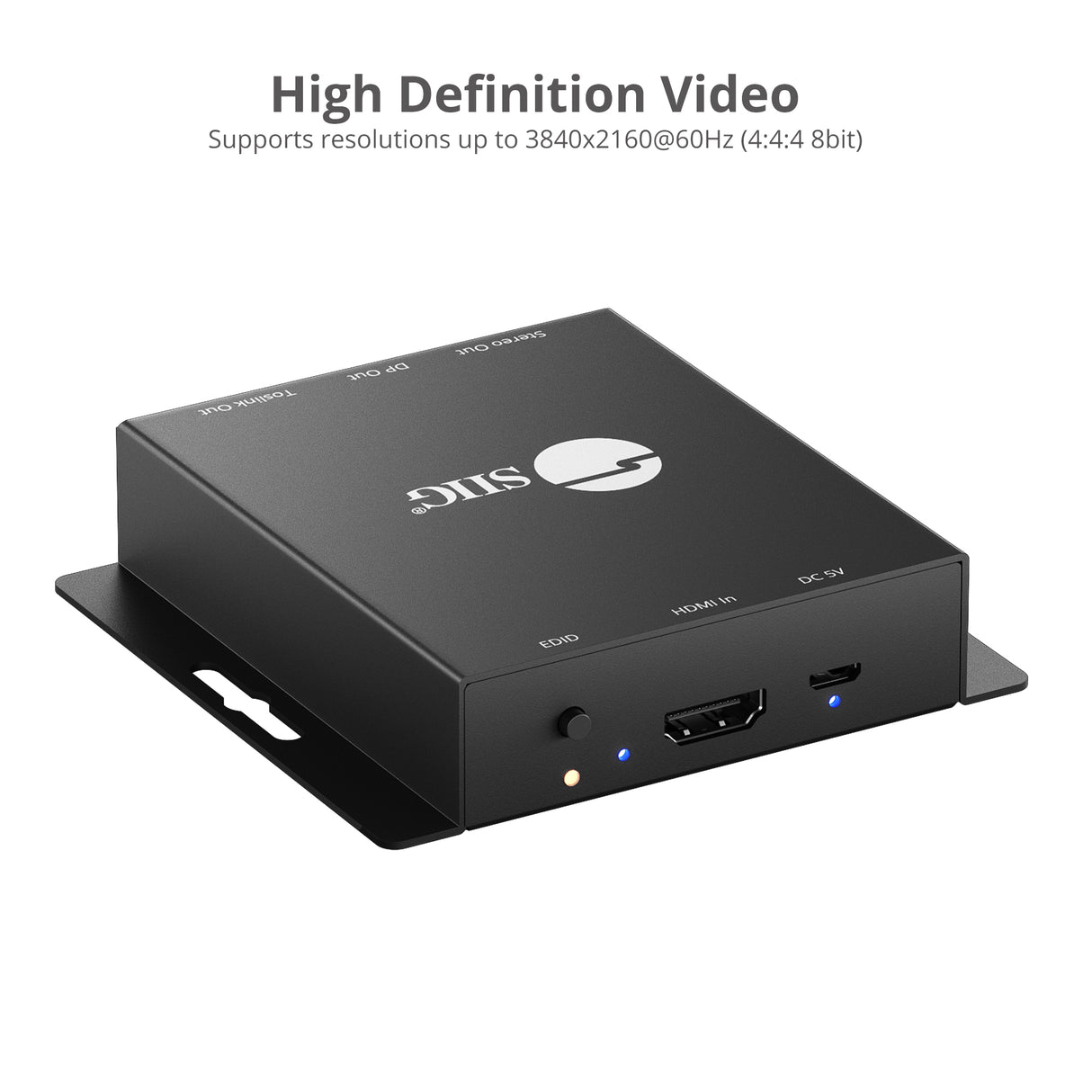

| Resolution Support | 720p/1080i/1080p/2160p Up to 3840 x 2160 @60Hz (4:4:4 8bit) Supports audio extraction via 3.5mm Stereo jack or Toslink 5.1ch |
| Supported audio formats | |
| HDMI | PCM 2 / 5.1 / 7.1, Dolby 5.1 / 7.1, DTS 5.1 / 7.1 |
| Toslink | PCM2.0 & Digital 5.0 |
| Stereo 3.5mm | PCM2.0 |
| ESD protection | ±15kV Air / ±8kV Contact |
| Supports transmission distance (cable length) | 4K @60Hz: Up to 10m (5m/In; 5m/Out) 1080p & 4K@30Hz: Up to 15m (5m/In; 10m/Out) |

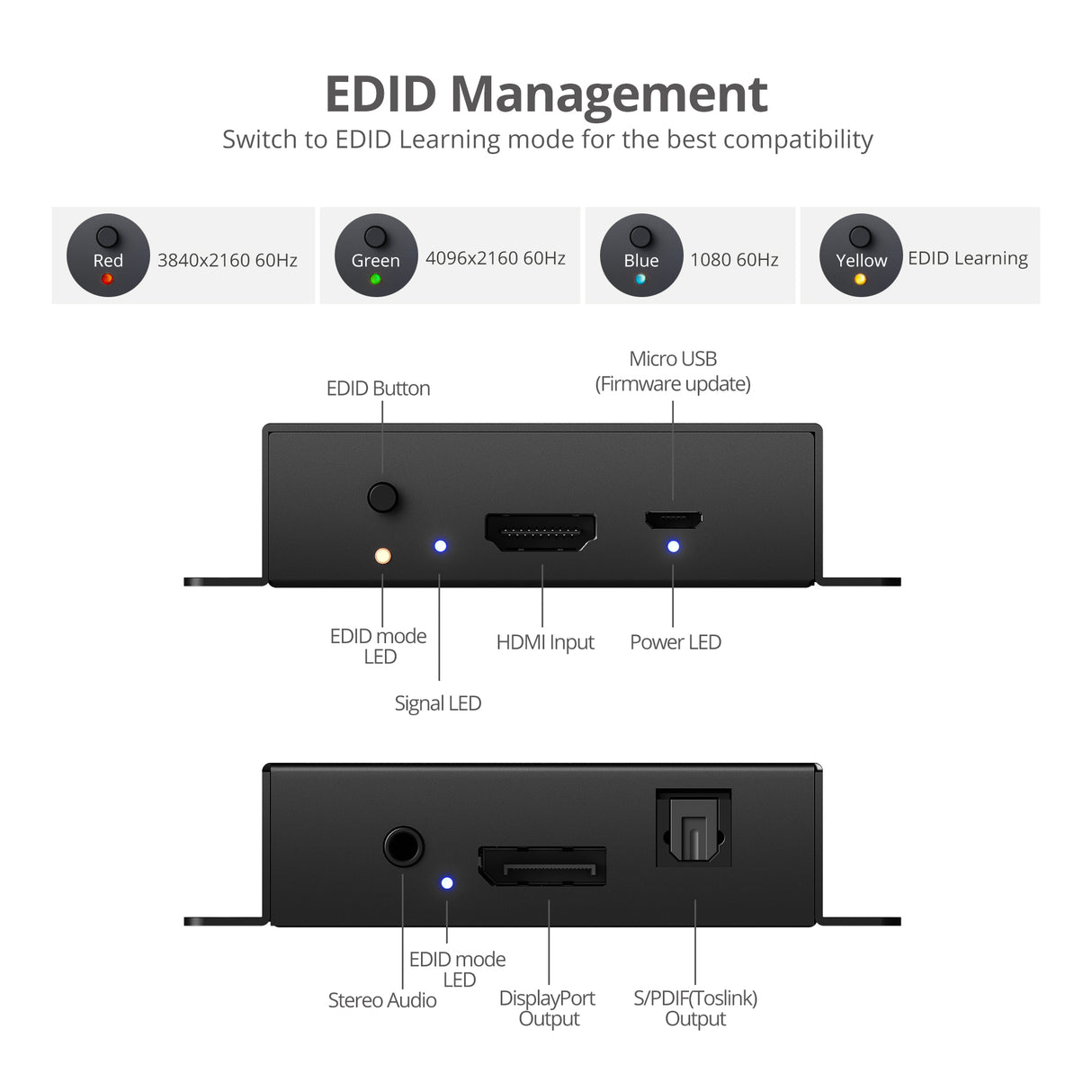

| EDID mode indicator LED | |
| Red | 3840x2160@60Hz |
| Green | 4096x2160@60Hz |
| Blue | 1080p@60Hz |
| Yellow | EDID learning, support 1920x1080@144Hz, 120Hz, 100Hz |

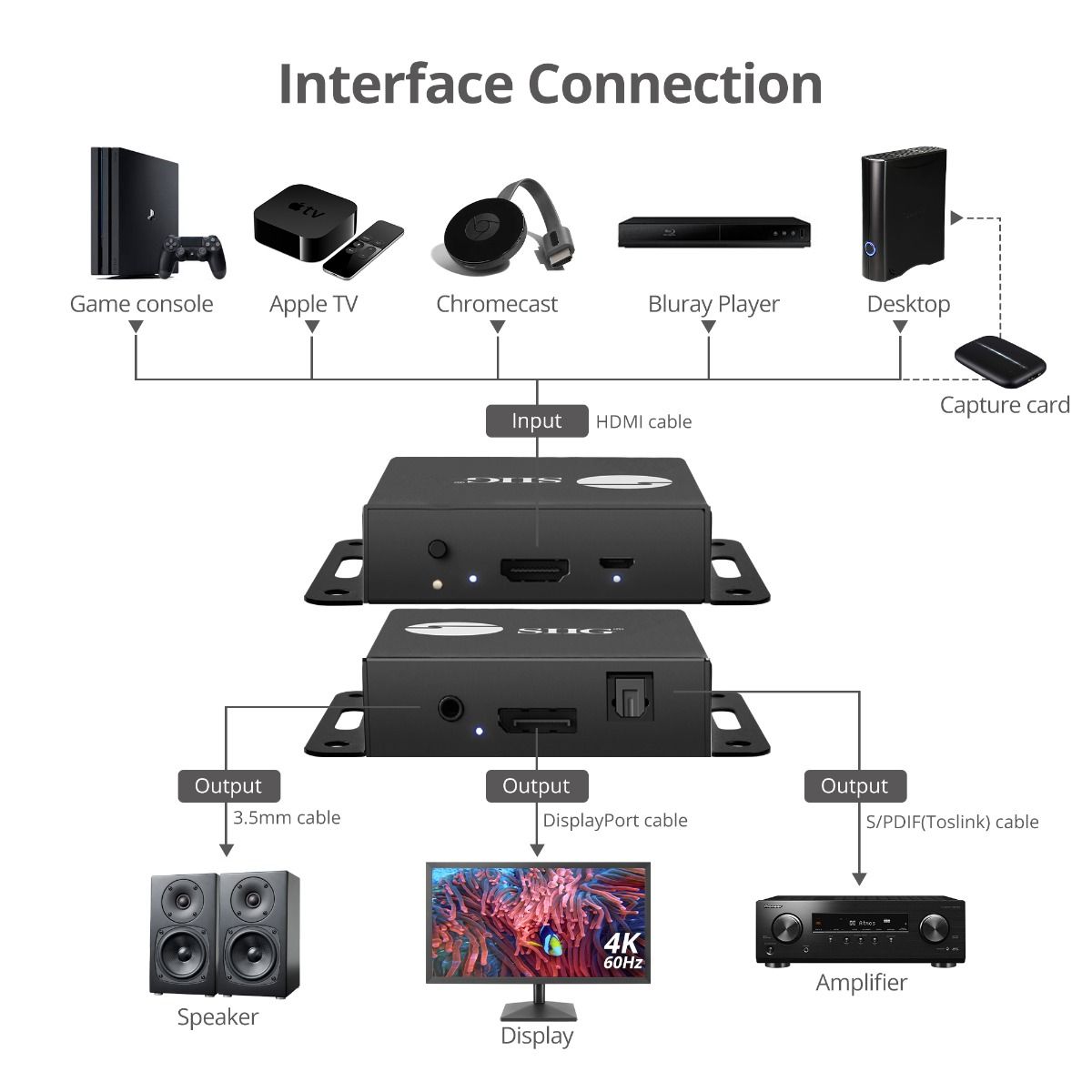

| Connector | 1x 19-Pin, HDMI, Type A, Female, Input 1x 20-Pin, DisplayPort, Female, Output 1x S/PDIF (Toslink), Audio, Output 1x 3.5mm, phone jack, Stereo audio, Output 1x 5-Pin, Micro USB, Female, Power Input 1x Push button, EDID selection |
| Product | |

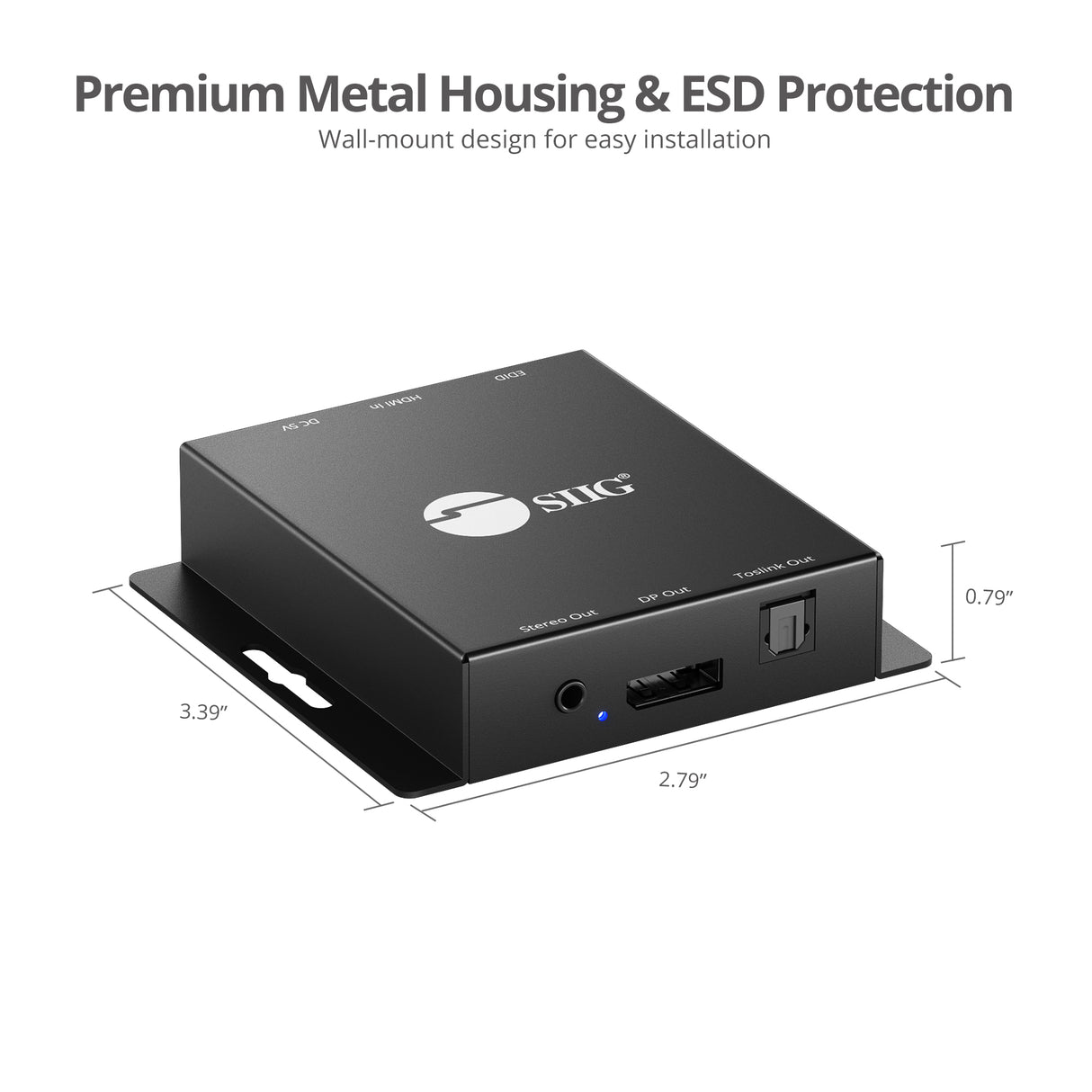

| Dimensions | 3.39" x 0.79" x 2.80" (W x H x D) |
| Weight | 0.38 lbs |
| Color | Black |
| Unit Package | |
| Dimensions | 9.06" x 1.61" x 3.74" (W x H x D) |
| Weight | 0.79 lbs |
| Master carton | |
| Dimensions | 19.69″ x 9.49″ x 18.78″ (W x H x D) , 50pcs/ctn |
| Weight | 42.45 lbs |
| Housing material | Metal |

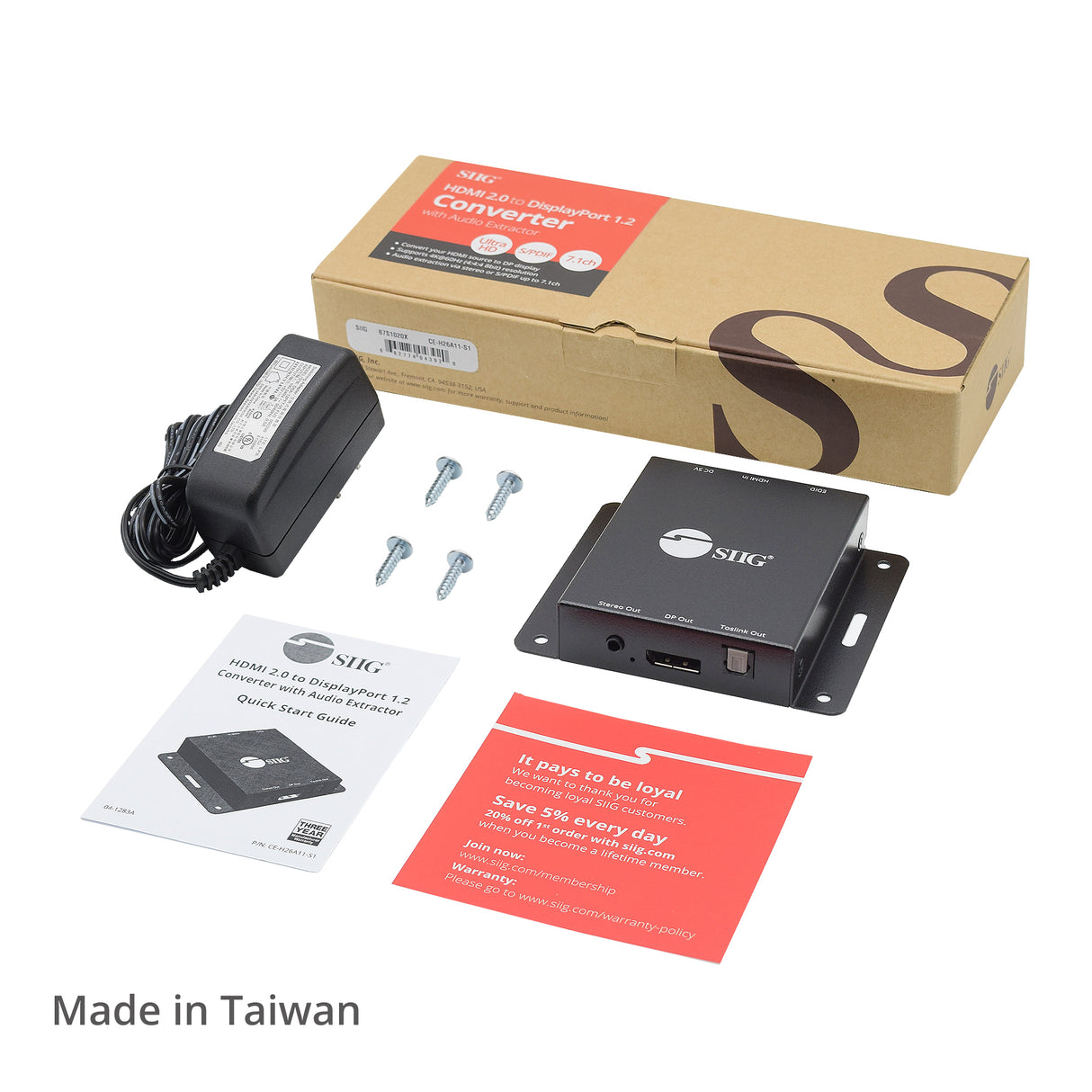

| Package contents | HDMI to DisplayPort 1.2 Converter with Audio Extractor Power adapter Screw kit (2pcs) Quick start guide |
| Power Adapter | |
| Input | 100-240VAC, 50/60 Hz |
| Output | DC5V/2A |
| UL Listed | 135856/Level: VI |
| Environmental Conditions | |
| Operating Temperature | 32 to 104 degrees F |
| Storage Temperature | -4 to 140 degrees F |
| Relative Humidity | 20 to 90% RH (non-condensing) |
| Certifications / Standards | FCC, CE, RoHS, TAA compliant |
| UPC Code | 662774043920 |
| Warranty | 3 years limited |
| Country of Origin | Taiwan |
