HDMI 4K30Hz HDbitT over IP Extender - Receiver

  • HDMI over HDbitT
  • IP Extender
  • 394ft/120m
  • 4K
  • HDCP 1.4
  • Cat6/7
  • One to Many
  • IR Extension
  • VLAN Supports Multicast
  • Reset Button
In stock
Quantity in stock: 65

We ship all orders within 1 business day

Lifetime technical support on all of our products

45-day return window and money-back guarantee


    Additional receiver unit for CE-H25D11-S2 kit, adds an additional display to a single transmitter within your network, 4K30Hz, 394ft/120m, HDCP 1.4, One to Many, Many-to-Many, IR Control



    Transmits HDMI audio and video signals to a remote display/monitor over UTP Cat6/7 cable up to 394ft (120m) and sends the 4K HD resolution to the receiver for stable transmission and cost saving. Allows multiple receivers to be used simultaneously in multiple configurations


    What is HDbitT?
    HDbitT is a new generation audio/video digital connection transmission protocol solution. Provides stable performance, long-distance transmission, and high-definition signal


    Extend Distance
    This HDMI 4K30Hz HDbitT over IP Extender designed for transmission/security, HDMI signals up to 394ft (120m) through HDbitT protocol and Gigabit Ethernet switch to a remote HDMI display

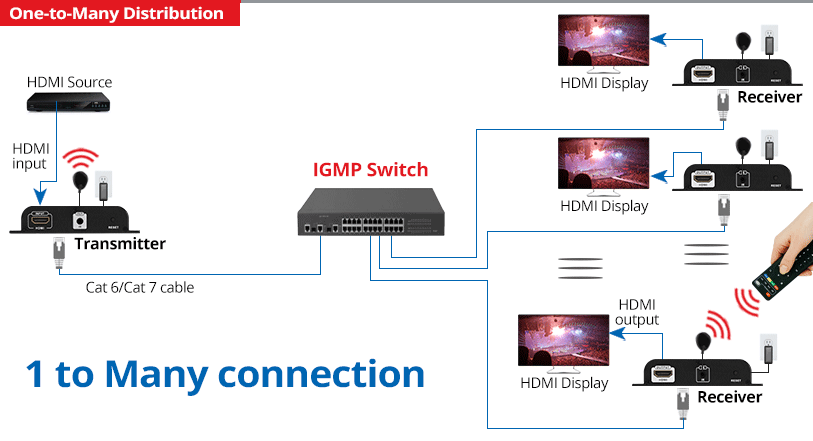

    Highly Scalable
    Works as a scalable TX/RX matrix over the dedicated IP network and extends/splits HDMI signals to multiple displays. Allows up to 256 total units, the additional receiver unit (part#- CE-H25E11-S1) is sold separately

    *Note: IGMP Gigabit Switch is recommended for best performance and reliability




    VLAN setup supported
    create a separate VLAN for each TX and its corresponding RX’s

    res4K HD Resolution
    Supports high-definition video resolution up to 4K (3840x2160) @30Hz, HDCP 1.4 to deliver a crystal-clear picture quality

    IR Extension
    IR pass-through feature allows remote control of the HDMI source device and playback function at the remote display

    High Performance
    Offers a true 10.2Gbps video bandwidth and supports stereo audio


    Multiple Connectivity Ports
    Comes with one HDMI output port, one RJ45 network port, one 3.5mm IR receiver port, one reset button, one DC power jack (5V/2A)




    Maximum Compatibility
    Supports Plug-n-play. No driver installation required The reset button allows displays to be re-detected if no displays are detected

    Metal Housing Design
    Protects the inside PCBA, also enhance the heat dissipation for better performance. Military-grade component for long service life


    • Digital signage
    • Broadcasting
    • Video conference room
    • Show room
    • Classroom
    • Dental office
    • Hospitality
    • Supermarket
    • Shopping center
    • sport bar
    • Restaurant
    • Retail
    • Trade show
    • Church
    • Airport
    • Control center
    • Security center
    • Surveillance control center

    Need to Know Before Buying

    1. Please confirm your computer or device with HDMI port


    2. Check the extended display/monitor with HDMI port and supports 4K@30Hz resolution


    3. Please ensure using UTP Cat6 or Cat7 cable for the best video quality and accurate transmission distance

    4. IGMP Switch or Managed Ethernet Switch is recommended for the best performance and reliability

    5. This receiver (CE-H25E11-S2) is only for CE-H25D11-S2


    HDMI 1x output
    Resolution 4K@30Hz, 1080p/1080i/720p/480i/480p @60Hz
    Transport protocol
    HDbitT protocol Audio/video digital connection transmission protocol
    Stereo audio from HDMI, support 192Kbps bit rate
    IR pass-through
    Allows remote control of the HDMI source device and playback function at the remote display
    Full frequency 20KHz to 60KHz
    Power adapter Input: 100-240V/50-60Hz, Output: DC 5V/2A
    UL listed E335801/Level: VI
    Environmental conditions
    Operating temperature 32 to 122 degrees F
    Storage temperature 14 to 158 degrees F
    Relative humidity 0% to 90% RH (non-condensing)
    Product Info
    Transmitter unit (TX) Dimensions: 4.22” (L) x 0.93” (H) x 3.70" (W)
    Weight: 0.37lbs
    Color: black
    Housing material: metal (Housing with wall mount design)
    Receiver unit (RX) Dimensions: 4.22” (L) x 0.93” (H) x 3.70" (W)
    Weight: 0.37lbs
    Color: black
    Housing material: metal (Housing with wall mount design)
    Unit package
    Dimensions 5.91” (L) x 3.03” (H) x 4.61" (W)
    Weight 0.86 lbs
    Warranty: 2 years limited
    Country of origin: China



    Receiver unit (RX):

    • 1x 19-pin, HDMI, Female (output)
    • 1x 3.5mm infrared jack, IR receiver (input)
    • 1x 8-pin, RJ45 (input)
    • 1x Reset button
    • 1x DC power jack, 5V/2A

    Package contents

    • 1x HDMI 4K30Hz HDbitT Over IP Extender - 120m
    • 1x 3.5mm IR receiver extension cable
    • 1x DC power adapter (5V/2A)
    • 1x User reference guide
