AV-Converter/Adapter |
SKU:
CE-H24Z11-S1
HDMI EDID Emulator
HDMI Emulator
18Gbps
4K60Hz
CEC
TAA Compliant
Regular price
$109.99
Unit price
/
Unavailable
Shipping calculated at checkout.
HDMI EDID Emulator is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features

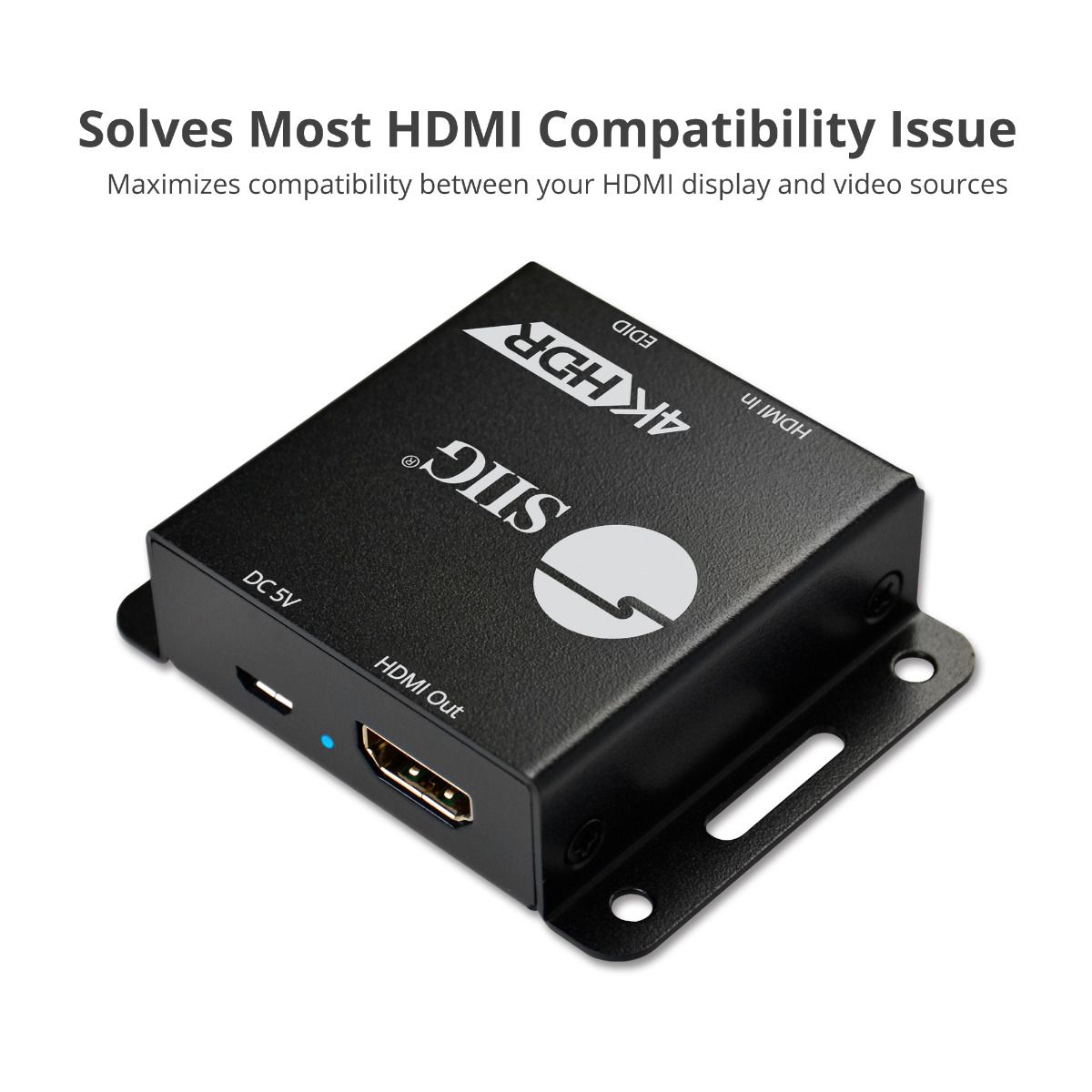

Stable EDID Signal Management
Stable EDID Signal Management

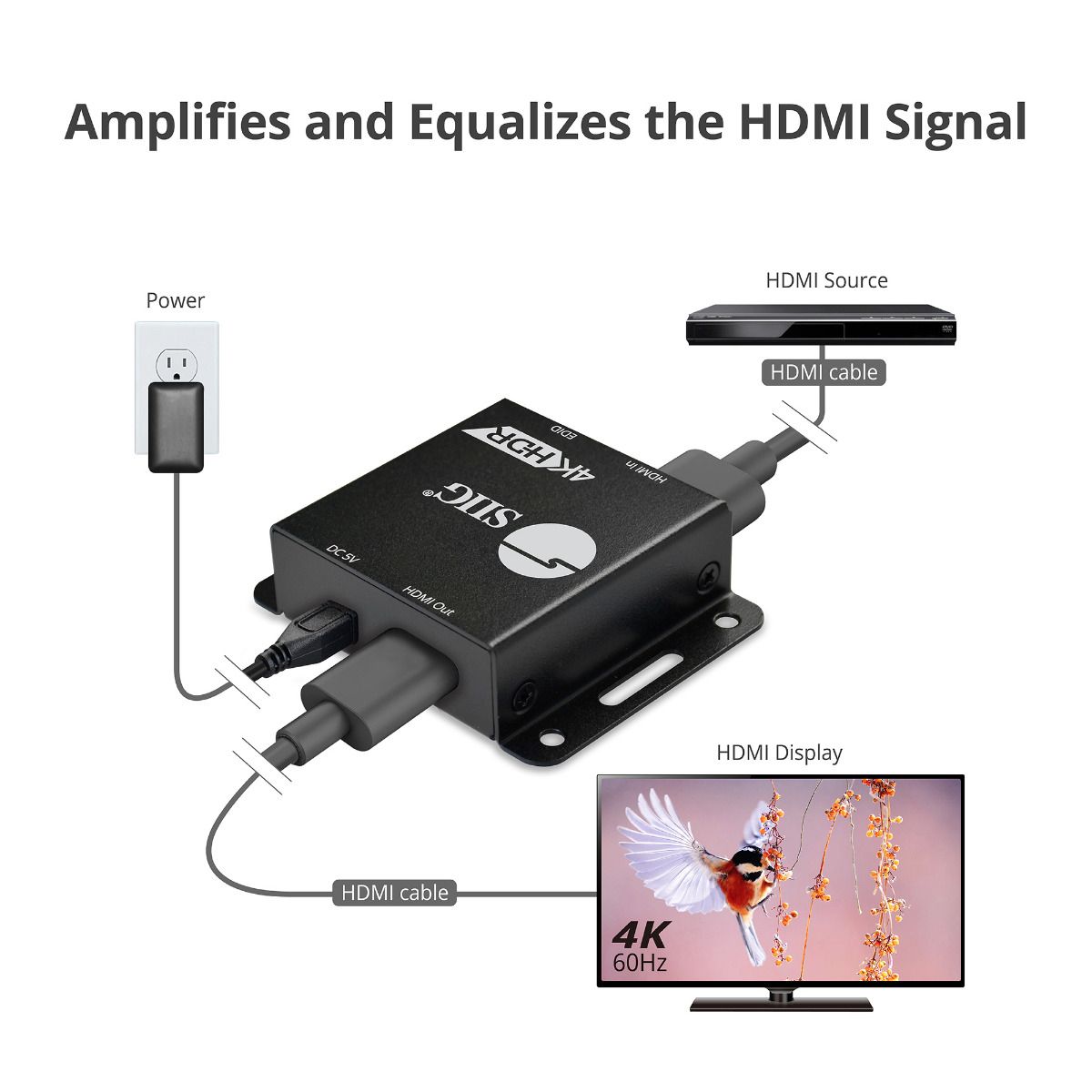

Long-Distance Signal Boosting
Long-Distance Signal Boosting
True 4K60Hz & HDR Support
True 4K60Hz & HDR Support
Flexible EDID Control Options
Flexible EDID Control Options
Durable Design with Easy Power
Durable Design with Easy Power
No content found
| HDCP compliance | HDCP 2.2 |
| Video bandwidth | 18Gbps |
| Resolution support | HDR 4Kx2K 60Hz (4:2:0 10-bit) / 4Kx2K 60Hz (YUV 4:4:4 8-bit) |

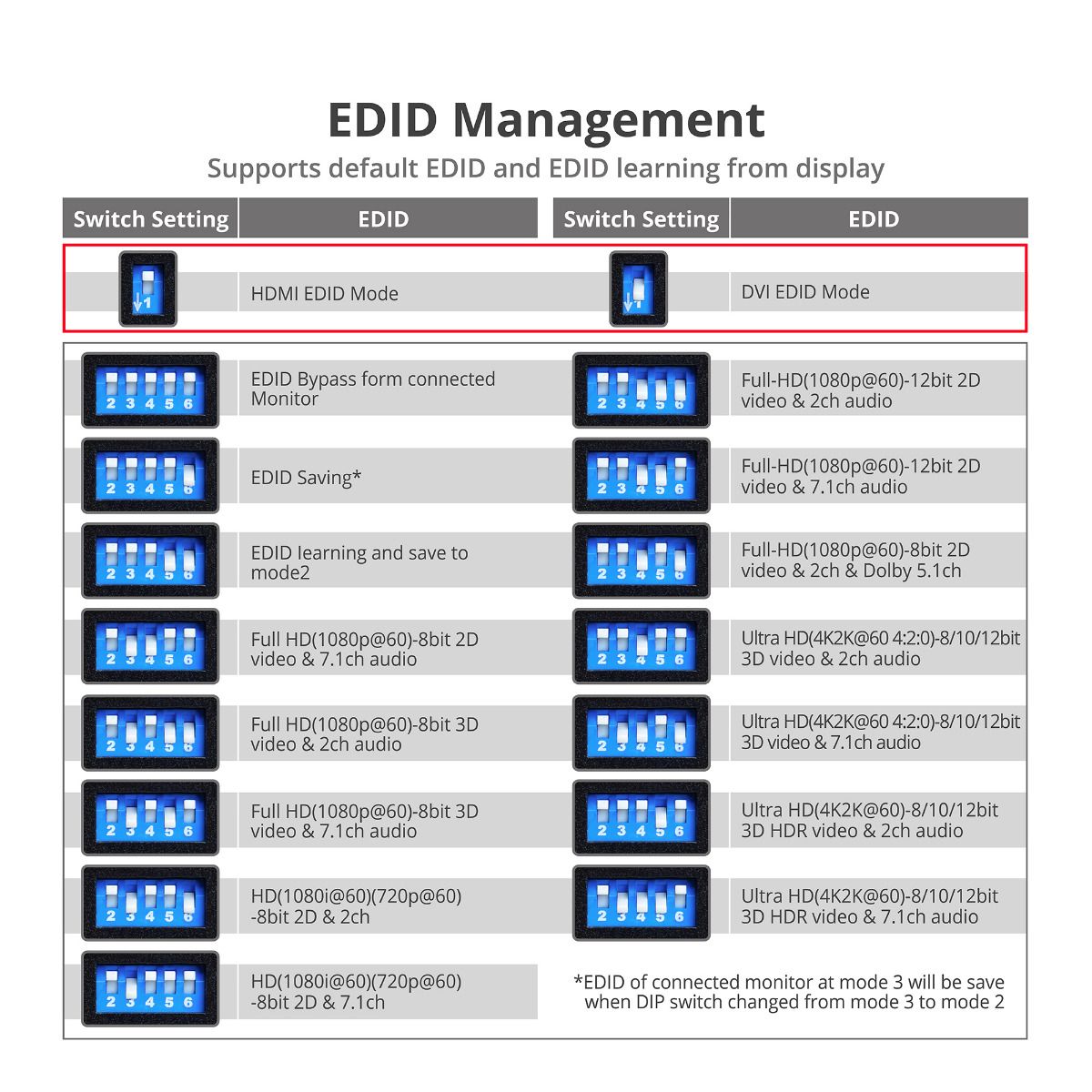

| EDID management | Embedded / Learning |
| Audio function | Supports LPCM 7.1 audio, Dolby TrueHD, Dolby Digital |
| CEC | Pass-through |
| ESD protection | Human body model - ±15kV (air-gap) & ±8kV (contact) |
| HDMI cable length | Up to 20m (10m in / 10m out) 24AWG HDMI 2.0 cable recommend |
| Product | |

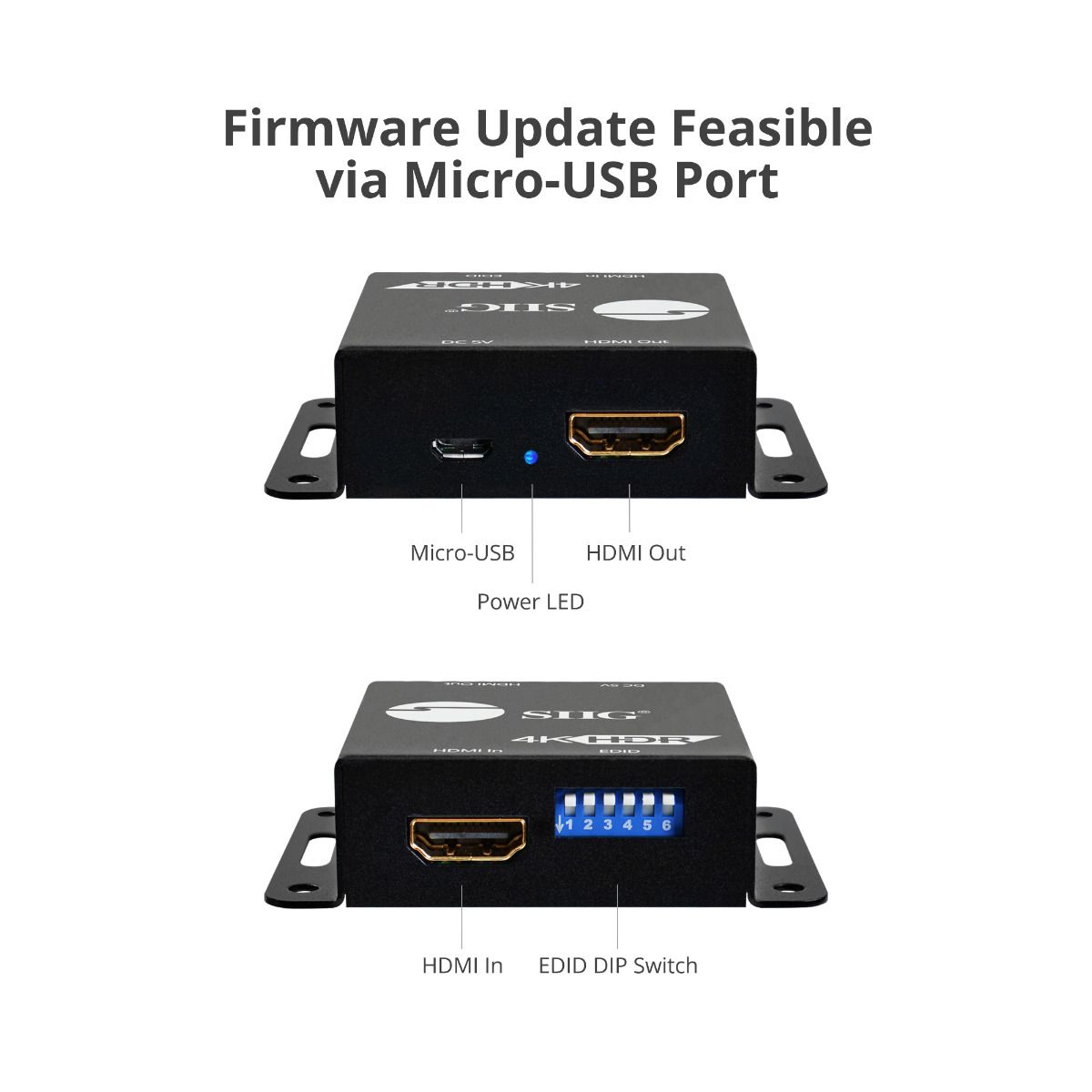

| Input: | 1x 19-Pin HDMI Type-A Female 1x 5-pin Micro USB Female Power or Firmware update |
| Output | 1x 19-Pin HDMI Type-A Female 1x 6-pin DIP Switch EDID management |
| Power adapter | |
| Input | 100-240VAC 50/60 Hz |
| Output | DC5V/1A Power adapter is not required when the HDMI source can provide the standard 5V bus power output |
| Product | |
| Dimensions | 3.07″(W) x 0.71″(H) x 2.17″(D) |
| Weight | 0.22 lbs |
| Color | Black |
| Housing Material | Metal |
| Unit package | |
| Dimensions | 6.50″(W) x 1.57″(H) x 4.33″(D) |
| Weight | 0.49 lbs |
| Master carton | |
| Dimensions | 16.77″(W) x 13.86″(H) x 19.29″(D) |
| Weight | 39.77 lbs |
| Quantity | 72 pcs/ctn |

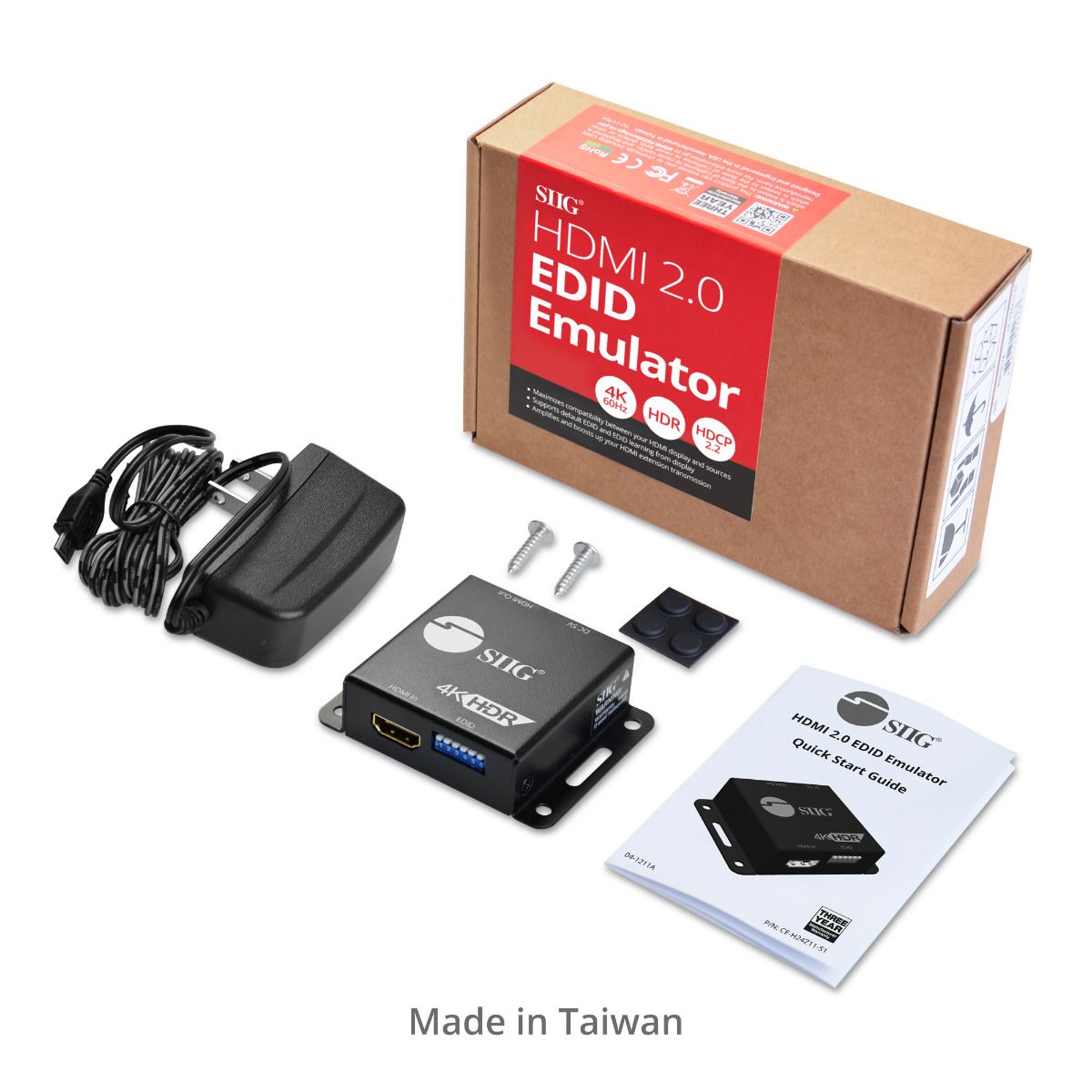

| Package contents | HDMI EDID Emulator Power Adapter Quick Start Guide |
| Environmental Conditions | |
| Operating Temperature | 32 to 104 degrees F |
| Storage Temperature | -4 to 140 degrees F |
| Relative Humidity | 20 to 90% RH (non-condensing) |
| Certifications/Standards | FCC, CE, RoHS, TAA compliant |
| UPC code | 662774042763 |
| Warranty | 3 years limited |
| Country of Origin | Engineered in USA , Manufactured in Taiwan |
