HDMI Over IP Extender with IR - Transmitter

  • HDMI over HDbitT
  • IP Extender
  • 394ft/120m
  • HDCP 1.4
  • [email protected]
  • Cat5e/6/7
  • One to Many
  • Many to Many
  • Loop Out
  • H.264 Compression
  • IR Extension
  • Switch Button
  • Reset Button
  • RS-232 Control
In stock
Quantity in stock: 165
SKU
CE-H23B11-S2
$199.99

We will send this product within 1 business day

Lifetime technical support on all of our product

45 day return and money back guarantee



    Overview

    Receives high definition 1080p HDMI signals from a source device and extends the signal through economical CAT5e/6/7 cabling to an HDMI display device up to 120 meters using advanced HDbitT technology, use with HDMI Over IP Extender with IR - Receiver (part # CE-H23C11-S2) sold separately

    overview


    Features

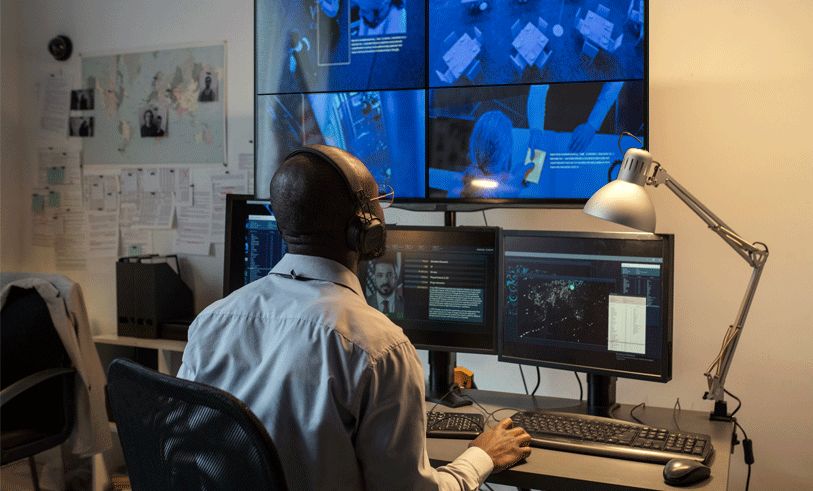

    Extend and control HDMI signals with stereo audio up to 394ft (120m) to the remote display with HDbitT over IP technology and supports multi-casting connection for optimal (the best) application

    features


    What is HDbitT?
    HDbitT is a new generation audio/video digital connection transmission protocol solution. Provides stable performance, long-distance transmission, and high-definition signal

    hdbit


    Further Distance
    This HDMI over IP Extender with IR-Kit designed for transmission/security, HDMI signals up to 394ft (120m) through HDbitT protocol and Gigabit Ethernet switch to a remote HDMI display

    distan


    Highly Scalable
    Works as a scalable TX/RX matrix over the dedicated IP network and allows up to 256 total units, limited to 100 units per transmitter, and extends/splits HDMI signals to multiple displays. The additional transmitter unit (part#- CE-H23B11-S1) and receiver unit (part#- CE-H23C11-S1) is sold separately
    *Note: IGMP Gigabit Switch is recommended for best performance and reliability

    one

    many

    multi

    Multicasting connection is transmitting data from multiple HDMI sources over an IGMP network switch to the intended receivers (RX) via Transmitters (TXs)


    resFull HD Resolution
    Supports high-definition video resolution up to1080p (1920x1080) @60Hz, HDCP 1.4 to deliver a clear picture quality and local HDMI loop-out allows you to monitor the extended display from the source location


    IR Extension
    IR pass-through feature allows remote control of the HDMI source device and playback function at the remote display


    High Performance
    Offers a true 10.2Gbps video bandwidth and supports stereo audio

    band


    Flexible Control
    Easily switch and setup remote displays via front panel LED digital channel buttons or attached remote control, and video control software
    Video control software: to select and switch between source devices


    RS-232 Control
    Bi-direction function and pass-through connection to control RS-232 enable devices in either direction


    Multiple Connectivity Ports
    Comes with one HDMI video input port, one HDMI video loop-out port, one RJ45 network port, one RS-232 port, one 3.5mm IR emitter port, Channel switch buttons, one reset button, one DC power jack (5V/2A)

    ports

    Connection
    conn


    h264H.264 Compression
    HDMI signal is encoded into H.264 to be sent through the network router or switch then decoded before arriving at the specified display. Ensures enough bandwidth is available to pass multiple HDMI signals over one network


    Maximum Compatibility
    Supports Plug-n-play. No driver installation required The reset button allows displays to be re-detected if no displays are detected


    Metal Housing Design
    Protects the inside PCBA, also enhance the heat dissipation for better performance. Military-grade component for long service life


Applications

    • Video Conference room
    • Show room
    • Classroom
    • Broadcasting
    • Digital signage
    • Dental office
    • Hospitality
    • Supermarket
    • Shopping center
    • Sport bar
    • Restaurant
    • Retail
    • Trade show
    • Church
    • Airport
    • Control center
    • Security center
    • Surveillance control center

    Need to Know Before Buying

    1. Please confirm your computer or device with HDMI port

    computer

    2. Check the extended and local displays/monitors with HDMI port and support [email protected] resolution

    monitor

    3. Please ensure using UTP Cat5e/Cat6/Cat7 cable for the best video quality and accurate transmission distance

    4. IGMP Switch or Managed Ethernet Switch is recommended for the best performance and reliability

    5. Transmitter (TX) channel must be different, otherwise the system will be broken down

    6. This transmitter (CE-H23B11-S2) is for (CE-H23C11-S2) only and CE-H23B11-S1 is replaced by part# CE-H23B11-S2


    Specifications

    Video
    HDMI 1x input, 1x loop-out
    Resolution 1080p (1920x1080) / 1080i / 720p / 480p @60Hz, HDCP 1.4
    Transport protocol
    HDbitT protocol Audio/video digital connection transmission protocol
    Audio
    Stereo audio from HDMI, support 192Kbps bit rate
    IR pass-through
    Allows remote control of the HDMI source device and playback function at the remote display
    Full frequency: 20KHz to 60KHz
    RS-232 control
    Bi-direction function and pass-through connection to control RS-232 enables devices in either direction
    Power
    Power adapter Input: 100-240V/50-60Hz, Output: DC 5V/2A
    UL listed E335801/Level: VI
    Environmental conditions
    Operating temperature 32 to 122 degrees F
    Storage temperature 14 to 144 degrees F
    Relative humidity 0% to 90% RH (non-condensing)
    Product Info
    Transmitter unit (TX) Dimensions: 5.27” (L) x 0.94” (H) x 3.30" (W)
    Weight: 0.60lbs
    Color: black
    Housing material: metal
    Unit package
    Dimensions 7.83” (L) x 3.15” (H) x 5.87" (W)
    Weight 1.37 lbs
    Certifications/Standards
    FCC, CE, RoHS, REACH
    Warranty: 2 years limited
    Country of origin: China

    Interface

    interface

    Transmitter unit (TX):

    • 1x 19-pin, HDMI, Female (input)
    • 1x 19-pin, HDMI, loop-out, Female (output)
    • 1x 3-pin, RS-232 terminal block, Female
    • 1x 3.5mm infrared jack, IR emitter (output)
    • 1x 8-pin, RJ45 (output)
    • 2x Switch TX channel buttons, up/down
    • 1x Reset button
    • 1x DC power jack, 5V/2A


    Package contents

    • 1x HDMI over IP Extender with IR- Transmitter
    • 1x 3.5mm IR emitter extension cable
    • 1x Remote control (for setting TX & RX channels)
    • 1x 3-pin, RS-232 phoenix connector
    • 2x DC power adapter (5V/2A)
    • 1x Installation kit
    • 1x User Reference Guide

Manuals

04-1362b.pdf Download manual
