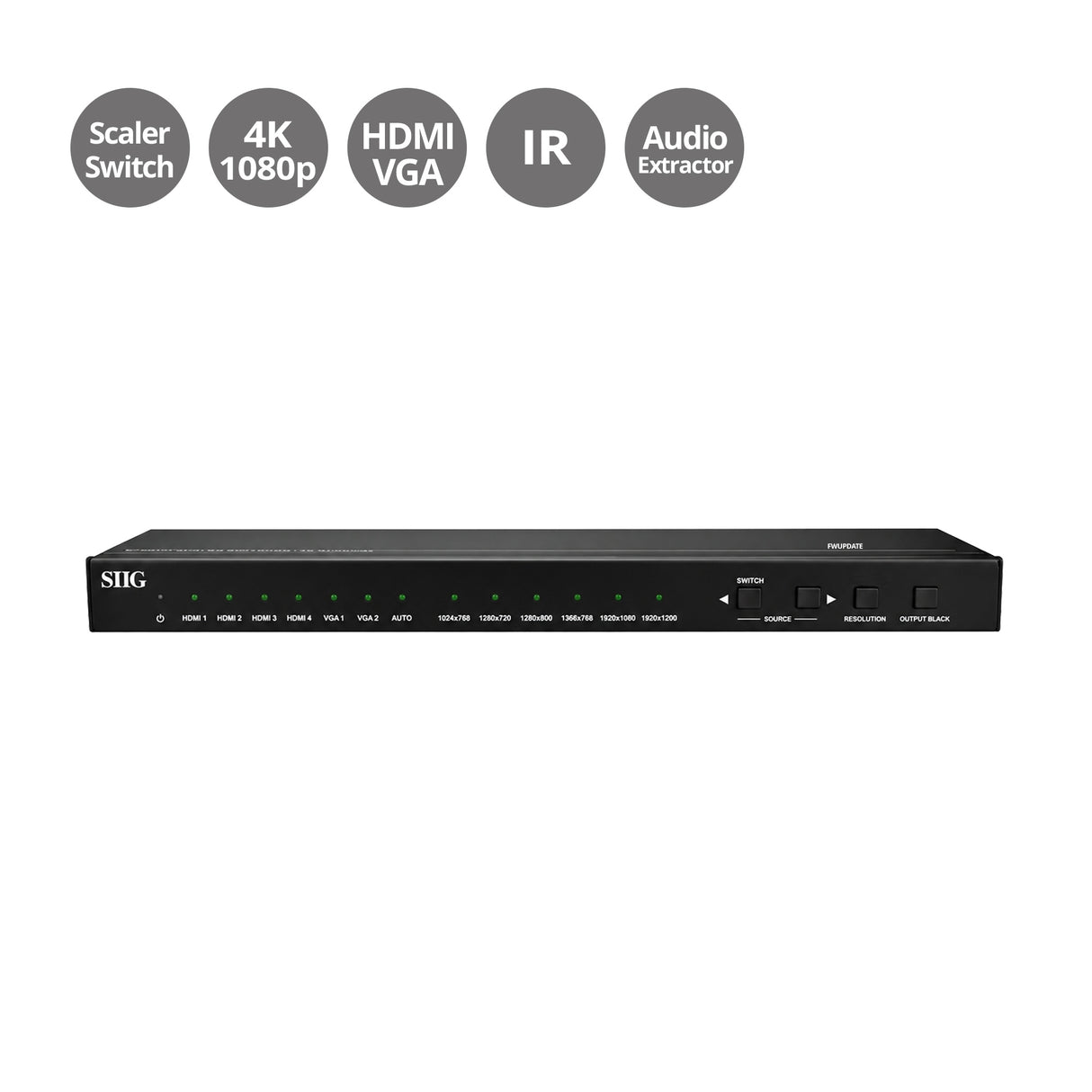

HDMI/VGA 6x1 Scaler Switcher

CE-H24111-S1

Allows you to select and switch between any of the 6 source devices (4 HDMI & 2 VGA) to display on an HDMI display with audio output and IR remote control

Back
  • Compact design with 6 video inputs, 2 audio inputs, 1 HDMI Output and 3 Audio outputs
  • Switches between VGA or HDMI input signals to an HDMI output
  • Supports bypass HDMI and provides comprehensive video resolutions up to 4K and 1080p 3D
  • Supports resolution up-scaling of VGA source signals of 1920x1200, 1920x1080, 1360x768, 1280x800, 1024x768, 1280x720
  • Easy source device switching via front panel buttons, RS-232 and IR remote control
View all features

Quantity in stock: 16

$399.99


  • Compact design with 6 video inputs, 2 audio inputs, 1 HDMI Output and 3 Audio outputs
  • Switches between VGA or HDMI input signals to an HDMI output
  • Supports bypass HDMI and provides comprehensive video resolutions up to 4K and 1080p 3D
  • Supports resolution up-scaling of VGA source signals of 1920x1200, 1920x1080, 1360x768, 1280x800, 1024x768, 1280x720
  • Easy source device switching via front panel buttons, RS-232 and IR remote control
  • Supports HDMI 1.4 and HDCP 1.4, 3D
  • Video resolution: Up to 4Kx2K & 1080p
  • Supports EDID management
  • Transmits 4Kx2K signal up to 15m
  • Support auto-switching or manual-switching
  • Support audio & video output management via output black button
  • LED indicator for power connect states, source selection, and output resolution selection
  • Support online software upgrading
  • Support power-off memory
  • Easy installation with rack-mounting design
  • Product:
    • Dimensions: 13.66" (W) x 1.10" (H) x 4.33" (D)
    • Weight: 1.55 lbs
    • Color: Black

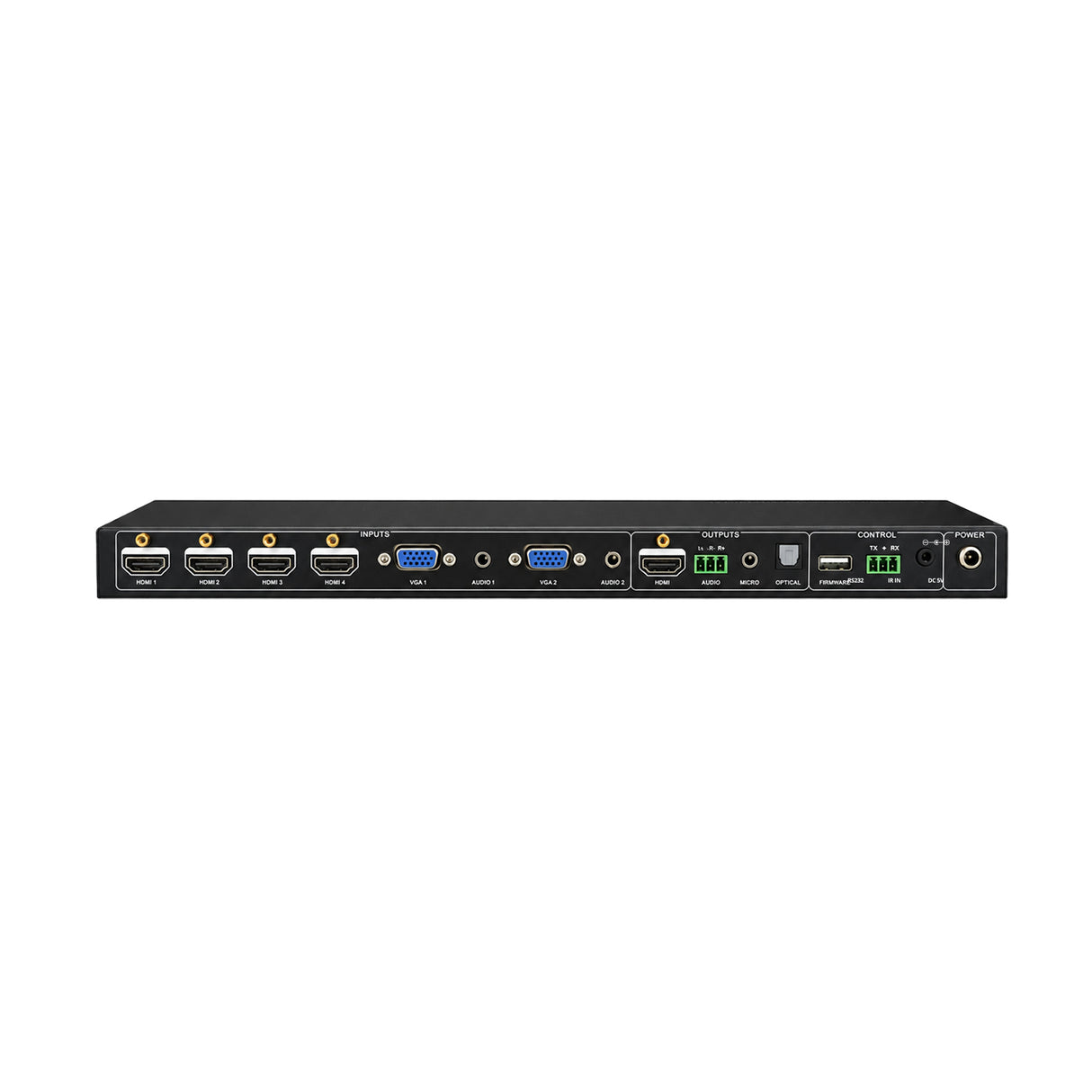

    • Connectors:
      • 4x 19-pin HDMI, Type A, Female, Input
      • 2x 15-pin VGA D-sub, Female, Input
      • 1x 19-pin HDMI, Type A, Female, Output
      • 2x 3.5mm jack, Audio, Input
      • 1x 3-pin terminal block, Dual-Mono analog, Audio Output
      • 1x S/PDIF, Digital audio Output
      • 1x 4-pin, USB 2.0 Type-A, Firmware updating
      • 1x 3-pin terminal block, RS-232, Control
      • 1x 3.5mm jack, IR receiver, Input
      • 1x Power jack
  • Power adapter:
    • Input: 100-240VAC, 50/60 Hz
    • Output: DC 5V/3A
  • Environmental conditions:
    • Operating temperature: 32 to 104 degrees F
    • Storage temperature: -4 to 140 degrees F
  • Relative humidity: 20 to 90% RH (non-condensing)
  • Certifications/Standards: FCC, CE, RoHS
  • Warranty: 3 years limited
  • Country of origin: China

Requirements

  • HDMI and VGA source device, such as computers, game consoles, Blu-ray/DVD players, and media players
  • HDMI display, monitor, and HD TV
  • HDMI cables
  • VGA cables

Package Contents

  • HDMI/VGA 6x1 Scaler Switcher
  • IR receiver
  • IR Remote (cell battery is not included)
  • Power adapter
  • Plastic cushions
  • Mounting ears (2)
  • Screws (4)
  • 3-pin pluggable terminal blocks (2)
  • User manual
