HDMI Video H.264 H.265 IPTV Encoder with loopout

• Features
• Applications

---

Features

• Support multiple video decoding: H.265 mainstream, H.264 basic, mainstream and advanced quality, MJPEG/JPEG basic quality
• Broadcast resolutions supports up to [email protected] 4:4:4 8 bit, and support HDCP 1.4
• Supports RTSP / HLS / RTMP (S) / RTP / UDP protocols
• Audio coding format supports AAC, AAC+, AAC++/AC3/MP2/MP3
• Maximum supports 2 channel video stream decoding, supports 1 channel only audio stream decoding
• Preview your incoming HDMI signal via the local HDMI pass-thru output port
• Support CBR/VBR two coding modes, maximum code rate up to 40Mbps (Main code stream is 40M, Sub-code stream is 8M)
• Support analog audio extraction and analog audio embedded
• High quality metal housing with ventilation panels improve heat dissipation and ensure system stability during long hours of operation

---

Multiple Connectivity Ports



Comes with one HDMI audio input port, one HDMI audio loop-out port, one RJ45 output port, one RS-232 terminal block, one 3.5mm audio output port, one 3.5mm microphone input port, one DC 12V/1A power jack, and one reset button

---

Applications

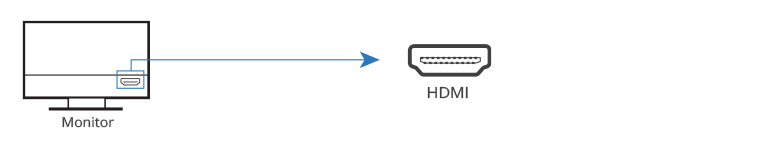

• Monitoring
• Restaurant
• Education
• Live Broadcasting

• Interface
• Package Contents

---

Specifications

• Resolution: 1080p / 1080i / 720p / 480p
• Compliant with HDCP 1.4
• Supports protocols: RTSP / HLS / RTMP (S) / RTP / UDP
• Video decoding: H.265 mainstream, H.264 basic
• Audio coding: AAC, AAC+, AAC++/AC3/MP2/MP3
• LPCM 2.0 sampling rate: 44.1/48KHz
• Audio bit rate::
  • AACLC: 48~320
  • AAC+: 32~128
  • AAC++: 16~64
• Default IP: 192.168.1.168
• Product:
  • Housing material: Metal
  • Color: Black
  • Dimensions: 4.88" (W) x 0.83" (H) x 3.54" (D)
  • Weight: 0.65 lbs
  • Connectors:
    • 1x 19-pin HDMI, Type A, Female, Input
    • 1x 19-pin HDMI, Type A, Female, Loop-out
    • 1x 8-pin, RJ45, Output
    • 1x 3-pin Terminal Block
    • 1x 3.5mm Audio output
    • 1x 3.5mm Mic input
    • 1x Power jack
    • 1x Reset button
• Unit package:
  • Dimensions: 7.60"(W) x 2.36"(H) x 5.75"(D)
  • Weight: 1.08 lbs
• Power adapter:
  • Input: 100-240V / 50-60Hz
  • Output: DC 12V/1A
  • UL listed: E504312 / Level: VI
• Environmental conditions:
  • Operating temperature: 32 to 104 degrees F
  • Storage temperature: 14 to 140 degree F
  • Relative humidity: 5% to 95% RH (non-condensing)
• Certifications/Standards: FCC, CE, RoHS
• Warranty: 2 years limited
• Country of origin: China

---

Interface



• 1x 19-pin, HDMI, Female (input)
• 1x 19-pin, HDMI, loop-out, Female
• 1x 8-pin, RJ45 (output)
• 1x 3-pin, RS-232, terminal block
• 1x 3.5mm, audio (output)
• 1x 3.5mm, microphone (input)
• 1x Power jack, 12V/1A
• 1x Reset button

---

Package contents

• HDMI Video H.264 H.265 IPTV Encoder with loopout
• Power adapter DC 12V/1A
• Mounting ears & Screw kit
• Phoenix plugs
• User manual
