MTPRO Heavy Duty Desk Mount Single Monitor Arm - Up to 49”- Weight Between 4.4 - 44 lbs - VESA 75mm/100mm - TAA Compliant

• Features
• Applications
• Need to Know Before Buying

---

Overview

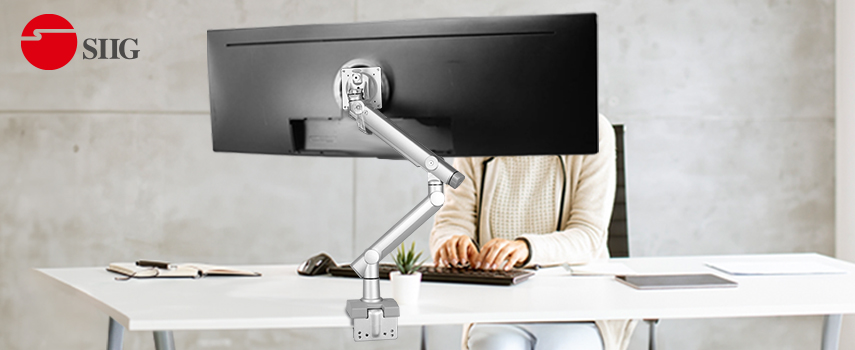

Heavy Duty Single Monitor Arm Desk Mount for 22”- 49” Monitor, Top Mount C-Clamp, Weight Between 4.4 - 44 lbs, Visible Screen Weight Indicator, Full Motion Height Swivel Tilt Rotation Adjustable, VESA 75mm/100mm, Detachable & Locking VESA Plate, Cable Management, Tools Storage. Single Monitor Desk Mount, fits one 44 lbs Heavy Duty Monitor, Compliant with BIFMA X5.5 24 standard and compliant with TAA

---

Features

Delivers smooth, effortless adjustments and stable for large and heavy monitors. It supports up to a 49” monitor and can be mounted on a desk using a top mounting C-clamp. Easy to adjust the height, tilt, and swivel of your monitor so that you can find the perfect position for your eyes and neck



---

Heavy Duty and Large Monitors Design

Designed to support the largest monitors that are 22 inches to 49 inches in size and weigh up to 44lbs (20Kgs). Compatible with most flat, ultrawide, and curved monitors (For 1800R only) with VESA patterns 75x75 and 100x100mm



---

Full Motion Adjustable

Fine-tune your monitor setup with a 90° upward tilt, 40° downward tilt, VESA plate swivel 180°, arm swivel 360°, pan swivel 360° and screen rotation 360°, easy to hold the screen in the correct, comfortable position to meet your needs



---

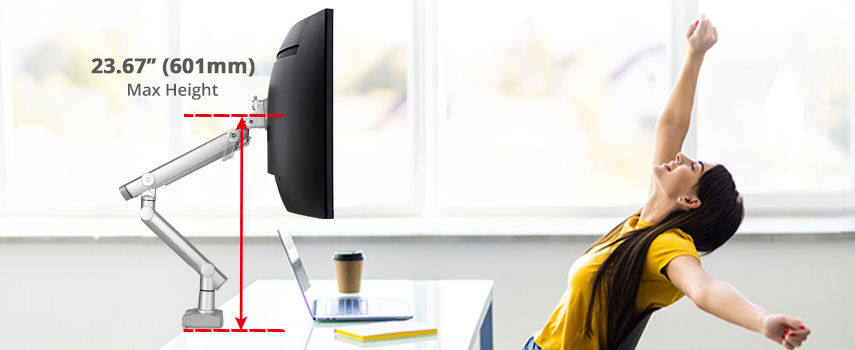

Find Your Perfect Height

Lift the arm 23.67 inches (601.2 mm) to find the perfect and ergonomic viewing height that relieves your body strain, and creates your sit or stand ergo-working environment



---

Extend Your View

Extend up to 20.7 inches from the wall, providing ample space for your monitor to be positioned at the perfect height and distance for your needs, freeing up space on your desk



---

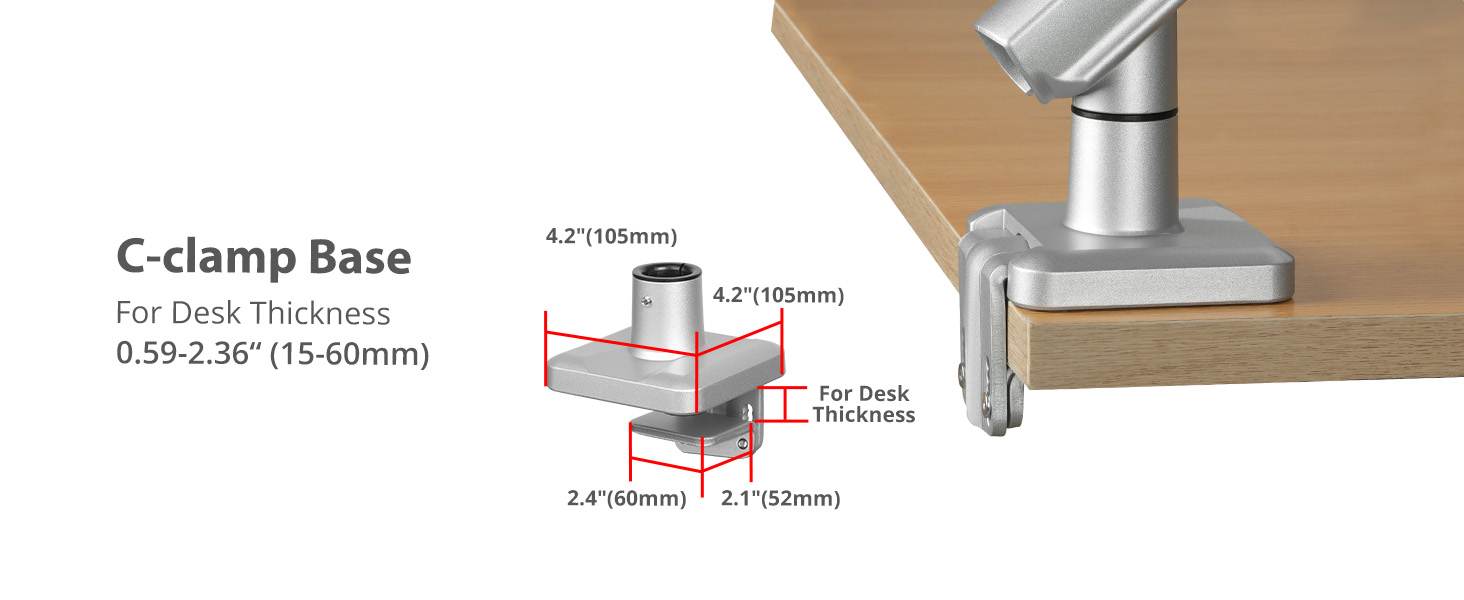

Comfortable Top Mount C-clamp

Top Mount C-clamp fits most desktops from 0.79" to 2.36" (20mm to 60mm) thick with a needed (60mm) depth, easily mounts and removes from the top of your desk

Note: Different locking methods are suitable for different desktop thick



---

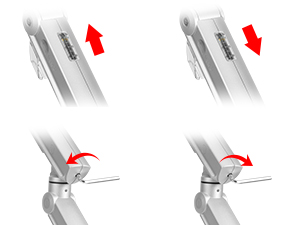

Visual Indicator for Monitor Weights

Built-in the visible screen weight indicator and manually controlled spring tension in the upper arm allow for easy adjustment without tools. When using it for the first time, insert the allen key into the back of the arm to adjust, so that the spring output is balanced with the weight of the screen, and you can move it as you like



---

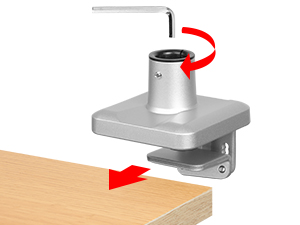

Tools Storage	Detachable VESA Plate	Tension Adjustment

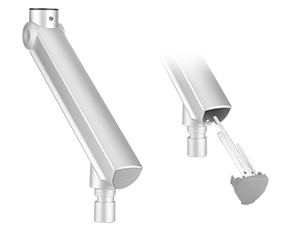

Hidden tool storage design saves time looking for tools and allows you to easily access tools at any time without worrying about losing them	With a detachable design, you can easily attach your monitor to the arm after installing the VESA assembly on your monitor. Simple hook the monitor onto the arm or remove it without tools	When using it for the first time, insert the Allen key into the back of the arm to adjust, so that the spring output is balanced with the weight of the screen, and you can move it as you like

---

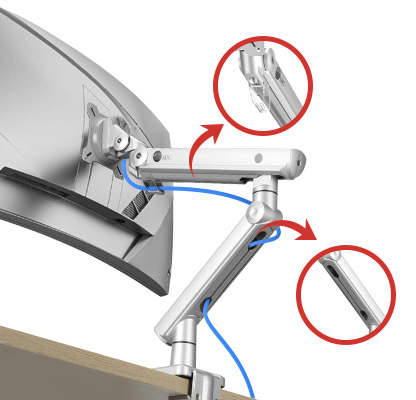

Organized and Efficient

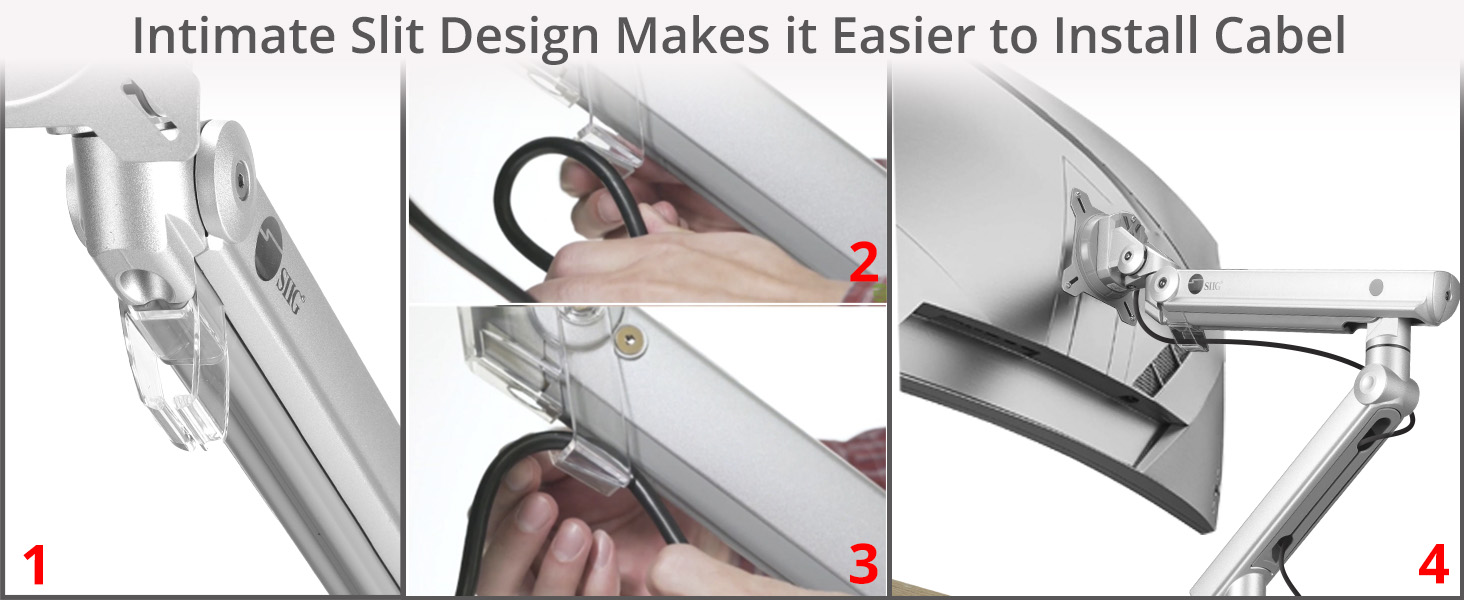

Integrated cable management helps you keep your desk tidy and organized, so you can focus on your work without distractions




---

Elegant Design

Made of high-quality aluminum alloy for secure support. This single heavy-duty monitor arm with a top mount is built to last, providing a stable platform for your monitor




---

Compliant with BIFMA and TAA

Compliant with Business and Institutional Furniture Manufacturers Association (BIFMA) X5.5 24 standard and compliant with TAA




---

Maximum Compatibility

Compatible with most 49" super ultra-wide 32:9 curved monitor brands, such as Samsung (G95SC / CRG9 / CJ890 / S95UA), LG 49WL95C-W, Asus ROG (XG49WCR), AOC (AG493UCX), Dell (U4924DW / U4919DW)

---

Applications

SIIG's Heavy Duty Desk Mount Single Monitor Arm - Up to 49” is the best solution for gamers and animation and video editors because it offers a wide range of benefits, including ergonomics, productivity, immersion, space savings, safety, stability, and versatility



Professional Gaming Setup:

Create an immersive gaming environment with a large monitor mounted at the perfect eye level for an expansive and detailed gaming experience






Video and Audio Editing Studio:

Elevate your video editing setup by mounting a high-resolution monitor, allowing for precise editing and a streamlined workflow






Design and Graphics Workstation:

Achieve optimal precision in design work with a large monitor that provides a clear and detailed view of your creative projects

---

Need to Know Before Buying

1. Make sure to choose an arm that is compatible with your monitor’s weight and size


2. Consider how much flexibility you need in your monitor arms and choose the arms that can accommodate your needs, so you can find the perfect position for your monitor

3. Verify that the mount is compatible with the VESA mounting plate on your monitors

4. Make sure the mount arm you choose is stable and can hold your monitors securely in place

5. Choose an arm with built-in cable management features to keep your desk tidy and organized

6. Ultra-wide 32:9 curved monitor is support 1800R only

• Package Contents

---

Specifications

• Screen size: 22" to 49" (measured diagonally), Flat / Curved(For 1800R only) / Ultra-wide 21:9 / Super Ultra-wide 32:9
• Weight capacity: 4.4 - 44 lbs (2 - 20 kg)
• Tilt angles: Upward 90°/Downward 40°
• VESA swivel: 180°
• VESA Rotation: 360°
• Arm swivel: ±180°
• Pan swivel: ±180°
• VESA mounting: 75 x 75, 100 x 100 mm
• Arm Lift: 23.67 inches (601.2mm)
• Arm Extend: 20.70inches (526mm)
• Suggested desktop thickness:
• C-clamp: 0.79 to 2.36 inches (20-60 mm) thick, Depth: 2.36 inches (60 mm)
• Cable Management: 2 Cables
• Product Color: Silver
• Material: Aluminum alloy
• Product dimension: 23.67" (W) x 3.94" (H) x 20.71" (D)
• Product weight: 8.80 lbs
• Unit package Dimensions: 19.29" (W) x 5.51" (H) x 9.84" (D)
• Unit package Weight: 11.00 lbs
• Certifications/Standards: RoHS, REACH, TAA compliant, BIFMA X5.5 24 standard
• Warranty: 3 years limited
• Country of origin: Made in Taiwan

---

Package contents

• 1x Heavy Duty Desk Mount Single Monitor Arm - Up to 49”
• 1x Installation Kit
• 1x Installation Guide
