Heavy Duty Gas Spring Single Monitor Arm - Desk Mount, 17" to 49", 50.7 lbs Max, Aluminum, VESA 75x75, 100x100, 200x200mm, Quick Access USB 3.0 & Audio Port

• Features
• Applications

---

Overview

Single Monitor Heavy Duty Gas Spring Aluminum Desk Monitor Arm with USB and Audio Ports - 17" to 49", 50.7 lbs Max, Aluminum, VESA 75x75, 100x100, 200 x 100 and 200 x 200, Quick Access USB 3.0 & Audio Port

---

Features




Your Solid Affordable Option
• Monitor Size : 17" to 49" /Load Bearing 50.7 lbs max
• VESA Pattern : 75x75mm,100x100mm,200x100mm,200x200mm








Full-Motion Adjustment Articulating arm fully supports the monitor to adjust height up to 23",+45°/-30°tilt, 180°swivel, 360° rotation.	Multiple Ways For Installation C-clamp and Grommet bases are both included in the package for easy and quick installation.	Smart Cable Management System Avoid the trouble of too many cables. The cable management design makes your workspace clean so that you can better focus on completing the work.	Adjustable Gas Shock Tension To increase the tension, turn the shock counter-clockwise(+).To decrease the tension, turn the shock clockwise(-).

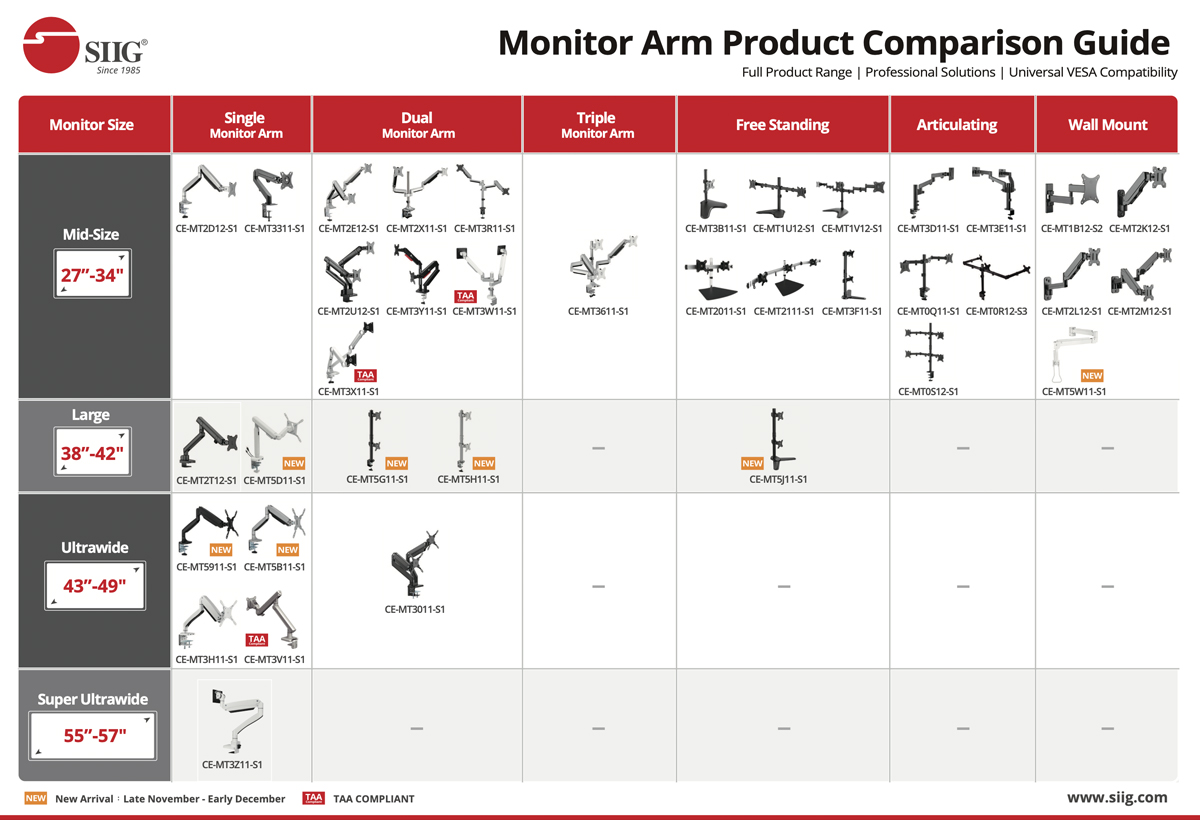

Comparison Table

	CE-MT3H11-S1	CE-MT3J11-S1	CE-MT3111-S1	CE-MT2T12-S1
Fits Screen Size	17‘'-49‘'	17‘'-34‘'	17‘'-43‘'	17‘'-32‘'
Max Arm Capacity	50.7 lbs	19.8 lbs	33 lbs	17.6 lbs
Tilt Range	+45°/-30°	+/-40°	+/-45°	+/-90°
Arm swivel Range	±180°	±180°	±180°	±180°
360° Rotation	✔	✔	✔	✔
Gas Spring	✔	✔	✔	✔
Cable Management	✔	✔	✔	✔
USB & Audio Port	✔	✘	✔	✘
RGB Light	✘	✔	✘	✘
C-Clamp Base	✔	✔	✔	✔
Gromment Mounting	✔	✔	✔	✔

---

Applications

• Office
• Home workstation
• Educational facilities
• Hotel
• Testing lab
• Hospital

• Package Contents

---

Specifications

• Screen size: 17" to 49" (measured diagonally)
• Weight capacity: up to 50.7 lbs
• Tilt angles: +45°/-30° (upward/downward)
• VESA swivel: ±90°
• VESA Rotation: ±180°
• Arm swivel: ±180°
• Pan swivel: ±90°
• Height adjustment: 23"
• VESA mounting: 75 x 75, 100 x 100, 200 x 100 and 200 x 200 mm
• Suggested desktop thickness: 0.39" to 3.35"
• Ports:
  • 2x USB 3.0, Type-A
  • 1x Speaker / Headphone jack, 3.5mm, analog stereo, Output
  • 1x Microphone jack, 3.5mm, Input
• Color: White
• Material: Aluminum
• Product dimension: 25.75" (W) x 30.91" (H) x 5.04" (D)
• Product weight: 12.72 lbs
• Unit package Dimensions: 16.73" (W) x 4.41" (H) x 14.25" (D)
• Unit packageWeight: 14.49 lbs
• Certifications/Standards: RoHS
• Warranty: 2 years limited
• Country of origin: China

---

Package contents

• Heavy Duty Gas Spring Aluminum Desk Monitor Arm
• 2x USB 3.0 Cable(Built-in)
• Audio/Mic cable(Built-in)
• Installation kit
• Installation guide
