ipcolor 4K HDMI Extender Daisy Chain Transmission Kit

  • HDMI Extender
  • Point to Point
  • 1 TX to 10 RXs
  • Cat6/7
  • 18Gbps
  • 230ft/70m
  • 4K@60Hz
  • HDR
  • HDCP 2.2
  • Audo Downscaling
  • HDMI Loop-out
  • S/PDIF Audio
  • Audio Extraction
  • Reset Button
  • Audio Slide Switch
  • Bi-directional IR
  • EDID Passthrough
  • ESD Protection
In stock
Quantity in stock: 114
SKU
CE-H26M11-S1
$239.99

We ship all orders within 1 business day

Lifetime technical support on all of our products

45-day return window and money-back guarantee



    Overview

    Extends 4K@60Hz HDMI signals up to 230ft with zero latency, IR, HDR, audio extraction, local HDMI out, and ARC using industry leading ipcolor video transmission technology; supports daisy chaining of additional Transceivers, part# CE-H26N11-S1, sold separately, for additional extension and displays

    overview


    Features

    Allows transmission and expansion of uncompressed 4K@60Hz HDMI audio/video HDR signals to a remote 4K Ultra HD display up to 230ft (70m) over a Cat6/7 network cable with nearly zero latency and cascade up to 10 receivers to scale audio/video setup at a low cost

    fea


    4K UHD Resolution
    Supports Ultra High-Definition video resolution up to 4K (3840x2160) @60Hz YUV 4:4:4 8-bit and HDR YUV 4:2:0 10-bit, HDCP 2.2 to deliver a crystal-clear picture quality and allows EDID auto-learning for remote and local displays
    *Note: HDR10+ and Dolby Vision are not supported

    res


    Extend Distance
    This ipcolor 4K HDMI Extender Daisy Chain Transmission Kit designed to extends HDMI signals up to 230ft (70m) through RJ45 network to a remote HDMI display for reliability transmission

    dis

    HDMI loop-out on the transmitter to connecting a local display for monitoring of the extended displays

    Multiple Transceiver Extension
    Cascade HDMI signal from receiver to receiver to create a scalable audio/video distribution system and send media device content to up to 10 TVs around a building or home gives more flexibility and increase the value

    dai
    * Note:
    - Additional receivers (part# CE-H26N11-S1) are sold separately. Mirror content only
    - Distance from receiver to receiver and distance from transmitter to 1st receiver maxes out at 165ft (50m) for best transmission quality

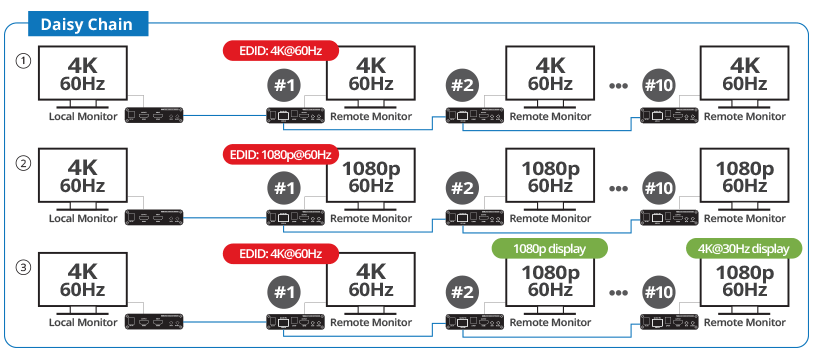

    Auto Downscaling
    Ability to downscale from 4K to 1080p, allowing you to incorporate different displays. The first receiver (RX #1) in line must be connected to a 4K display and the transmitter connected to a 4K enabled source

    dow
    *Note: If the first receiver uses an EDID of 1080p, then all daisy-chained receivers will display at 1080p

    dai


    IR Extension
    Built-in Bi-directional IR signal extension modules allows remote controlling the HDMI source device at the receiver and playback at the distant display. Supports an IR signal in the 20-60KHz carrier frequency
    *Note: IR emitter and receiver cables included

    ir


    High performance
    Offers a true 18Gbps video bandwidth and supports pure unaltered uncompressed 7.1-ch. surround sound from HDMI

    ban


    Audio Extraction/ARC
    Easily extract high quality audio via digital S/PDIF output from either HDMI speaker or return audio from ARC-enabled TV to the HDMI audio system/speaker/sound bar. Audio slide switch provided to quickly select S/PDIF or ARC function

    S/PDIF audio formats: PCM 2.0, Dolby 5.1, and DTS 5.1; HDMI audio formats: PCM 2.0/5.1/7.1, Dolby 5.1, and DTS 5.1

    ext
    *Note: please connect ARC enabled TV HDMI port to the SIIG ipcolor 4K HDMI Extender Daisy Chain Transmission Kit HDMI output port before use


    Multiple Connectivity Ports
    Comes with one HDMI video input port, one HDMI loop-out port, one HDMI video output port, two RJ45 network ports, one S/PDIF (Toslink) audio output port, two 3.5mm IR emitter ports, two 3.5mm IR receiver ports, two reset buttons, one audio slide switch selects audio extraction, two DC power jacks (5V/2A)

    por

    Connection

    conn


    Maximum Compatibility
    Supports Plug-n-play and no driver installation required. The reset button allows displays to be re-detected if no displays are detected


    Protection Components
    Supports ESD protection, lightning protection, and surge protection to safe your electronic equipment

    pro


    Aluminum Alloy Housing Design
    Lightweight and durable design with an Aluminum alloy housing that improves heat dissipation and ensure system stability during long hours of operation

    hou


Applications

    • Digital signage
    • Show room
    • Restaurant
    • Shopping center
    • Concert
    • Broadcast
    • Library
    • Lecture hall
    • Church
    • Control center
    • Security room
    • Exhibition
    • Indoor & outdoor advertising
    • Airport

    Need to Know Before Buying

    1. Please confirm your computer or device with HDMI port

    computer

    2. Check the extended and local displays/monitors with HDMI port and supports 4K@60Hz resolution

    monitor

    3. Please ensure using UTP Cat6/7 cable for the best video quality and accurate transmission distance

    4. After changing the display, please press the reset button to relearn the EDID

    5. This ipcolor 4K HDMI Extender Daisy Chain Transmission Kit is a point-to-point connection and does not work with routers or Ethernet switches

    6. No ARC audio from TV connected to transmitter; only from TV to S/PDIF (Toslink) port on the receiver


    Specifications

    Video
    HDMI 1x input, 1x output, 1x loop-out
    Resolution HDCP 2.2/1.4, HDR 4K (3840x2160)/2160p/1080p/1080i/720p/480i/480p @60Hz
    Transmission distance Up to 230ft (70m)
    Bandwidth Up to 18Gbps
    Daisy Chain
    Transceiver Up to 10 receivers (part# CE-H26N11-S1), sold separately
    * Have to work with Transmitter
    Transmission distance Up to 165ft for each (best quality)
    Audio
    7.1 channel surround sound from HDMI port, audio format PCM 2.0/5.1/7.1, Dolby 5.1, and DTS 5.1
    5.1 channel surround sound from S/PDIF (Toslink) port, audio format: PCM 2.0, Dolby 5.1, and DTS 5.1
    IR pass-through
    Bi-directional IR allows remote control of the HDMI source device and playback function at the remote display
    Full frequency: 20KHz to 60KHz
    Power Adapter
    Input 100-240V/50-60Hz
    Output DC 5V/2A
    UL listed E335801/Level: VI
    Environmental conditions
    Operating temperature 14 to 140 degrees F
    Storage temperature -4 to 158 degrees F
    Relative humidity 5% to 90% RH (non-condensing)
    Product Info
    Transmitter unit (TX) Dimensions: 4.17” (L) x 1.03” (H) x 3.90” (W)
    Weight: 0.46 lbs
    Color: Black
    Housing material: Aluminum alloy
    Receiver unit (RX) Dimensions: 4.17” (L) x 1.03” (H) x 3.90” (W)
    Weight: 0.46 lbs
    Color: Black
    Housing material: Aluminum alloy
    Unit package
    Dimensions 9.45” (L) x 3.15” (H) x 6.93" (W)
    Weight 2.01 lbs
    Certifications/Standards
    FCC, CE, RoHS, REACH
    Warranty: 2 years limited
    Country of origin: China

    Interface

    tx

    Transmitter unit

    • 1x 19-pin, HDMI, Female (input)
    • 1x 19-pin, HDMI, Loop-out, Female
    • 1x 8-pin, RJ45 network (output)
    • 1x 3.5mm infrared jack, IR emitter (output)
    • 1x 3.5mm infrared jack, IR receiver (input)
    • 1x power jack, 5V/2A
    • 1x reset button

    rx

    Receiver unit

    • 1x 19-pin, HDMI, Female (output)
    • 1x 8-pin, RJ45 network (input)
    • 1x 8-pin, RJ45 network, for daisy chain (output)
    • 1x S/PDIF audio, Toslink (output)
    • 1x 3.5mm infrared jack, IR emitter (output)
    • 1x 3.5mm infrared jack, IR receiver (input)
    • 1x power jack, 5V/2A
    • 1x reset button
    • 1x Audio slide switch, for select S/PDIF (audio extraction) or ARC

    Package contents

    • 1x ipcolor 4K HDMI Extender Daisy Chain Transmission Kit
    • 1x 3.5mm IR emitter extension cable
    • 1x 3.5mm IR receiver extension cable
    • 1x Mounting kits
    • 2x DC power adapter, 5V/2A
    • 1x User reference guide
