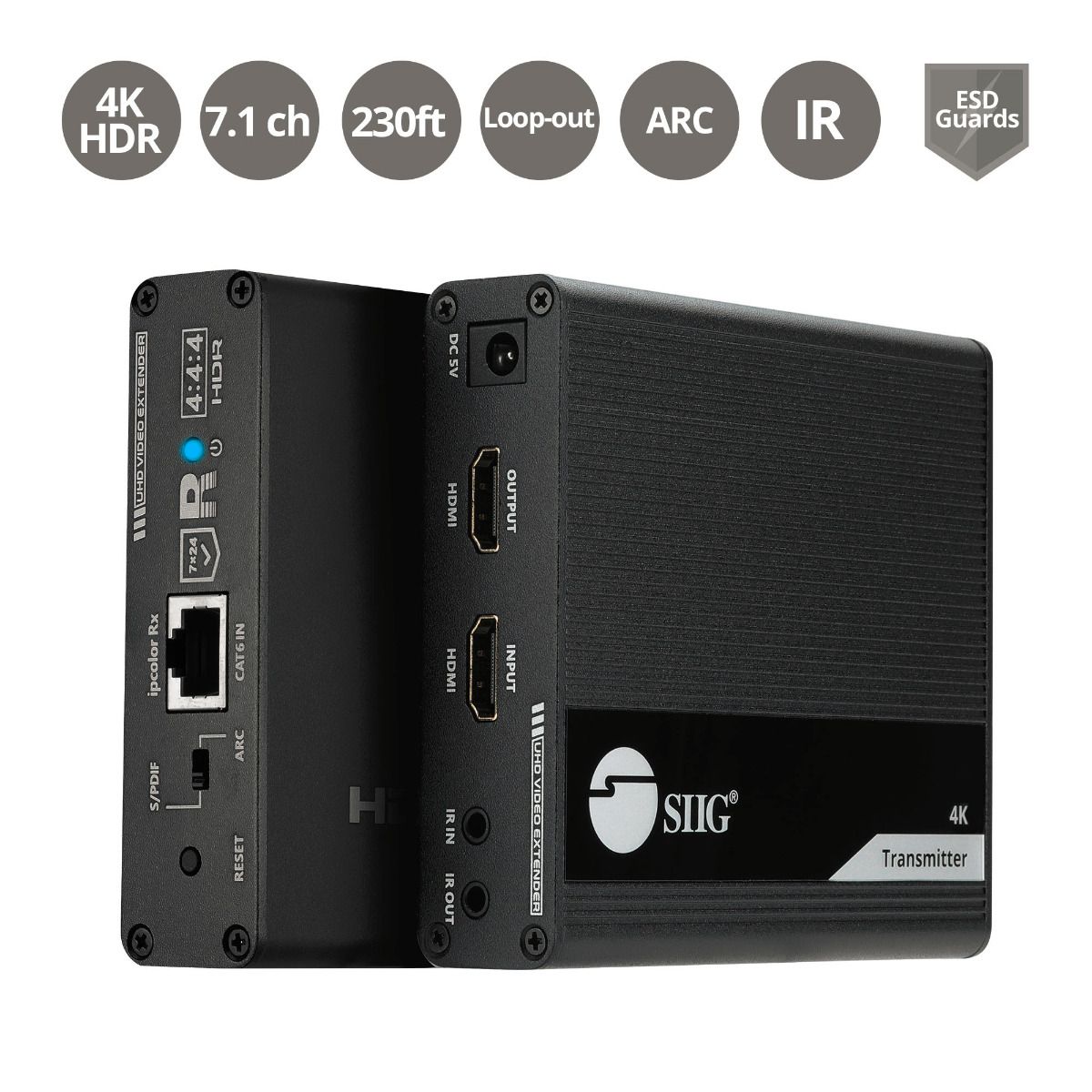

ipcolor 4K HDMI Extender with IR, HDR and ARC

  • HDMI Extender
  • Cat6/7
  • 230ft/70m
  • 18Gbps
  • 4K@60Hz
  • HDR
  • HDCP 2.2
  • HDMI Loop-out
  • S/PDIF Audio
  • Audio Extraction
  • ARC
  • 7.1-ch
  • Bi-directional IR
  • EDID Passthrough
  • Reset Button
  • ESD Protection
  • Lightning Protection
  • Surge Protection
  • Audio Slide Switch
In stock
Quantity in stock: 32
SKU
CE-H26L11-S1
$179.99

We ship all orders within 1 business day

Lifetime technical support on all of our products

45-day return window and money-back guarantee



    Overview

    Extends 4K@60Hz HDMI signals up to 230ft with zero latency, Bi-direction IR, HDR, audio extraction, HDMI Loopout, and ARC using industry leading ipcolor video transmission technology, ESD protection, Aluminum Alloy Housing

    overview


    Features

    Allows HDMI audio/video signals up to 230ft (70m) to be transmitted through a Cat6/7 network cable to a remote 4K Ultra HD display with nearly zero latency

    fea

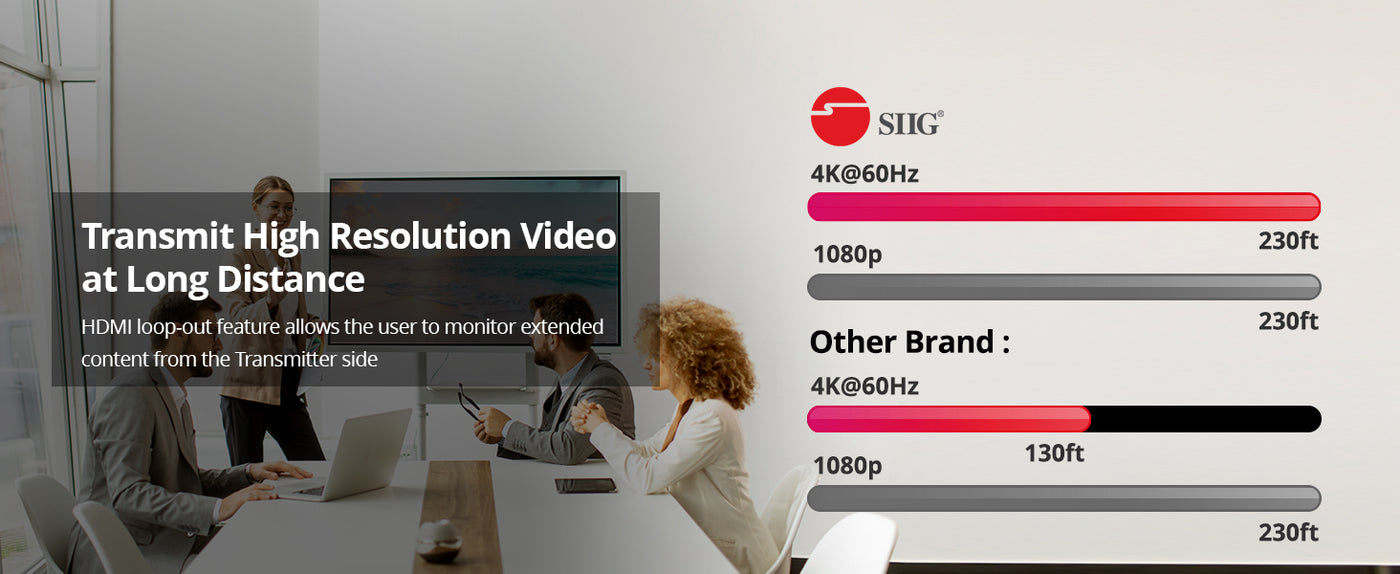

    Extend Distance
    This ipcolor 4K HDMI Extender with IR, HDR and ARC designed to extends HDMI signals up to 230ft (70m) through RJ45 network to a remote HDMI display for reliability transmission

    dis

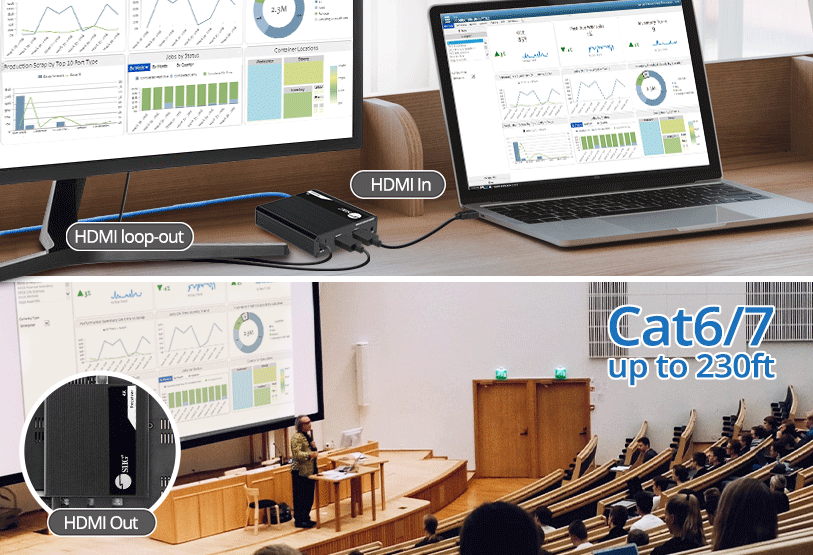

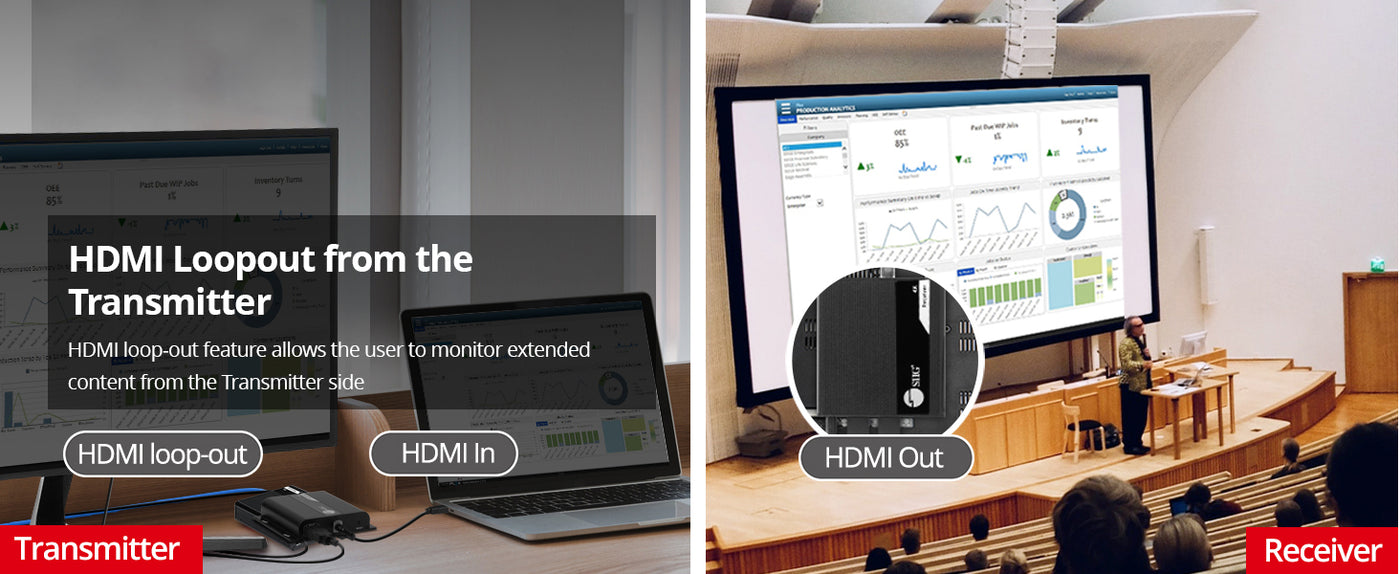

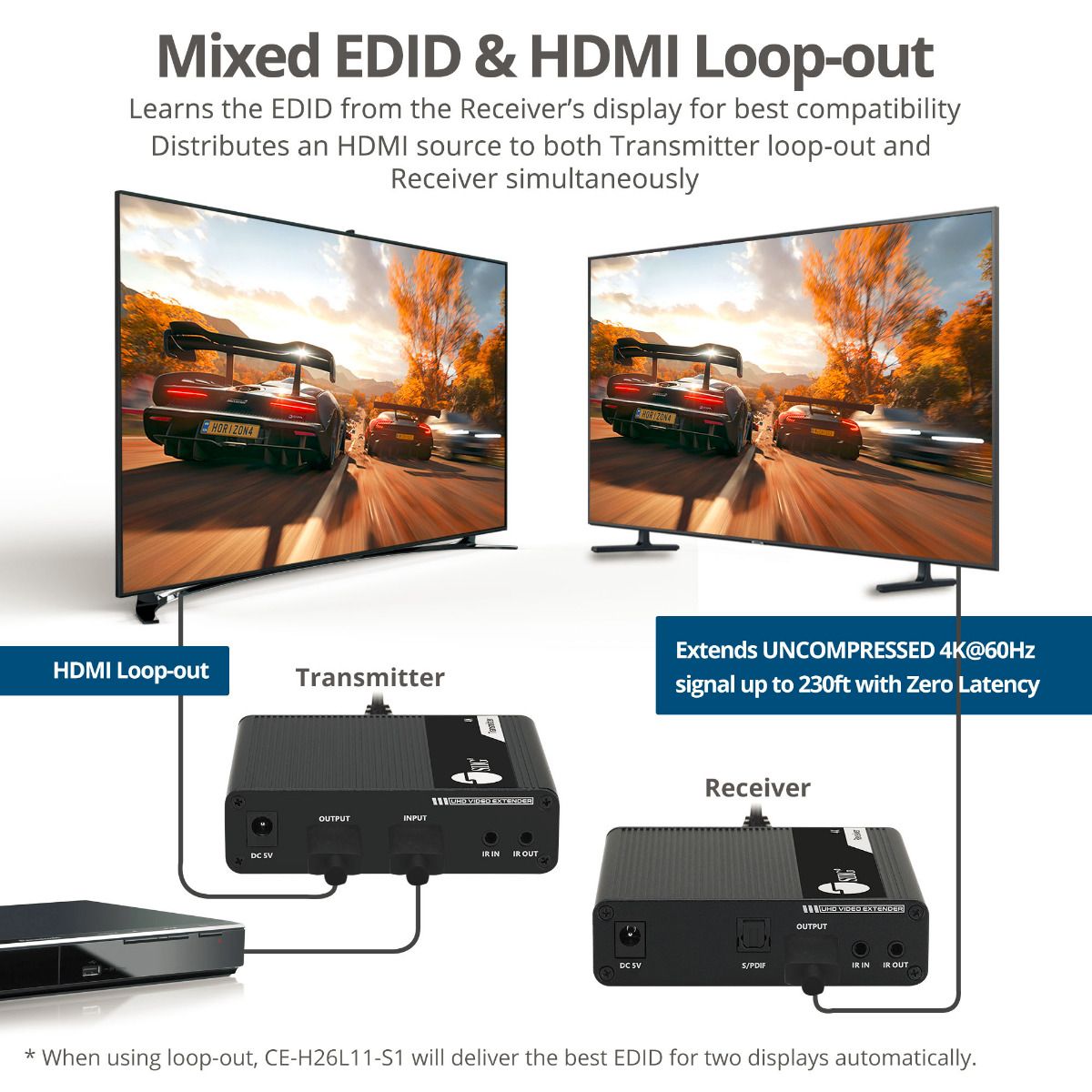

    HDMI loop-out on the transmitter to connecting a local display for monitoring of the extended displays


    IR Extension
    Built-in Bi-directional IR signal extension modules allows remote controlling the HDMI source device at the receiver and playback at the distant display. Supports an IR signal in the 20-60KHz carrier frequency

    ir


    High Performance
    Offers a true 18Gbps video bandwidth and supports pure unaltered uncompressed 7.1-ch. surround sound from HDMI

    band


    4K UHD Resolution
    Supports Ultra High-Definition video resolution up to 4K (3840x2160) @60Hz YUV 4:4:4 8-bit and HDR YUV 4:2:0 10-bit, HDCP 2.2 to deliver a crystal-clear picture quality and allows EDID auto-learning for remote and local displays

    res

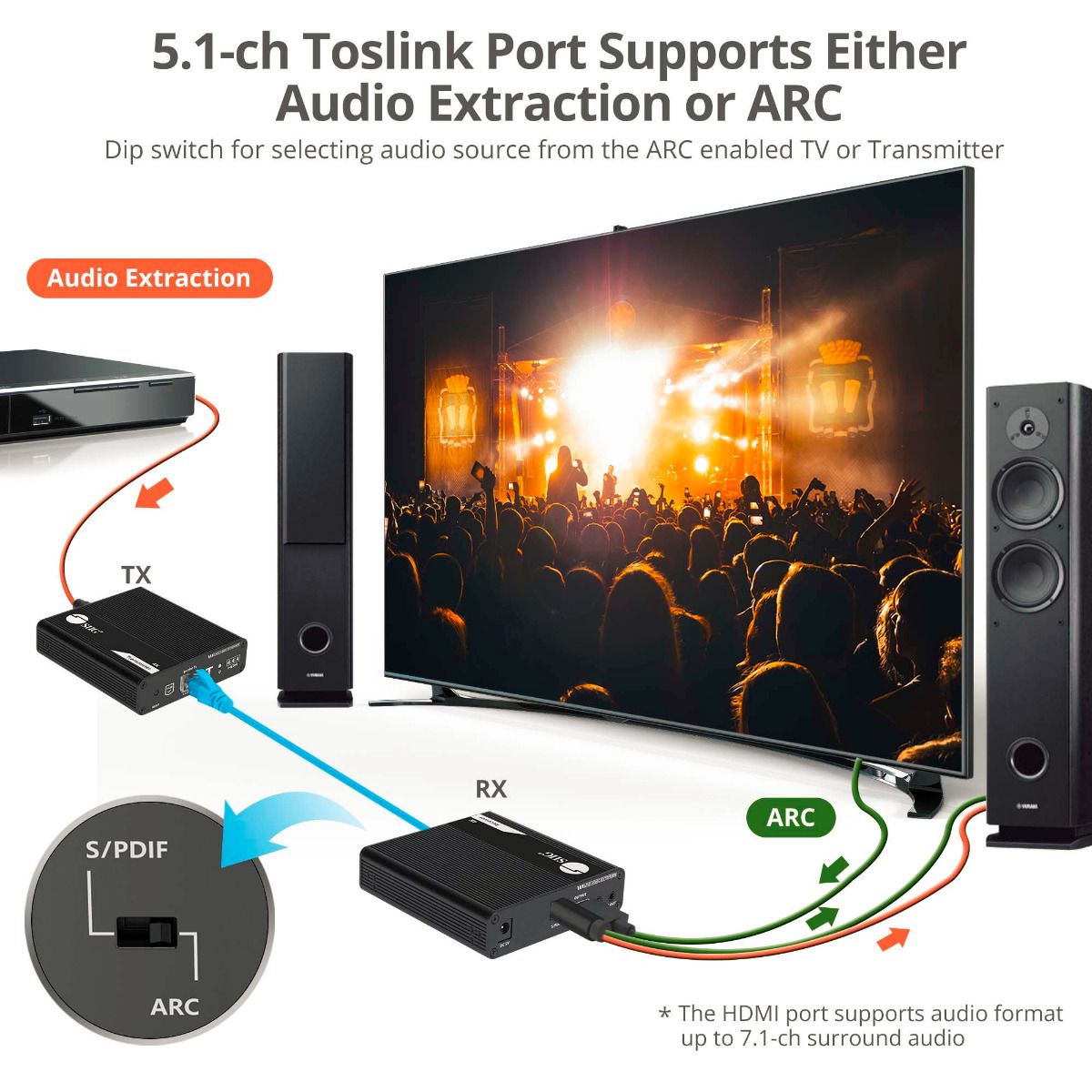

    Audio Extraction/ARC
    Easily extract high quality audio via digital S/PDIF output from either HDMI speaker or return audio from ARC-enabled TV to the HDMI audio system/speaker/soundbar. Audio slide switch provided to quickly select S/PDIF or ARC function

    S/PDIF audio formats: PCM 2.0, Dolby 5.1, and DTS 5.1; HDMI audio formats: PCM 2.0/5.1/7.1, Dolby 5.1, and DTS 5.1
    *Note: please connect ARC enabled TV HDMI port to the SIIG ipcolor 4K HDMI Extender HDMI output port before use

    ext


    Multiple Connectivity Ports
    Comes with one HDMI video input port, one HDMI loop-out port, one HDMI video output port, two RJ45 network ports, one S/PDIF (Toslink) audio output port, two 3.5mm IR emitter ports, two 3.5mm IR receiver ports, two reset buttons, one audio slide switch selects audio extraction, two DC power jacks (5V/2A)

    port

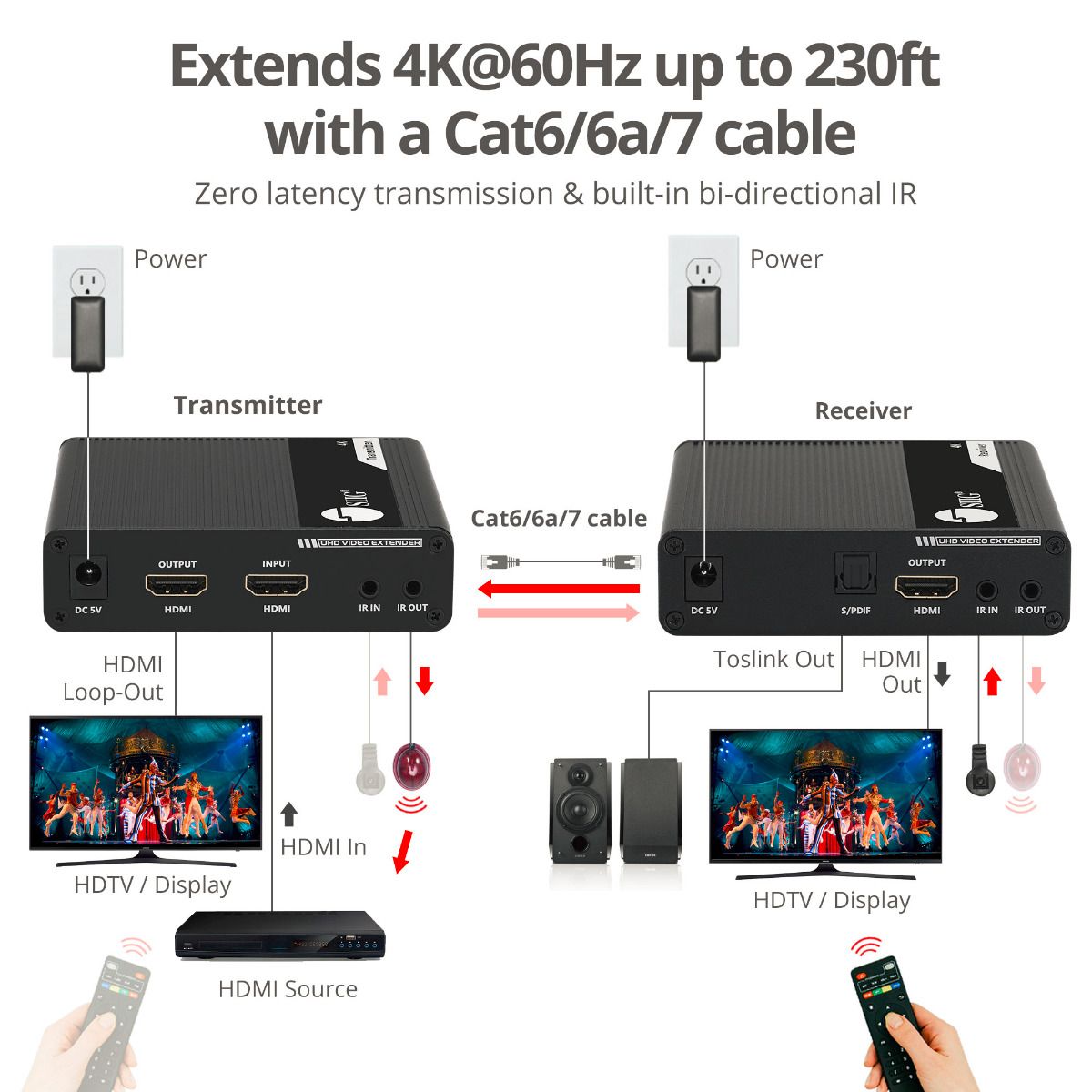

    Connection

    conn


    Protection Components
    Supports ESD protection, lightning protection, and surge protection to safe your electronic equipment

    pro

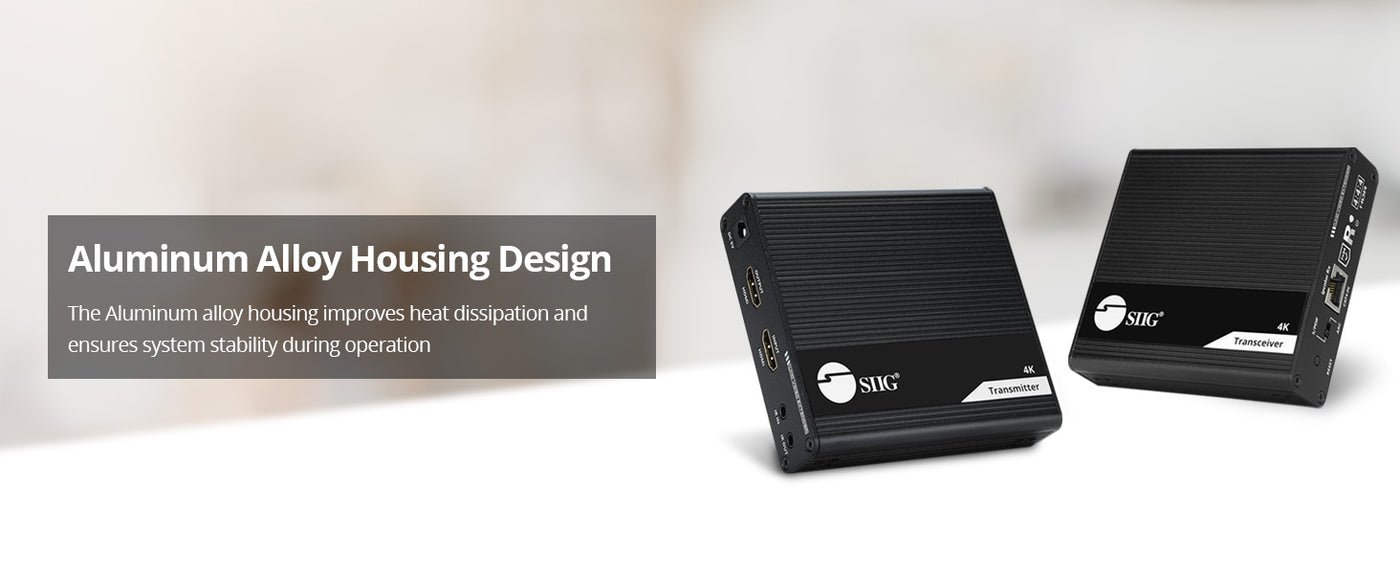

    Aluminum Alloy Housing Design
    Lightweight and durable design with an Aluminum alloy housing that improves heat dissipation and ensure system stability during long hours of operation

    hou


Applications

    • Home theater
    • Educational facilities
    • Restaurant
    • Shopping center
    • Concent
    • Digital signage
    • Library
    • Lecture hall
    • Church
    • Control center
    • Security room
    • Exhibition

    Need to Know Before Buying

    1. Please confirm your computer or device with HDMI port

    computer

    2. Check the extended and local displays/monitors with HDMI port and supports 4K@60Hz resolution

    monitor

    3. Please ensure using UTP Cat6/7 cable for the best video quality and accurate transmission distance

    4. After changing the display, please press the reset button to relearn the EDID


    Specifications

    Video
    HDMI 1x input, 1x output, 1x loop-out
    Resolution HDCP 2.2/1.4, HDR 4K (3840x2160)/2160p/1080p/1080i/720p/480i/480p @60Hz
    Transmission distance Up to 230ft (70m)
    Bandwidth Up to 18Gbps
    Audio
    7.1 channel surround sound from HDMI port, audio format PCM 2.0/5.1/7.1, Dolby 5.1, and DTS 5.1
    5.1 channel surround sound from S/PDIF (Toslink) port, audio format: PCM 2.0, Dolby 5.1, and DTS 5.1
    IR pass-through
    Bi-directional IR allows remote control of the HDMI source device and playback function at the remote display
    Full frequency: 20KHz to 60KHz
    Power Adapter
    Input 100-240V/50-60Hz
    Output DC 5V/2A
    UL listed E335801/Level: VI
    Environmental conditions
    Operating temperature 14 to 140 degrees F
    Storage temperature -4 to 158 degrees F
    Relative humidity 5% to 90% RH (non-condensing)
    Product Info

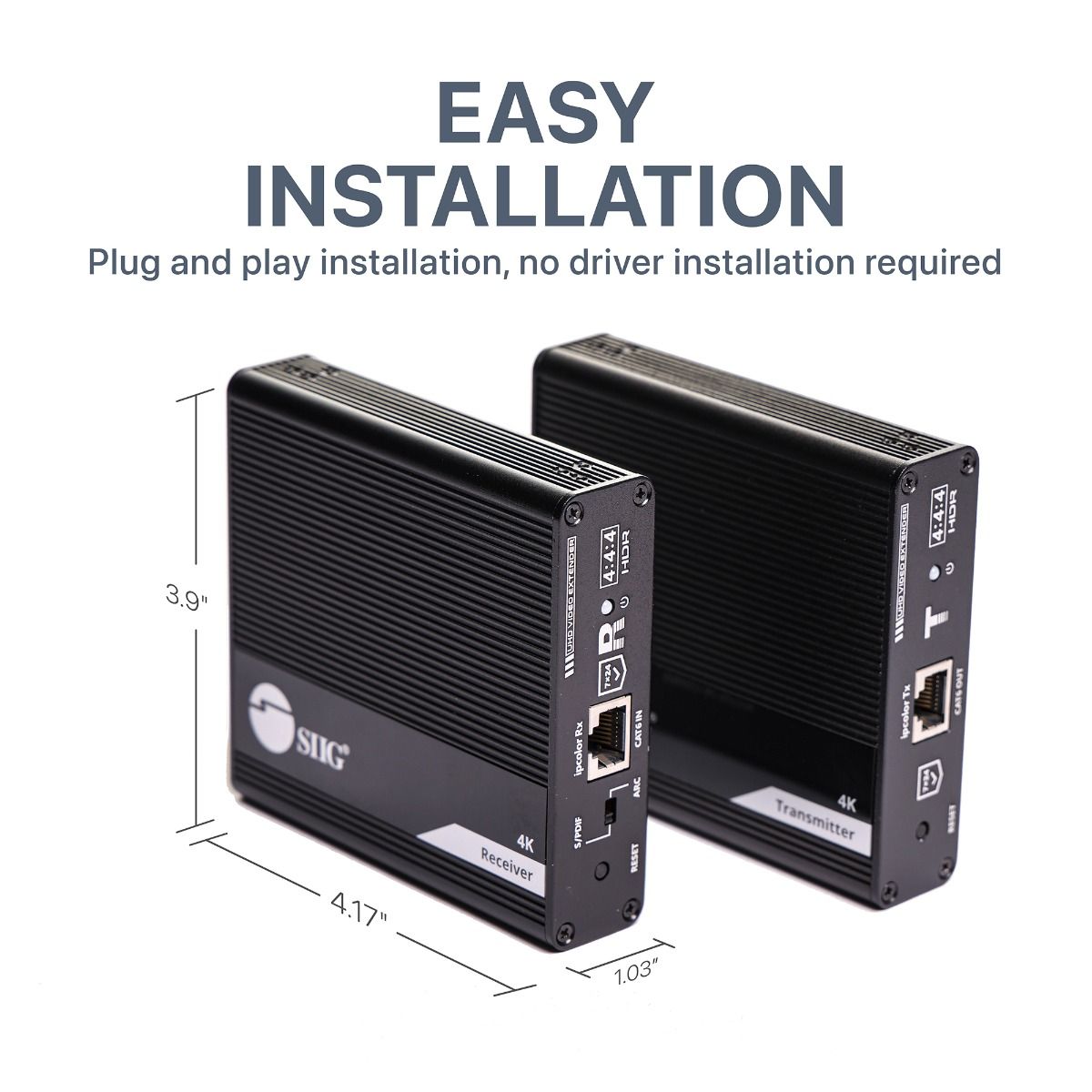

    Transmitter unit (TX) Dimensions: 4.17” (L) x 1.03” (H) x 3.90” (W)
    Weight: 0.46 lbs
    Color: Black
    Housing material: Aluminum alloy
    Receiver unit (RX) Dimensions: 4.17” (L) x 1.03” (H) x 3.90” (W)
    Weight: 0.46 lbs
    Color: Black
    Housing material: Aluminum alloy
    Unit package
    Dimensions 9.45” (L) x 3.15” (H) x 6.93" (W)
    Weight 2.01 lbs
    Certifications/Standards
    FCC, CE, RoHS, REACH
    Warranty: 2 years limited
    Country of origin: China

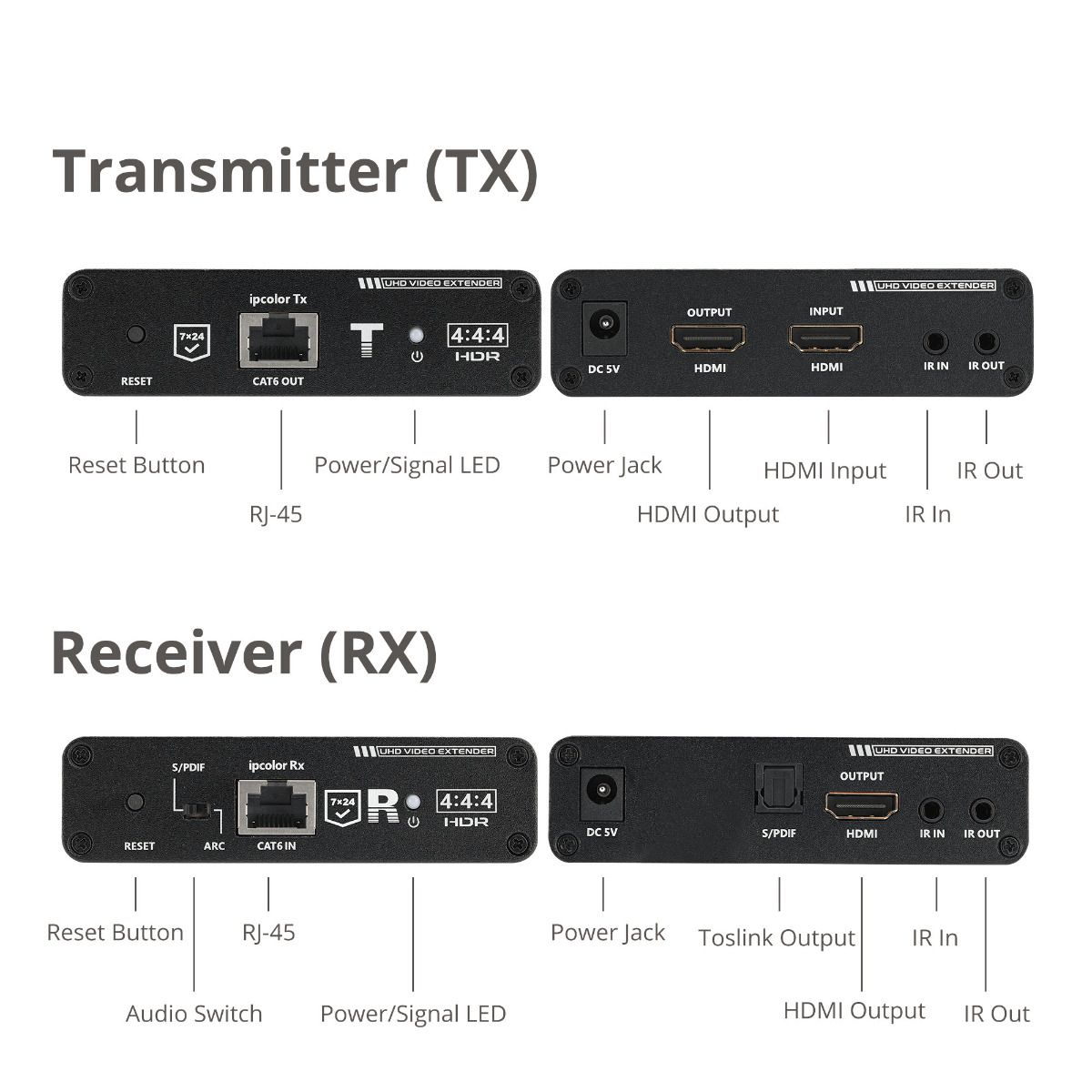

    Interface

    tx

    Transmitter unit

    • 1x 19-pin, HDMI, Female (input)
    • 1x 19-pin, HDMI, Loop-out, Female
    • 1x 8-pin, RJ45 network (output)
    • 1x 3.5mm infrared jack, IR emitter (output)
    • 1x 3.5mm infrared jack, IR receiver (input)
    • 1x power jack, 5V/2A
    • 1x reset button

    interface

    Receiver unit

    • 1x 19-pin, HDMI, Female (output)
    • 1x 8-pin, RJ45 network (input)
    • 1x S/PDIF audio, Toslink (output)
    • 1x 3.5mm infrared jack, IR emitter (output)
    • 1x 3.5mm infrared jack, IR receiver (input)
    • 1x power jack, 5V/2A
    • 1x reset button
    • 1x Audio slide switch, for select S/PDIF (audio extraction) or ARC

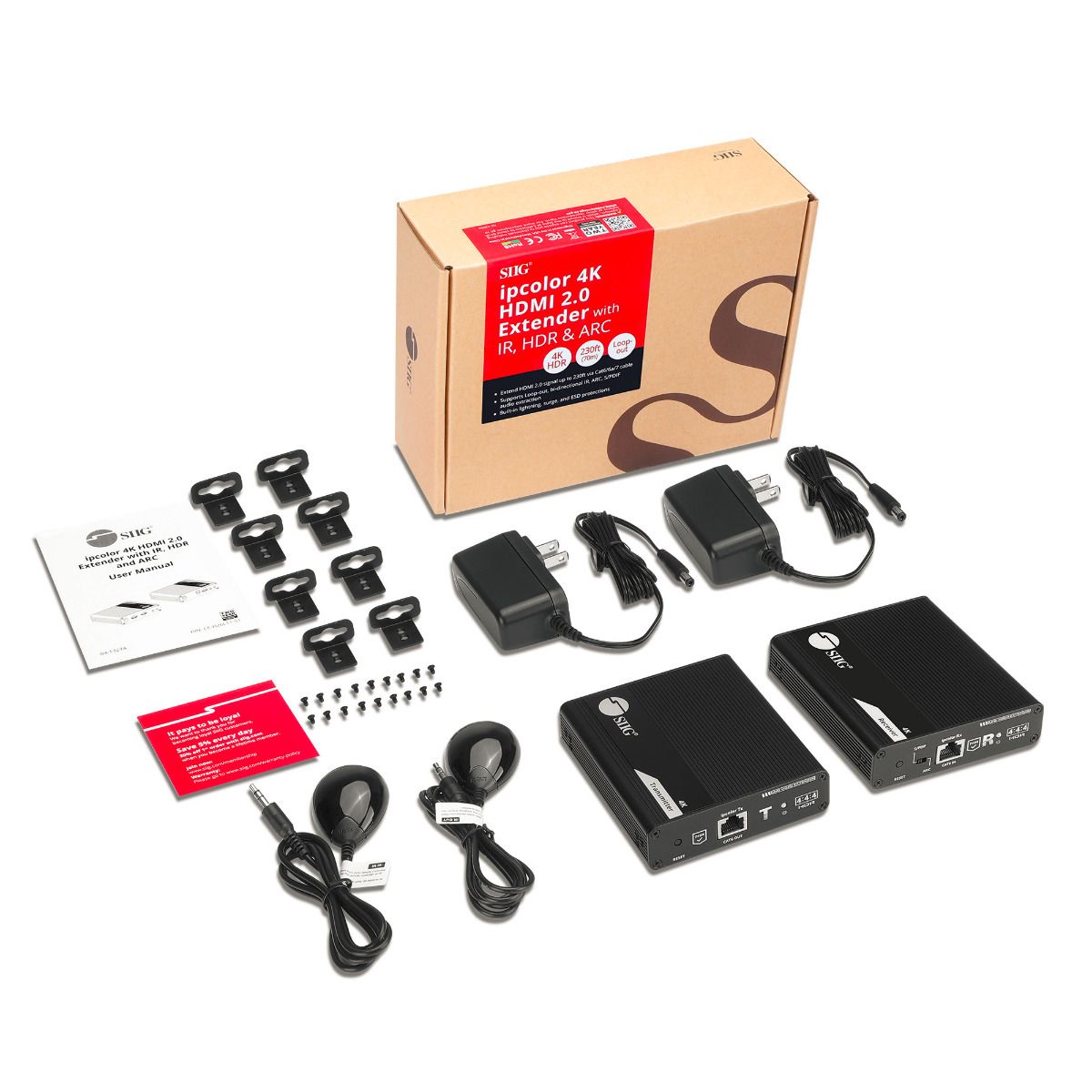

    Package contents

    • 1x ipcolor 4K HDMI 2.0 Extender with IR, HDR and ARC
    • 1x 3.5mm IR emitter extension cable
    • 1x 3.5mm IR receiver extension cable
    • 1x Mounting kits
    • 2x DC power adapter, 5V/2A
    • 1x User reference guide

Manuals

Frequently Asked Questions (Q&A)

Q: I need to output full stereo via Toslink. Does this downmix Dolby to 2 channels including the subwoofer channels?

No, it doesn't have Digital 5.1 downmix to PCM 2.0 function

Q: Does this extender support CEC pass-through between Transmitter & Receiver?

No, it doesn't support CEC pass-through between Transmitter & Receiver. It only supports CEC from TV to RX for ARC use

Q: Will this work to send hdmi arc & cec from tv to a sonos amp over a cat6 cable?

This work to send HDMI ARC & CEC from TV to Toslink of receiver without going through Cat6 cable (No ARC audio from TV connected to transmitter, only from TV connected to receiver). How it work: 1. Connect your HDMI source device to transmitter. 2. Run...
