IT-Converter/Adapter |
SKU:
CB-DP1X12-S1

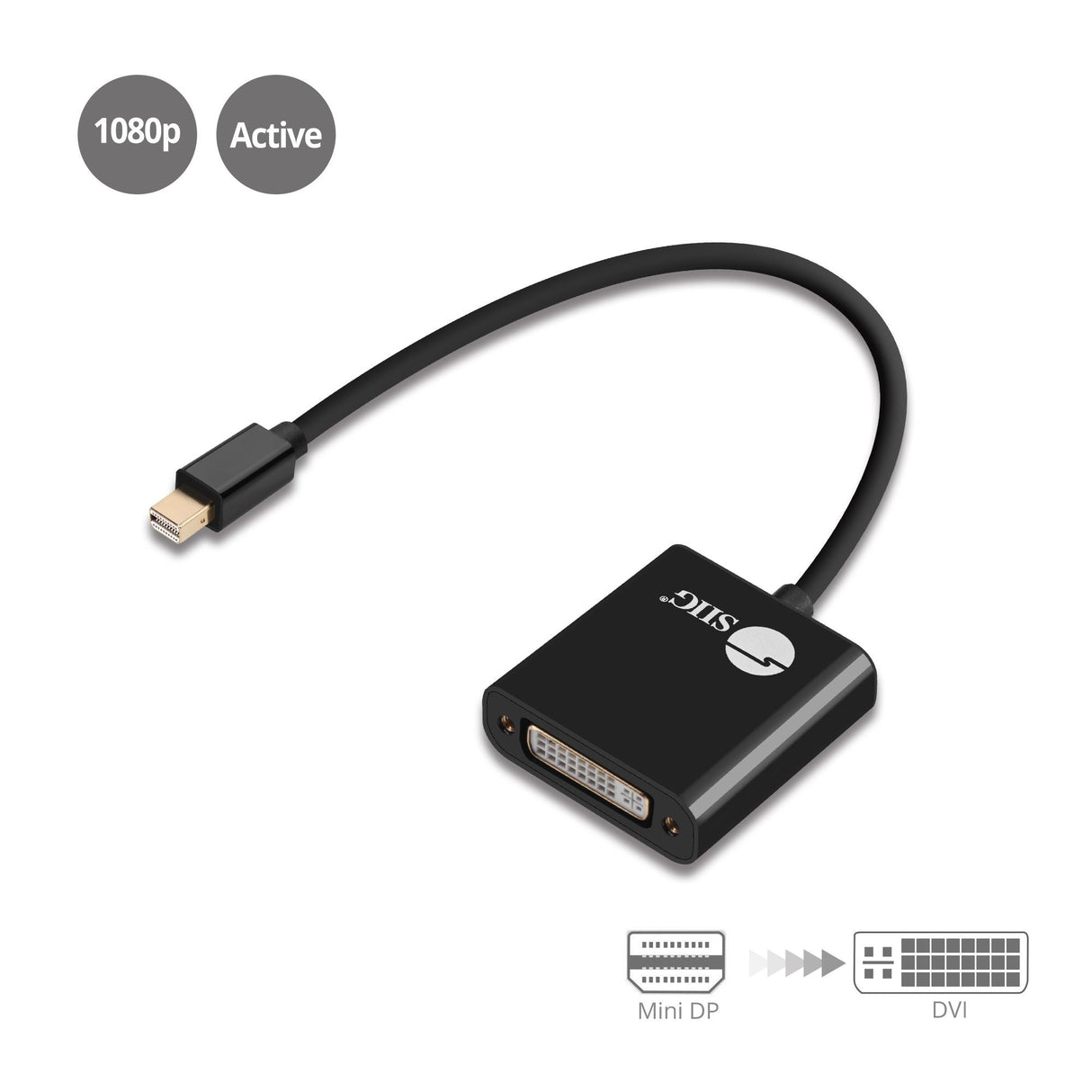

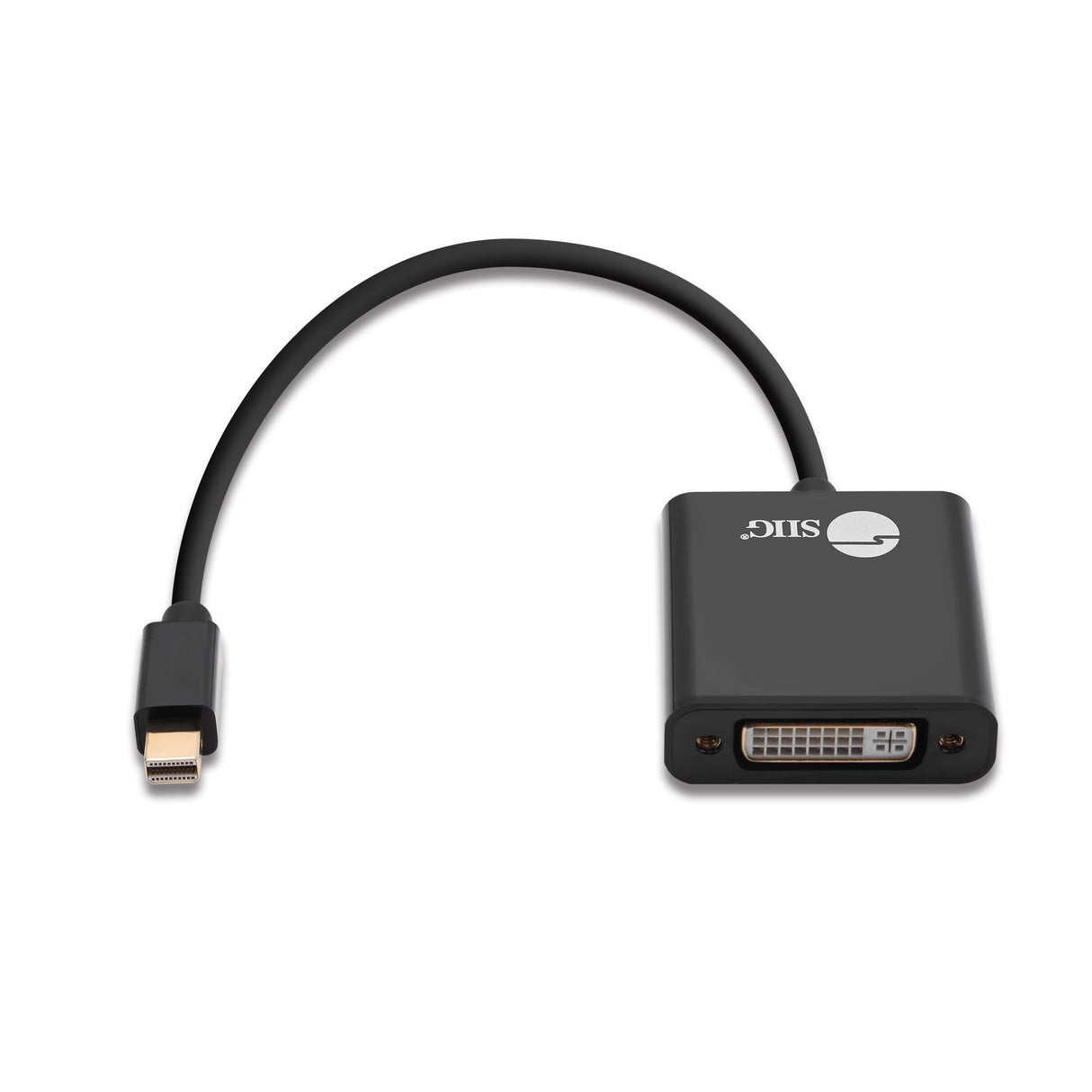

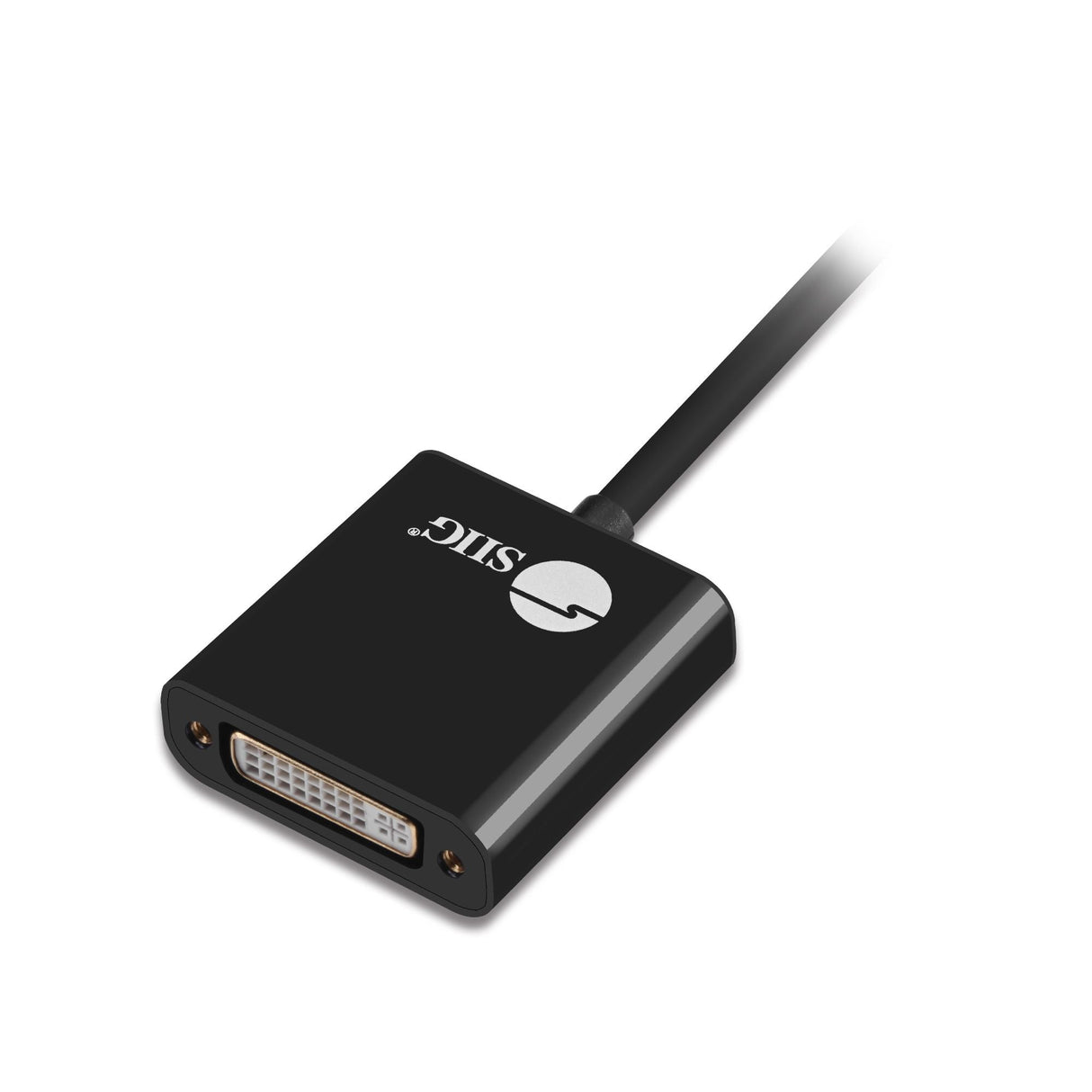

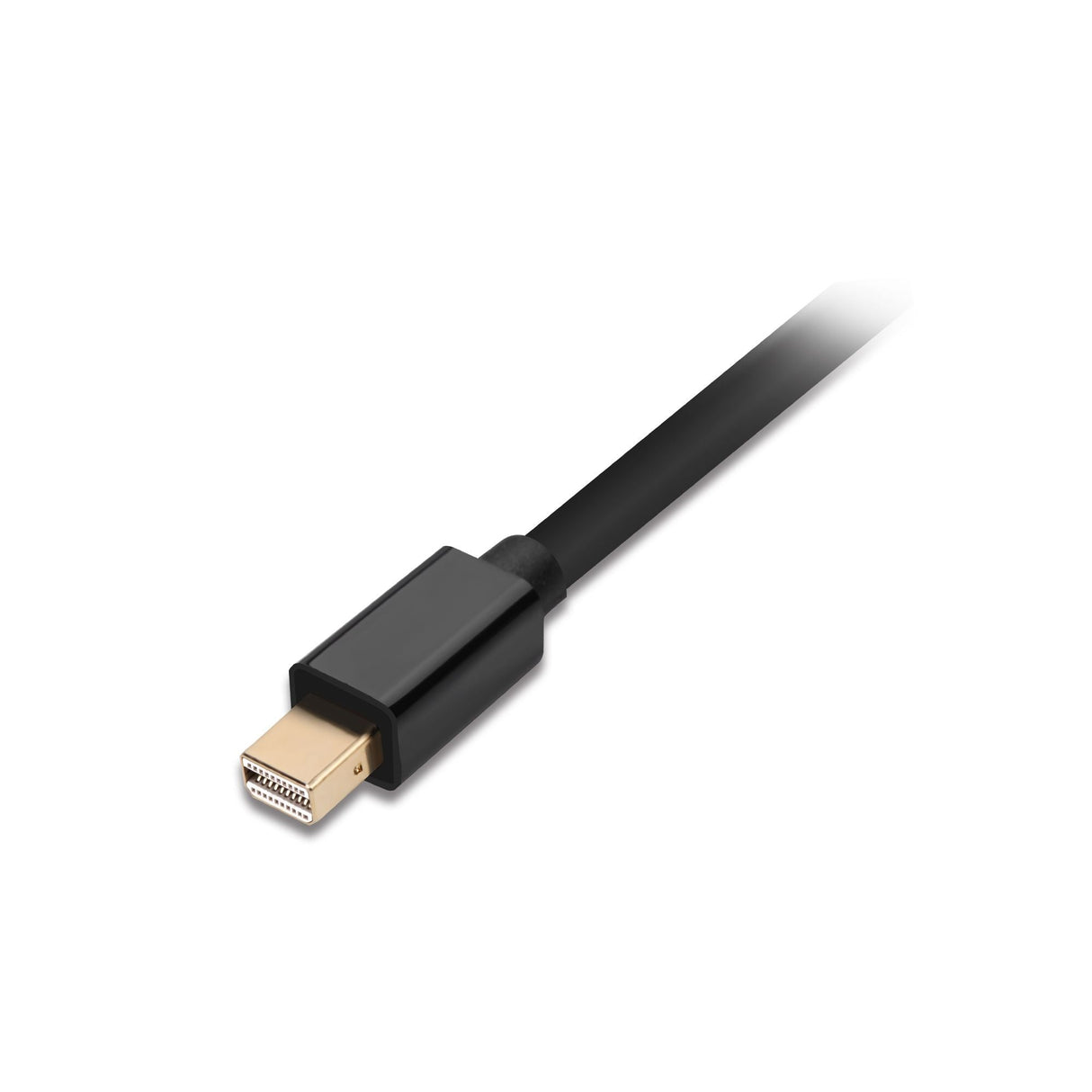

Mini DisplayPort to DVI Adapter - Active
Mini DisplayPort
DVI
Active
Regular price
$29.99
Unit price
/
Unavailable
Shipping calculated at checkout.
Mini DisplayPort to DVI Adapter - Active is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features
Get Connected
Get Connected
High Quality Video
High Quality Video
Reliable Connection
Reliable Connection
Active Adapter Technology
Active Adapter Technology
Plug-n-Play
Plug-n-Play
No content found
| Chipset | PS171 |
| Compatibility | Intel® Thunderbolt™ 2 compatible |
| DisplayPort Support | Supports DisplayPort 1, 2 and 4 lanes at 1.62Gbps and 2.7Gbps |
| Content Protection | Supports HDCP 1.3 |
| Operation Modes | Supports full link training and no link training operation |
| DVI Signal | DVI-D single link (Note: DVI analog signaling is not supported) |
| Maximum Resolution | 1080p & 4K @30Hz HDTV resolution |
| Bandwidth | Up to 3.0 Gbps (300MHz TMDS clock rate) |
| Adapter Type | Active |
| Connectors | 1x 20-pin, Mini DisplayPort, Male, Input 1x 29-pin, DVI-D, Female, Output |
| System Requirements | Mini DisplayPort or Thunderbolt 2 enabled systems DVI-D displays |
| Product | |

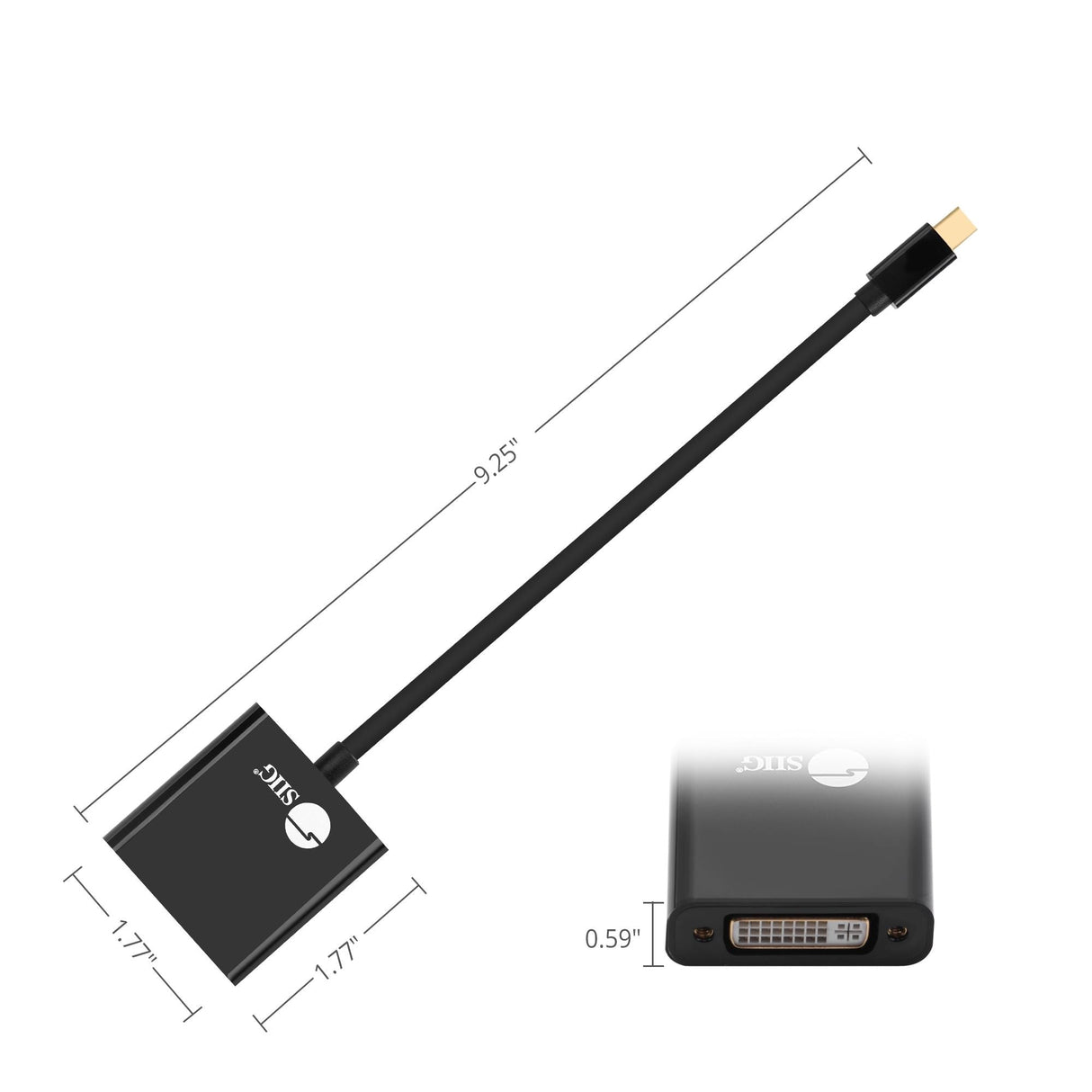

| Product Dimensions | 9.8" (L) x 1.77" (W) x 0.59" (H) |
| Product Weight | 0.08 lbs |
| Unit Package | |
| Unit Package Dimensions | 4.72″(W) x 7.48″ (H) |
| Unit Package Weight | 0.09 lbs |
| Master Carton | |
| Master Carton Dimensions | 15.55″(W) x 11.22″(H) x 10.24″(D) |
| Master Carton Weight | 10.14 lbs |
| Master Carton Quantity | 100pcs/ctn |

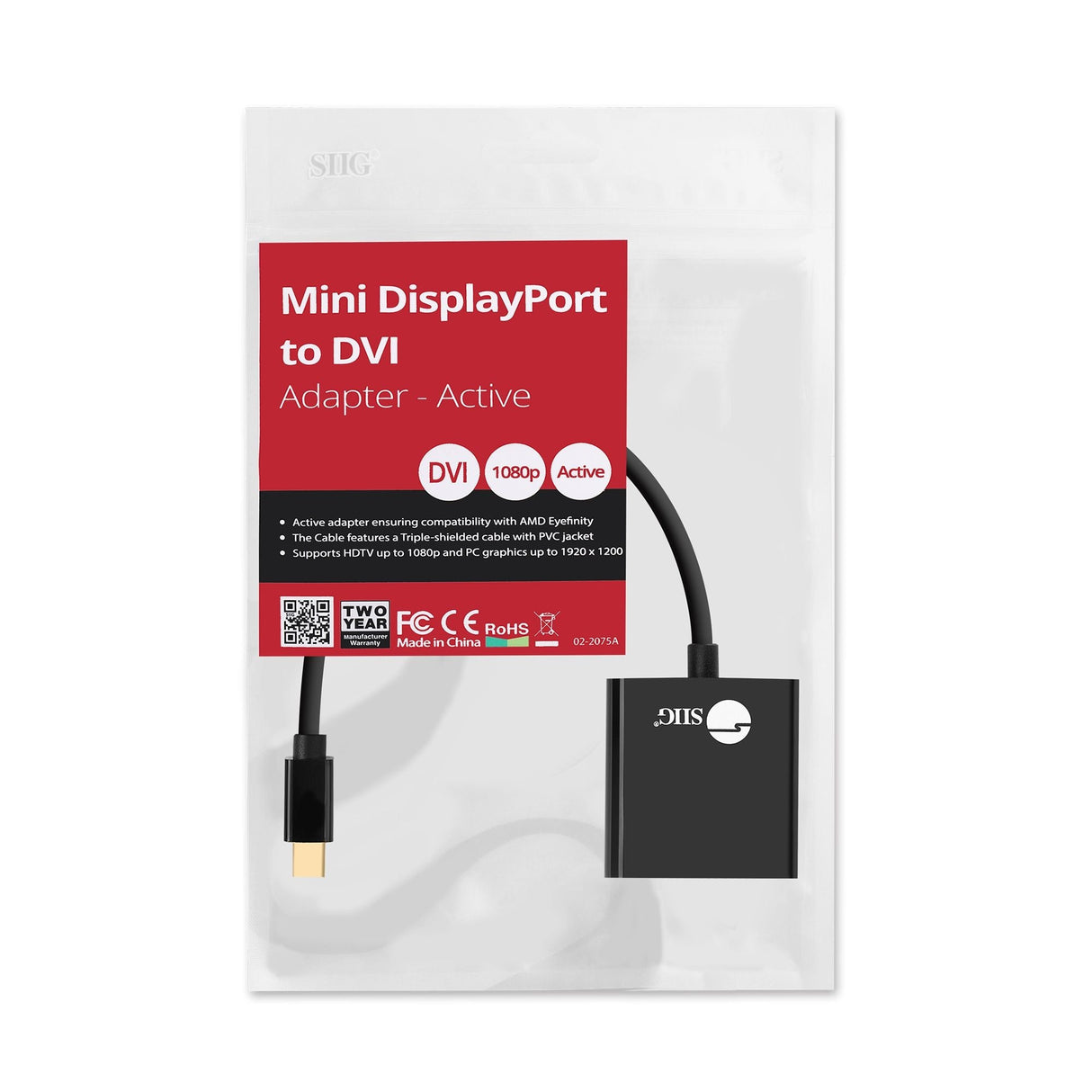

| Package Contents | Mini DisplayPort to DVI Adapter-Active |
| Color | Black |
| Environmental Conditions | Operating temperature: 32 to 140°F Storage temperature: 14 to 158°F Humidity: < 85% non-condensing |
| Certifications/Standards | FCC CE RoHS |
| Warranty | 2 years limited |
| Country of Origin | China |
