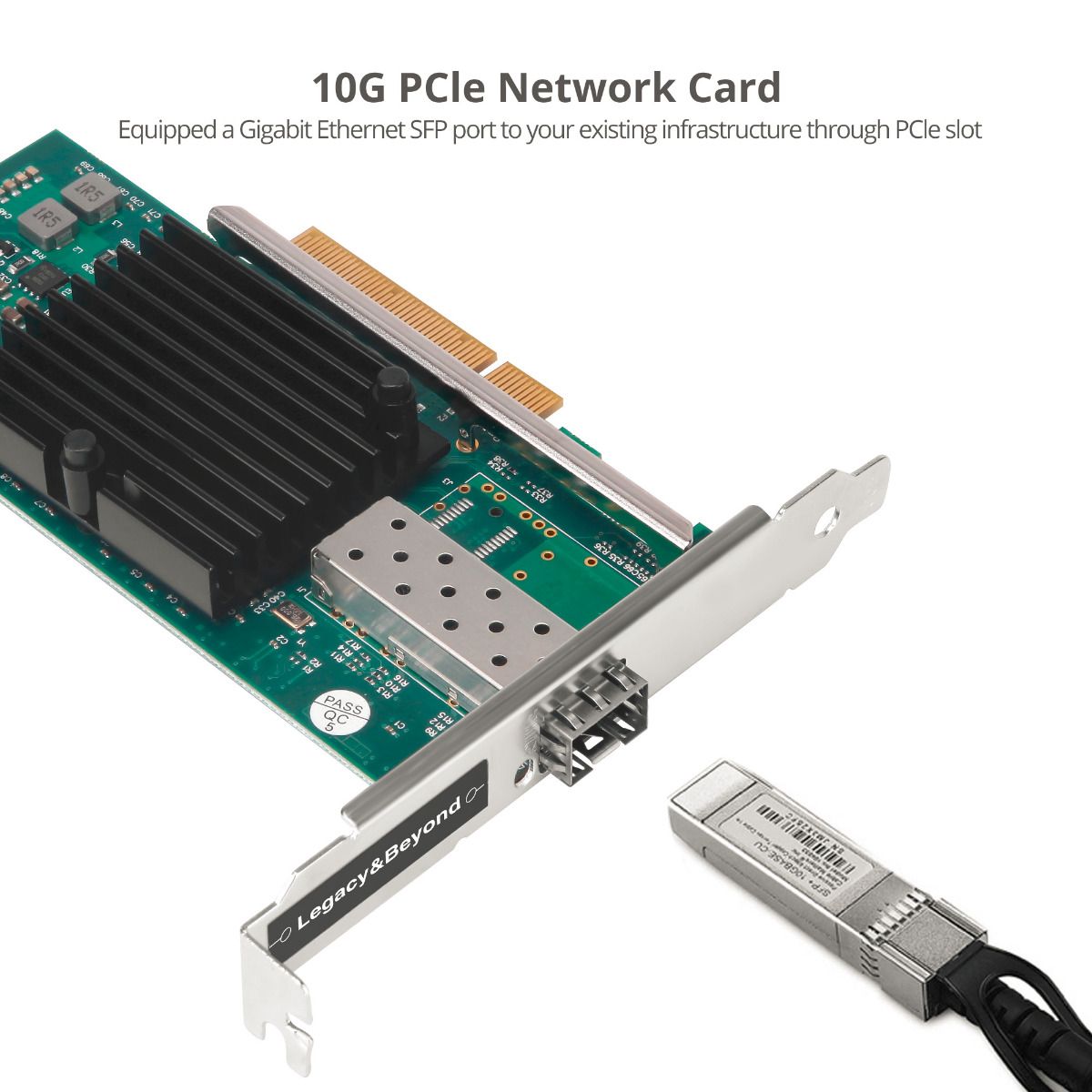

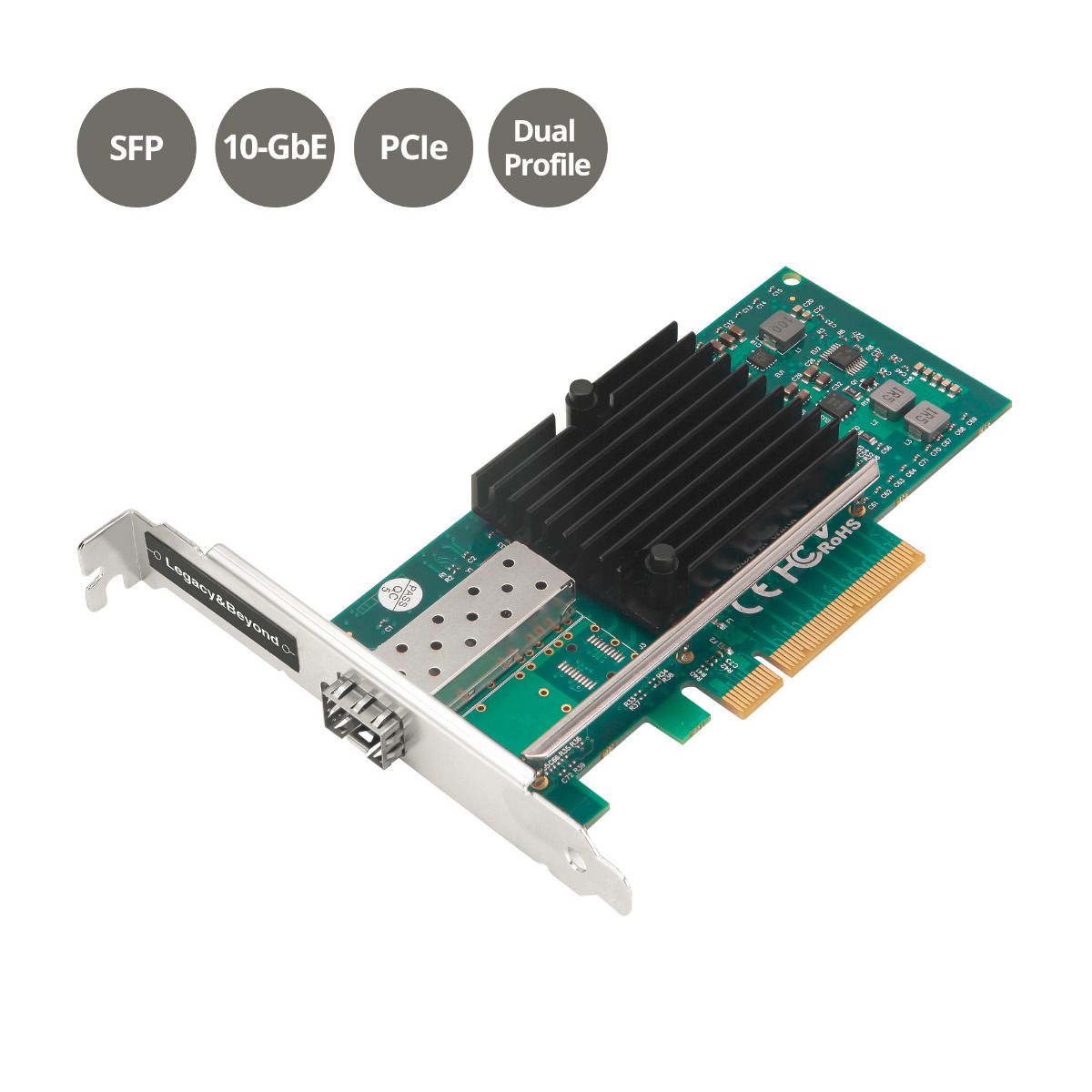

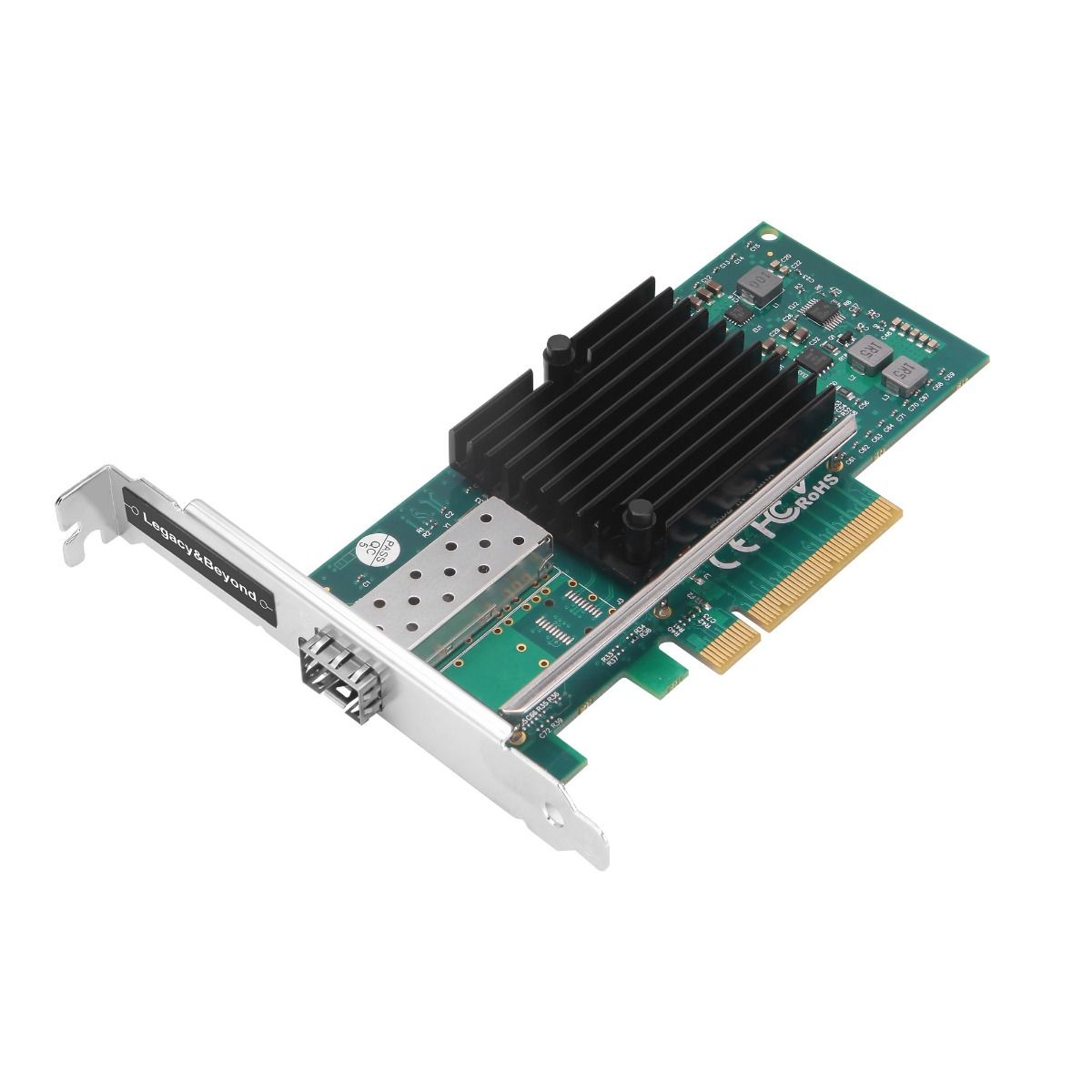

Single Port 10G SFP+ Ethernet Network PCI Express

Adds one 10GbE SFP Ethernet port through an available PCI Express slot to server or desktop systems
In stock
Quantity in stock: 44
SKU
LB-GE0411-S1
$219.99

We will send this product within 1 business day

Lifetime technical support on all of our product

45 day return and money back guarantee



    Features

    • Quickly adds one 10GbE SFP Ethernet port through an available PCI Express 2.0 x8 slot to server or desktop systems
    • Intel X520 chipset support reliable and advanced network connectivity with Intel virtualization technology, flexible features of LAN and SAN network with iSCSI, NFS
    • Compliant with IEEE 802.3ae, 802.3x, 802.1Q with full duplex and Wake-on-Lan support
    • Feature innovative power management including Energy Efficient Ethernet(EEE) and DMA
    • Coalescing to increase efficiency and reduce power consumption

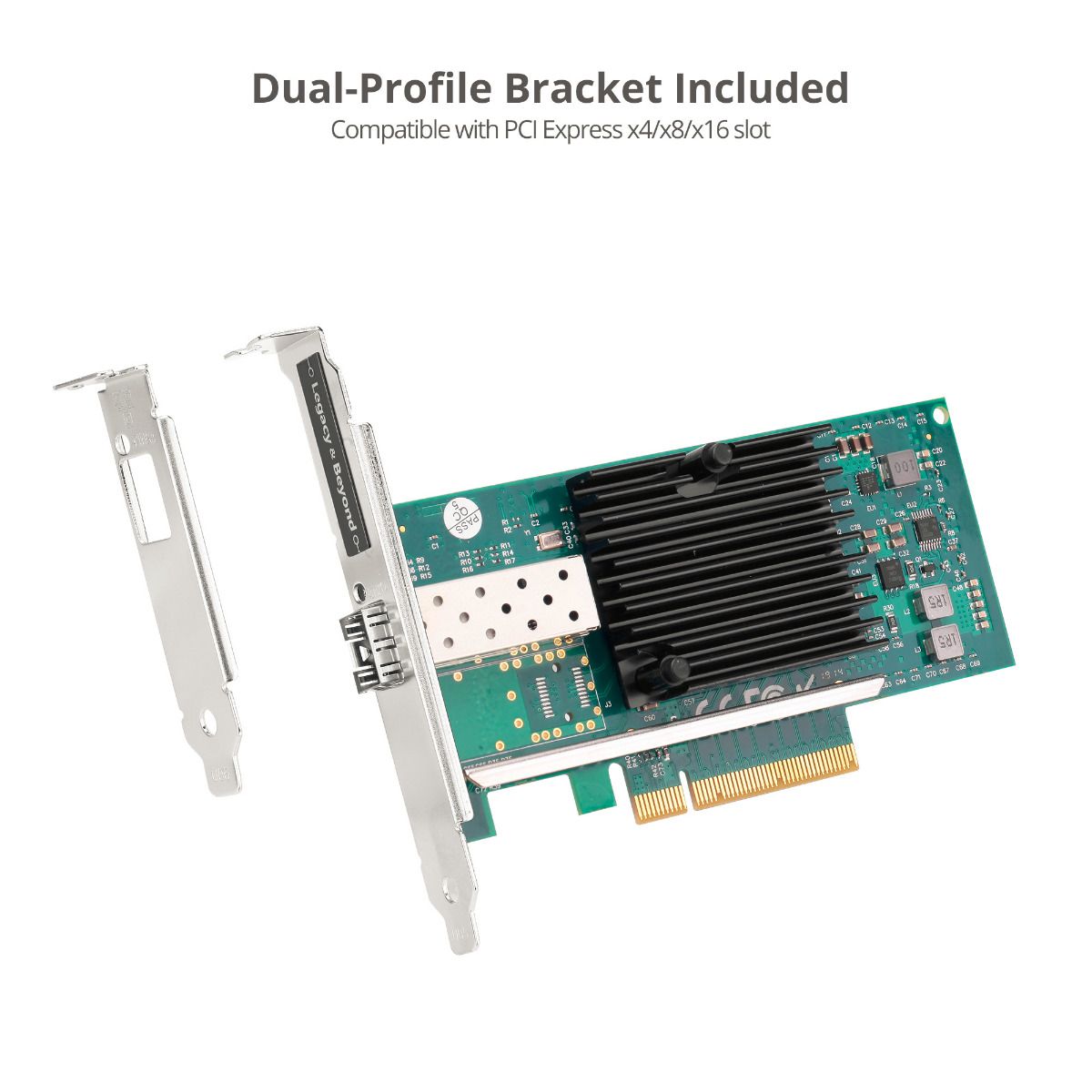

    • Fits both standard and low-profile system chassis with the included brackets
    • Large heat-sink provides better heat-dissipation for reliable performance and long life

    Specifications

    • Chipset: Intel X520
    • Network transfer rate: 10G / 1G / 100Mbps
    • PCI Express 2.0 specification compliant
    • Bus connector: PCI Express x8
    • Product:
      • Connectors: 1x SFP+, Female
      • Dimensions: 6.02" (W) x 0.83" (H) x 4.72" (D)
      • Weight: 0.26 lbs
      • Color: Green
    • Environmental conditions:
      • Operating temperature: 32 to 104 degrees F
      • Storage temperature: 14 to 140 degrees F
      • Relative humidity: 5% to 85% RH (non-condensing)
    • Certifications/Standards: FCC, CE, RoHS
    • Warranty: 1 year limited
    • Country of origin: China

    System Requirements

    • PC with an available PCIe 2.0 x8 or larger slot
    • Windows 10 / 8.1 / 8 / 7 (32-/64-bit)
    • Windows Server 2019 / 2016 / 2012 R2 / 2012 / 2008 R2 / 2008 / 2003 (32-/64/bit)

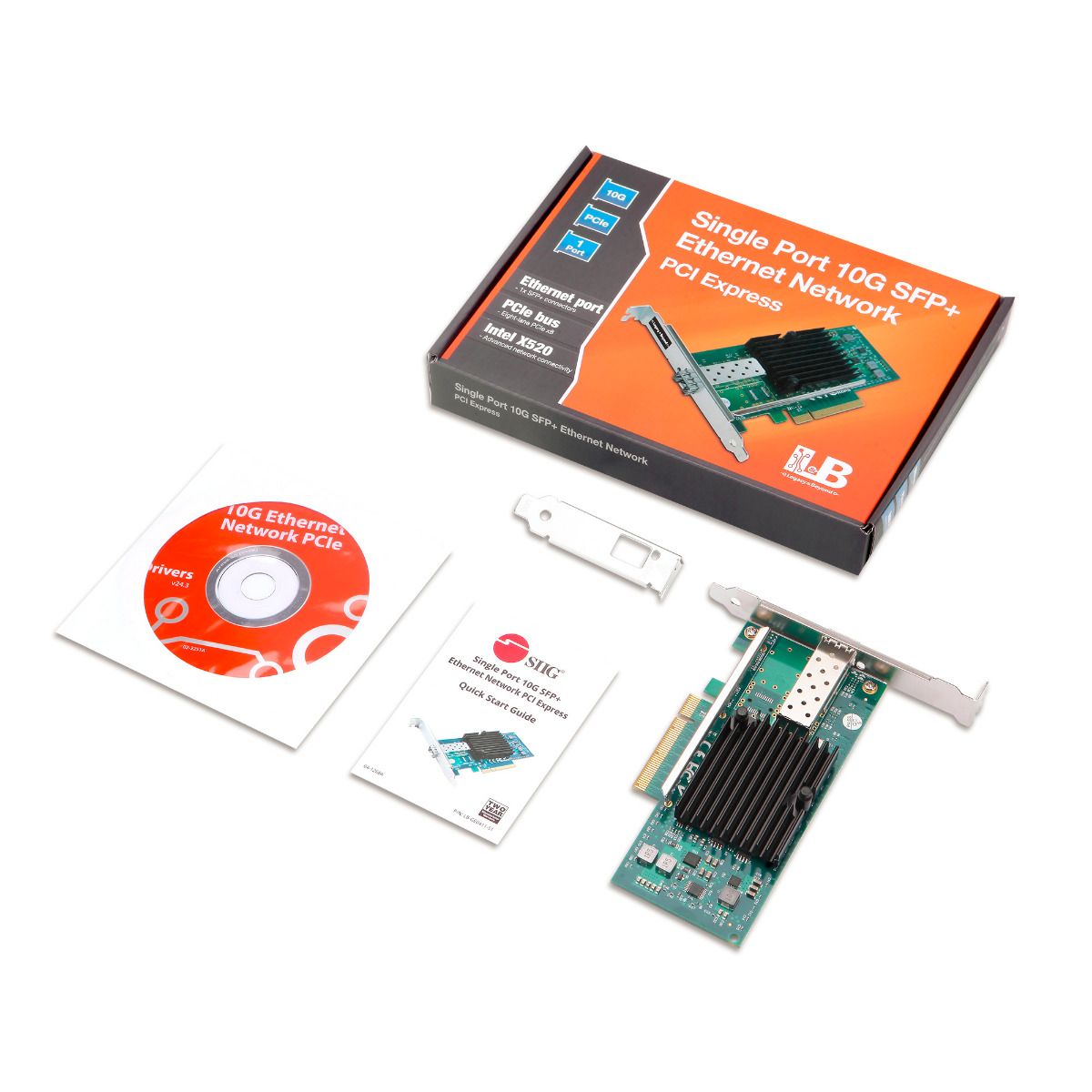

    Package contents

    • Single Port 10G SFP+ Ethernet Network PCI Express
    • Driver CD
    • Spare low-profile bracket
    • Installation guide

Drivers


Hardware Version: 1

Windows 10 / 8 / 7 / Server 2019 to 2008 R2
Download driver
