Thunderbolt 3 DP 1.4 8K Docking Station with Dual M.2 NVMe SSD & 96W Power Delivery, support 4K 144Hz resolution

• Features
• Applications
• Need to Know Before Buying

---

Overview

Advanced docking station transforms a single 8K 30Hz or 4K 144Hz Thunderbolt 3 port into one Thunderbolt 3 port, one DisplayPort 1.4 port, two USB 3.1 Gen2 Type A/C ports, two USB 3.1 Gen1 Type-A with BC 1.2 charging ports, one Gigabit Ethernet port, an SD memory card reader, and a stereo audio/microphone connectivity with PD 3.0 charging up to 96W. Adds 2 storage drives via dual M Key NVMe SSD capabilities, TAA compliant

---

Features



Create a 40G data transmission Ultra-high performance workstation by connecting a single Thunderbolt 3 with DP 1.4 Alt mode input to multiple displays and includes two M.2 M-Key NVMe SSD PCIe excellent storage drives enhanced data transfer, backup speed, and disk upgrade (M.2 M-Key NVMe SSDs are not included)



---

8K/4K Video Resolution
Allows you to connect either a single 8K 30Hz / 4K 144Hz display through a Thunderbolt 3 port / DisplayPort 1.4 port or two 4K (3840x2160) @60Hz Ultra HD displays through Thunderbolt 3 and DisplayPort 1.4 ports for stunning and crystal-clear video quality
* Note: Only one video display is supported on M1 and M2 mac^® systems


Monitor soultion


---

High Performance
Expand multiple connectivity ports to your Thunderbolt 3 with DP 1.4 Alt mode enabled Mac or Windows PC to increase your efficiency and allows data transfer speeds up to 40Gbps and daisy-Chain up to 6 Thunderbolt 3 devices


*Note: When connecting to a DP 1.2 Alt mode USB-C host port the resolution will be [email protected] for single DisplayPort monitor or 1080p for two DisplayPort monitors



*Compatibility Notes:
- The Thunderbolt 3 has the same design as the USB-C port. Thunderbolt 3 has the capabilities of USB-C, but USB-C does not have the capabilities of Thunderbolt 3
- The Docking's Thunderbolt 3 output does not work when connecting to a non-Thunderbolt 3 USB-C port
- The USB Type-C connector with DisplayPort technology via an Alternative Mode (Alt Mode) and allows a USB-C equipped computer and cable to connect directly to a display/monitor

---

Multiple Connectivity Ports

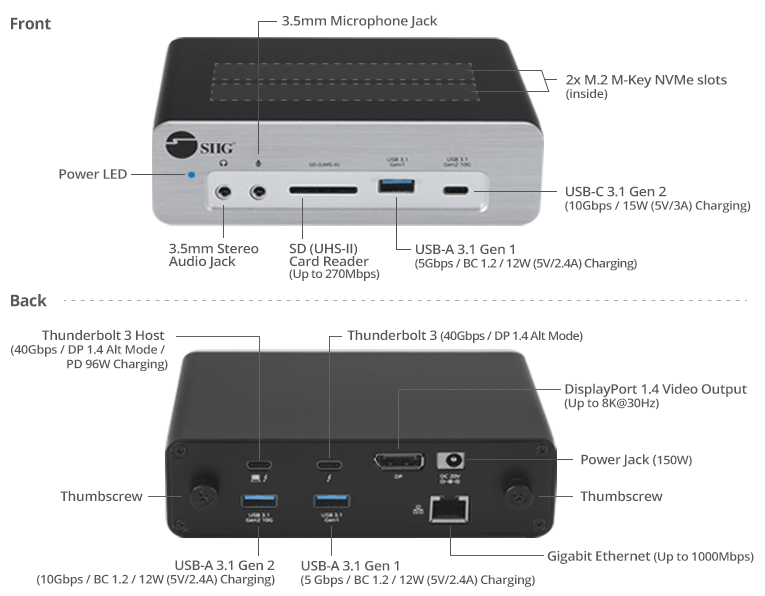

Adds one Thunderbolt 3 port (Host), one Thunderbolt 3 output port, one DisplayPort 1.4 video output port, one USB-C 3.1 Gen 2 output port, two USB-A 3.1 Gen 1 output ports, one USB-A 3.1 Gen 2 output port, one Gigabit Ethernet, two M-Key M.2 PCIe NVMe SSD slots, one SD memory card slot, one 3.5mm stereo audio jack and one 3.5mm microphone input

Connection


---



SD Memory Card Reader
Compatible with the latest memory card such as SD 4.0 UHS-II. Supports data transfer rate up to 270Mbps and a maximum capacity of 2TB



---

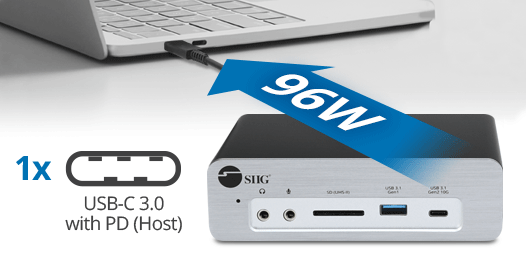

87W/96W Power Delivery
PD 3.0 charging specification compatible supplies up to 87watts or 96watts depend on source device request and charging your laptop, notebook, tablet, and smartphone. Includes 150W power adapter to provide sufficient power for your connected peripherals

---



USB-C / USB-A 3.1 Data Transfer
Provides one USB-C 3.1 Gen 2 (10Gbps), two USB-A 3.1 Gen 1 (5Gbps) with BC 1.2 (5V/2.4A), and one USB-A 3.1 Gen 2 (10Gbps) with BC 1.2 (5V/2.4A) ports to enhance the USB performance and transmission capacity of the laptop/desktop

---

Dual PCIe Gen3 M.2 NVMe
Accommodates two M-Key 2280 form factor M.2 PCIe NVMe SSD interfaces. Each SSD supports a data transfer rate up to 1.5Gbps to increase data transfer, data backup, and storage capacity make your computer performance higher. Compatible with M.2 M- Key PCIe NVMe/AHCI M.2 SSD (* M.2 NVMe SSDs are not included). Supports up to 8TB capacity for each SSD



---

1G Ethernet Data Transmission
Reliable wired network connectivity through embedded 10/100/1000BASE-T Gigabit Ethernet port

---

3.5mm Stereo Audio and Mic
Supports two 3.5mm audio jacks for stereo audio and microphone connection

---

Unique and Elegant Housing Design
Premium metal housing provides efficient heat dissipation for reliable performance and long life; the built-in LED provides easy recognition of power status. Its unique, elegant, and sturdy style is blends into your lifestyle and life taste

---

TAA Compliant
Completely manufactured in a TAA designated country

---

Maximum Compatibility
- Compliant with mac^® M1 and M2 systems for single extend video output
- Compatible with Windows 11 and macOS 10.14 or later

*Note: this Thunderbolt 3 DP 1.4 Docking Station with Dual M.2 NVMe SSD does not work with USB-C DP Alt mode

---

Applications

• Video editing
• Gaming
• Medical office
• Educational facilities
• Financial
• Testing lab
• Workstation
• Web design studio
• Office
• Photo shooting studio

---

Need to Know Before Buying

1. Please confirm your computer with Thunderbolt 3 port. If you are not sure, please check on the manual of the computer. (Does not work with USB-C DP Alt mode)


2. Check the extended displays/monitors resolution that support Thunderbolt 3 and DisplayPort 1.4 8K30Hz/4K120Hz
* Note: DisplayPort 1.2 supports [email protected]


3. Make sure your SSD is M.2 NVMe PCIe SSD card with M-Key connector before use


4. Use the charging port to charge laptop, notebook, tablet, and smartphone, please check your cable with power delivery, then it can handle up to 87W/96W and will go to 150W using a full-featured USB Type-C

5. If you are using a DP to HDMI cable or adapter, please make sure it has "Active" word on it. Passive products without "Active" are used for DP dual mode signals

• Interface
• System Requirements
• Package Contents

---

Specifications

Hardware
Chipset	Intel JHL7540 (Intel Thunderbolt 3 certified)
Software
OS Compatibility	Windows® 11 & macOS® 10.14 or newer * Compliant with mac® M1 and M2 systems for single extend video output
Video
TBT3 with DP 1.4	Up to single [email protected] / single [email protected] / single 4K@ 144Hz / dual [email protected]
TBT3 with DP 1.2	Up to single [email protected] / Dual [email protected]
DisplayPort 1.4	1x [email protected] display / 1x [email protected] display / 1 x 4K 144Hz display / 2x [email protected] displays
DisplayPort 1.2	1x [email protected] display / 2x [email protected] displays
USB 3.1 Type-C	1x Gen 2 with fast charging (5V/3A), data transfer rate up to 10Gbps
USB 3.1 Type-A	1x Gen 2 with BC 1.2 (5V/2.4A), data transfer rate up to 10Gbps
USB 3.1 Type-A	2x Gen 1 with BC 1.2 (5V/2.4A), data transfer rate up to 5Gbps
Fast Charging Port	Yes
Audio
3.5mm 2 channel stereo audio jack & microphone Jack
Power
Power Delivery 3.0	up to 96W
Power Adapter	Input: AC 100-240V / 50-60Hz, Output: DC 20V/7.5A
UL Listed	E209833 /Level: VI
Ethernet
Data transfer rate: up to 1G (1000Mbps), backward compatible with 10/100Mbps
Supports IEEE 802.3x Full Duplex flow operation, crossover detection, and auto-correction
Compatible with IEEE 802.3, 802.3u
Enterprise features	Wake on LAN and PXE boot *Note: Mac address pass-through not supported
Storage Drive
Form factor: 2x M.2 M-Key 2280 NVMe SSD slots
Capacity: Up to 8TB for each SSD
Data transfer rate: up to 1.5Gbps (1500Mbps)
Compatible with single or dual SSD installation
Separate drive letter for each installed SSD
Card Reader
Class: 1x SD 4.0 (UHS-II) slot, compatible with the earlier versions
Data Transfer rate: up to 270MB/s (UHS-II)
Capacity: 2TB (max)
Environmental conditions
Operating temperature	32 to 104 degrees F
Storage temperature	-4 to 158 degrees F
Relative humidity:	10% to 90% RH (non-condensing)
Product Info
Dimensions	5.55” (L) x 1.67” (H) x 5.86" (W)
Weight	1.98 lbs
Color	Black
Housing material	Metal
Unit package	Dimensions: 9.21" (W) x 3.74" (H) x 7.09" (D) Weight: 4.18 lbs
Certifications/Standards
FCC, CE, RoHS, TAA compliant
Warranty: 2 years limited
Country of origin: Taiwan

---

Interface



Input:

• 1x 24-pin, Thunderbolt 3, Female (PC input)
• 1x DC power Jack (150W)
• 1x 3.5mm microphone jack

Output:

• 1x 24-pin, Thunderbolt 3, Female
• 1x 20-pin, DisplayPort 1.4, Female
• 1x 24-pin, USB 3.1 Gen 2 Type-C, Female
• 2x 9-pin, USB 3.1 Gen 1 Type-A, Female
• 1x 9-pin, USB 3.1 Gen 2 Type-A, Female
• 1x 8-pin, RJ45, Gigabit Ethernet, Female
• 2x 75-pin, M-Key, M.2 PCIe NVMe SSD slot
• 1x SD 4.0 (UHS-II) memory card slot
• 1x 3.5mm stereo audio jack

---

System Requirements

• Desktop or Laptop with an available Thunderbolt 3 port
• Compliant with mac^® M1 and M2 systems for single extend video output
• Windows^® 11 (64-bit) / 10 (32-/64-bit)
• mac OS^® 10.14 or newer

---

Package contents

• 1x Thunderbolt 3 DP 1.4 Docking Station with Dual M.2 NVMe SSD & PD
• 1x Thunderbolt 3 Cable (50cm)
• 1x Power Adapter (20V/7.5A)
• 1x User Reference Guide
