Thunderbolt 3 to 8K/Dual 4K Monitor Docking Station with PD- Titan Ridge and USB-C DisplayPort Alt compatible, support 4K 144Hz resolution

  • 8K 30Hz
  • 4K 144Hz
  • 40Gbps
  • Thunderbolt 3
  • DisplayPort 1.4
  • Dual 4K 60Hz
  • PD60W
  • 3x USB-A 5Gbps
  • Gigabit Ethernet
  • XQD 2.0
  • SD 4.0
  • CFast 2.0
  • Micro SD 3.0
In stock
Quantity in stock: 560

We ship all orders within 1 business day

Lifetime technical support on all of our products

45-day return window and money-back guarantee


    Advanced Titan Ridge Thunderbolt 3 docking station adds multiple connectivity options to your Titan Ridge Thunderbolt 3 or USB-C DP Alt enabled computer, notebook, and laptop through a single cable to offer a new generation tech and high compatibility. Compliant with Mac® system for M1, M2, M3 Pro, & Max


    With a powerful Intel Titan Ridge IC making this docking station become the fastest connection that compatible with Thunderbolt 3 and USB-C DP Alt mode

    8K/4K High-Resolutions
    Allows you to connect either a single 8K 30Hz / 4K 144Hz resolution through a Thunderbolt 3 (USB-C compatible, DP Alt mode) / DisplayPort 1.4 port or dual 4K@60Hz Ultra HD display through a DisplayPort and Thunderbolt3 ports to display the crystal-clear video quality

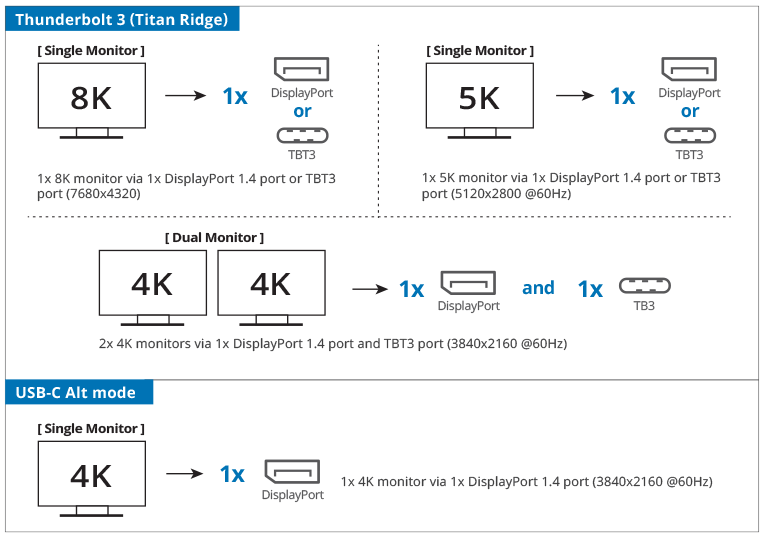

    Monitor solutions:

    * Notes:
    - Ensure the product complete performance, recommend to connect with Thunderbolt 3 system with DP 1.4 source and device
    - The Thunderbolt 3 has the same design as the USB-C port and capabilities of USB-C, but USB-C does not have the capabilities of Thunderbolt 3. Backward compatible with USB 3.1
    - The Docking's Thunderbolt 3 output does not work when connecting to non-Thunderbolt 3 USB-C port or USB-C DP Alt mode
    - Non-Titan Ridge Thunderbolt 3 source connection will only support up to 5K30Hz Thunderbolt display and 4K60Hz DisplayPort display
    - The USB Type-C connector with DisplayPort technology via an Alternative Mode (Alt Mode) and allows a USB-C equipped computer and cable to connect directly to a display/monitor

    High Performance
    Expand multiple connectivity ports to your Thunderbolt 3/DP Alt Mode* USB-C enabled Mac or Windows PC to increase your efficiency and allows data transfer speeds up to 40Gbps and daisy-chain up to 6 Thunderbolt 3 devices


    * When connecting to a DP 1.4 Alt mode USB-C host port the resolution will be 8K@30Hz(4:2:0) for single DisplayPort monitor only

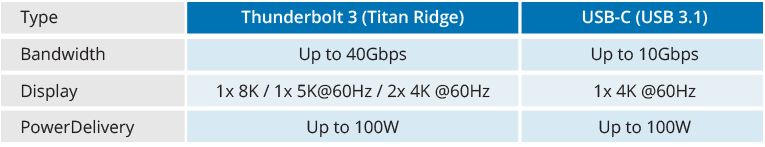

    TBT3 vs USB-C

    Multiple Connectivity Port
    One Thunderbolt 3 port with 60W power delivery(Host), one Thunderbolt 3 with 5V/3A charging port , one DisplayPort 1.4 port, three USB-A 5Gbps with 5V/1.5A charging ports, one Gigabit Ethernet port, and multi-slot memory card reader/writer (XQD 2.0 / CFast 2.0 / Micro SD 3.0 (TF) / SD 4.0)


    Memory card reader interface
    Supports the latest memory cards such as XQD 2.0, SD 4.0 UHS-II, CFast 2.0, TF/Micro SD 3.0, meets the demand of professional and amateur photographers, improving work efficiency


    TBT3 icon60W Power Delivery
    PD 3.0 charging specification compatible supplies up to 60 watts to charge your laptop, notebook, tablet, and smartphone. Includes 120W power adapter to provide enough power for the connected peripherals


    High-Speed Data Transfer
    Delivers three USB-A ports with 5V/1.5A charging and supports data transfer rates up to 5Gbps

    1G Ethernet Data Transmission
    Up to 1,000Mbps data transfer rate and seamless backward compatible with 10/100 Mbps

    Maximum Compatibility
    Compliant with mac® M1, M2, M3 Pro, & Max systems for single extend video output and Mirror mode only
    Compatible with Windows® 11 / 10 or macOS® 10.13 or new

    Aluminum Housing Design
    Premium aluminum housing provides efficient heat dissipation for reliable performance and long life


    • Media editor
    • Video editor
    • Film production
    • Educational facilities
    • Office
    • Workstation
    • Financial

    Need to Know Before Buying

    1.Please confirm your computer’s USB-C port supports Thunderbolt 3 and DP Alt Mode (check on manual of computer) and ensure it supports the resolutions and refresh rates you want

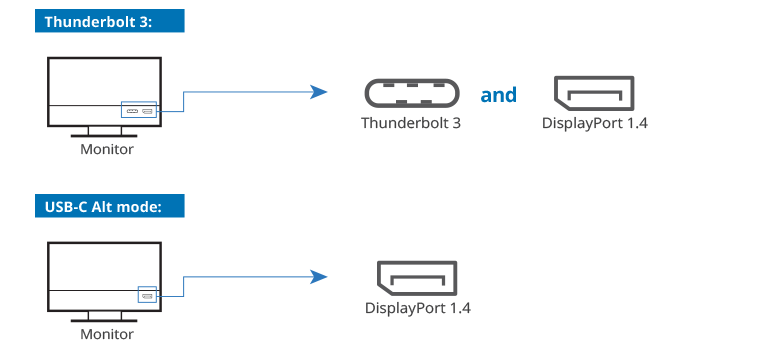

    2. Check the extended display/monitor resolution:
    Thunderbolt 3 supports 8K 30Hz / 4K 144Hz; USB-C Alt mode supports 4K@60Hz


    3. Thunderbolt 3, DisplayPort 1.4. USB 3.1 Gen 1 Type-A icons on certified products and cables

    4. Check your USB-C port or cable with Power Delivery, then it can handle up to 60W and will go to 100W using a full-featured USB Type-C


    5. If you are using a DP to HDMI cable or adapter, please make sure it has "Active" word on it. Passive products without "Active" are used for DP dual mode signals


    Chipset Intel Titan Ridge JHL7440, Realtek 5411E. Realtek 8153B and Realtek 5329
    OS Compatibility Windows® 11 & mac OS® 10.13 or newer
    Thunderbolt 3 - Compliant with Intel Thunderbolt 3 specifications
    - Data transfer: 40Gbps
    - Video/Audio: 1x 8K/5K/4K144Hz display or 2x 4K displays
    - Special cables are required for longer connections
    - Up to 6 daisy-chaining of Thunderbolt 3 devices
    *Compliant with mac® M1, M2, M3 Pro, Max systems for single extend video output
    DisplayPort DP 1.4, 8K / 5K@60Hz / 4K@144Hz
    Video cable length DisplayPort: Up to 3M (max), cable is not included
    Fast-Charge Port(s) Yes
    USB 3x USB-A 5Gbps with 5V/1.5A fast charging
    Resolutions Thunderbolt 3 with Titan Ridge chipset,
    Single Video: up to 8K30Hz / 4K144Hz (DisplayPort 1.4 or Thunderbolt 3)
    Dual Video: up to 4K@60Hz (DisplayPort 1.4 and Thunderbolt 3)
    Power Delivery 3.0
    (USB PD)
    60W, Support 5V, 9V, 15V, 20V / 3A
    Power Adapter Input: AC 100-240V / 50-60Hz, Output: DC 24V / 5A
    Data transfer rate: up to 1G (1000Mbps), backward compatible with 10/100Mbps
    Supports IEEE 802.3x, IEEE 802.3, 802.3u Full Duplex flow operation, crossover detection, and auto-correction
    Enterprise features Wake on LAN and PXE boot
    *Note: Mac address pass-through not supported
    5.1 channel surround sound from DisplayPort output
    Card readers
    XQD 2.0 Speed up to 400MB/s, capacity up to 2TB
    CFast 2.0 Up to 500MB/s
    SD 4.0 (UHS-II) Speed up to 270MB/s, capacity up to 2TB
    TF/Micro SD 3.0 (UHS-I) Speed up to 104MB/s, capacity up to 2TB
    Environmental conditions
    Operating temperature 32 to 104 degrees F
    Storage temperature 14 to 158 degrees F
    Storage temperature 14 to 158 degrees F
    Product Info
    Dimensions 7.87” (W) x 0.98” (H) x 3.54” (D)
    Weight 0.59 lbs
    Color Iron Gray
    Housing material Aluminum + plastic
    Unit Package: Dimensions: 9.84" (W) x 3.35" (H) x 5.39" (D)
    Weight: 2.32 lbs
    FCC, CE, RoHS
    UPC Code: 662774-044187
    Warranty: 2 years limited
    Country of origin: China




    • 1x 24-pin, USB-C, Thunderbolt 3 (With PD Charging), Female, for host
    • 1x 24-pin, USB-C, Thunderbolt 3 (With PD Charging), Female, for device
    • 1x 20-pin, DisplayPort 1.4, Female
    • 3x 9-pin, USB-A 5Gbps, Female, supports 5V/1.5A fast Charging
    • 1x 8-pin, RJ45, Gigabit Network, Female
    • 1x XQD 2.0 memory card slot, supports up to 400MB/s
    • 1x CFast 2.0 memory card slot, supports up to 500MB/s
    • 1x SD 4.0 (UHS-II) memory card slot, supports up to 280MB/s
    • 1x TF/Micro SD 3.0 (UHS-I) memory card slot, supports up to 104MB/s
    • 1x DC power jack

    System Requirements

    • Desktop or laptop computer with an available Thunderbolt 3 with DP 1.4 technology
    • Compliant with mac® M1, M2, M3 Pro, & Max systems for single extend video output
    • Windows® 11 / 10
    • mac OS® 10.13 or newer

    Package contents

    • 1x Thunderbolt 3 Dual 4K Multimedia Docking Station with PD - Titan Ridge
    • 1x Thunderbolt 3 cable
    • 1x Power Adapter (24V/5A)
    • 1x User Reference Guide


Frequently Asked Questions (Q&A)

Q: Why does my DP to HDMI cable not work?

The DP port of the Docking Station is a DP native signal and requires an Active DP to HDMI cable or adapter. Please confirm your DP to HDMI cable or adapter has "Active" typeface DP to HDMI cable/adapter without "Active" is passive product, used for...
