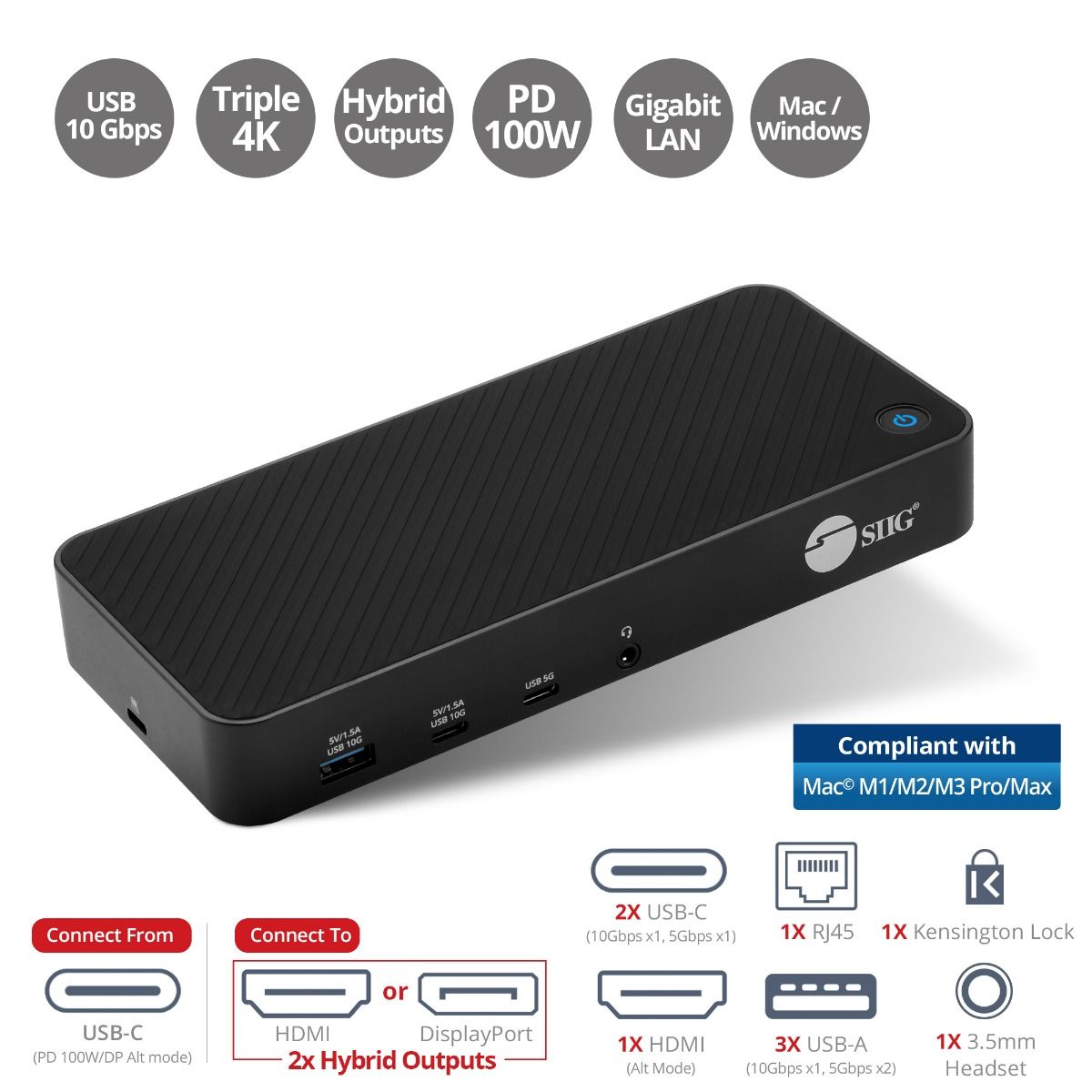

Triple Hybrid 4K Video Docking Station with PD Charging

  • USB-C Input
  • DP Alt mode
  • PD 100W
  • DisplayLink IC
  • Triple 4K
  • Single 5K
  • 2x Hybrid DP/HDMI
  • 1x DP Alt mode HDMI
  • 1x USB-C 10Gbps
  • 1x USB-C 5Gbps
  • 1x USB-A 10Gbps
  • 2x USB-A 5Gbps
  • 1x 3.5mm Audio Jack
  • 1x Gigabit Ethernet
  • Kensington Lock
  • Windows & Mac
Out of stock
SKU
JU-DK0P11-S1
$379.99

We will send this product within 1 business day

Lifetime technical support on all of our product

45 day return and money back guarantee



    Overview

    Advanced Hybrid docking station adds three 4K displays, one USB-C 10Gbps port, one USB-A 10Gbps port, one USB-C 5Gbps, two USB-A 5Gbps ports, one Gigabit Ethernet port, one stereo audio/microphone port, and USB Power Delivery charging up to 100 watts to Windows and Mac computers

    Overview


    Features

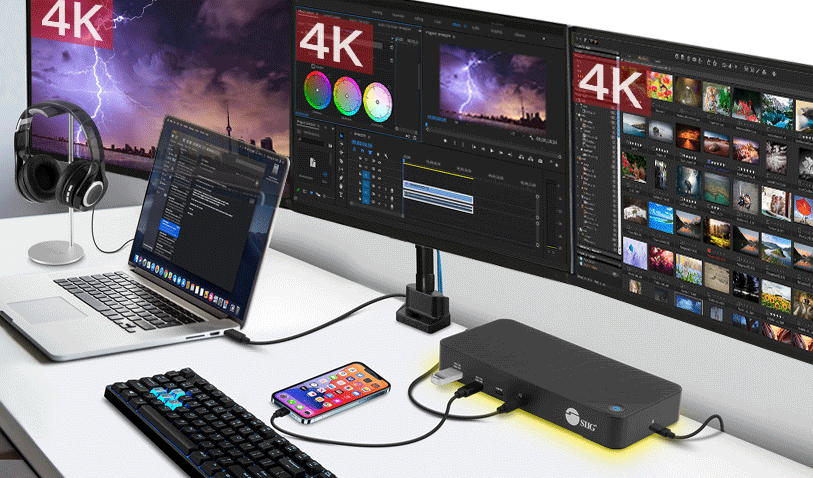

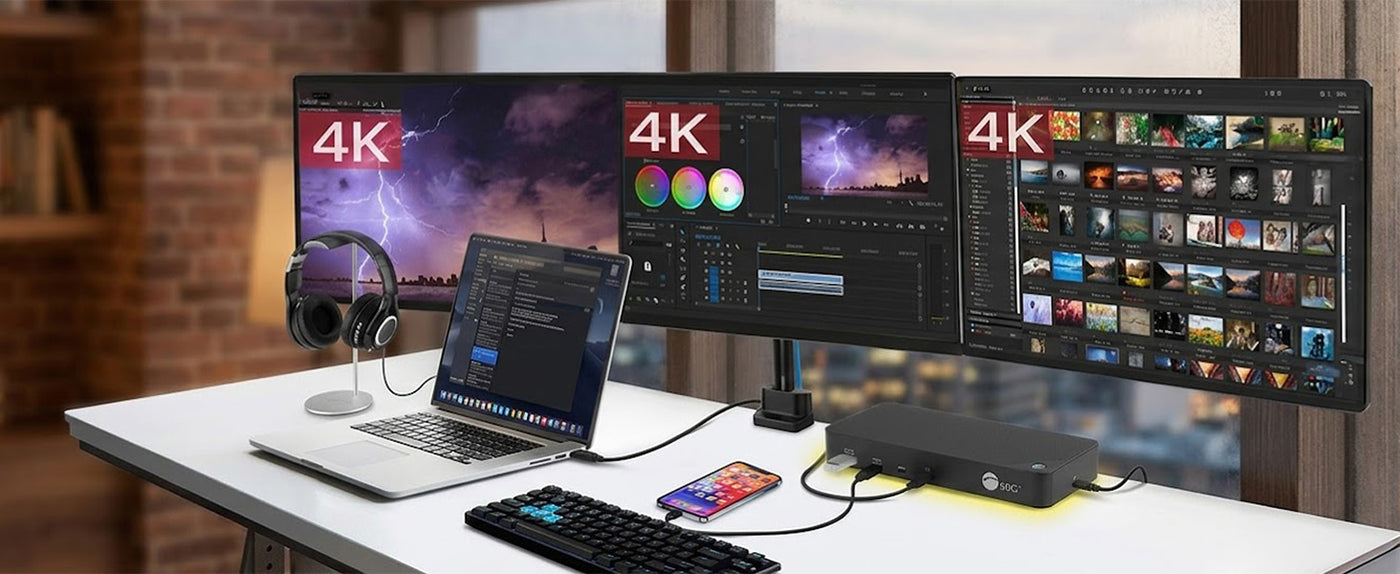

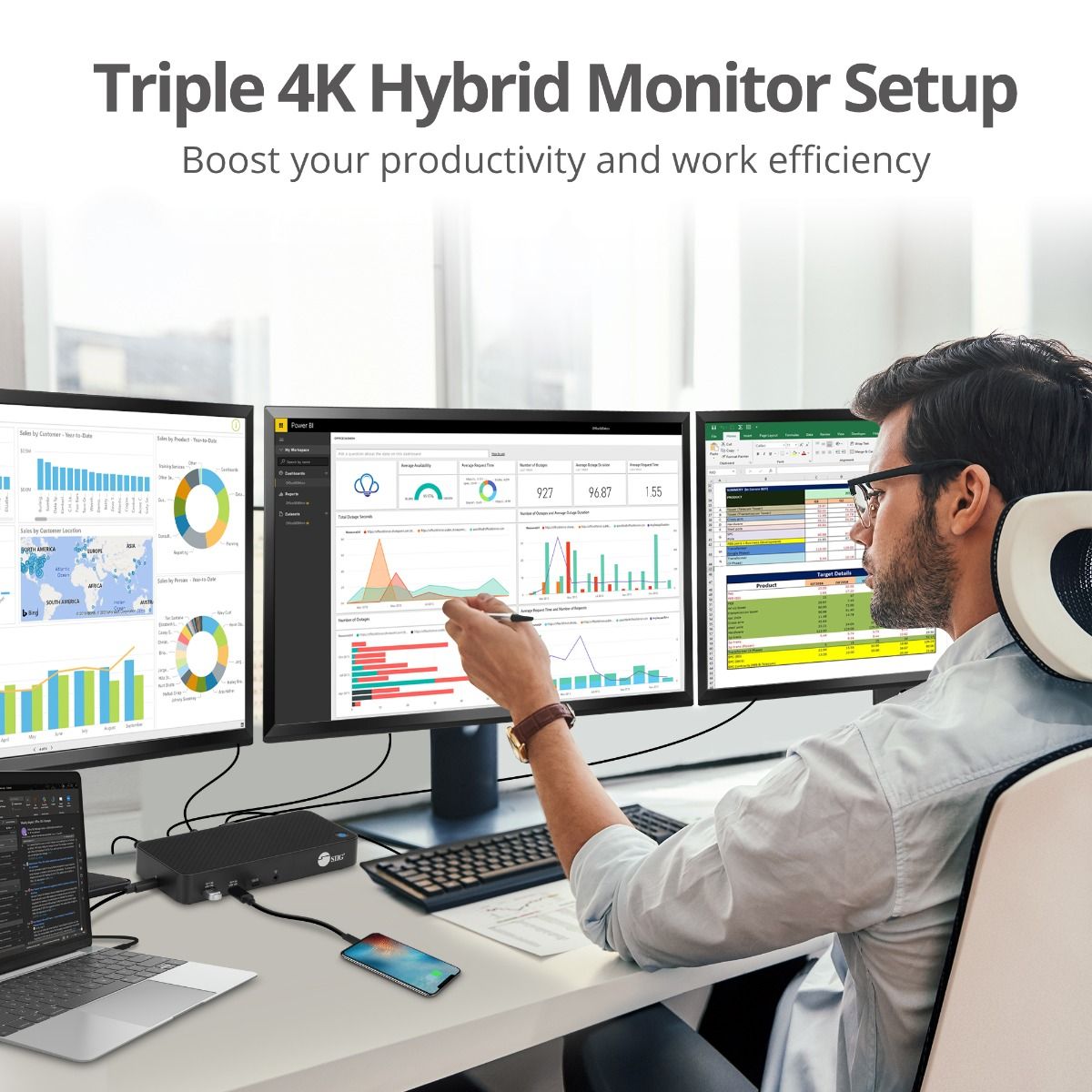

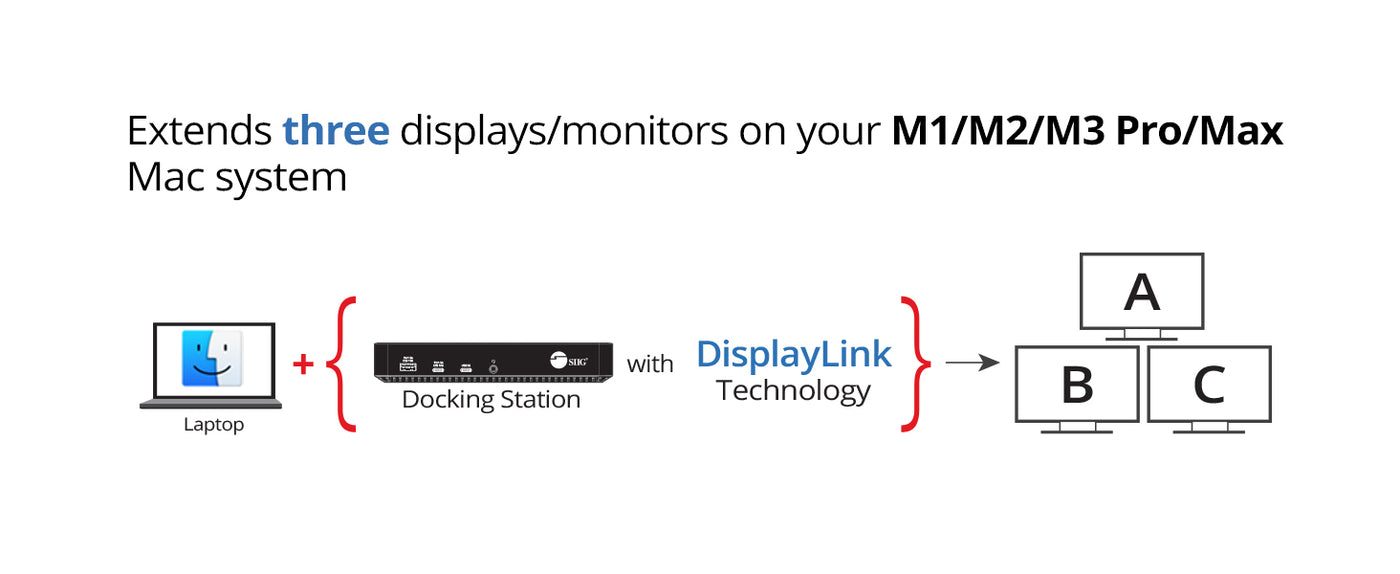

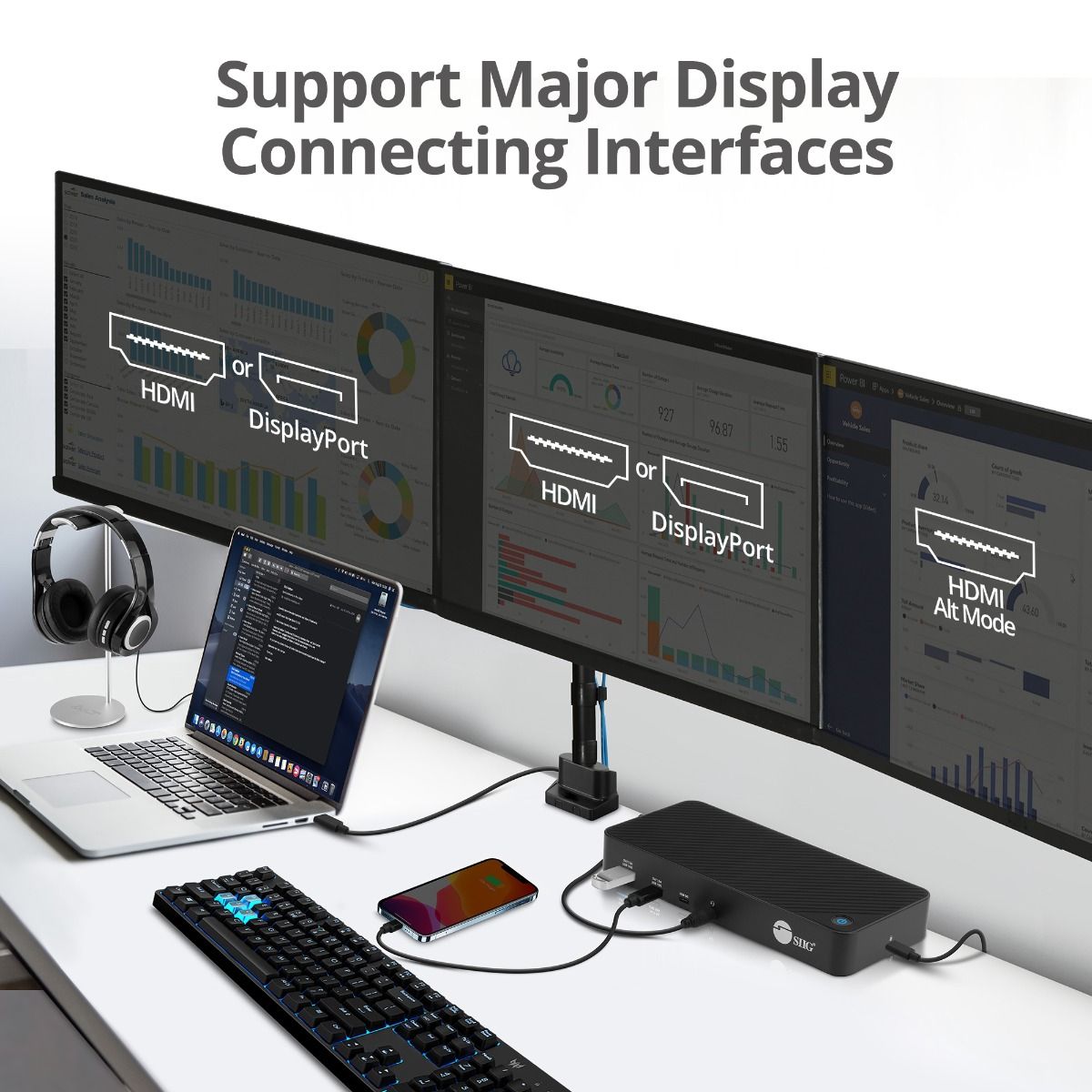

    Improve your work efficiently by connecting three 4K displays (2x DisplayPort/HDMI with DisplayLink IC + 1x HDMI with DP Alt mode connections) simultaneously or a single 5K display (2x DisplayPort connection), providing 100W PD, and multiple connections

    Features

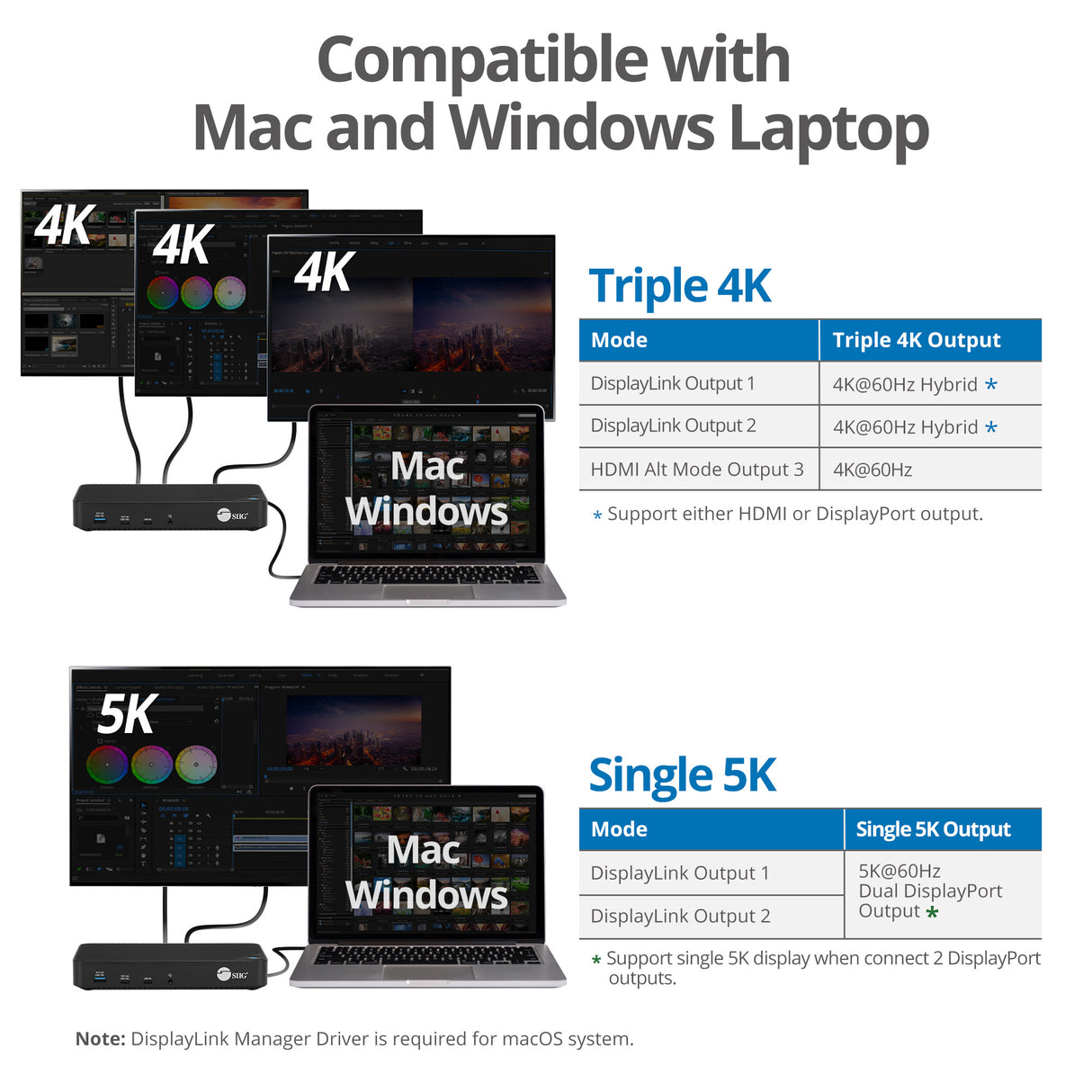

    5K/4K Video Resolution
    Connect DisplayLink controlled DisplayPort or HDMI and DP Alt mode HDMI:

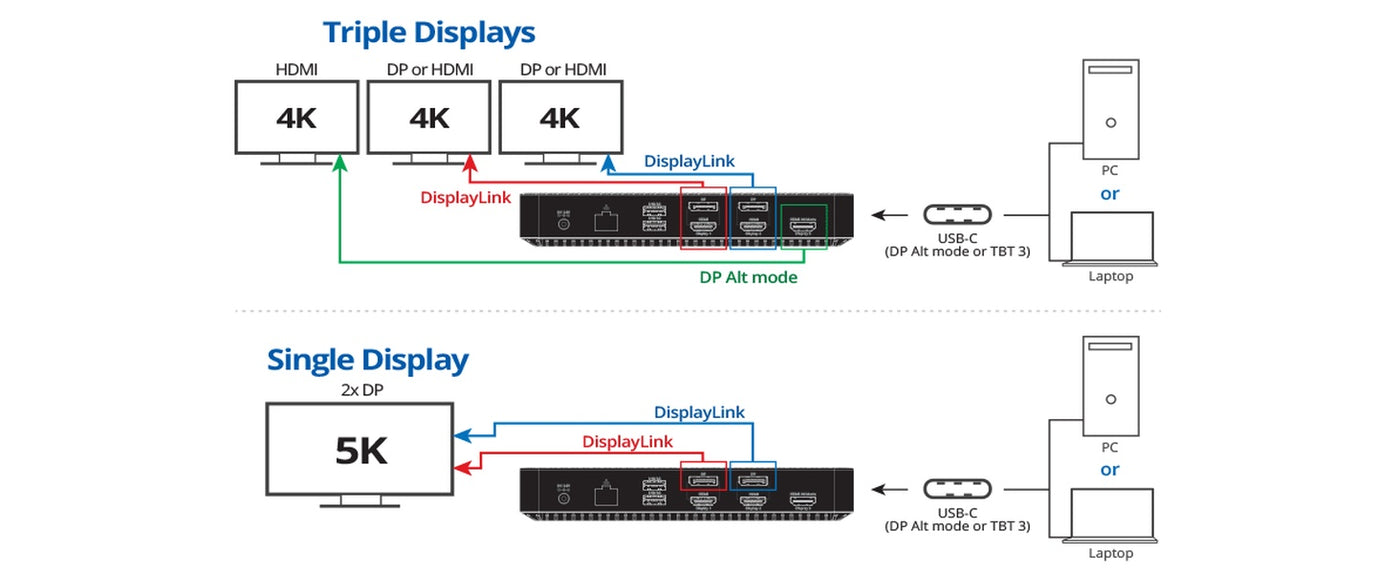

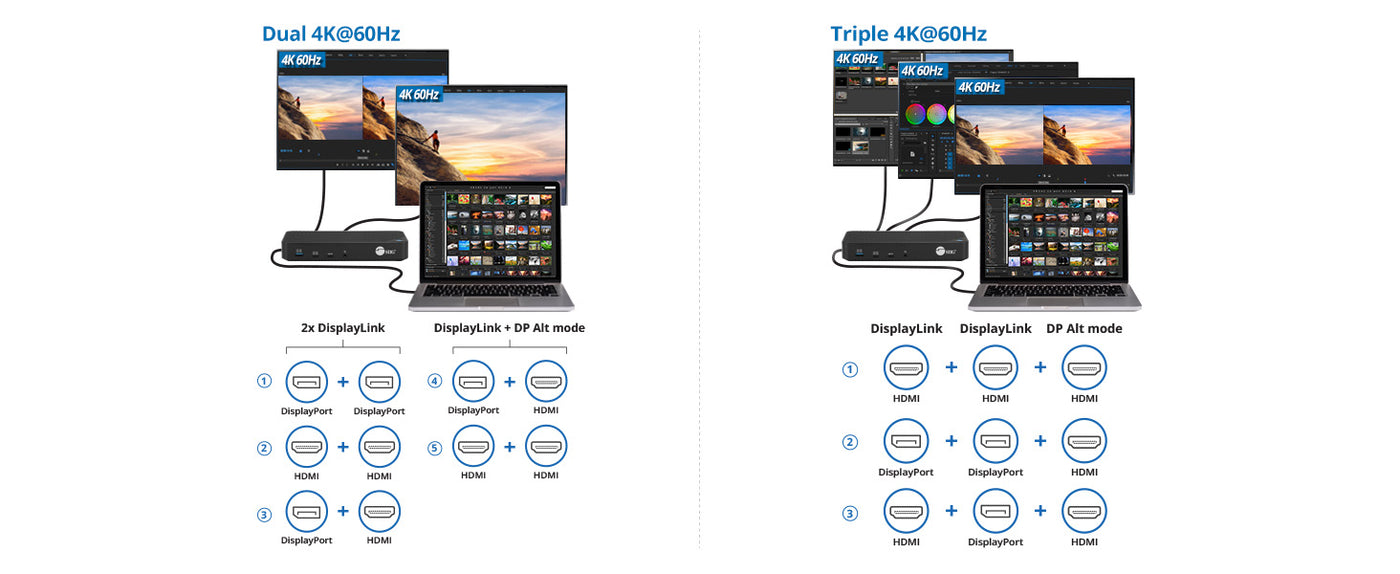

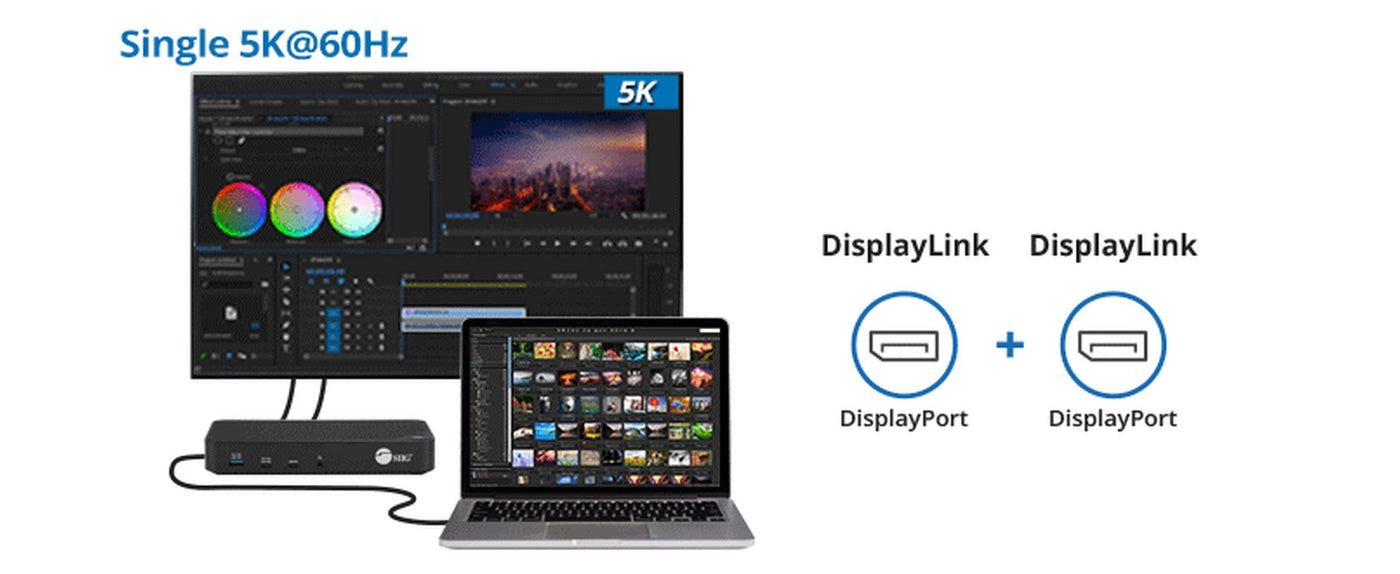

    Supports one single 5K (5120x2880) @60Hz display via 2 DisplayPort ports, dual 4K (3840x2160) @60Hz Ultra HD displays via DP/HDMI or DP/DP or HDMI/HDMI with DisplayLink IC, or triple 4K (3840x2160) Ultra HD display via dual 4K (3840x2160) @60Hz DP/HDMI (with DisplayLink IC) displays + one 4K (3840x2160) @30Hz HDMI (with DP Alt mode) displays

    *Note: DP 1.2 Alt mode supports 4K @30Hz resolution

    Resolution1
    Resolution2

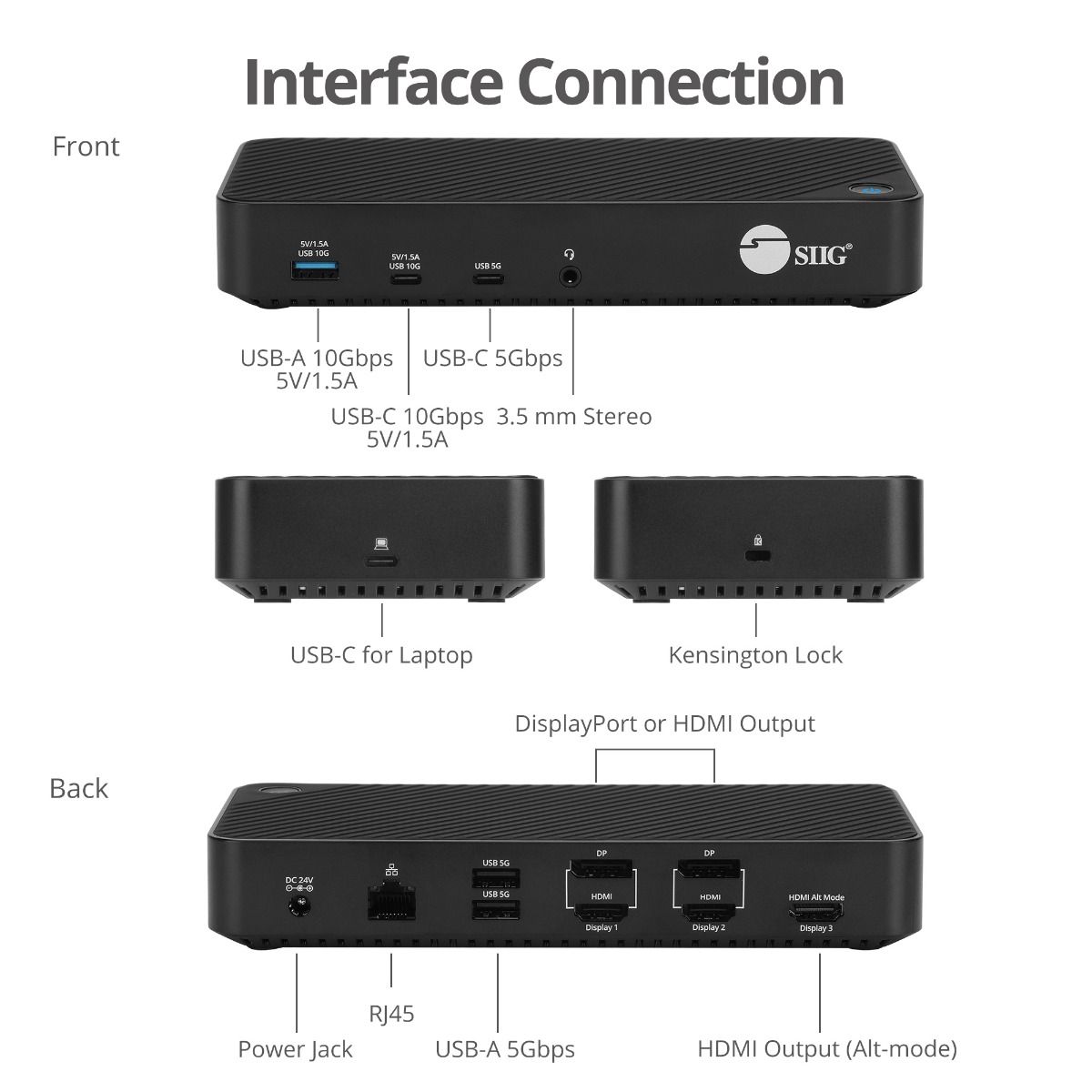

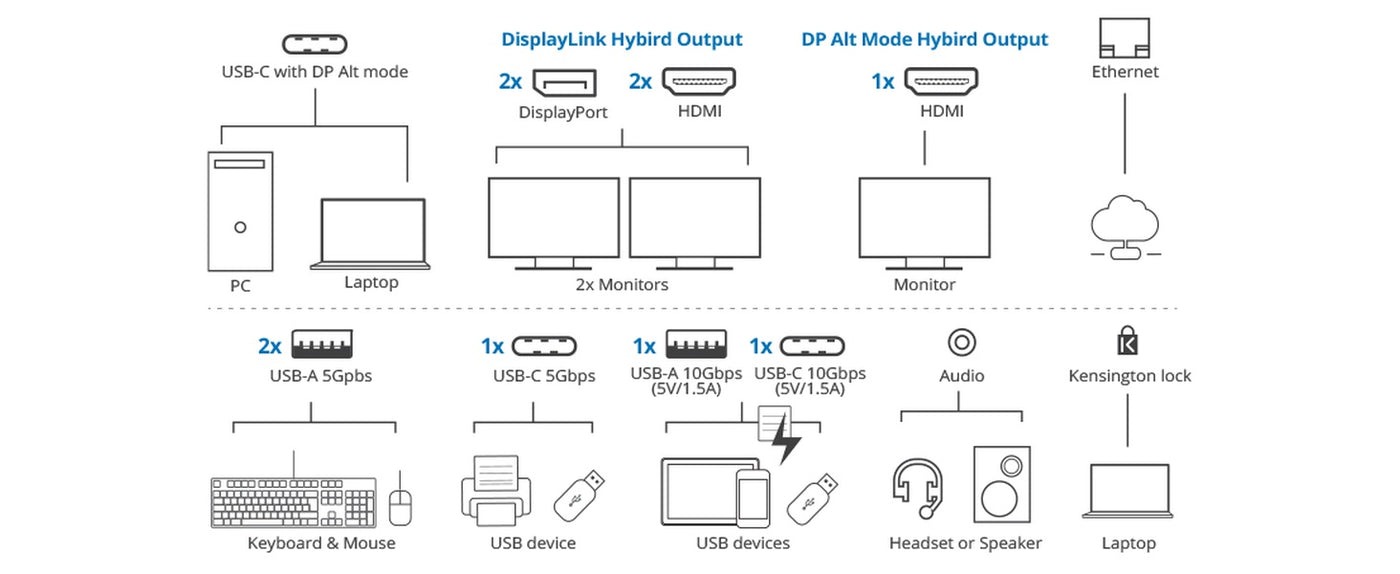

    Multiple Connectivity Ports
    Adds one USB-C port with PD 100W (Host), two DisplayPort video output ports (with DisplayLink controlled), two HDMI video output ports (with DisplayLink controlled), one HDMI video output port (with DP Alt mode), one USB-C 3.2 Gen 2 10Gbps with 5V/1.5A charging, one USB-C 3.2 Gen 1 5Gpbs, one USB-A 3.2 Gen 2 10Gbps with 5V/1.5A charging, two USB-A 3.2 Gen 1 5Gbps ports, one Gigabit Ethernet, one 3.5mm headset jack (stereo audio and microphone), one Kensington lock, one Power button with LED, and one DC 24V/5.41A power jack
    Ports

    Connection
    Connection


    USB-C / USB-A 3.2 Data Transfer
    Provides one USB-C 3.2 Gen 2 10Gbps with 5V/1.5A charging, one USB-C 3.2 Gen 1 5Gbps, one USB-A 3.2 Gen 2 10Gbps with 5V/1.5A charging, and two USB-A 3.2 Gen 1 5Gbps ports to enhance the performance and transfer capability of USB devices
    USB

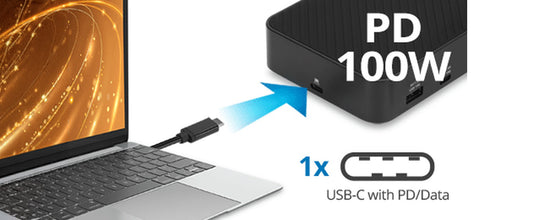

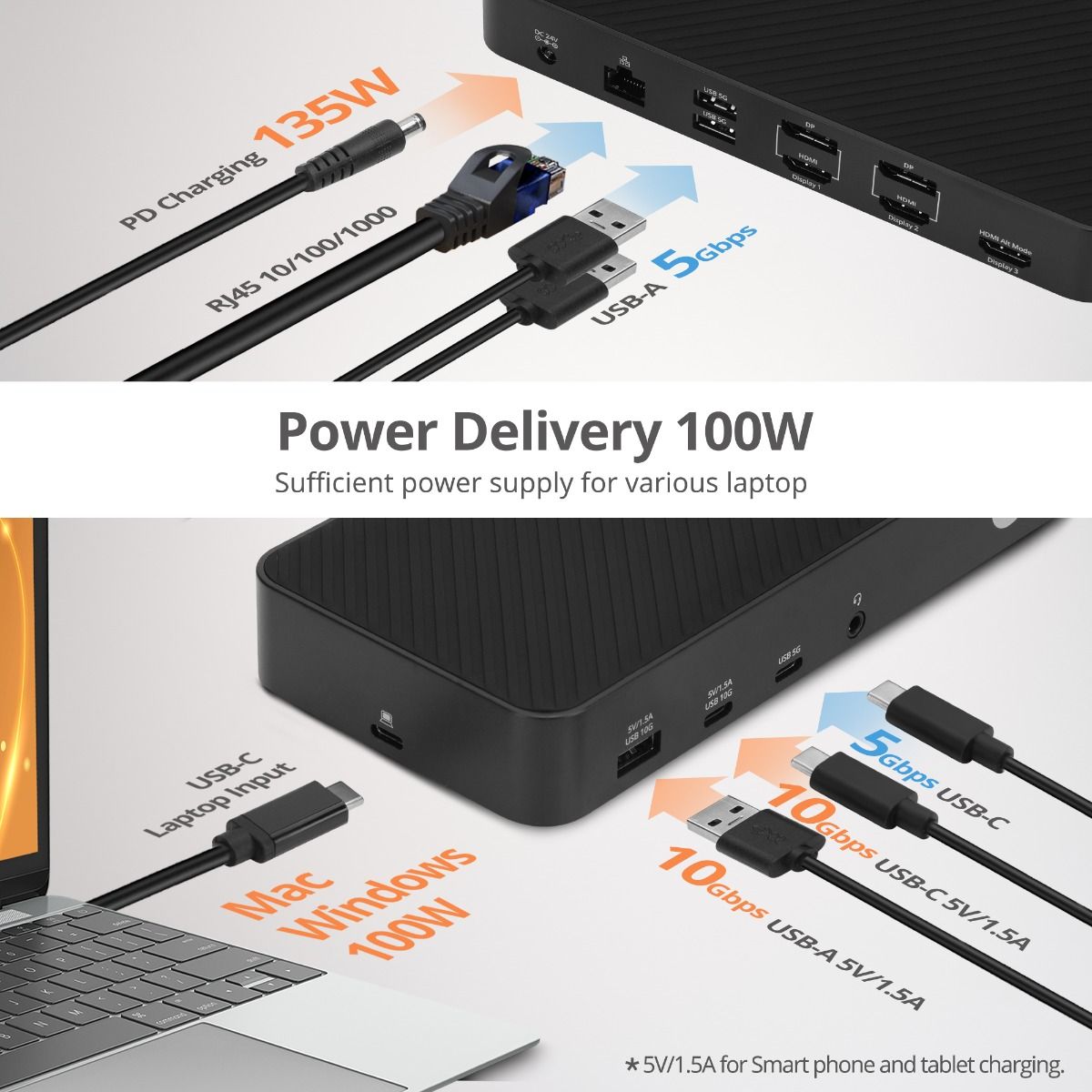

    PD100W Power Delivery
    Includes high quality USB-C to USB-C or USB-C to USB-A cables for connecting laptop/notebook, supports up to 100W Power Delivery charging for laptop, notebook, tablet, and smartphone. The included 135W power adapter ensures enough power for laptop charging and USB peripherals


    Security Lock
    Keep your laptop safe and secure with a Kensington security lock when you work in a public place


    RJ451G Ethernet Data Transmission
    Reliable wired network connectivity through embedded 10/100/1000BASE-T Gigabit Ethernet port


    3.5mm Headset Jack
    Supports one 3.5mm headset jack for 2 channel stereo audio and microphone connection


    ABS Housing Design
    Smooth ABS housing with heat dissipation design for reliable performance and increase efficiency. Built-in power on/off button with LED provides easy recognition of power status


    Maximum Compatibility
    Compatible with Windows® 11 (32-/64-bit) / 10 (32-/64-bit) / 8.1 (32-/64-bit) / 7 (32-/64-bit) and macOS® 11 / 10.15 to 10.13
    * Note:
    1. macOS® 10.13.4 to 10.13.6 is not supported, it’s recommended to upgrade to10.14 or later or stay with 10.13.3 and earlier
    2. macOS® 10.15.6 or later: Uninstall any legacy DisplayLink driver (v5.2.5 or earlier) and install the latest driver on SIIG's website
    3. Does not support movie/video playback via iTunes and HDCP protected content via Safari web browser (Netflix, Amazon Prime, Hulu, HBO Go, etc...)
    4. This Triple Hybrid 4K Video Docking Station with PD Charging is recommended with web and productivity software, not for gaming, and cannot be mixed with non-DisplayLink USB Adapters and Docking station


Applications

    • Media editing
    • Web design studio
    • Educational facilities
    • Office
    • Home office
    • Workstation
    • Financial
    • Medical office
    • Reception room
    • Surveillance control center
    • Control center

    Need to Know Before Buying

    1. Please confirm your computer is Thunderbolt 3 or USB-C that supports DP Alt mode and ensures supports USB power delivery 3.0. If you are not sure, please check the manual of the computer
    * Note: Not all USB-C ports support the full functionality of the USB-C standard
    computer

    2. Check the extended displays/monitors have a DisplayPort or HDMI port. If you are not sure, please check with the manual of the monitor
    monitor

    3. Ensure the DisplayLink driver have installed before plug into DisplayLink HDMI & DisplayPort ports

    4. Before charging your laptop, notebook, tablet, and smartphone, please check your cable with power delivery, then it can handle up to 100W and will go to 135W using a full-featured USB Type-C


    Specifications

    Hardware
    Chipset DL-6950-N, PS176, VL822, VL817
    Software
    OS Compatibility Windows® 11, mac OS® 12 or new
    * macOS® 10.13.4 to 10.13.6 is not supported
    Video
    DisplayPort with DisplayLink IC x2, 5K / 4K / 1080p / 1080i / 720p / 480p @ 60Hz (connect both DisplayLink controlled DisplayPort outputs to a single 5K DisplayPort TV/Monitor)
    HDMI with DisplayLink IC x2, 4K / 1080p / 1080i / 720p / 480p @60Hz
    HDMI with DP Alt mode x1, 4K @30Hz
    USB
    USB-C 3.2 Gen 2 x1, data transfer rate up to 10Gbps, 5V/1.5A
    USB-C 3.2 Gen 1 x1, data transfer rate up to 5Gbps, 5V/900mA
    USB-A 3.2 Gen 2 x1, data transfer rate up to 10Gbps, with 5V/1.5A
    USB-A 3.2 Gen 1 x2, data transfer rate up to 5Gbps, 5V/900mA
    Fast Charging Port Yes
    Audio
    5.1 channel surround sound from DisplayPort/HDMI output
    2 channel stereo audio from 3.5mm headset jack (audio jack & microphone)
    Power
    Power Delivery 3.0 up to 100W via USB-C port (Host)
    Power Adapter Input: AC 100-240V/50-60Hz, Output: DC 24V/5.41A, UL listed: E355343/Level: VI
    Ethernet
    Data transfer rate: up to 1G (1000Mbps), backward compatible with 10/100Mbps
    Supports IEEE 802.3x Full Duplex flow operation, crossover detection and auto-correction
    Compatible with IEEE 802.3, 802.3u
    Environmental conditions
    Operating temperature 32 to 104 degrees F
    Storage temperature 14 to 158 degrees F
    Relative humidity: 10% to 90% RH (non-condensing)
    Product Info

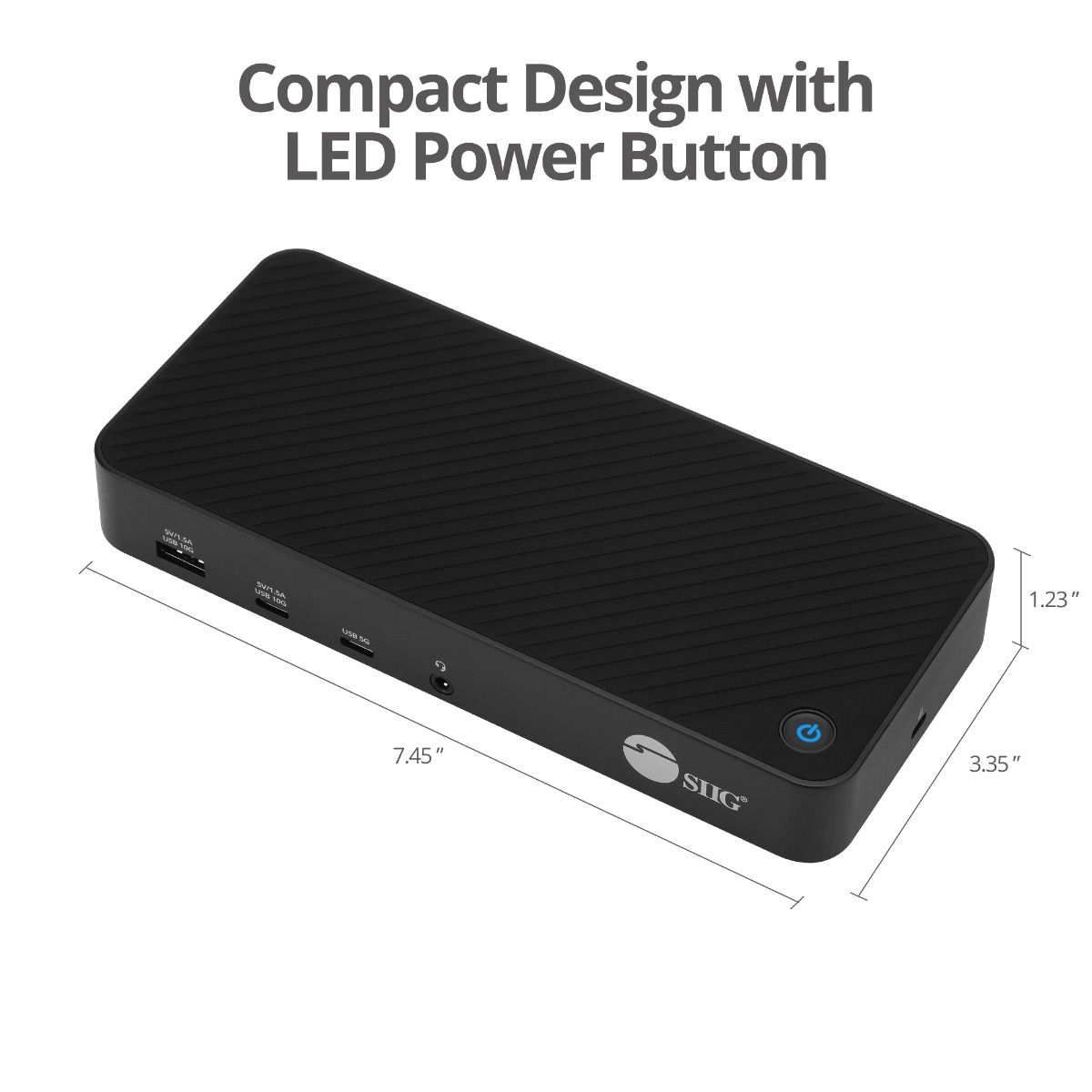

    Dimensions 7.48” (L) x 1.24” (H) x 3.35" (W)
    Weight 0.75 lbs
    Color Black
    Housing material ABS
    Unit package Dimensions: 9.84" (L) x 1.97" (H) x 8.07" (W)
    Weight: 2.34 lbs
    Certifications/Standards
    FCC, CE, RoHS 2.0, REACH
    Warranty: 2 years limited
    Country of origin: China

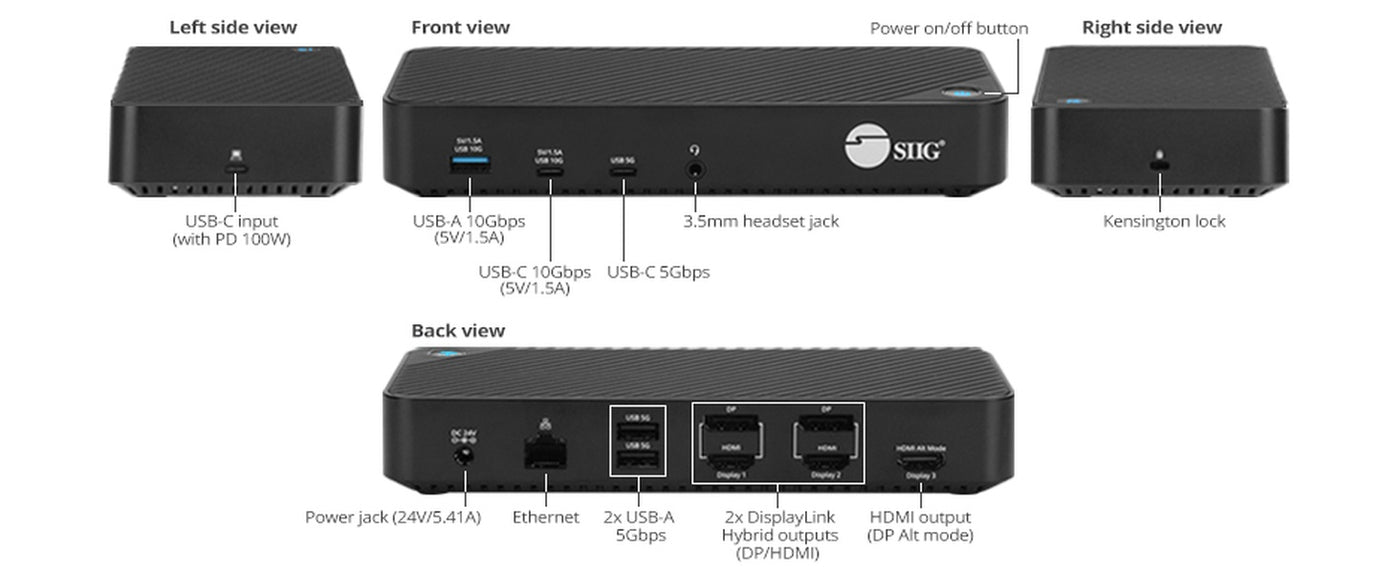

    Interface

    Interface

    Input:

    • 1x 24-pin, USB-C with PD 100W, Female (Host)
    • 1x DC power jack, 24V/5.41A
    • 1x Power button

    Output:

    • 2x 20-pin, DisplayPort with DisplayLink IC, Female
    • 2x 19-pin, HDMI with DisplayLink IC, Female
    • 1x 19-pin, HDMI with DP Alt mode, Female
    • 1x 24-pin, USB-C 3.2 Gen 2, 10Gbps, 5V/1.5A, Female
    • 1x 24-pin, USB-C 3.2 Gen 1, 5Gbps, Female
    • 1x 9-pin, USB-A 3.2 Gen 2, 10Gbps, 5V/1.5A, Female
    • 2x 9-pin, USB-A 3.2 Gen 1, 5Gbps, Female
    • 1x 8-pin, RJ45, Gigabit Ethernet, Female
    • 1x 3.5mm headset jack, stereo audio & mic
    • 1x Kensington security lock

    System Requirements

    • Desktop or Laptop with an available USB-C with DP Alt mode or Thunderbolt 3 port
    • Windows® 11 (32-/64-bit) / 10 (32-/64-bit) / 8.1 (32-/64-bit)
    • macOS® 12 / 11 / 10.15 to 10.14
      * Note: not compatible with macOS® 10.13.4 to 10.13.6

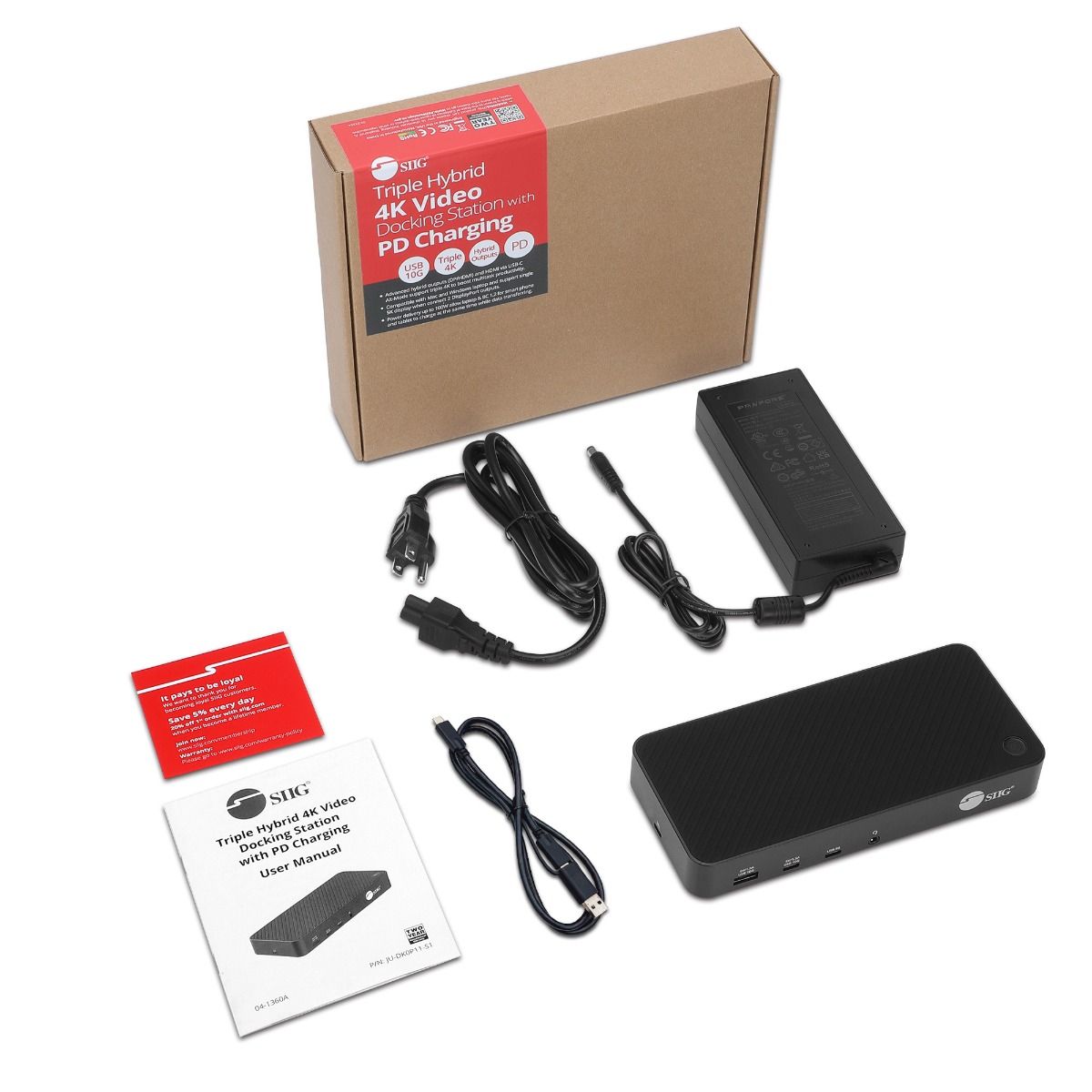

    Package contents

    • 1x Triple Hybrid 4K Video Docking Station with PD Charging
    • 1x USB-C to C cable
    • 1x USB-C to A cable
    • 1x Power Adapter, 24V/5.41A
    • 1x User Reference Guide

Manuals

04-1360b.pdf Download manual

Drivers


Hardware Version: 1

Windows 8 (32-/64-bit)
Download driver version 9.3 M1
Windows 11 (32-/64-bit) / 10 (32-/64-bit) / 8.1 (32-/64-bit) / 7 (32-/64-bit)
Download Driver Version 10.2 M2
Software Package Version: 10.2.6960.0. Driver version: 10.2.6943.0
macOS Mojave 10.14
Download Driver Version 5.2.6
Build: v5.2.6 (128)
macOS Catalina 10.15
Download DisplayLink Manager 1.5
For the latest MAC driver please visit, https://www.synaptics.com/displaylink/downloads/macos, and download the latest driver to maximize compatibility
macOS Monterey 12
Big Sur 11
Download DisplayLink Manager 1.6.1
Build: posix/59-3220-g80195277db4 (135). For the latest MAC driver please visit, https://www.synaptics.com/displaylink/downloads/macos, and download the latest driver to maximize compatibility
