Universal Hybrid Triple 4K Video Docking Station with PD 3.0- Windows & Mac M1/M2/M3 Pro/Max Compatible

• Features
• Applications
• Need to Know Before Buying

---

Overview

Advanced hybrid docking station adds three 4K displays, 6 USB Type-A 5Gbps ports, a Gigabit Ethernet port, a stereo audio/microphone port, and USB Power Delivery charging up to 100 watts to Windows and Mac computers. Compliant with mac^® system for M1, M2, M3 Pro, & Max

---

Features

3 Hybrid displays with multiple connections by a single USB-C with DP Alt mode output and DisplayLink controlled technology to create a perfect workstation and increase your work productivity



---



---

High Performance

Expand multiple connectivity ports to your USB-C with DP Alt mode or Thunderbolt 3 enabled mac or Windows PC to increase your efficiency. This Universal Hybrid Dual 4K Video Docking Station is fully certified to meet DisplayLink certification. DisplayLink graphics technology works with any computer, connector types and connect multiple displays functionality to increase in work productivity. Compatible with USB-A, USB-C, etc.



---

5K/4K Video Resolution


Monitor solution

Connect DisplayLink controlled DisplayPort or HDMI output:
Supports one single 5K (5120x2880) @60Hz display via 2 DisplayPort ports, or two 4K (4096x2160) @60Hz Ultra HD displays via DP/HDMI or DP/DP or HDMI/HDMI, or one single 4K (4096x2160) @60Hz display (DP or HDMI)

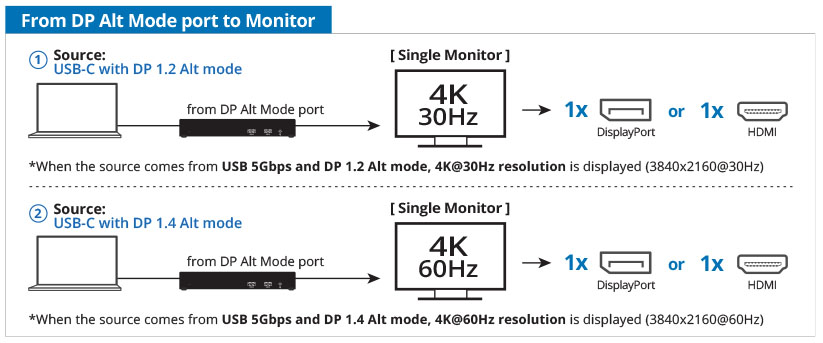

Connect one DisplayPort or HDMI 4K@30Hz display via USB-C DP 1.2 Alt mode output (USB-C DP 1.4 Alt mode output supports 4K@60Hz display)


Supports three 4K (3840x2160) @60Hz displays (one DP or HDM via DP 1.4 Alt mode + two DP or two HDMI or DP & HDMI via DisplayLink controlled)
*Note:
- DP 1.2 Alt mode supports 4K (3840x2160) @30Hz
- Compliant with mac^® system for M1, M2, M3 Pro, & Max

---

Multiple Connectivity Ports

Adds one USB-C port with PD 100W (Host), one DisplayPort video output port (with USB-C DP Alt mode), two DisplayPort video output ports (with DisplayLink controlled), one HDMI video output (with USB-C DP Alt mode), two HDMI video output ports (with DisplayLink controlled), six USB-A 5Gbps output ports, one Gigabit Ethernet, one 3.5mm headset jack (stereo audio and microphone)



Connection



---



SuperSpeed Data Transfer

Provides six USB-A ports and data transfer rate up to 5Gbps; enhance your laptop's connectivity options and performance capabilities

---



100W Power Delivery

Includes high quality USB-C 20V/5A cable for connection to laptop/notebook, supports up to 100W Power Delivery charging for laptop, notebook, tablet, and smartphone. The included 135W power adapter ensures enough power for laptop charging and USB peripherals

---



1G Ethernet Data Transmission

Reliable wired network connectivity through embedded 10/100/1000 Base-T Gigabit Ethernet port

Enterprise Features:
- Wake on Lan
- PXE boot
*Note: Mac address not supported

---



3.5mm Audio Jack

Supports one 3.5mm headset jack for 2 channel stereo audio and microphone connection

---

ABS Housing Design

Smooth ABS housing with heat dissipation design for reliable performance and increase efficiency. Built-in LED provides easy recognition of power status

---

Maximum Compatibility
- Compatible with Windows^® 11 (64-bit) / 10 (32-/64-bit) / 8.1 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit) and macOS^® 12 / 11 / 10.15 to 10.13

*Note:
1. macOS^® 10.13.4 to 10.13.6 is not supported, it’s recommended to upgrade to 10.14 or later or stay with 10.13.3 and earlier
2. macOS^® 10.15.6 or later: Uninstall any legacy DisplayLink driver (v5.2.5 or earlier) and install the latest driver on SIIG's website
3. Does not support movie/video playback via iTunes and HDCP protected content via Safari web browser (Netflix, Amazon Prime, Hulu, HBO Go, etc...)
4. This Universal Hybrid Triple 4K Video Docking station with PD 3.0 is recommended with web and productivity software, not for gaming, and cannot be mixed with non-DisplayLink USB Adapters

---

Applications

• Office
• Web design studio
• Medical office
• Workstation
• Educational facilities
• Financial
• Home office
• Surveillance control center
• Reception room
• Media editing

---

Need to Know Before Buying

1. Please confirm your computer is Thunderbolt 3 or USB-C that supports DP Alt mode, and ensure supports USB power delivery 3.0. If you are not sure, please check on the manual of the computer



2. If your source is USB-C with DP 1.2 Alt mode, then it provides 4K@30Hz resolution; USB-C with DP 1.4 Alt mode provides 4K @60Hz resolution



3. Check the extended displays/monitors have a DisplayPort or HDMI port. If you are not sure, please check with the manual of the monitor



4. This dock requires driver installation for DisplayLink (DisplayLink is a technology for video output via USB). Download the latest version of the driver from SIIG's home page
For Mac users, please allow the driver to access the "Screen Recording". It will not record your screen but access the display pixels to extend the desktop

5. Before charge your laptop, notebook, tablet, and smartphone, please check your cable with power delivery, then it can handle up to 100W and will go to 135W using a full-featured USB Type-C

6. Compliant with mac^® system for M1, M2, M3 Pro, & Max

• Interface
• System Requirements
• Package Contents

---

Specifications

Hardware
Chipset	DisplayLink DL-6950-N Compliant with Universal Serial Bus 3.0 and 2.0 specification
Software
OS Compatibility	Windows® 11, macOS® 12 or newer *Note: macOS® 10.13.4 to 10.13.6 is not supported
Video
DisplayPort 1.2	5K (Connect both DisplayLink controlled DisplayPort 1.2 outputs to a single 5K DisplayPort TV/Monitor) / 4K / 1080p / 1080i / 720p / 480p; 5K/4K@60Hz: cable up to 3M, 1080p@60Hz: cable up to 5M
HDMI	4K @60Hz, cable up to 3M
USB-A	x6, data transfer rate up to 5Gbps, 5V/900mA, and compatible with USB 2.0 specification
Fast Charging Port	Yes
Audio
5.1 channel surround sound from HDMI/DisplayPort output
2 channel stereo audio & microphone from 3.5mm Headset Jack
Display Mode
Mirror, Extended, and Primary video modes
Power
Power Delivery 3.0	up to 100W via USB-C (Host)
Power Adapter	Input: AC 100-240V / 50-60Hz, Output: DC 20V/6.75A
UL Listed	E132068 /Level: VI
Ethernet
Data transfer rate: up to 1G (1000Mbps), backward compatible with 10/100Mbps
Supports IEEE 802.3x Full Duplex flow operation, crossover detection, and auto-correction
Compatible with IEEE 802.3, 802.3u
Enterprise features	Wake on LAN and PXE boot *Note: Mac address pass-through not supported
Environmental conditions
Operating temperature	32 to 104 degrees F
Storage temperature	14 to 158 degrees F
Relative humidity:	10% to 90% RH (non-condensing)
Product Info
Dimensions	7.87” (L) x 1.18” (H) x 3.35" (W)
Weight	0.68 lbs
Color	Black
Housing material	ABS
Unit Package:	Dimensions: 9.09" (W) x 3.25" (H) x 5.67" (D) Weight: 2.49 lbs
Certifications/Standards
FCC, CE, RoHS
UPC Code: 662774-044064
Warranty: 2 years limited
Country of origin: Thailand

---

Interface



Input:

• 1x 24-pin, USB 3.0 Type-C with PD 100W, Female (PC Input)
• 1x DC power Jack (135W)

Output:

• 3x 19-pin, HDMI, Female
• 3x 20-pin, DisplayPort, Female
• 6x 9-pin, USB-A, 5Gbps, Female
• 1x 8-pin, RJ45, Gigabit Ethernet, Female
• 1x 3.5mm Headset Jack (Stereo audio/Mic)

---

System Requirements

• Desktop or Laptop with an available USB-C with DP Alt mode or Thunderbolt 3 port
• Compliant with mac^® system for M1, M2, M3 Pro, & Max
• Windows^® 11 (64-bit) / 10 (32-/64-bit) / 8.1 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit)
• macOS^® 12 to 10.10 (not compatible with 10.13.4 to 10.13.6)

---

Package contents

• 1x Universal Hybrid Triple 4K Video Docking Station with PD 3.0
• 1x USB 3.0 C to C cable, 100W (Gen 2, 20V/5A), 1M
• 1x Driver CD
• 1x Power Adapter (20V/6.75A)
• 1x User Reference Guide
